ATR432C IMX432 1.76 MP color USB 3.0 astronomy camera

  • Sensor: Sony IMX432 color CMOS
  • Sensor Type: Large-pixel global-shutter color CMOS
  • Resolution: 1.76 MP (1600 × 1100)
  • Pixel Size: 9 µm
  • Frame Rate: 128 fps
  • Cooling: Two-stage TEC, ΔT ≥44 °C
ATR432C

Complete Specifications

Sensor & Imaging

Sensor & Imaging
SensorSony IMX432 color CMOS
Sensor TypeLarge-pixel global-shutter color CMOS
Sensor Size1.1-inch, 14.4 × 9.9 mm
Resolution1.76 MP (1600 × 1100)
Pixel Size9 µm
Shutter TypeGlobal shutter
Peak QE>79%
Spectral Range380–690 nm
Sensor Diagonal17.5mm
Color Filter ArrayRGGB

Performance

Performance
Frame Rate128 fps
ADC12-bit
Dynamic Range74 dB
Read Noise20.2–2.4 e⁻
Full Well100 ke⁻
LCG Read Noise2.4-20.2e-
Maximum SNR50dB
Frame Buffer512MB
DDR3 Buffer512MB
Max ExposureUp to 1 hour

Interface & Connectivity

Interface & Connectivity
InterfaceUSB 3.0

Cooling & Mechanical

Cooling & Mechanical
MountM42 / M54 astronomy adapters
CoolingTwo-stage TEC, ΔT ≥44 °C
Sensor Chamber WindowAdjustable heating window
Back Focal Distance17.5mm/12.5mm
Protective WindowIR/AR
Power SupplyDC 12V / 3A

Other Published Specifications

Other Published Specifications
ModelATR432C
StatusCurrent
ApplicationDeep-sky cooled
Legacy Model NameATR3CMOS01700KPA

Construction details

  • Detector assembly: Sony IMX432 color CMOS.
  • Cooling assembly: Two-stage TEC, ΔT ≥44 °C.

Technical Files & Images

Technical images (3)

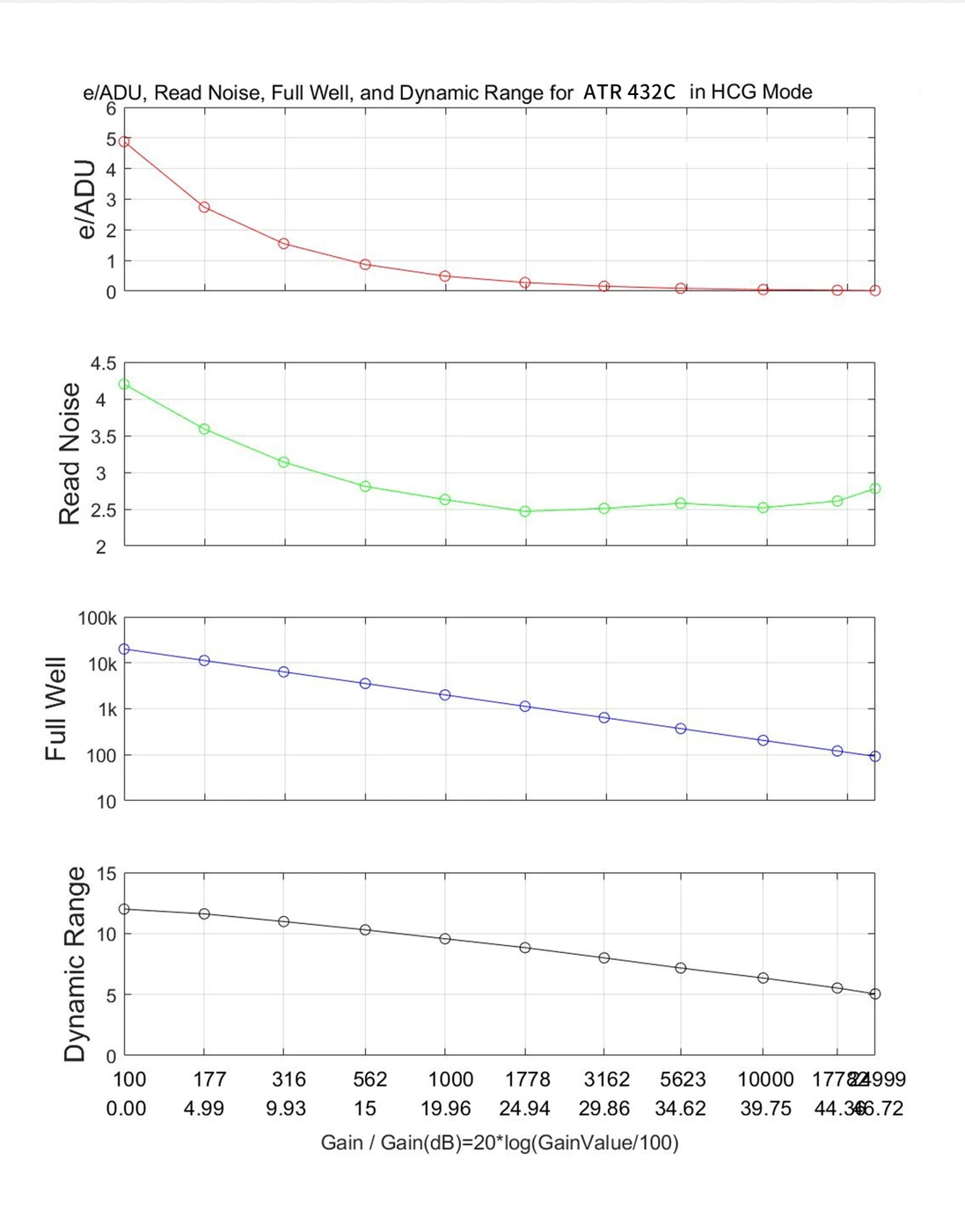

ATR432C HCG performance analysis chart
ATR432C HCG performance analysis chart

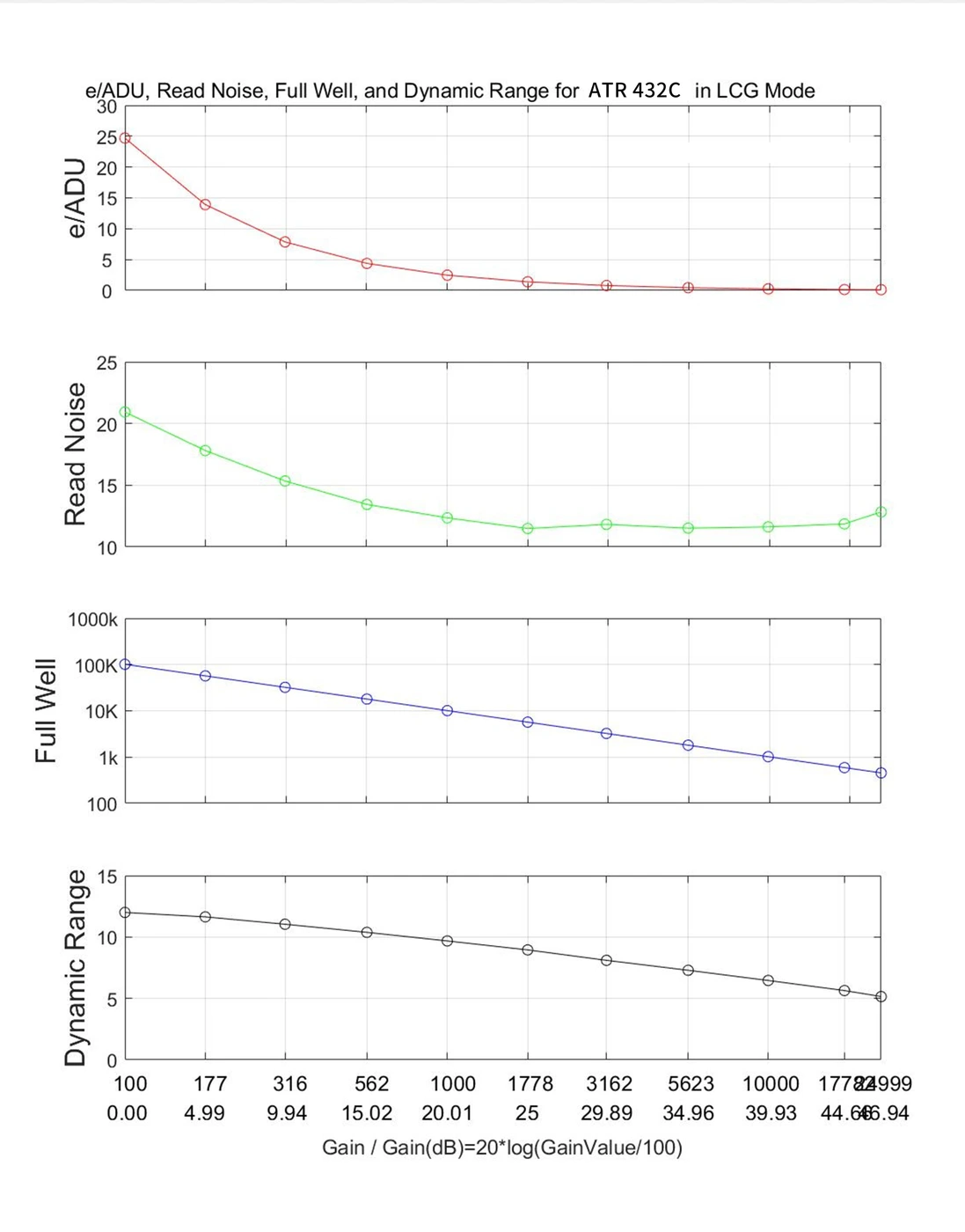

ATR432C LCG performance analysis chart
ATR432C LCG performance analysis chart
ATR432C camera parameters
ATR432C camera parameters

Ask Precisometer

Will ATR432C work in your setup?

Send us your application and we’ll discuss ATR432C, the connection to your optics and the software you need.

  • Your sample, microscope or lens
  • Wavelength range, exposure or frame rate
  • Computer, software and triggering requirements

You don’t need a complete specification to start. Share what you know, and we can discuss the remaining choices.

About: ATR432C

We use your details to reply to this enquiry. You won’t be subscribed to marketing. Privacy policy.

Selection parameterATR432C (current)ATR432MSame IMX432 sensorCTR3CMOS01700KMASame IMX432 sensorCTR3CMOS01700KMA-GSame IMX432 sensor
SensorSony IMX432 color CMOSSony IMX432 monochrome CMOSSony IMX432LLJSony IMX432LLJ
Image typeColorMonochromeMonochromeMonochrome
Resolution1.76 MP (1600 × 1100)1.76 MP (1600 × 1100)1.7MP (1600×1100)1.7MP (1600×1100)
Pixel size9 µm9 µm9.0 µm × 9.0 µm9.0 µm × 9.0 µm
Published QE>79%>79%——
Read noise20.2–2.4 e⁻20.2–2.4 e⁻——
Frame / line rate128 fps128 fps98.6 fps @ 1600×110066 fps @ 1600×1100
InterfaceUSB 3.0USB 3.0USB3.0GigE
Cooling / shutterTwo-stage TEC, ΔT ≥44 °CTwo-stage TEC, ΔT ≥44 °CGlobal ShutterGlobal Shutter
Compare all IMX432 cameras
