Monochrome · Low-Light & Cooled Camera

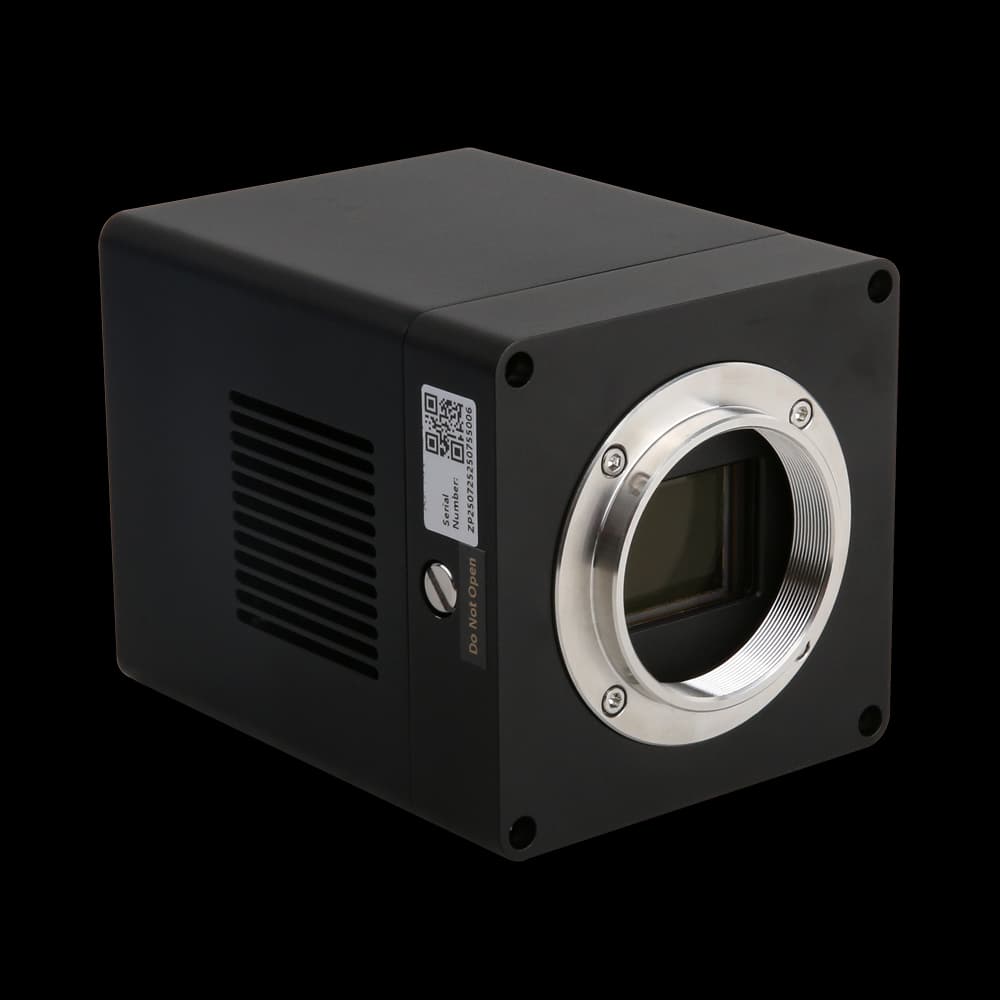

ITR3CMOS08300KMA
- Sensor
- Sony IMX585-AAMJ1-C
- Resolution
- 8.3 MP (3840×2160)
- Pixel Size
- 2.9 µm × 2.9 µm
- Frame Rate
- 44.4 fps @ 3840×2160; 59.2 fps @ 1920×1080
- Interface
- USB3.0 (USB3.1 Gen1)
- Cooling
- Dual-stage TEC cooling
Complete Specifications
Sensor & Imaging
| Sensor | Sony IMX585-AAMJ1-C |
|---|---|
| Effective Pixels / Resolution | 8.3 MP (3840×2160) |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Pixel Size | 2.9 µm × 2.9 µm |
| Sensor Size | 11.14 mm × 6.26 mm |
| Diagonal | 1/1.2" (12.78 mm) |
| Resolution | 8.3 MP (3840×2160) |
Performance
| Frame Rate (Full Resolution and Key Resolution Modes) | 44.4 fps @ 3840×2160; 59.2 fps @ 1920×1080 |
|---|---|
| Exposure Time | 13 µs ~ 3600 s |
| Dynamic Range | 71.5 dB (HCG); 72.0 dB (LCG) |
| Bit Depth | 8/12-bit |
| Sensitivity | 19120 mV @ 1/30 s |
| Readout Noise | 1.09 e- (HCG); 6.74 e- (LCG) |
| Full Well Capacity | 4.10 ke- (HCG); 39.50 ke- (LCG) |
| Dark Current | 0.13 mV @ 1/30 s |
| Gain Range | 1×–50× |
| Binning Mode | Software 2×2–8×8 |
| Frame Rate | 44.4 fps @ 3840×2160; 59.2 fps @ 1920×1080 |
Interface & Connectivity
| Data Interface | USB3.0 (USB3.1 Gen1) |
|---|---|
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated I/O ports |
| OS Support | Win32/WinRT/Linux/macOS/Android; x86/x64/ARM HF/ARM |
| Interface | USB3.0 (USB3.1 Gen1) |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Dimensions | 80 mm × 80 mm × 101.5 mm |
| Weight | 860 g |
| Power Supply | USB3.0 bus power / DC 12 V power |
| Power Consumption | 26.88 W (cooling on); 10.26 W (cooling off) |
| Operating Temperature / Humidity | -10 °C ~ +50 °C / 20%–80% (non-condensing) |
| Storage Temperature / Humidity | -30 °C ~ +70 °C / 20%–80% (non-condensing) |
| Cooling | Dual-stage TEC cooling |
| Cooling Capacity | 42 °C below ambient temperature |
Other Published Specifications
| Model | ITR3CMOS08300KMA |
|---|---|
| Software | Full SDK package / imaging software |
| Certification | CE/FCC |
