Color · Industrial Camera/Analytical Imaging

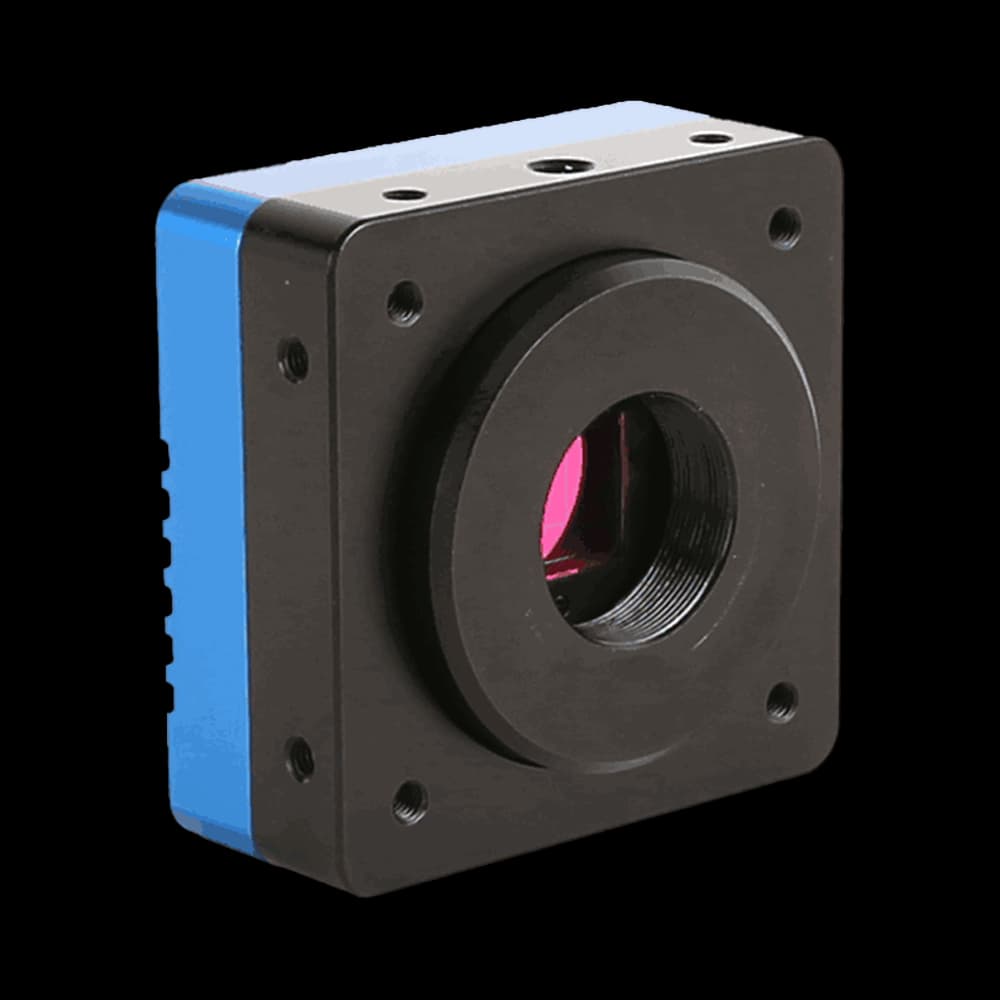

IUA25000KPA
- Sensor
- GMAX0505
- Resolution
- 25MP (5120×5120)
- Pixel Size
- 2.5 µm × 2.5 µm
- Frame Rate
- 13 fps @ 5120×5120; 27 fps @ 2560×2560; 54 fps @ 1280×1280
- Interface
- USB3.0 (USB3.1 GEN1)
Complete Specifications
Sensor & Imaging
| Sensor | GMAX0505 |
|---|---|
| Effective Pixels / Resolution | 25MP (5120×5120) |
| Shutter Type | Global shutter |
| Color Type | Color |
| Pixel Size | 2.5 µm × 2.5 µm |
| Sensor Size | 12.8 mm × 12.8 mm |
| Diagonal | 1" (18.10 mm) |
| Resolution | 25MP (5120×5120) |
Performance
| Frame Rate (Full Resolution) | 13 fps @ 5120×5120; 27 fps @ 2560×2560; 54 fps @ 1280×1280 |
|---|---|
| Exposure Time | 15 µs ~ 15 s |
| Dynamic Range | 65.7 dB |
| Bit Depth | 8/12-bit |
| Sensitivity | 58%@520nm |
| Frame Rate | 13 fps @ 5120×5120; 27 fps @ 2560×2560; 54 fps @ 1280×1280 |
Interface & Connectivity
| Data Interface | USB3.0 (USB3.1 GEN1) |
|---|---|
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output |
| Interface | USB3.0 (USB3.1 GEN1) |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Dimensions | 68 mm × 68 mm × 28.1 mm |
| Weight | 214g |
| Power Supply | USB3.0 interface power / DC 12 V power |
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 20%~80% non-condensing |
| Storage Temperature / Humidity | 30 °C ~ +70 °C / Available on request |
Other Published Specifications
| Model | IUA25000KPA |
|---|---|
| Operating System | Windows 32-bit/Windows RT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64 |
| Certification | CE, FCC |
