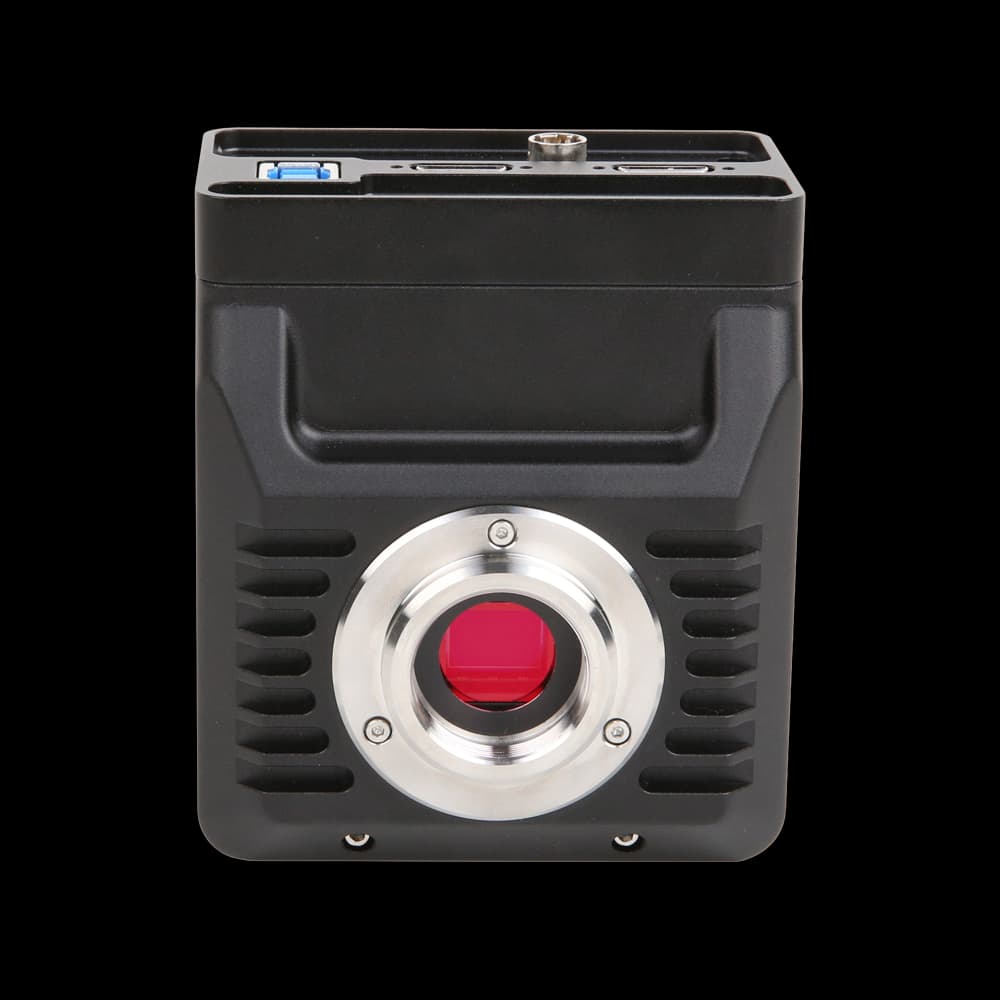

Microscopy Camera
E3ISPM20000KPA-U3-CL provides USB3.0 and CameraLink parallel output, Sony IMX183 imaging, hardware ISP and 512 MB buffer.
Application context
E3ISPM20000KPA-U3-CL: The IMX183CQK (C, RS) sensor, 20.0MP (5440×3684) resolution, and 2.4 µm × 2.4 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 18.6 fps @ 5440×3684; 49.8 fps @ 2736×1824; 60.7 fps @ 1824×1216 frame-rate listing also sets the fastest full-frame acquisition regime.
E3ISPM20000KPA-U3-CL: The IMX183CQK (C, RS) sensor, 20.0MP (5440×3684) resolution, and 2.4 µm × 2.4 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 18.6 fps @ 5440×3684; 49.8 fps @ 2736×1824; 60.7 fps @ 1824×1216 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
27 specification rows
The E3ISPM20000KPA-U3-CL is a microscopy camera in the E3ISPM U3 CL series, built around a IMX183CQK (C, RS) sensor, 20.0MP (5440×3684) resolution, 2.4 µm × 2.4 µm pixels, frame rates up to 18.6 fps @ 5440×3684; 49.8 fps @ 2736×1824; 60.7 fps @ 1824×1216, a USB3.0(USB3.1 GEN1)/CameraLink interface. It suits microscopy camera where reliable imaging performance and interface compatibility matter.
| Model | E3ISPM20000KPA-U3-CL |
|---|---|
| Sensor | IMX183CQK (C, RS) |
| Effective Pixels / Resolution | 20.0MP (5440×3684) |
| Frame Rate (Full Resolution) | 18.6 fps @ 5440×3684; 49.8 fps @ 2736×1824; 60.7 fps @ 1824×1216 |
| Exposure Time | 53 µs ~ 15 s |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 2.4 µm × 2.4 µm |
|---|---|
| Sensor Size | 13.06 mm × 8.84 mm |
| Diagonal | 1" (15.77 mm) |
| Dynamic Range | 72 dB |
| Bit Depth | 8/12-bit |
| Sensitivity | 462 mV @1/30s |
| Dark Current | 0.2 mV @1/30s |
| Read Noise | 3.24 e- |
| Full Well Capacity | 15.0 ke- |
| Signal-to-Noise Ratio | 41.8 dB |
| Conversion Gain | 3.69 e-/ADU |
| Data Interface | USB3.0(USB3.1 GEN1)/CameraLink |
|---|---|
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output ports |
| Lens Mount | C-mount |
| Buffer Memory | 512 MB DDR3 |
| Power Supply | DC 12 V |
|---|---|
| Power Consumption | 7 W |
| Dimensions | 88 mm × 68.4 mm × 101.3 mm |
| Weight | 524 g |
| Certification | CE/FCC |
System integration
Use these checks to connect E3ISPM20000KPA-U3-CL to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: IMX183CQK (C, RS) · Resolution: 20.0MP (5440×3684). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 18.6 fps @ 5440×3684; 49.8 fps @ 2736×1824; 60.7 fps @ 1824×1216 · Interface: USB3.0(USB3.1 GEN1)/CameraLink. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output ports. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 72 dB · Dark Current: 0.2 mV @1/30s. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
The IMX183 appears in 21 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
Compare the E3ISPM20000KPA-U3-CL with other E3ISPM U3 CL models and microscopy cameras in the range.
