Deep-sky astrophotography
Two-stage TEC, ΔT ≥45 °C helps control thermal noise during long exposures of galaxies, nebulae and star clusters.
Deep-sky cooled
ATR183M
ToupTek ATR183M is a cooled deep-sky camera using the IMX183 sensor, with 19.8 MP (5440 × 3648), 2.4 µm pixels and 18 fps. Designed for deep-sky astrophotography, narrowband nebula imaging, high-resolution galaxy and lunar imaging. Available from Precisometer for professional astronomy systems in the Benelux.
- Sensor
- Sony IMX183 monochrome CMOS
- Sensor Type
- Back-illuminated monochrome CMOS
- Resolution
- 19.8 MP (5440 × 3648)
- Pixel Size
- 2.4 µm
- Frame Rate
- 18 fps
- Interface
- USB 3.0
Applications & selection
ATR183M applications
Narrowband nebula imaging
The monochrome IMX183 sensor is suited to H-alpha, O III and S II filter workflows.
High-resolution galaxy and lunar imaging
2.4 µm pixels balance image scale and detail for appropriately matched telescope focal lengths.
Photometry and time-series imaging
12-bit acquisition, 75 dB dynamic range and regulated cooling support repeatable quantitative observations.
When to choose this camera
Choose the ATR183M when your telescope and target benefit from 1-inch, 13.06 × 8.76 mm sensor coverage, 2.4 µm sampling, two-stage TEC, ΔT ≥45 °C and 380–1100 nm response.
Specifications
ATR183M
31 specification rows
The ATR183M is an astronomy camera in the ATR DSO cooled series, built around a Sony IMX183 monochrome CMOS sensor, 19.8 MP (5440 × 3648) resolution, 2.4 µm pixels, frame rates up to 18 fps, a USB 3.0 interface. It suits deep-sky cooled where reliable imaging performance and interface compatibility matter.
Sensor & Imaging
| Model | ATR183M |
|---|---|
| Status | Current |
| Application | Deep-sky cooled |
| Sensor | Sony IMX183 monochrome CMOS |
| Sensor Type | Back-illuminated monochrome CMOS |

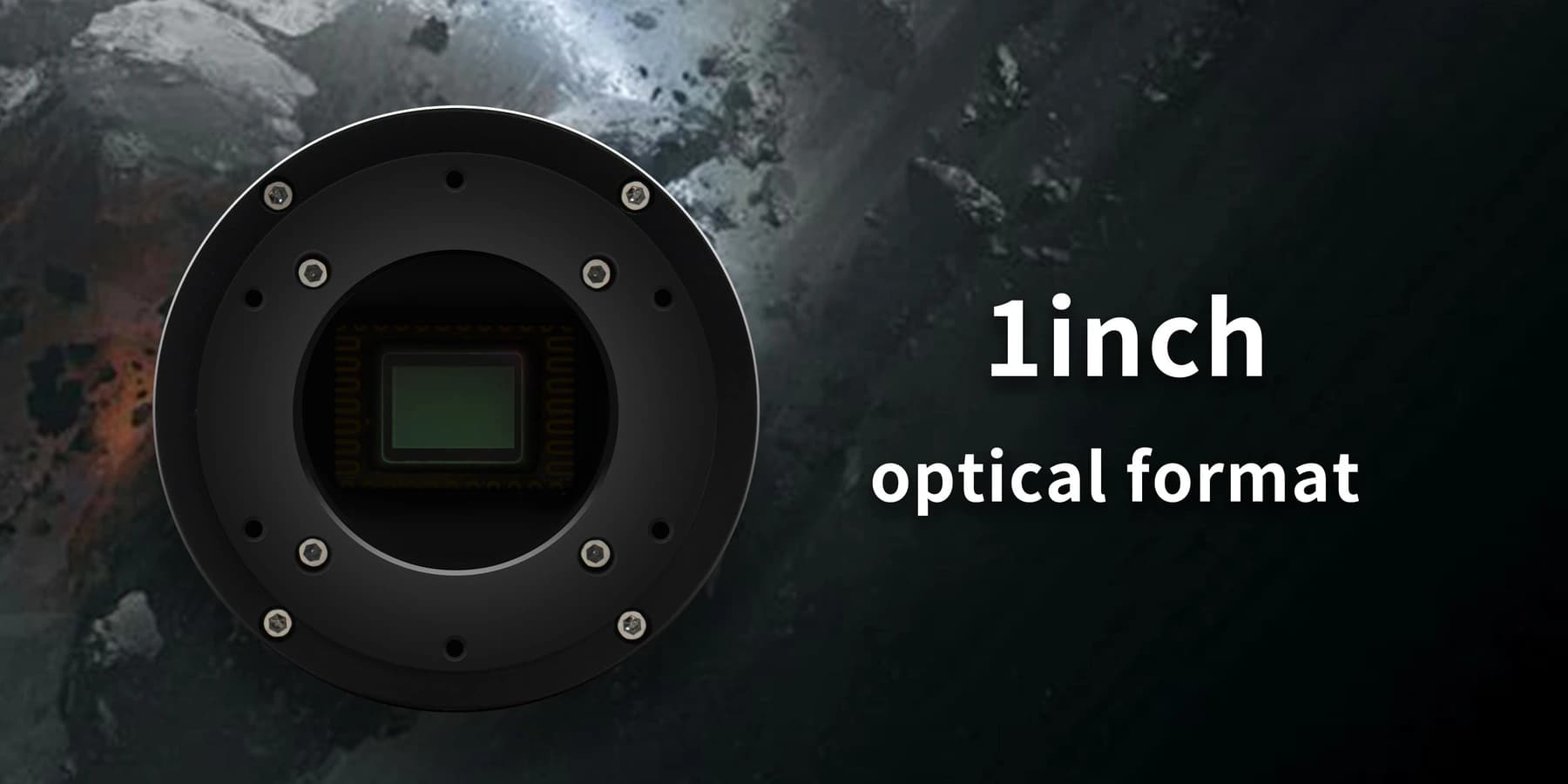

| Sensor Size | 1-inch, 13.06 × 8.76 mm |
| Resolution | 19.8 MP (5440 × 3648) |
| Pixel Size | 2.4 µm |
| Shutter Type | Rolling shutter |
Performance
| Frame Rate | 18 fps |
|---|---|
| ADC | 12-bit |
| Peak QE | >84% |
| Dynamic Range | 75 dB |
| Read Noise | 2.6–1.4 e⁻ |
| Full Well | 15 ke⁻ |
| Spectral Range | 380–1100 nm |
Interface & Thermal
| Interface | USB 3.0 |
|---|---|
| Mount | M42 / M54 astronomy adapters |
| Cooling | Two-stage TEC, ΔT ≥45 °C |
Additional Published Specifications
| Legacy Model Name | ATR3CMOS20000KMA |
|---|---|
| Sensor Diagonal | 15.72mm |
| LCG Read Noise | 2.6-1.4e- |
| Maximum SNR | 41.6dB |
| Frame Buffer | 512MB |
| Sensor Chamber Window | Adjustable heating window |
| Back Focal Distance | 17.5mm/12.5mm |
| Protective Window | IR/AR |
| Color Filter Array | RGGB |
| DDR3 Buffer | 512MB |
| Max Exposure | Up to 1 hour |
| Power Supply | DC 12V / 3A |
Technical media

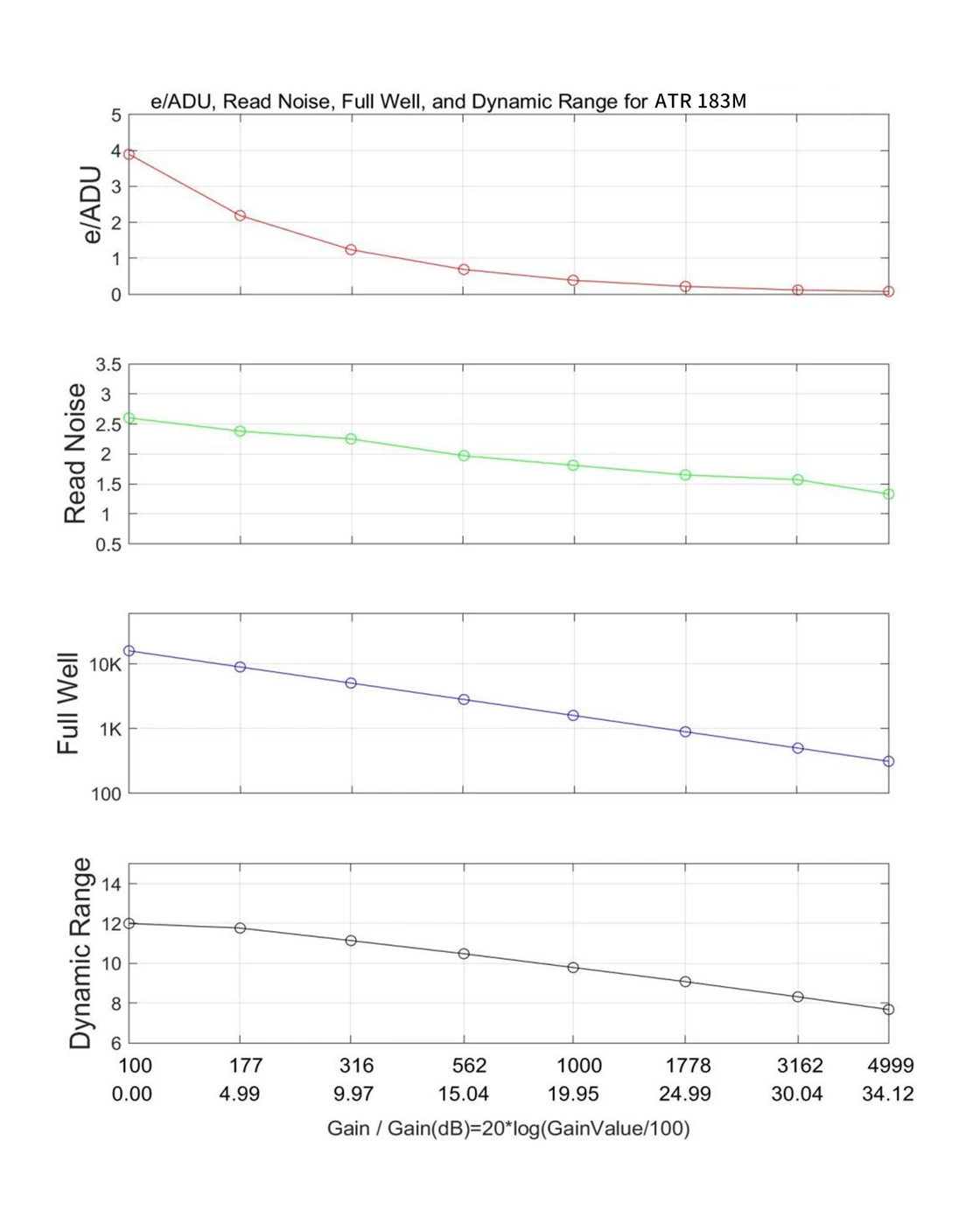

Performance graphs and technical drawings

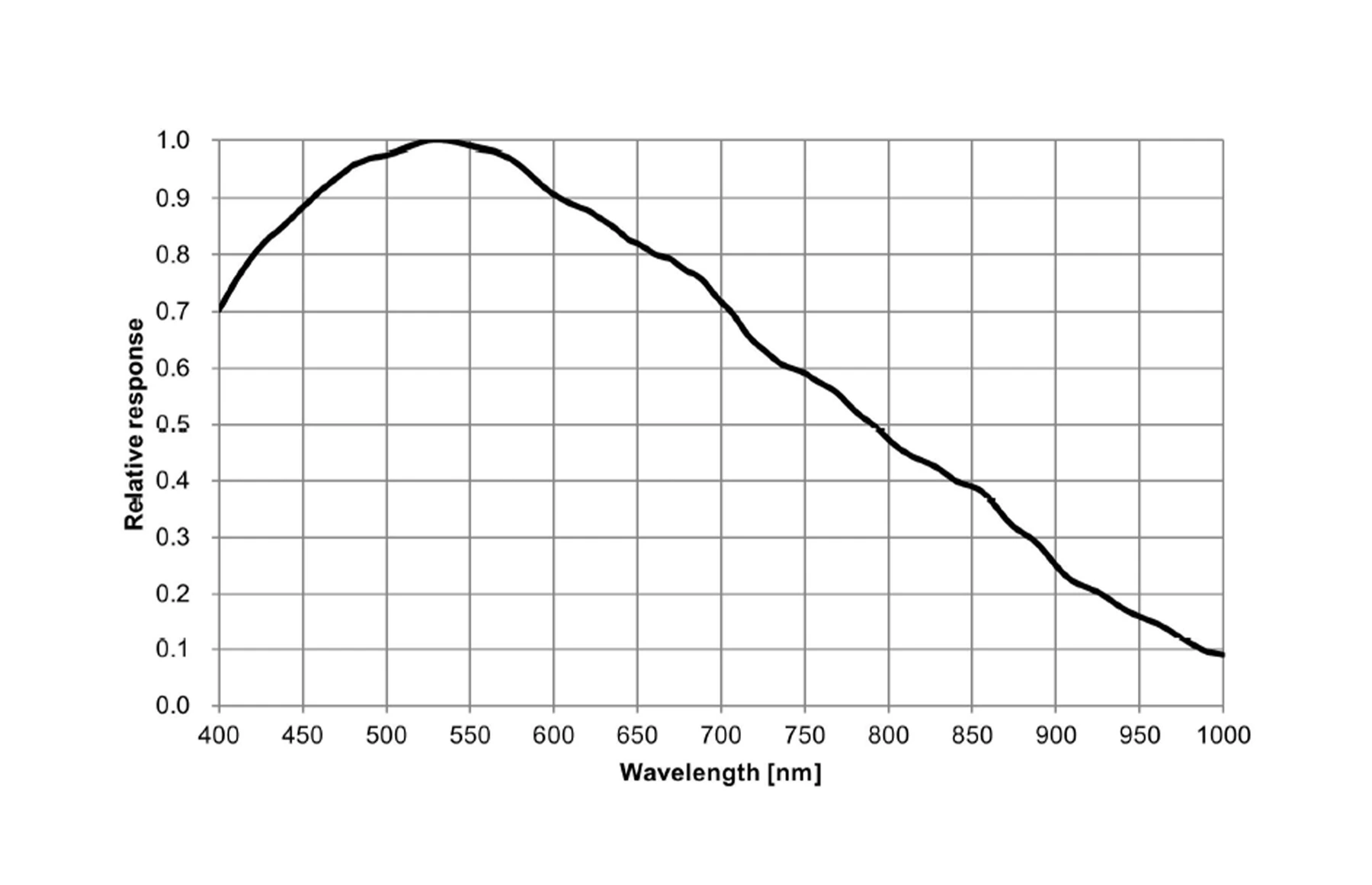

Official sensor-response, performance, and mechanical imagery for the ATR183M.
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
