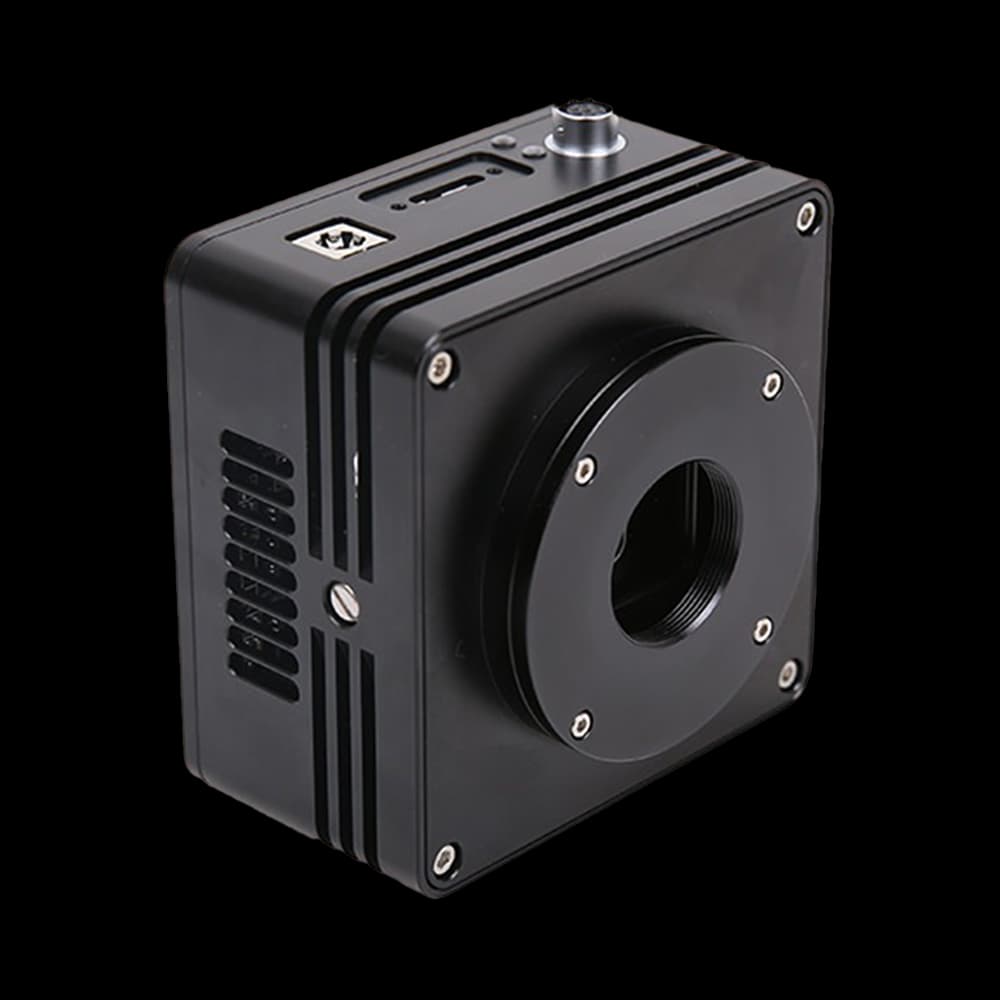

Low Light Imaging/Semiconductor Cooled Camera
CTR3CMOS20000KMA-G
CTR3CMOS20000KMA-G Low Light Imaging/Semiconductor Cooled Camera with Sony IMX183CLK sensor, 20MP (5440×3648) for professional imaging.
- Sensor
- Sony IMX183CLK
- Resolution
- 20MP (5440×3648)
- Pixel Size
- 2.4 µm × 2.4 µm
- Frame Rate
- 4.5 fps @ 5440×3648; 18.5 fps @ 2736×1824; 41.7 fps @ 1824×1216
- Interface
- GigE
Specifications
CTR3CMOS20000KMA-G
23 specification rows
The CTR3CMOS20000KMA-G is a low-light & cooled camera in the CTR3CMOS series, built around a Sony IMX183CLK sensor, 20MP (5440×3648) resolution, 2.4 µm × 2.4 µm pixels, frame rates up to 4.5 fps @ 5440×3648; 18.5 fps @ 2736×1824; 41.7 fps @ 1824×1216, a GigE interface. It suits low light imaging/semiconductor cooled camera where reliable imaging performance and interface compatibility matter.
Key Parameters
| Model | CTR3CMOS20000KMA-G |
|---|---|
| Sensor | Sony IMX183CLK |
| Effective Pixels / Resolution | 20MP (5440×3648) |
| Frame Rate (Full Resolution and Key Resolution Modes) | 4.5 fps @ 5440×3648; 18.5 fps @ 2736×1824; 41.7 fps @ 1824×1216 |
| Exposure Time | 53 µs ~ 300 s |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
Imaging Performance
| Pixel Size | 2.4 µm × 2.4 µm |
|---|---|
| Sensor Size | 13.056 mm × 8.755 mm |
| Diagonal | 1" (15.72 mm) |
| Dynamic Range | 72 dB |
| Bit Depth | 8-bit/12-bit |
| Sensitivity | 777 mV |
Interface & Mechanical
| Data Interface | GigE |
|---|---|
| GPIO | 1x optically isolated input, 1x optically isolated output, 2x non-isolated I/O ports |
| Lens Mount | C-mount |
| Dimensions | 80 mm × 80 mm × 45.5 mm |
| Weight | 396.6 g |
| Power Supply | DC 12 V power |
Environment & Certification
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 20%-80% non-condensing |
|---|---|
| Storage Temperature / Humidity | 30 °C ~ +70 °C / Available on request |
| OS Support | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Certification | CE/FCC |
