Industrial Camera/Analytical Imaging

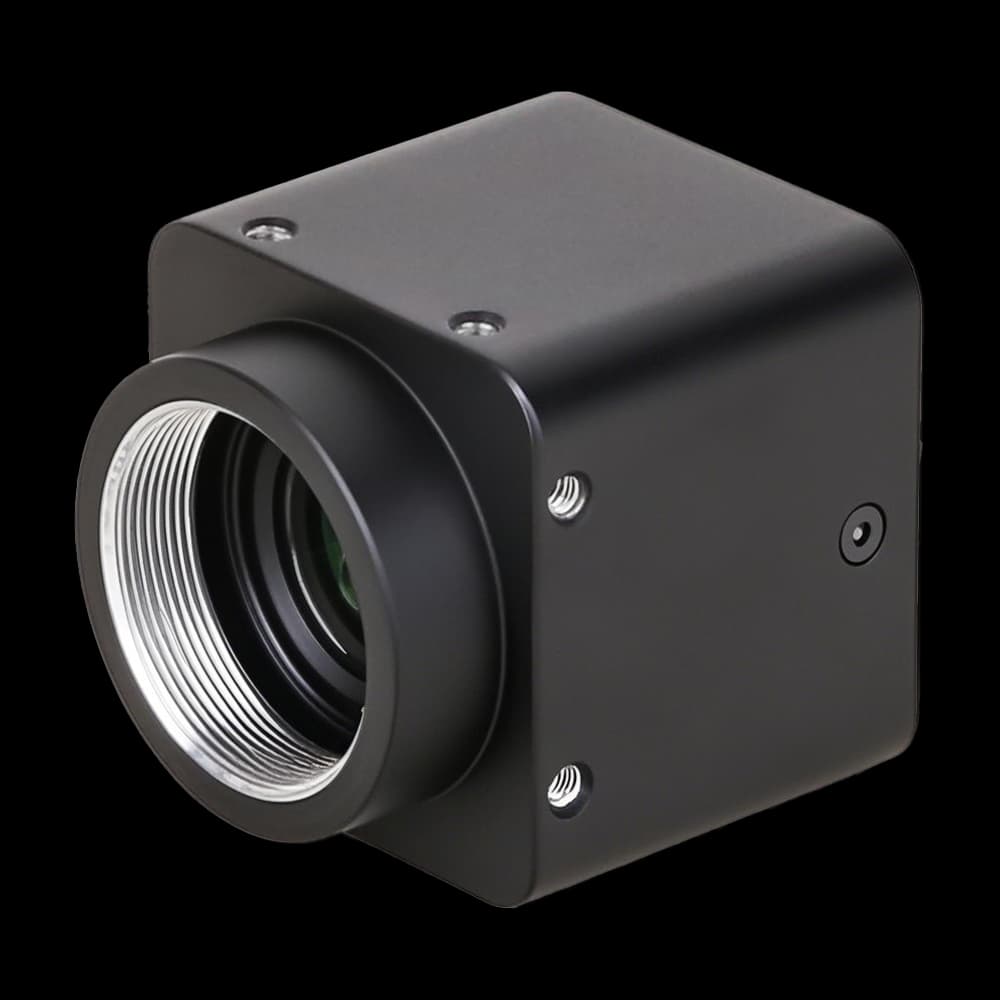

I3ISPM02000KPB Industrial Camera/Analytical Imaging with IMX385LQR-C sensor, 2.0 MP (1920×1080) for professional imaging.
Application context
I3ISPM02000KPB: The IMX385LQR-C sensor, 2.0 MP (1920×1080) resolution, and 3.75 µm × 3.75 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 124.3 fps @ 1920×1080 (8-bit); 90.4 fps @ 1920×1080 (10-bit) frame-rate listing also sets the fastest full-frame acquisition regime.
I3ISPM02000KPB: The IMX385LQR-C sensor, 2.0 MP (1920×1080) resolution, and 3.75 µm × 3.75 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 124.3 fps @ 1920×1080 (8-bit); 90.4 fps @ 1920×1080 (10-bit) frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
23 specification rows
The I3ISPM02000KPB is an industrial & analytical camera in the I3ISPM series, built around a IMX385LQR-C sensor, 2.0 MP (1920×1080) resolution, 3.75 µm × 3.75 µm pixels, frame rates up to 124.3 fps @ 1920×1080 (8-bit); 90.4 fps @ 1920×1080 (10-bit), a USB3.0 interface. It suits industrial camera/analytical imaging where reliable imaging performance and interface compatibility matter.
| Model | I3ISPM02000KPB |
|---|---|
| Sensor | IMX385LQR-C |
| Effective Pixels / Resolution | 2.0 MP (1920×1080) |
| Frame Rate (Full Resolution) | 124.3 fps @ 1920×1080 (8-bit); 90.4 fps @ 1920×1080 (10-bit) |
| Exposure Time | 30 µs ~ 15 s |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 3.75 µm × 3.75 µm |
|---|---|
| Sensor Size | 6.40 mm × 4.80 mm |
| Diagonal | 1/2" (8.00 mm) |
| Dynamic Range | 60.0 dB |
| Bit Depth | RAW8/RAW10 |
| Sensitivity | 2350 mV @ 1/30 s |
| Data Interface | USB3.0 |
|---|---|
| GPIO | 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated I/O port |
| Lens Mount | C-mount |
| Dimensions | 38 mm × 38 mm × 33 mm |
| Weight | Available on request |
| Power Supply | USB3.0 interface powered |
| Operating Temperature / Humidity | 10 °C to +50 °C / 20% to 80% (non-condensing) |
|---|---|
| Storage Temperature / Humidity | 30 °C to +70 °C / Available on request |
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE/FCC |
System integration
Use these checks to connect I3ISPM02000KPB to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: IMX385LQR-C · Resolution: 2.0 MP (1920×1080). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 124.3 fps @ 1920×1080 (8-bit); 90.4 fps @ 1920×1080 (10-bit) · Interface: USB3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated I/O port. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 60.0 dB. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare I3ISPM02000KPB with the closest available models in the I3ISPM family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | I3ISPM02000KPB (current) | I3ISPM02000KPA | I3ISPM02300KPA |
|---|---|---|---|
| Sensor | IMX385LQR-C | Sony IMX430LQJ | Sony IMX174LQJ |
| Resolution | 2.0 MP (1920×1080) | 2.0 MP (1624×1240) | 2.3 MP (1920×1200) |
| Sensor size | 6.40 mm × 4.80 mm | 7.31 mm × 5.58 mm | 11.25 mm × 7.03 mm |
| Pixel size / frame rate | 3.75 µm × 3.75 µm | 4.5 µm × 4.5 µm | 5.86 µm × 5.86 µm |
The IMX385 appears in 5 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
Compare the I3ISPM02000KPB with other I3ISPM models and industrial & analytical cameras in the range.
