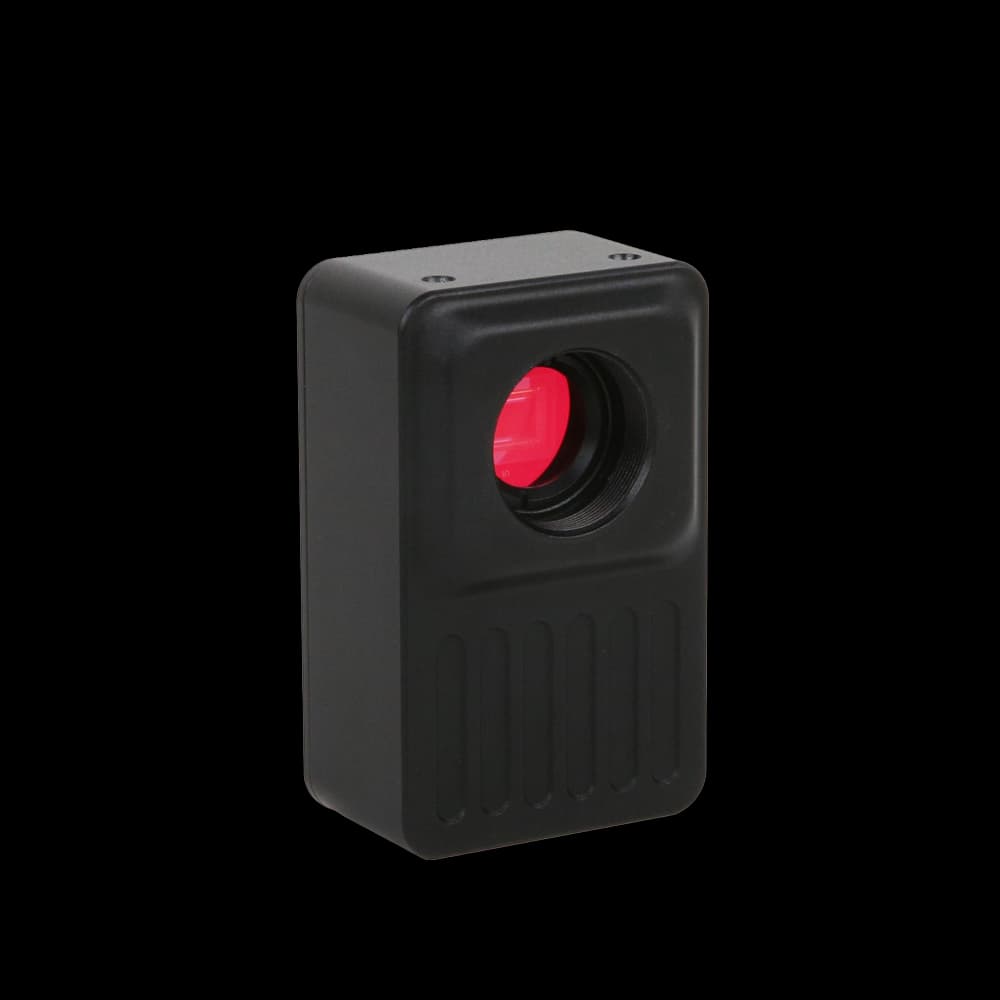

Type-C multi-interface output CMOS camera
CXCAM1080P2MPA combines Type-C power/video, Sony Starvis 4K imaging, Monitor/USB output, optional Wi-Fi and XCamView tools.
Application context
CXCAM1080P2MPA: The Sony IMX385 (Color) sensor, 2 MP (1920×1080) resolution, and 3.75 µm × 3.75 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The Sensor: 120 fps @ 1920×1080; Video recording: 100 fps @ 1920×1080; Monitor: 60 fps @ 1920×1080; USB Video: 80 fps @ 1920×1080; Wi-Fi: 60 fps @ 1920×1080 / 60 fps @ 1280×720 frame-rate listing also sets the fastest full-frame acquisition regime.
CXCAM1080P2MPA: The Sony IMX385 (Color) sensor, 2 MP (1920×1080) resolution, and 3.75 µm × 3.75 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The Sensor: 120 fps @ 1920×1080; Video recording: 100 fps @ 1920×1080; Monitor: 60 fps @ 1920×1080; USB Video: 80 fps @ 1920×1080; Wi-Fi: 60 fps @ 1920×1080 / 60 fps @ 1280×720 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
20 specification rows
The CXCAM1080P2MPA is an intelligent imaging camera in the CXCAM series, built around a Sony IMX385 (Color) sensor, 2 MP (1920×1080) resolution, 3.75 µm × 3.75 µm pixels, frame rates up to Sensor: 120 fps @ 1920×1080; Video recording: 100 fps @ 1920×1080; Monitor: 60 fps @ 1920×1080; USB Video: 80 fps @ 1920×1080; Wi-Fi: 60 fps @ 1920×1080 / 60 fps @ 1280×720, a Type-C Monitor, USB Video, Wi-Fi interface. It suits type-c multi-interface output cmos camera where reliable imaging performance and interface compatibility matter.
| Product Model | CXCAM1080P2MPA |
|---|---|
| Product Series | Type-C multi-interface output CMOS camera |
| Sensor Model | Sony IMX385 (Color) |
|---|---|
| Sensor Size | 1/2" (7.2 × 4.05 mm) |
| Diagonal | 8.26 mm |
| Pixel Size | 3.75 µm × 3.75 µm |
| Resolution | 2 MP (1920×1080) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Frame Rate | Sensor: 120 fps @ 1920×1080; Video recording: 100 fps @ 1920×1080; Monitor: 60 fps @ 1920×1080; USB Video: 80 fps @ 1920×1080; Wi-Fi: 60 fps @ 1920×1080 / 60 fps @ 1280×720 |
|---|---|
| Output Interfaces | Type-C Monitor, USB Video, Wi-Fi |
| Lens Mount | C-mount |
| Storage Support | USB flash drive |
| Software Support | XCamView, ToupView, ToupLite |
| Power Supply | Type-C power input from monitor or computer |
|---|---|
| Dimensions | Refer to dimension drawing |
| Weight | Available on request |
| Operating Temperature | 10 °C to +50 °C |
|---|
| OS Support | Windows 7/8/10/11, macOS, Linux |
|---|---|
| Certification | CE, FCC, RoHS |
System integration
Use these checks to connect CXCAM1080P2MPA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX385 (Color) · Resolution: 2 MP (1920×1080). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: Sensor: 120 fps @ 1920×1080; Video recording: 100 fps @ 1920×1080; Monitor: 60 fps @ 1920×1080; USB Video: 80 fps @ 1920×1080; Wi-Fi: 60 fps @ 1920×1080 / 60 fps @ 1280×720 · Interface: Type-C Monitor, USB Video, Wi-Fi. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare CXCAM1080P2MPA with the closest available models in the CXCAM family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | CXCAM1080P2MPA (current) | CXCAM1080P8MPA | CXCAM1080P8MPB |
|---|---|---|---|
| Sensor | Sony IMX385 (Color) | Sony IMX334 (Color) | Sony IMX585 (Color) |
| Resolution | 2 MP (1920×1080) | 8 MP (3840×2160) | 8 MP (3840×2160) |
| Sensor size | 1/2" (7.2 × 4.05 mm) | 1/1.8" (7.68 × 4.32 mm) | 1/1.2" (11.14 × 6.26 mm) |
| Pixel size / frame rate | 3.75 µm × 3.75 µm | 2.0 µm × 2.0 µm | 2.9 µm × 2.9 µm |
The IMX385 appears in 5 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
