Microscopy Camera/Microscope Camera

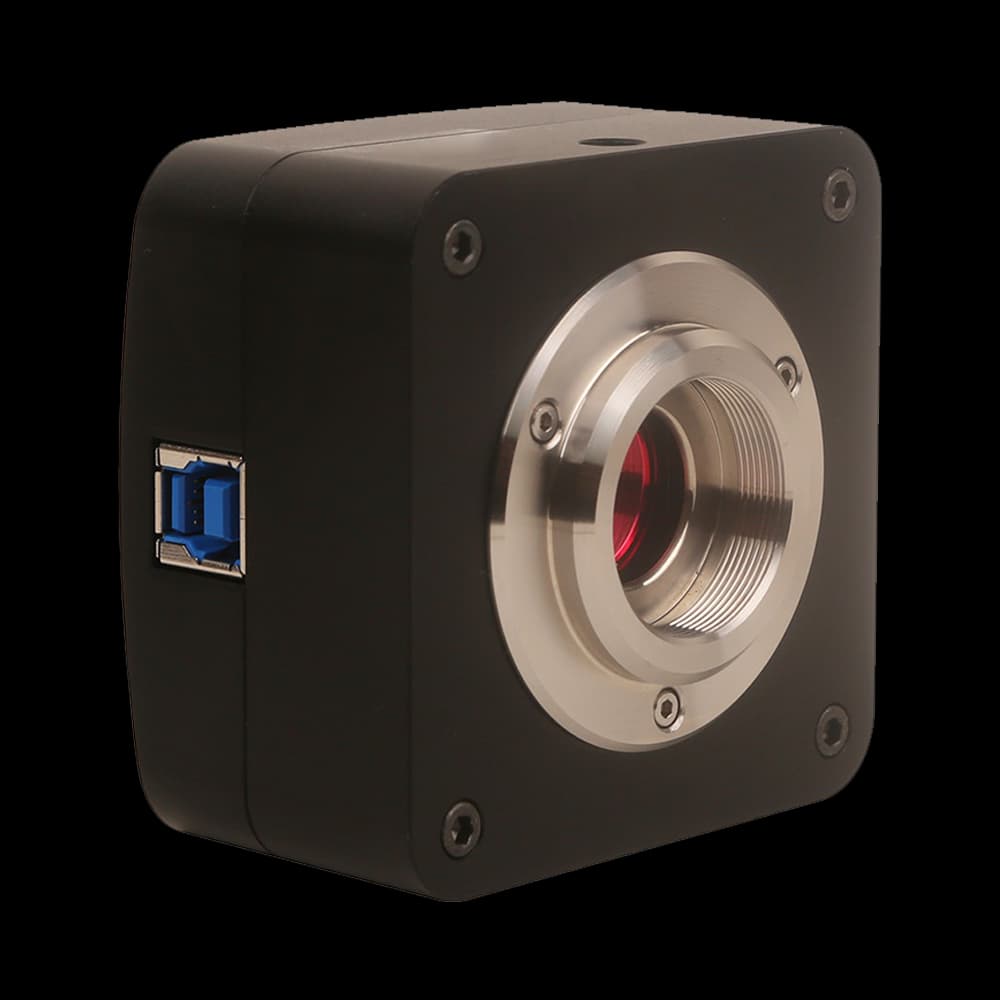

U3CMOS14000KPA

U3CMOS14000KPA Microscopy Camera/Microscope Camera with MT9F002 (C) sensor, 14M (4096×3286) for professional imaging.

Sensor: MT9F002 (C)
Resolution: 14M (4096×3286)
Pixel Size: 1.4 µm × 1.4 µm
Frame Rate: 6.2 fps @ 4096×3286; 20.8 fps @ 2048×1644; 53.3 fps @ 1024×822
Interface: USB3.0

Datasheet (PDF)Back to Microscopy Cameras

Specifications

U3CMOS14000KPA

22 specification rows

The U3CMOS14000KPA is a microscopy camera in the U3CMOS series, built around a MT9F002 (C) sensor, 14M (4096×3286) resolution, 1.4 µm × 1.4 µm pixels, frame rates up to 6.2 fps @ 4096×3286; 20.8 fps @ 2048×1644; 53.3 fps @ 1024×822, a USB3.0 interface. It suits microscopy camera/microscope camera where reliable imaging performance and interface compatibility matter.

Key Parameters

Model	U3CMOS14000KPA
Sensor	MT9F002 (C)
Effective Pixels / Resolution	14M (4096×3286)
Frame Rate (Full Resolution)	6.2 fps @ 4096×3286; 20.8 fps @ 2048×1644; 53.3 fps @ 1024×822
Shutter Type	Rolling Shutter
Color Type	Color

Imaging Performance

Pixel Size	1.4 µm × 1.4 µm
Sensor Size	5.73 mm × 4.60 mm
Diagonal	1/2" (7.35 mm)
Dynamic Range	65.3 dB
Bit Depth	8-bit
Sensitivity	0.724 V/lux·sec

Interface & Mechanical

Data Interface	USB3.0
GPIO	Available on request
Lens Mount	C-mount
Dimensions	Available on request
Weight	Available on request
Power Supply	USB3.0 interface power

Environment & Certification

Operating Temperature / Humidity	10 °C ~ +50 °C / 30%~80%RH
Storage Temperature / Humidity	20 °C ~ +60 °C / 10%~60%RH
Operating System	Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.)
Certification	CE, FCC
