Industrial Camera/Analytical Imaging

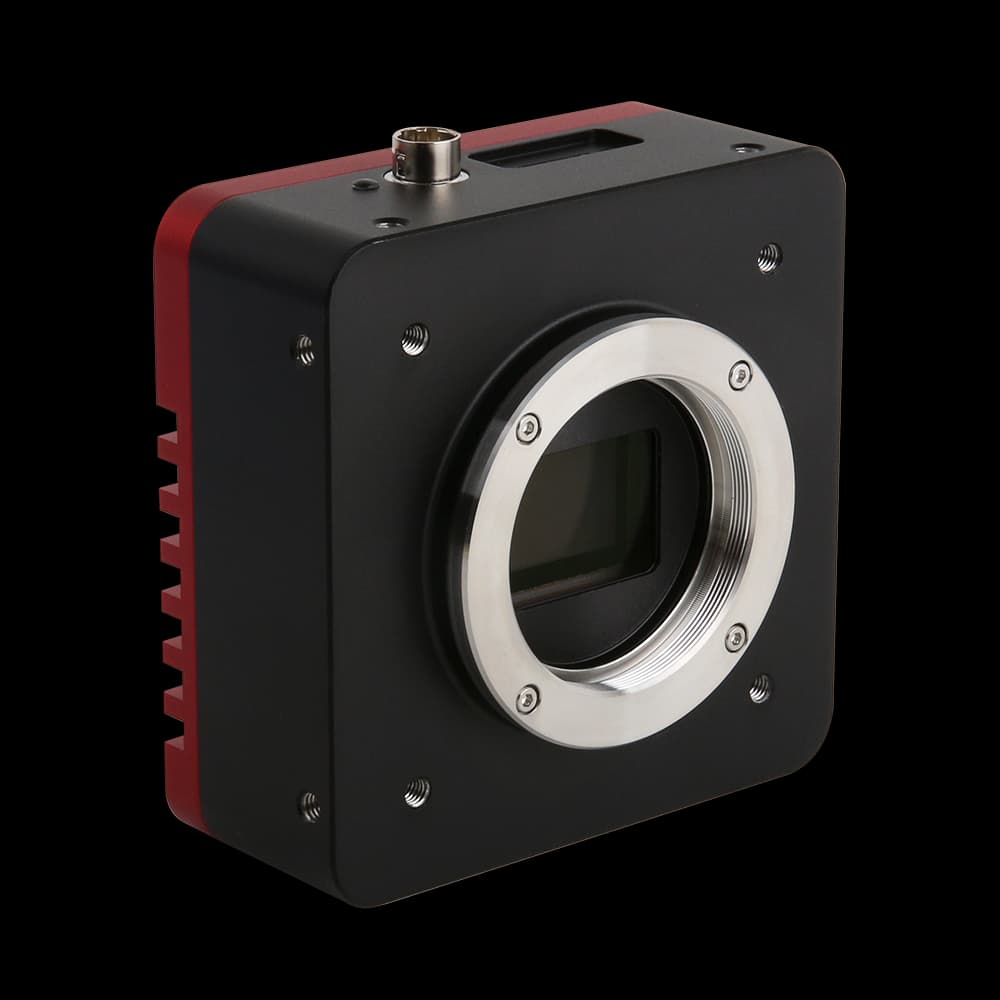

IUC9000KMA Industrial Camera/Analytical Imaging with Sony IMX533CLK-D sensor, 9MP (2992×3000) for professional imaging.
Application context
IUC9000KMA: The Sony IMX533CLK-D sensor, 9MP (2992×3000) resolution, and 3.76 µm × 3.76 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 40 fps @ 2992×3000; 62 fps @ 1488×1500; 186 fps @ 992×998 frame-rate listing also sets the fastest full-frame acquisition regime.
IUC9000KMA: The Sony IMX533CLK-D sensor, 9MP (2992×3000) resolution, and 3.76 µm × 3.76 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 40 fps @ 2992×3000; 62 fps @ 1488×1500; 186 fps @ 992×998 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
23 specification rows
The IUC9000KMA is an industrial & analytical camera in the IUC series, built around a Sony IMX533CLK-D sensor, 9MP (2992×3000) resolution, 3.76 µm × 3.76 µm pixels, frame rates up to 40 fps @ 2992×3000; 62 fps @ 1488×1500; 186 fps @ 992×998, a USB3.0 (USB3.1 GEN1) interface. It suits industrial camera/analytical imaging where reliable imaging performance and interface compatibility matter.
| Model | IUC9000KMA |
|---|---|
| Sensor | Sony IMX533CLK-D |
| Effective Pixels / Resolution | 9MP (2992×3000) |
| Frame Rate (Full Resolution) | 40 fps @ 2992×3000; 62 fps @ 1488×1500; 186 fps @ 992×998 |
| Exposure Time | 0.1 ms ~ 15 s |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Pixel Size | 3.76 µm × 3.76 µm |
|---|---|
| Sensor Size | 11.28 mm × 11.28 mm |
| Diagonal | 1" (15.95 mm) |
| Dynamic Range | 67.9 dB (HCG) / 70.0 dB (LCG) |
| Bit Depth | 8/14-bit |
| Sensitivity | 877 mV |
| Data Interface | USB3.0 (USB3.1 GEN1) |
|---|---|
| GPIO | 1× optically isolated input, 1× optically isolated output, 2× non-isolated I/O |
| Lens Mount | C-mount |
| Dimensions | 88 mm × 88 mm × 36.3 mm |
| Weight | 564 g |
| Power Supply | DC 12 V |
| Operating Temperature / Humidity | 10 °C to +50 °C / 20% to 80% non-condensing |
|---|---|
| Storage Temperature / Humidity | 30 °C to +70 °C / Available on request |
| Operating System | Windows/Linux/macOS/Android |
| Certification | CE, FCC |
System integration
Use these checks to connect IUC9000KMA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX533CLK-D · Resolution: 9MP (2992×3000). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 40 fps @ 2992×3000; 62 fps @ 1488×1500; 186 fps @ 992×998 · Interface: USB3.0 (USB3.1 GEN1). Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1× optically isolated input, 1× optically isolated output, 2× non-isolated I/O. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 67.9 dB (HCG) / 70.0 dB (LCG). Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare IUC9000KMA with the closest available models in the IUC family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | IUC9000KMA (current) | IUC60000KPA | IUC60000KMA-10G |
|---|---|---|---|
| Sensor | Sony IMX533CLK-D | Sony IMX455AQK | Sony IMX455ALK |
| Resolution | 9MP (2992×3000) | 60.0MP (9568×6380) | 60.0MP (9568×6380) |
| Sensor size | 11.28 mm × 11.28 mm | 35.96 mm × 23.99 mm | 35.96 mm × 23.99 mm |
| Pixel size / frame rate | 3.76 µm × 3.76 µm | 3.76 µm × 3.76 µm | 3.76 µm × 3.76 µm |
The IMX533 appears in 9 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
