Color · Industrial Camera/Analytical Imaging

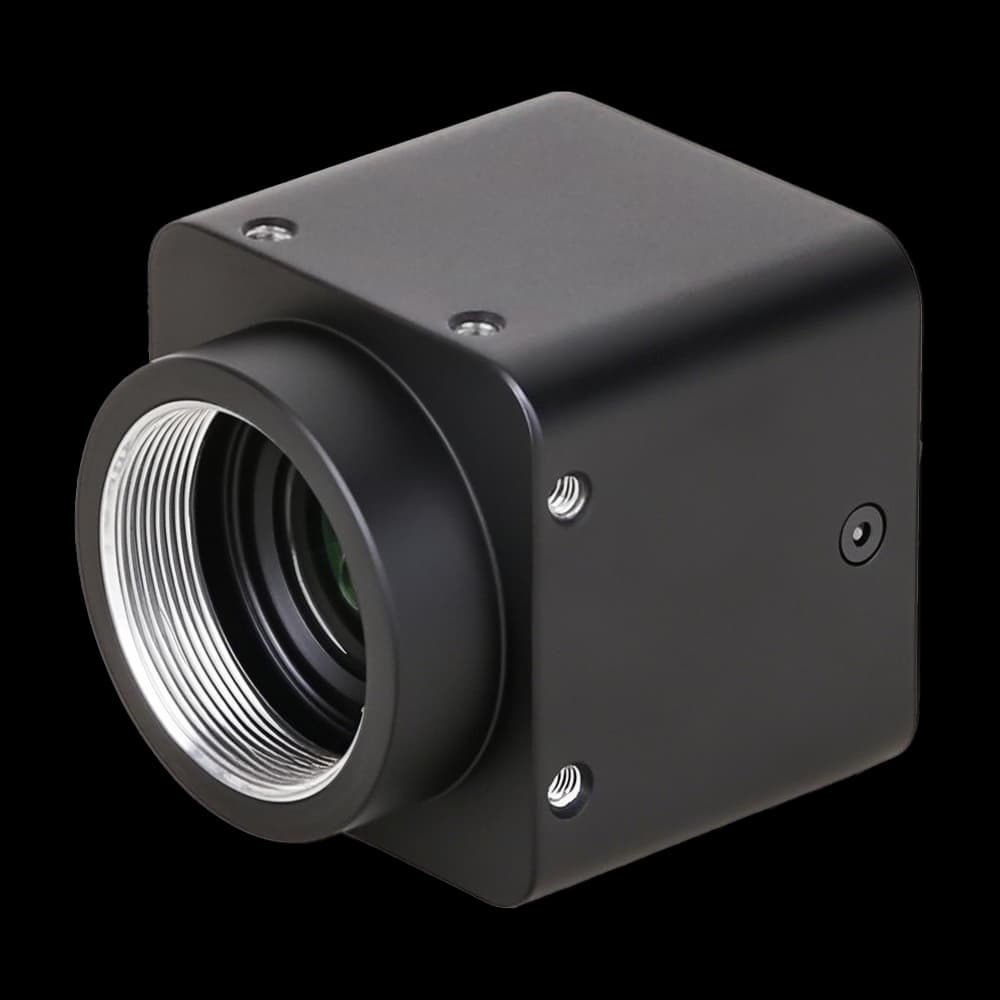

I3ISPM05000KPB
- Sensor
- Sony IMX264LQR
- Resolution
- 5.0 MP (2448×2048)
- Pixel Size
- 3.45 µm × 3.45 µm
- Frame Rate
- 35.6 fps @ 2448×2048; 87.6 fps @ 1224×1024
- Interface
- USB3.0
Complete Specifications
Sensor & Imaging
| Sensor | Sony IMX264LQR |
|---|---|
| Effective Pixels / Resolution | 5.0 MP (2448×2048) |
| Shutter Type | Global Shutter |
| Color Type | Color |
| Pixel Size | 3.45 µm × 3.45 µm |
| Sensor Size | 8.45 mm × 7.07 mm |
| Diagonal | 2/3" (11.02 mm) |
| Resolution | 5.0 MP (2448×2048) |
Performance
| Frame Rate (Full Resolution) | 35.6 fps @ 2448×2048; 87.6 fps @ 1224×1024 |
|---|---|
| Exposure Time | 15 µs ~ 15 s |
| Dynamic Range | 73.6 dB |
| Bit Depth | 8/12-bit |
| Sensitivity | 1146 mV |
| Frame Rate | 35.6 fps @ 2448×2048; 87.6 fps @ 1224×1024 |
Interface & Connectivity
| Data Interface | USB3.0 |
|---|---|
| GPIO | 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated I/O port |
| Interface | USB3.0 |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Dimensions | 33 mm × 33 mm × 33 mm |
| Weight | 70 g |
| Power Supply | USB3.0 interface powered |
| Operating Temperature / Humidity | 10 °C to +50 °C / 20% to 80% (non-condensing) |
| Storage Temperature / Humidity | 30 °C to +70 °C / Available on request |
Other Published Specifications
| Model | I3ISPM05000KPB |
|---|---|
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE/FCC |
Technical Files & Images
Related Products
| Selection parameter | I3ISPM05000KPB (current) | I3ISPM05000KPB-GSame IMX264 sensor | E3CMOS05000KMASame IMX264 sensor | E3ISPM05000KPASame IMX264 sensor |
|---|---|---|---|---|
| Sensor | Sony IMX264LQR | Sony IMX264LQR | IMX264 (M,GS) | IMX264 (C,GS) |
| Image type | Color | Color | Monochrome | Color |
| Resolution | 5.0 MP (2448×2048) | 5.0 MP (2448×2048) | 5M (2448×2048) | 5M (2448×2048) |
| Pixel size | 3.45 µm × 3.45 µm | 3.45 µm × 3.45 µm | 3.45 µm × 3.45 µm | 3.45 µm × 3.45 µm |
| Frame / line rate | 35.6 fps @ 2448×2048; 87.6 fps @ 1224×1024 | 23.9 fps @ 2448×2048; 87.6 fps @ 1224×1024 | 35 fps @ 2448×2048; 60 fps @ 1224×1024 | 35 fps @ 2448×2048; 50 fps @ 1224×1024 |
| Interface | USB3.0 | GigE | USB3.0 | USB3.0 |
| Cooling / shutter | Global Shutter | Global Shutter | Global Shutter | Global Shutter |
