Microscopy Camera/Microscope Camera

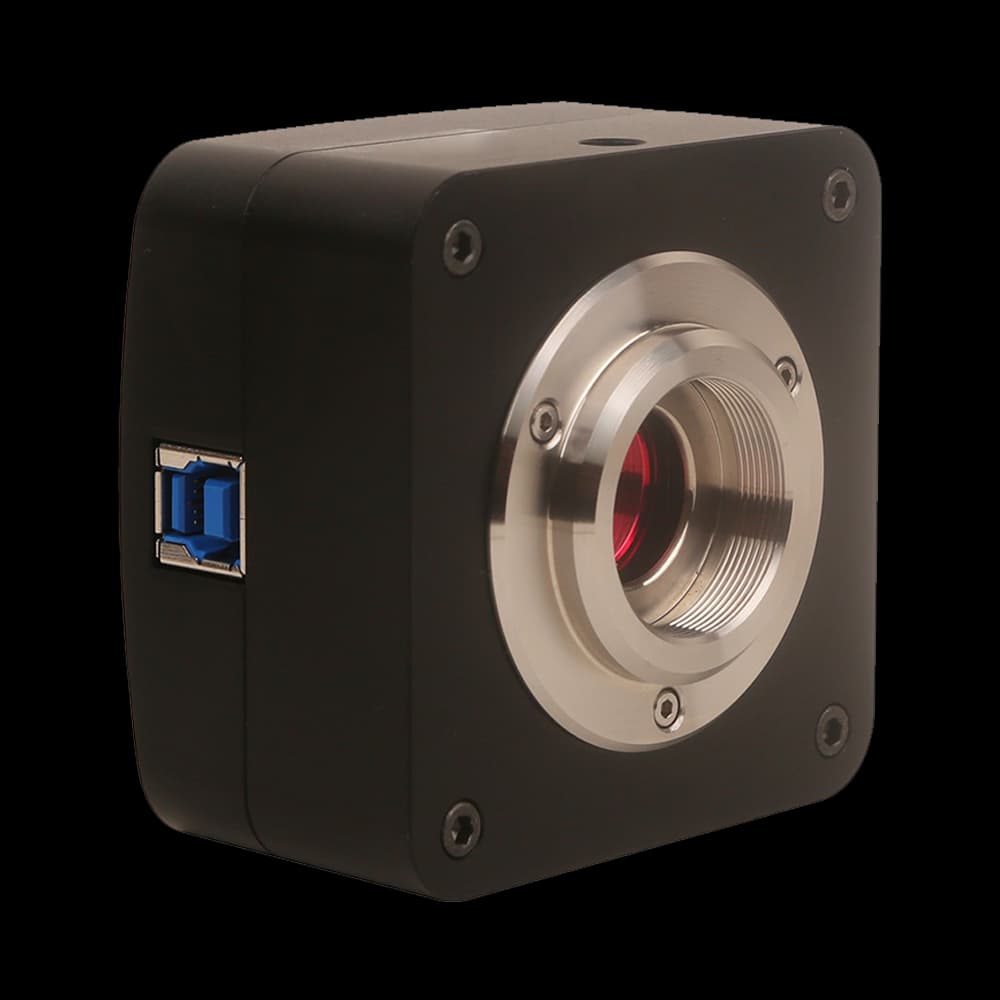

U3CMOS10000KPA

U3CMOS10000KPA Microscopy Camera/Microscope Camera with IMX577 (C) sensor, 10M (3664×2748) for professional imaging.

Sensor: IMX577 (C)
Resolution: 10M (3664×2748)
Pixel Size: 1.55 µm × 1.55 µm
Frame Rate: 8.5 fps @ 3664×2748; 49 fps @ 1832×1374; 137 fps @ 912×686
Interface: USB3.0

Datasheet (PDF)Back to Microscopy Cameras

Specifications

U3CMOS10000KPA

22 specification rows

The U3CMOS10000KPA is a microscopy camera in the U3CMOS series, built around a IMX577 (C) sensor, 10M (3664×2748) resolution, 1.55 µm × 1.55 µm pixels, frame rates up to 8.5 fps @ 3664×2748; 49 fps @ 1832×1374; 137 fps @ 912×686, a USB3.0 interface. It suits microscopy camera/microscope camera where reliable imaging performance and interface compatibility matter.

Key Parameters

Model	U3CMOS10000KPA
Sensor	IMX577 (C)
Effective Pixels / Resolution	10M (3664×2748)
Frame Rate (Full Resolution)	8.5 fps @ 3664×2748; 49 fps @ 1832×1374; 137 fps @ 912×686
Shutter Type	Rolling Shutter
Color Type	Color

Imaging Performance

Pixel Size	1.55 µm × 1.55 µm
Sensor Size	5.68 mm × 4.26 mm
Diagonal	1/2.5" (7.10 mm)
Dynamic Range	Available on request
Bit Depth	8-bit
Sensitivity	250 mV with 1/30s; 0.25 mV with 1/30s

Interface & Mechanical

Data Interface	USB3.0
GPIO	Available on request
Lens Mount	C-mount
Dimensions	Available on request
Weight	Available on request
Power Supply	USB3.0 interface power

Environment & Certification

Operating Temperature / Humidity	10 °C ~ +50 °C / 30%~80%RH
Storage Temperature / Humidity	20 °C ~ +60 °C / 10%~60%RH
Operating System	Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.)
Certification	CE, FCC
