Industrial Camera/Analytical Imaging

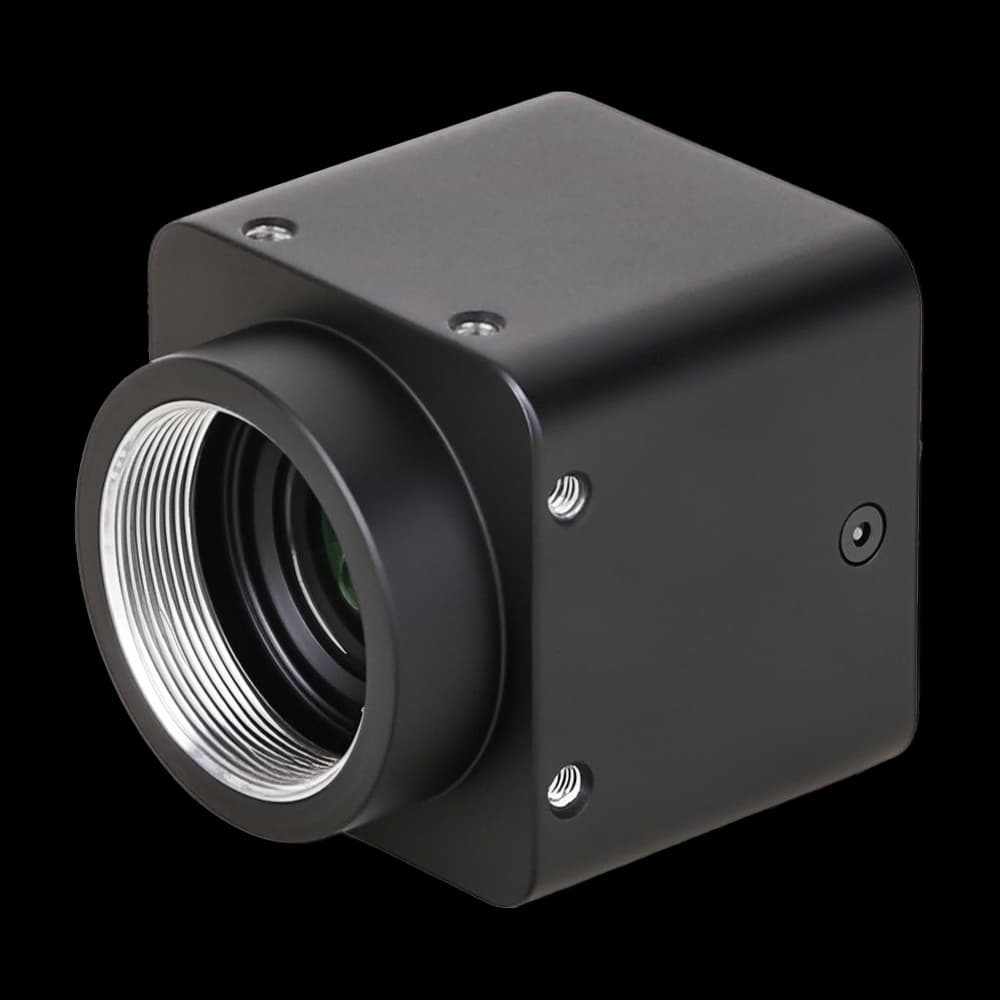

I3ISPM01500KPA
I3ISPM01500KPA Industrial Camera/Analytical Imaging with Sony IMX273LQR sensor, 1.5 MP (1440×1080) for professional imaging.
- Sensor
- Sony IMX273LQR
- Resolution
- 1.5 MP (1440×1080)
- Pixel Size
- 3.45 µm × 3.45 µm
- Frame Rate
- 227.2 fps @ 1440×1080; 382.7 fps @ 720×540
- Interface
- USB3.0
Specifications
I3ISPM01500KPA
23 specification rows
The I3ISPM01500KPA is an industrial & analytical camera in the I3ISPM series, built around a Sony IMX273LQR sensor, 1.5 MP (1440×1080) resolution, 3.45 µm × 3.45 µm pixels, frame rates up to 227.2 fps @ 1440×1080; 382.7 fps @ 720×540, a USB3.0 interface. It suits industrial camera/analytical imaging where reliable imaging performance and interface compatibility matter.
Key Parameters
| Model | I3ISPM01500KPA |
|---|---|
| Sensor | Sony IMX273LQR |
| Effective Pixels / Resolution | 1.5 MP (1440×1080) |
| Frame Rate (Full Resolution) | 227.2 fps @ 1440×1080; 382.7 fps @ 720×540 |
| Exposure Time | 15 µs ~ 15 s |
| Shutter Type | Global Shutter |
| Color Type | Color |
Imaging Performance
| Pixel Size | 3.45 µm × 3.45 µm |
|---|---|
| Sensor Size | 4.97 mm × 3.73 mm |
| Diagonal | 1/2.5" (6.21 mm) |
| Dynamic Range | 73.6 dB |
| Bit Depth | 8/10-bit |
| Sensitivity | 1146 mV |
Interface & Mechanical
| Data Interface | USB3.0 |
|---|---|
| GPIO | 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated I/O port |
| Lens Mount | C-mount |
| Dimensions | 33 mm × 33 mm × 33 mm |
| Weight | 70 g |
| Power Supply | USB3.0 interface powered |
Environment & Certification
| Operating Temperature / Humidity | 10 °C to +50 °C / 20% to 80% (non-condensing) |
|---|---|
| Storage Temperature / Humidity | 30 °C to +70 °C / Available on request |
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE/FCC |
System integration
Integration and compatibility
Use these checks to connect I3ISPM01500KPA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Lens and microscope interface
- Lens Mount: C-mount
- Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
- Sensor and sampling
- Sensor: Sony IMX273LQR · Resolution: 1.5 MP (1440×1080)
- Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
- Interface and data rate
- Frame Rate: 227.2 fps @ 1440×1080; 382.7 fps @ 720×540 · Interface: USB3.0
- Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
- Hardware synchronization
- GPIO: 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated I/O port
- Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
- Cooling and noise floor
- Dynamic Range: 73.6 dB
- Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Technical FAQ
Integration questions for I3ISPM01500KPA
What lens mount is required for the I3ISPM01500KPA?
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
What sensor and pixel pitch does the I3ISPM01500KPA use?
Sensor: Sony IMX273LQR · Resolution: 1.5 MP (1440×1080). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
How does the I3ISPM01500KPA connect to the acquisition computer?
Frame Rate: 227.2 fps @ 1440×1080; 382.7 fps @ 720×540 · Interface: USB3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Does the I3ISPM01500KPA support hardware triggering?
GPIO: 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated I/O port. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
What is the noise performance of the I3ISPM01500KPA?
Dynamic Range: 73.6 dB. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Zoom lenses for the I3ISPM01500KPA
See which of our C-mount zoom lenses suit this sensor, with the field of view, µm per pixel and depth of field at each zoom setting.
Model selection
Nearby series comparison
Compare I3ISPM01500KPA with the closest available models in the I3ISPM family.
| Selection parameter | I3ISPM01500KPA (current) | I3ISPM00500KPA | I3ISPM01700KPA |
|---|---|---|---|
| Sensor | Sony IMX273LQR | Sony IMX433LQJ | Sony IMX432LQJ |
| Resolution | 1.5 MP (1440×1080) | 0.5 MP (812×620) | 1.7 MP (1600×1100) |
| Sensor size | 4.97 mm × 3.73 mm | 7.31 mm × 5.58 mm | 14.4 mm × 9.9 mm |
| Pixel size / frame rate | 3.45 µm × 3.45 µm | 9.0 µm × 9.0 µm | 9.0 µm × 9.0 µm |
