Color · Microscopy Cameras/Microscope Cameras

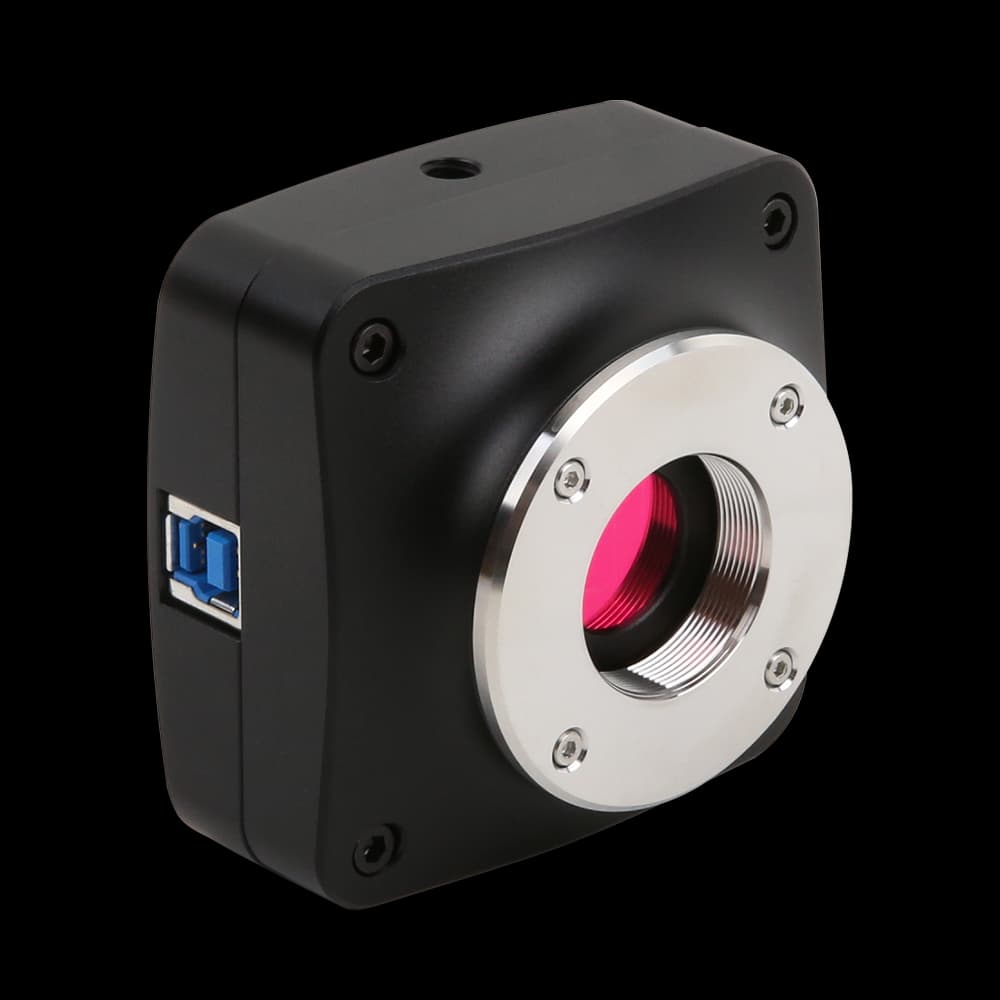

E3ISPM12000KPC
- Sensor
- IMX676 (C)
- Resolution
- 12M (3536×3536)
- Pixel Size
- 2.0 µm × 2.0 µm
- Frame Rate
- 27 fps @ 3536×3536; 60 fps @ 1768×1768
- Interface
- USB3.0
Complete Specifications
Sensor & Imaging
| Sensor | IMX676 (C) |
|---|---|
| Effective Pixels / Resolution | 12M (3536×3536) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 2.0 µm × 2.0 µm |
| Sensor Size | 7.07 mm × 7.07 mm |
| Diagonal | 2/3" (10.00 mm) |
| Resolution | 12M (3536×3536) |
Performance
| Frame Rate (Full Resolution) | 27 fps @ 3536×3536; 60 fps @ 1768×1768 |
|---|---|
| Dynamic Range | Available on request |
| Bit Depth | 8/12-bit |
| Sensitivity | 3637 mV with 12-bit converted value(HCG); 0.15 mV with 1/30s |
| Frame Rate | 27 fps @ 3536×3536; 60 fps @ 1768×1768 |
Interface & Connectivity
| Data Interface | USB3.0 |
|---|---|
| GPIO | Available on request |
| Interface | USB3.0 |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Dimensions | Available on request |
| Weight | Available on request |
| Power Supply | USB3.0 interface power (compatible with USB2.0) |
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 30%~80%RH |
| Storage Temperature / Humidity | 20 °C ~ +60 °C / 10%~60%RH |
Other Published Specifications
| Model | E3ISPM12000KPC |
|---|---|
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Certification | CE, FCC |
