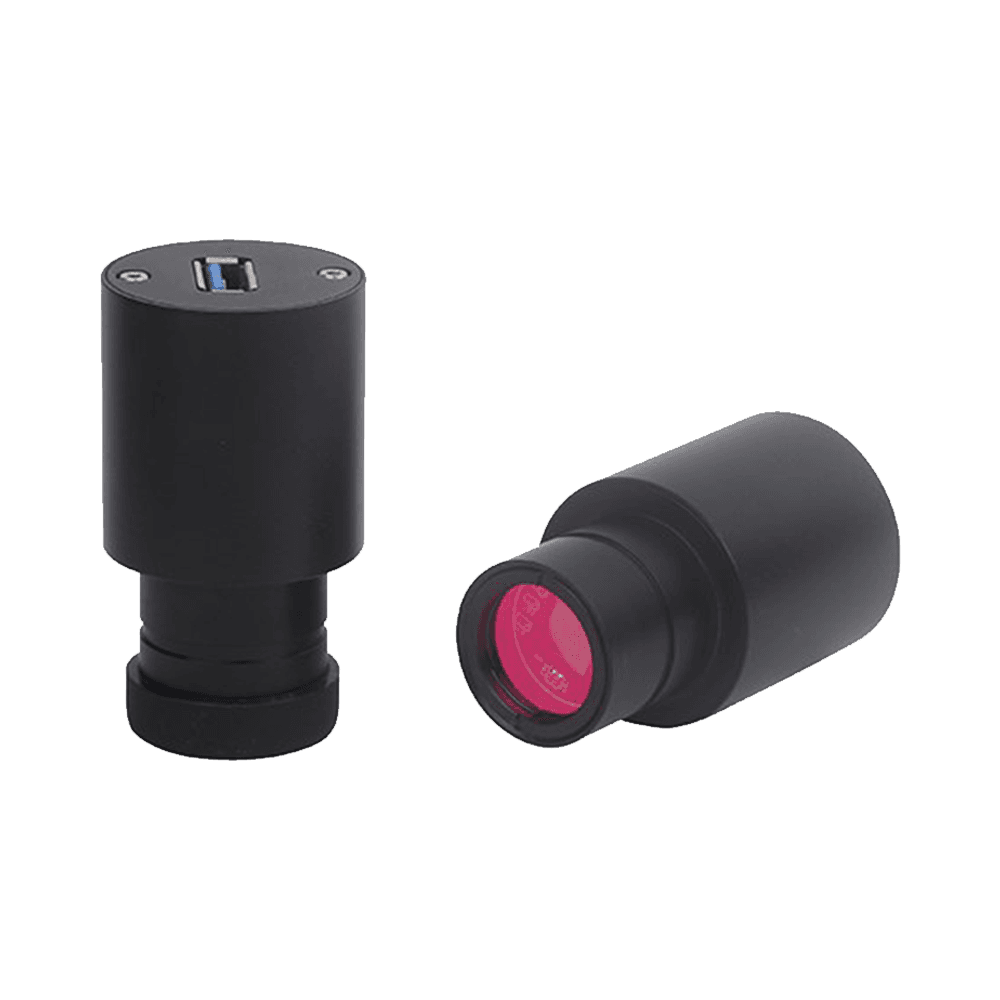

Color · Microscopy camera
S3CMOS05000KPC
- Sensor
- SC5033 (C) 1/2.5" (6.48 mm) | 5.18 mm × 3.89 mm
- Resolution
- 5.0MP (2592×1944)
- Pixel Size
- 2.0 µm × 2.0 µm
- Frame Rate
- 15 fps @ 2592×1944 20 fps @ 2048×1536 20 fps @ 1600×1200 30 fps @ 800×600
- Interface
- USB3.0
Complete Specifications
Sensor & Imaging
| Sensor | SC5033 (C) 1/2.5" (6.48 mm) | 5.18 mm × 3.89 mm |
|---|---|
| Resolution | 5.0MP (2592×1944) |
| Pixel Size | 2.0 µm × 2.0 µm |
| Shutter | Rolling Shutter |
Performance
| Frame Rate | 15 fps @ 2592×1944 20 fps @ 2048×1536 20 fps @ 1600×1200 30 fps @ 800×600 |
|---|
Interface & Connectivity
| Interface | USB3.0 |
|---|
Other Published Specifications
| Model | S3CMOS05000KPC |
|---|
Related Products
| Selection parameter | S3CMOS05000KPC (current) | SCMOS05000KPBSame SC5033 sensor | S3CMOS05000KPASame S3CMOS series | S3CMOS05100KPASame S3CMOS series |
|---|---|---|---|---|
| Sensor | SC5033 (C) 1/2.5" (6.48 mm) | 5.18 mm × 3.89 mm | SC5033 (C) | MT9P001 (C) 1/2.5" (7.13 mm) | 5.70 mm × 4.28 mm | IMX335 (C) 1/2.5" (6.48 mm) | 5.18 mm × 3.89 mm |
| Image type | Color | Color | Color | Color |
| Resolution | 5.0MP (2592×1944) | 5.0MP (2592×1944) | 5.0MP (2560×1920) | 5.1MP (2592×1944) |
| Pixel size | 2.0 µm × 2.0 µm | 2.0 µm × 2.0 µm | 2.2 µm × 2.2 µm | 2.0 µm × 2.0 µm |
| Frame / line rate | 15 fps @ 2592×1944 20 fps @ 2048×1536 20 fps @ 1600×1200 30 fps @ 800×600 | 20 fps @ 2592×1944; 20 fps @ 2048×1536; 20 fps @ 1600×1200; 30 fps @ 800×600 | 15 fps @ 2560×1920 15 fps @ 2048×1536 30 fps @ 1920×1080 | 20 fps @ 2592×1944 20 fps @ 1280×960 20 fps @ 640×480 |
| Interface | USB3.0 | USB2.0 | USB3.0 | USB3.0 |
