Microscopy Cameras/Microscope Cameras

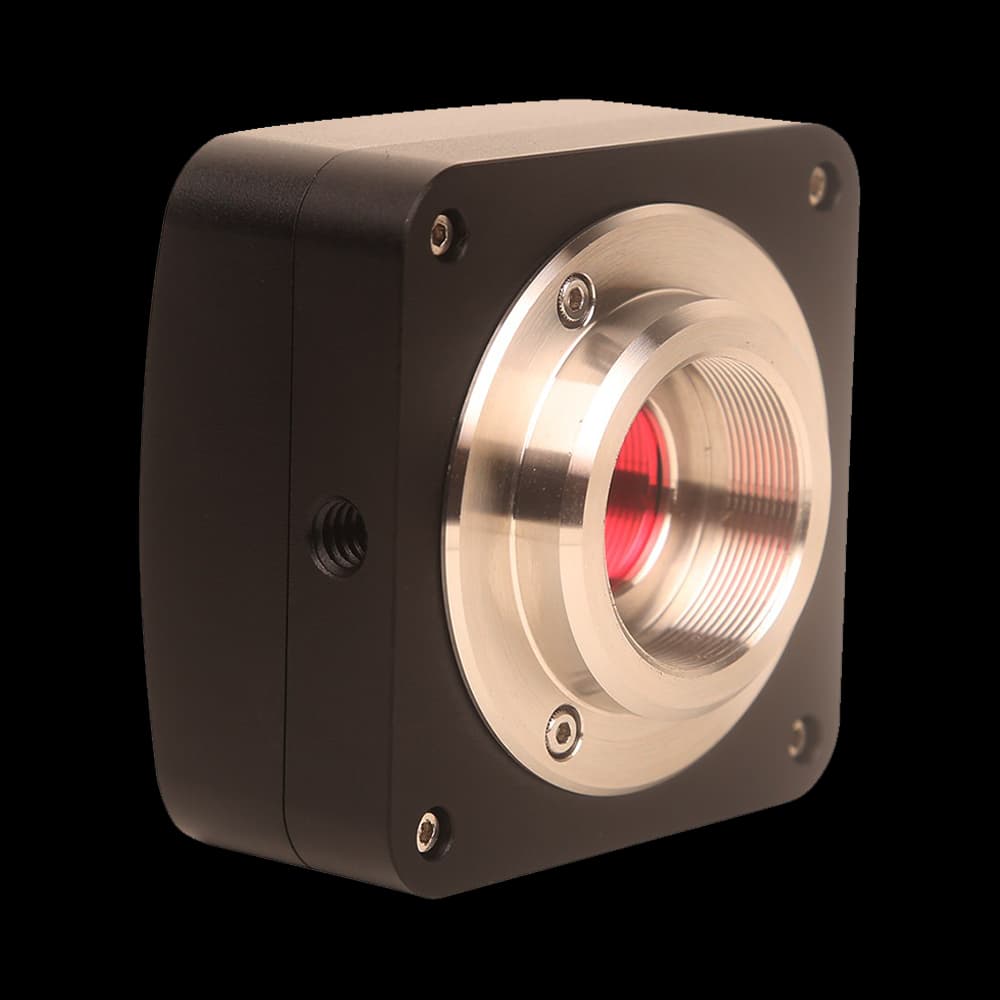

ECMOS05300KPA Microscopy Cameras/Microscope Cameras with IMX178(C) sensor, 5.3M (3072×1728) for professional imaging.
Application context
ECMOS05300KPA: The IMX178(C) sensor, 5.3M (3072×1728) resolution, and 2.4 µm × 2.4 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 5.5 fps @ 3072×1728; 35 fps @ 1280×720 frame-rate listing also sets the fastest full-frame acquisition regime.
ECMOS05300KPA: The IMX178(C) sensor, 5.3M (3072×1728) resolution, and 2.4 µm × 2.4 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 5.5 fps @ 3072×1728; 35 fps @ 1280×720 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
22 specification rows
The ECMOS05300KPA is a microscopy camera in the ECMOS series, built around a IMX178(C) sensor, 5.3M (3072×1728) resolution, 2.4 µm × 2.4 µm pixels, frame rates up to 5.5 fps @ 3072×1728; 35 fps @ 1280×720, a USB2.0 interface. It suits microscopy cameras/microscope cameras where reliable imaging performance and interface compatibility matter.
| Model | ECMOS05300KPA |
|---|---|
| Sensor | IMX178(C) |
| Effective Pixels / Resolution | 5.3M (3072×1728) |
| Frame Rate (Full Resolution) | 5.5 fps @ 3072×1728; 35 fps @ 1280×720 |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 2.4 µm × 2.4 µm |
|---|---|
| Sensor Size | 7.37 mm × 4.15 mm |
| Diagonal | 1/2" (8.46 mm) |
| Dynamic Range | Available on request |
| Bit Depth | 8-bit |
| Sensitivity | 425 mV with 1/30s; 0.15 mV with 1/30s |
| Data Interface | USB2.0 |
|---|---|
| GPIO | Available on request |
| Lens Mount | C-mount |
| Dimensions | Available on request |
| Weight | 0.5~0.55Kg |
| Power Supply | USB powered |
| Operating Temperature / Humidity | 10 °C ~ 50 °C / 30%~80%RH |
|---|---|
| Storage Temperature / Humidity | 20 °C ~ 60 °C / 10%~60%RH |
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE, FCC |
System integration
Use these checks to connect ECMOS05300KPA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: IMX178(C) · Resolution: 5.3M (3072×1728). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 5.5 fps @ 3072×1728; 35 fps @ 1280×720 · Interface: USB2.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: Available on request. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: Available on request. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare ECMOS05300KPA with the closest available models in the ECMOS family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | ECMOS05300KPA (current) | ECMOS05000KPA | ECMOS06600KPA |
|---|---|---|---|
| Sensor | IMX178(C) | IMX335(C) | IMX326(C) |
| Resolution | 5.3M (3072×1728) | 5.0M (2592×1944) | 6.6M (3072×2160) |
| Sensor size | 7.37 mm × 4.15 mm | 5.18 mm × 3.89 mm | 4.98 mm × 3.50 mm |
| Pixel size / frame rate | 2.4 µm × 2.4 µm | 2.0 µm × 2.0 µm | 1.62 µm × 1.62 µm |
The IMX178 appears in 14 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
