Color · Industrial Camera/Analytical Imaging

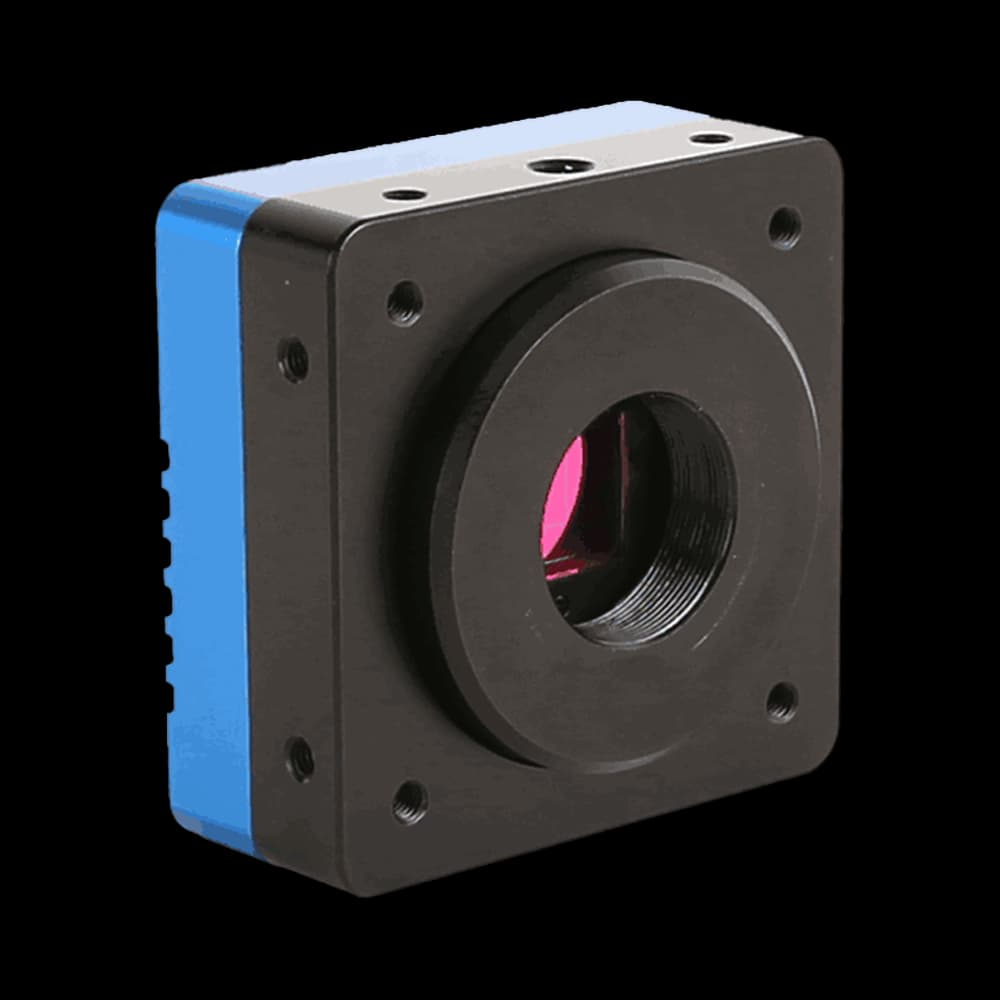

IUA20400KPA
- Sensor
- Sony IMX541-AAQJ-C
- Resolution
- 20.4MP (4496×4496)
- Pixel Size
- 2.74 µm × 2.74 µm
- Frame Rate
- 17.5 fps @ 4496×4496; 64.4 fps @ 2240×2240; 64.4 fps @ 1120×1120
- Interface
- USB3.0 (USB3.1 GEN1)
Complete Specifications
Sensor & Imaging
| Sensor | Sony IMX541-AAQJ-C |
|---|---|
| Effective Pixels / Resolution | 20.4MP (4496×4496) |
| Shutter Type | Global shutter |
| Color Type | Color |
| Pixel Size | 2.74 µm × 2.74 µm |
| Sensor Size | 12.32 mm × 12.32 mm |
| Diagonal | 1" (17.42 mm) |
| Resolution | 20.4MP (4496×4496) |
Performance
| Frame Rate (Full Resolution) | 17.5 fps @ 4496×4496; 64.4 fps @ 2240×2240; 64.4 fps @ 1120×1120 |
|---|---|
| Exposure Time | 30 µs ~ 15 s |
| Dynamic Range | 72 dB |
| Bit Depth | 8/12-bit |
| Sensitivity | 1574 mV |
| Frame Rate | 17.5 fps @ 4496×4496; 64.4 fps @ 2240×2240; 64.4 fps @ 1120×1120 |
Interface & Connectivity
| Data Interface | USB3.0 (USB3.1 GEN1) |
|---|---|
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output |
| Interface | USB3.0 (USB3.1 GEN1) |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Dimensions | 68 mm × 68 mm × 28.1 mm |
| Weight | 227g |
| Power Supply | USB3.0 interface power / DC 12 V power |
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 20%~80% non-condensing |
| Storage Temperature / Humidity | 30 °C ~ +70 °C / Available on request |
Other Published Specifications
| Model | IUA20400KPA |
|---|---|
| Operating System | Windows 32-bit/Windows RT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64 |
| Certification | CE, FCC |
Technical Files & Images
Related Products
| Selection parameter | IUA20400KPA (current) | IUA20400KMASame IMX541 sensor | E3CMOS20400KMASame IMX541 sensor | E3ISPM20400KPASame IMX541 sensor |
|---|---|---|---|---|
| Sensor | Sony IMX541-AAQJ-C | Sony IMX541-AAMJ-C | IMX541 (M,GS) | IMX541 (C,GS) |
| Image type | Color | Monochrome | Monochrome | Color |
| Resolution | 20.4MP (4496×4496) | 20.4MP (4496×4496) | 20.4M (4496×4496) | 20.4M (4496×4496) |
| Pixel size | 2.74 µm × 2.74 µm | 2.74 µm × 2.74 µm | 2.74 µm × 2.74 µm | 2.74 µm × 2.74 µm |
| Frame / line rate | 17.5 fps @ 4496×4496; 64.4 fps @ 2240×2240; 64.4 fps @ 1120×1120 | 17.5 fps @ 4496×4496; 64.4 fps @ 2240×2240; 64.4 fps @ 1120×1120 | 17.5 fps @ 4496×4496; 64.4 fps @ 2240×2240; 64.4 fps @ 1120×1120 | 17.5 fps @ 4496×4496; 64.4 fps @ 2240×2240; 64.4 fps @ 1120×1120 |
| Interface | USB3.0 (USB3.1 GEN1) | USB3.0 (USB3.1 GEN1) | USB3.0 | USB3.0 |
| Cooling / shutter | Global shutter | Global shutter | Global Shutter | Global Shutter |
