Microscopy Camera/Microscope Camera

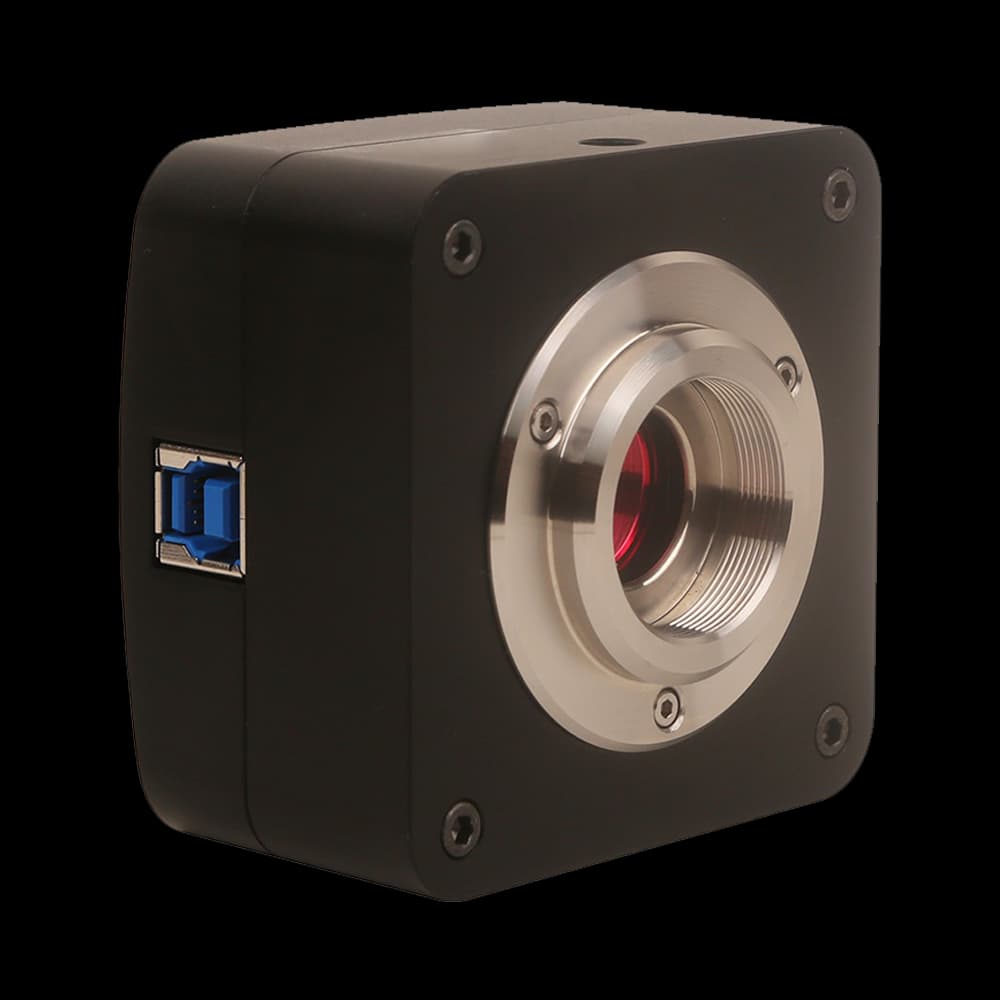

U3CMOS04100KPA

U3CMOS04100KPA Microscopy Camera/Microscope Camera with IMX347 (C) sensor, 4.1M (2688×1536) for professional imaging.

Sensor: IMX347 (C)
Resolution: 4.1M (2688×1536)
Pixel Size: 2.9 µm × 2.9 µm
Frame Rate: 20 fps @ 2688×1536; 30 fps @ 2048×1536; 40 fps @ 1536×1536; 100 fps @ 1344×768
Interface: USB3.0

Datasheet (PDF)Back to Microscopy Cameras

Specifications

U3CMOS04100KPA

22 specification rows

The U3CMOS04100KPA is a microscopy camera in the U3CMOS series, built around a IMX347 (C) sensor, 4.1M (2688×1536) resolution, 2.9 µm × 2.9 µm pixels, frame rates up to 20 fps @ 2688×1536; 30 fps @ 2048×1536; 40 fps @ 1536×1536; 100 fps @ 1344×768, a USB3.0 interface. It suits microscopy camera/microscope camera where reliable imaging performance and interface compatibility matter.

Key Parameters

Model	U3CMOS04100KPA
Sensor	IMX347 (C)
Effective Pixels / Resolution	4.1M (2688×1536)
Frame Rate (Full Resolution)	20 fps @ 2688×1536; 30 fps @ 2048×1536; 40 fps @ 1536×1536; 100 fps @ 1344×768
Shutter Type	Rolling Shutter
Color Type	Color

Imaging Performance

Pixel Size	2.9 µm × 2.9 µm
Sensor Size	7.795 mm × 4.408 mm
Diagonal	1/1.8" (8.96 mm)
Dynamic Range	Available on request
Bit Depth	8-bit
Sensitivity	2376 mV with 1/30s; 0.15 mV with 1/30s

Interface & Mechanical

Data Interface	USB3.0
GPIO	Available on request
Lens Mount	C-mount
Dimensions	Available on request
Weight	Available on request
Power Supply	USB3.0 interface power

Environment & Certification

Operating Temperature / Humidity	10 °C ~ +50 °C / 30%~80%RH
Storage Temperature / Humidity	20 °C ~ +60 °C / 10%~60%RH
Operating System	Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.)
Certification	CE, FCC
