Industrial Cameras/Analytical Imaging

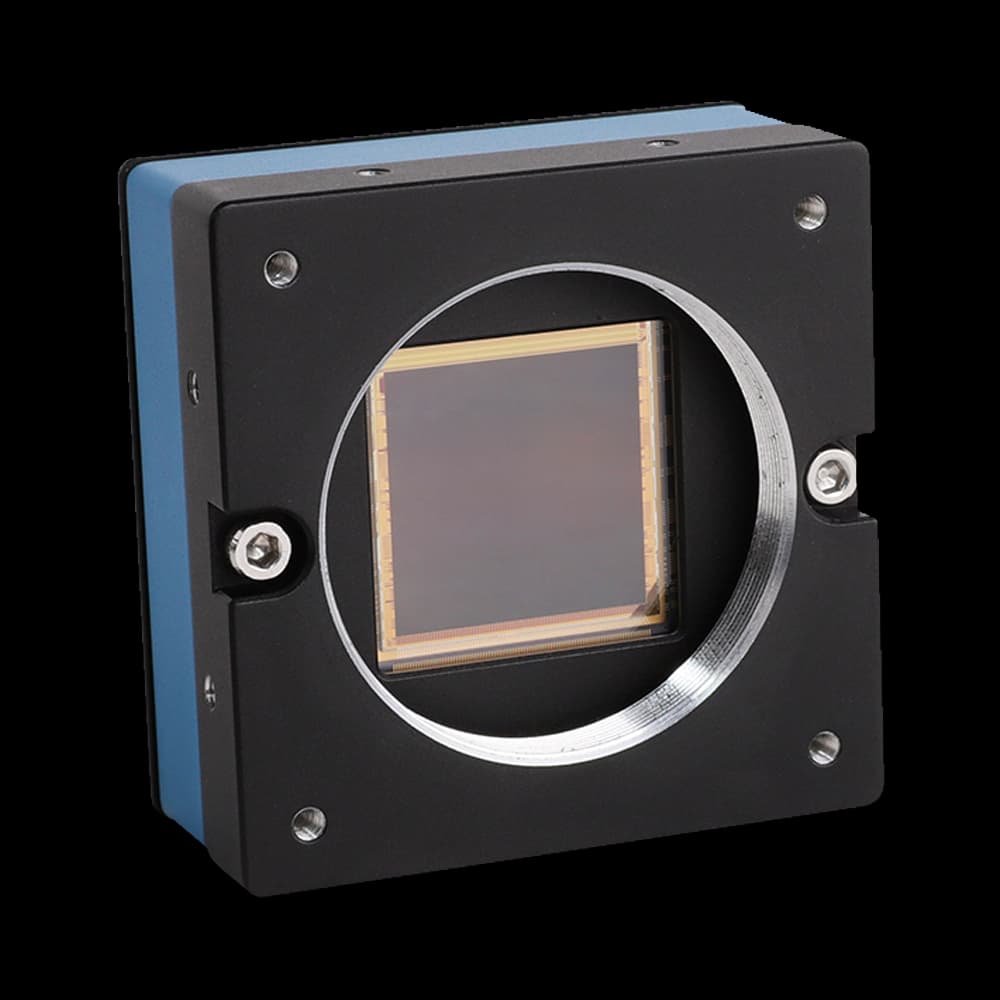

IUD16000KMA Industrial Cameras/Analytical Imaging with PYTHON 16K sensor, 16.0MP (4096×4096) for professional imaging.
Application context
IUD16000KMA: The PYTHON 16K sensor, 16.0MP (4096×4096) resolution, and 4.5 µm × 4.5 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 22.5 fps @ 4096×4096 frame-rate listing also sets the fastest full-frame acquisition regime.
IUD16000KMA: The PYTHON 16K sensor, 16.0MP (4096×4096) resolution, and 4.5 µm × 4.5 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 22.5 fps @ 4096×4096 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
23 specification rows
The IUD16000KMA is an industrial & analytical camera in the IUD series, built around a PYTHON 16K sensor, 16.0MP (4096×4096) resolution, 4.5 µm × 4.5 µm pixels, frame rates up to 22.5 fps @ 4096×4096, a USB3.0 interface. It suits industrial cameras/analytical imaging where reliable imaging performance and interface compatibility matter.
| Model | IUD16000KMA |
|---|---|
| Sensor | PYTHON 16K |
| Effective Pixels / Resolution | 16.0MP (4096×4096) |
| Frame Rate (Full Resolution) | 22.5 fps @ 4096×4096 |
| Exposure Time | 1 µs ~ 60 s |
| Shutter Type | Global Shutter |
| Color Type | Monochrome (NIR) |
| Pixel Size | 4.5 µm × 4.5 µm |
|---|---|
| Sensor Size | 18.43 mm × 18.43 mm |
| Diagonal | 1.8" (26.06 mm) |
| Dynamic Range | Available on request |
| Bit Depth | 8/12-bit |
| Sensitivity | Available on request |
| Data Interface | USB3.0 |
|---|---|
| GPIO | 2× non-isolated inputs, 3× non-isolated outputs |
| Lens Mount | M42 mount |
| Dimensions | 59 mm × 59 mm × 27.2 mm |
| Weight | 139.3 g |
| Power Supply | USB3.0 bus-powered |
| Operating Temperature / Humidity | 10 °C to +50 °C / 20% to 80% non-condensing |
|---|---|
| Storage Temperature / Humidity | 30 °C to +70 °C / Available on request |
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE/FCC |
System integration
Use these checks to connect IUD16000KMA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: M42 mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: PYTHON 16K · Resolution: 16.0MP (4096×4096). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 22.5 fps @ 4096×4096 · Interface: USB3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 2× non-isolated inputs, 3× non-isolated outputs. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: Available on request. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare IUD16000KMA with the closest available models in the IUD family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | IUD16000KMA (current) | IUD25000KMA |
|---|---|---|
| Sensor | PYTHON 16K | PYTHON 25K |
| Resolution | 16.0MP (4096×4096) | 25.0MP (5120×5120) |
| Sensor size | 18.43 mm × 18.43 mm | 23.04 mm × 23.04 mm |
| Pixel size / frame rate | 4.5 µm × 4.5 µm | 4.5 µm × 4.5 µm |
