LHCCD00554: The ILX554 CCD (M) sensor, 2048-pixel line array resolution, and 14 µm × 56 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging.
Microscopy Cameras/Microscope Cameras
LHCCD00554

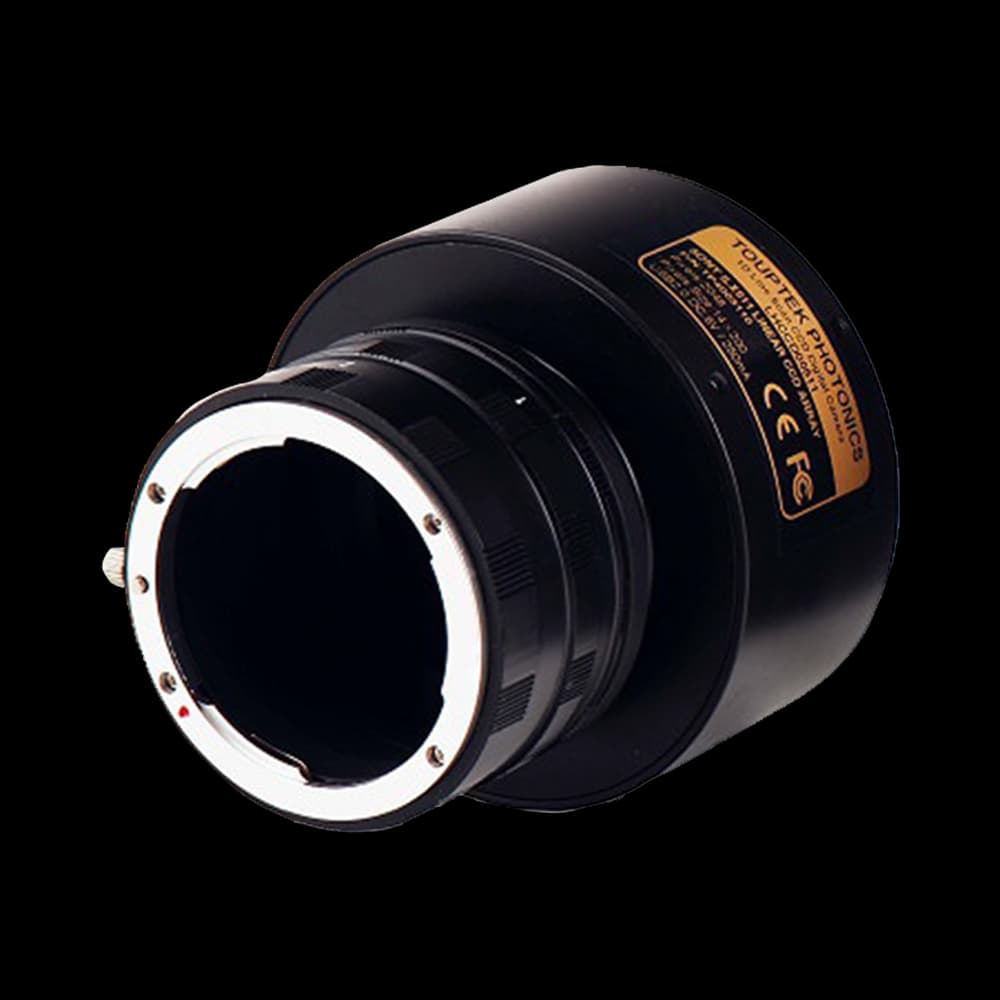

LHCCD00554 Microscopy Cameras/Microscope Cameras with ILX554 CCD (M) sensor, 2048-pixel line array for professional imaging.
- Sensor
- ILX554 CCD (M)
- Resolution
- 2048-pixel line array
- Pixel Size
- 14 µm × 56 µm
- Interface
- USB2.0
Application context
Why this design is used
Instrument integration
LHCCD00554: The ILX554 CCD (M) sensor, 2048-pixel line array resolution, and 14 µm × 56 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration.
Specifications
LHCCD00554
23 specification rows
The LHCCD00554 is a microscopy camera in the LHCCD series, built around a ILX554 CCD (M) sensor, 2048-pixel line array resolution, 14 µm × 56 µm pixels, a USB2.0 interface. It suits microscopy cameras/microscope cameras where reliable imaging performance and interface compatibility matter.
Key Parameters
| Model | LHCCD00554 |
|---|---|
| Sensor | ILX554 CCD (M) |
| Effective Pixels / Resolution | 2048-pixel line array |
| Line Rate (Full Resolution) | 475 fps @ 2048 |
| Exposure Time | 2 ms ~ 4000 ms |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
Imaging Performance
| Pixel Size | 14 µm × 56 µm |
|---|---|
| Line Array Size | 28 mm line array |
| Array Length | 1.8" (28.00 mm) |
| Dynamic Range | Available on request |
| Bit Depth | 16-bit |
| Sensitivity | Available on request |
Interface & Mechanical
| Data Interface | USB2.0 |
|---|---|
| GPIO | External trigger support |
| Lens Mount | M42×0.75 (optional) |
| Dimensions | Available on request |
| Weight | Available on request |
| Power Supply | USB power |
Environment & Certification
| Operating Temperature / Humidity | 30 °C ~ +70 °C / 30%~80%RH |
|---|---|
| Storage Temperature / Humidity | 40 °C ~ +85 °C / 10%~60%RH |
| Operating System | Microsoft Windows XP/Vista/7/8 (32&64-bit) |
| Certification | CE, FCC |
System integration
Integration and compatibility
Use these checks to connect LHCCD00554 to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Lens and microscope interface
- Lens Mount: M42×0.75 (optional)
- Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
- Sensor and sampling
- Sensor: ILX554 CCD (M) · Resolution: 2048-pixel line array
- Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
- Interface and data rate
- Interface: USB2.0 · Data Interface: USB2.0
- Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
- Hardware synchronization
- GPIO: External trigger support
- Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
- Cooling and noise floor
- Dynamic Range: Available on request
- Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Technical FAQ
Integration questions for LHCCD00554
What lens mount is required for the LHCCD00554?
Lens Mount: M42×0.75 (optional). Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
What sensor and pixel pitch does the LHCCD00554 use?
Sensor: ILX554 CCD (M) · Resolution: 2048-pixel line array. Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
How does the LHCCD00554 connect to the acquisition computer?
Interface: USB2.0 · Data Interface: USB2.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Does the LHCCD00554 support hardware triggering?
GPIO: External trigger support. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
What is the noise performance of the LHCCD00554?
Dynamic Range: Available on request. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Nearby series comparison
Compare LHCCD00554 with the closest available models in the LHCCD family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | LHCCD00554 (current) | LHCCD00511 | LHCCD01304 |
|---|---|---|---|
| Sensor | ILX554 CCD (M) | ILX511 CCD (M) | TCD1304 CCD (M) |
| Resolution | 2048-pixel line array | 2048-pixel line array | 3648-pixel line array |
| Sensor size | Confirm for this model | Confirm for this model | Confirm for this model |
| Pixel size / frame rate | 14 µm × 56 µm | 14 µm × 200 µm | 8 µm × 200 µm |
