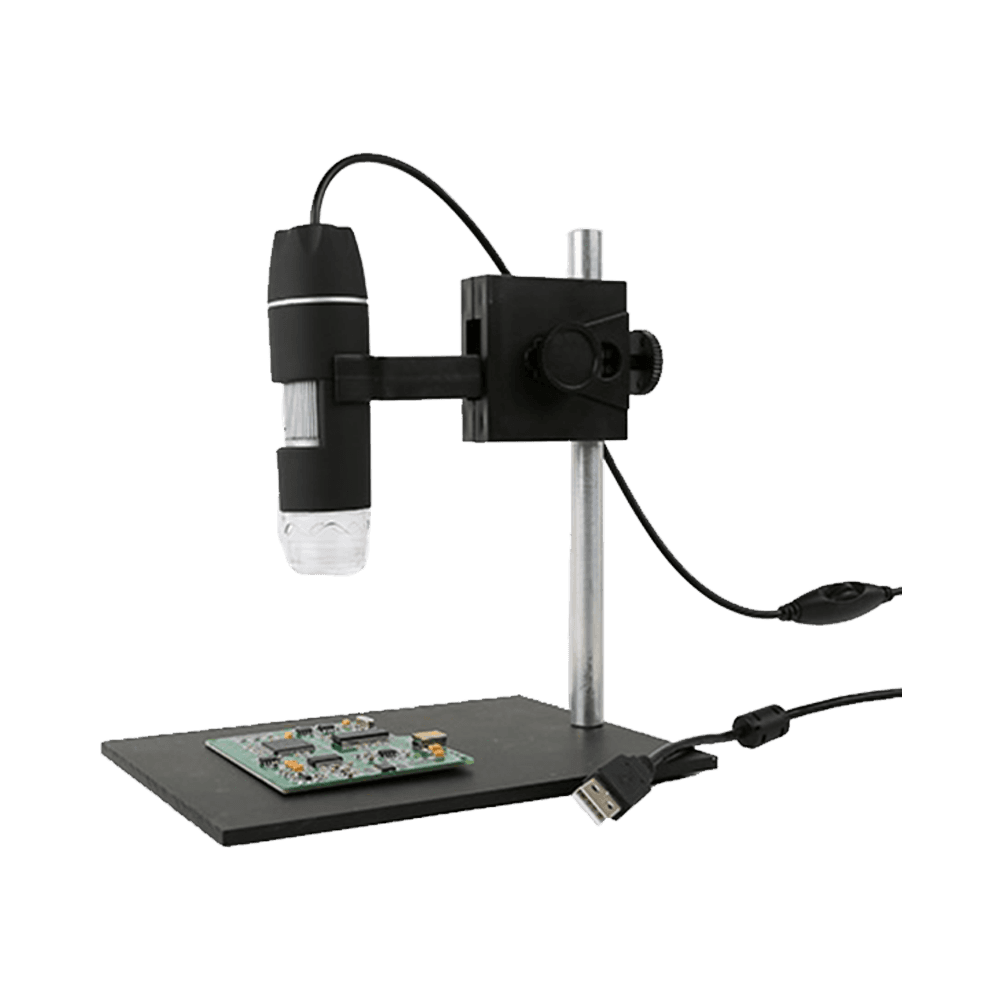

Color · Microscopy camera
HCAM200A
- Sensor
- Sony IMX323(C) 1/2.9" (6.3 × 3.6 mm)
- Frame Rate
- 30 fps @ 1920×1080
- Interface
- USB2.0
- Resolution
- 2MP (1920×1080)
- Pixel Size
- 2.8 µm × 2.8 µm
Complete Specifications
Sensor & Imaging
| Sensor/Size | Sony IMX323(C) 1/2.9" (6.3 × 3.6 mm) |
|---|---|
| Effective Pixels | 2.8 µm × 2.8 µm |
| Sensor | Sony IMX323(C) 1/2.9" (6.3 × 3.6 mm) |
| Resolution | 2MP (1920×1080) |
| Pixel Size | 2.8 µm × 2.8 µm |
Performance
| Frame Rate (fps) | 30 fps @ 1920×1080 |
|---|---|
| Frame Rate | 30 fps @ 1920×1080 |
Interface & Connectivity
| Output Resolution | 2MP (1920×1080) |
|---|---|
| Output Interface | USB2.0 |
| Storage Support | Computer storage |
| Interface | USB2.0 |
Cooling & Mechanical
| Lens Mount | Integrated lens body |
|---|
Other Published Specifications
| Model | HCAM200A |
|---|---|
| Featured Functions | Built-in LED illumination USB2.0 powered 2MP Multi-platform SDK support |
Related Products
| Selection parameter | HCAM200A (current) | ZOPE2MPASame IMX323 sensor | PHM2MPASame HCAM series |
|---|---|---|---|
| Sensor | Sony IMX323(C) 1/2.9" (6.3 × 3.6 mm) | Sony IMX323(C) 1/2.9" (6.3 × 3.6 mm) | Sony IMX307(C) Starvis Back-illuminated CMOS 1/2.8" (5.57 × 3.13 mm) |
| Image type | Color | Color | Color |
| Resolution | 2MP (1920×1080) | 2MP (1920×1080) | 2MP (1920×1080) |
| Pixel size | 2.8 µm × 2.8 µm | 2.8 µm × 2.8 µm | 2.9 µm × 2.9 µm |
| Frame / line rate | 30 fps @ 1920×1080 | 30 fps @ 1920×1080 | 30 fps @ 1920×1080 |
| Interface | USB2.0 | USB2.0 | 5-inch LCD screen USB |
