Color · Industrial & Analytical Camera

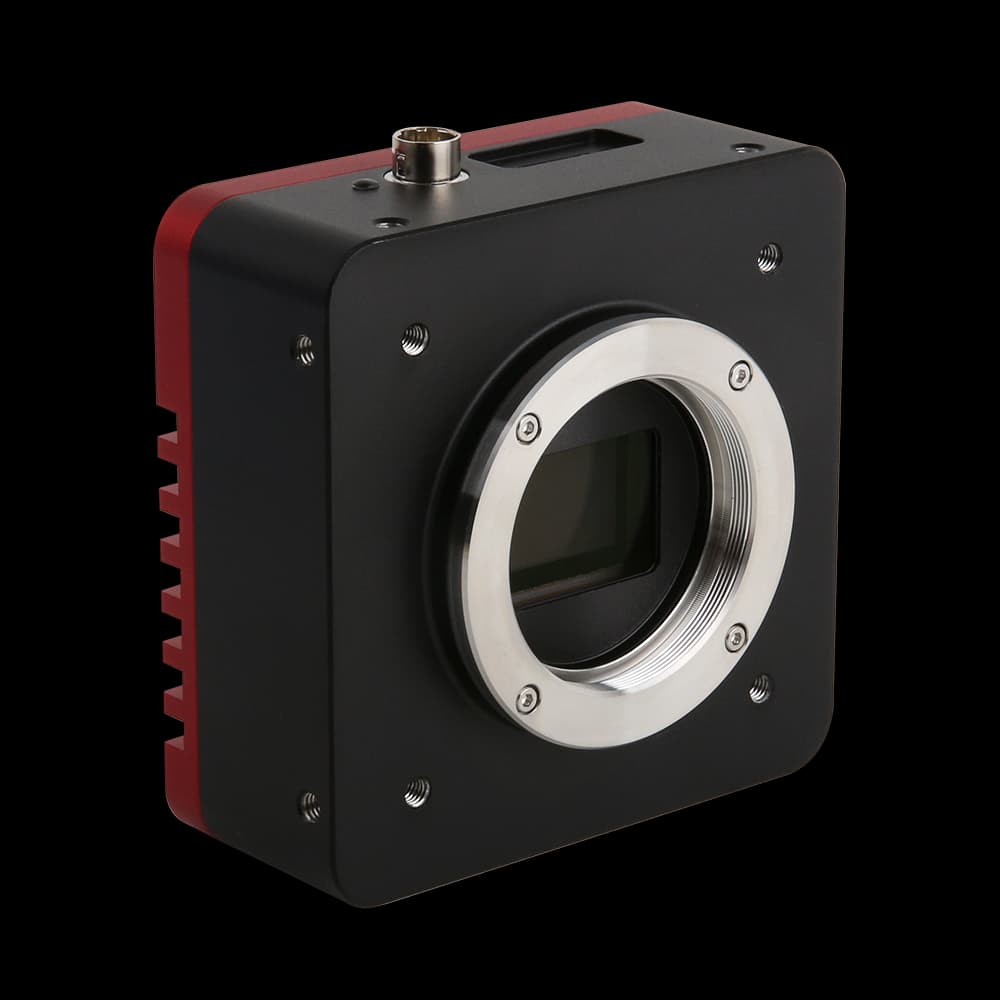

IUC60000KPA-10G
- Sensor
- Sony IMX455AQK
- Resolution
- 60.0MP (9568×6380)
- Pixel Size
- 3.76 µm × 3.76 µm
- Frame Rate
- 17.2 fps @ 9568×6380; 45 fps @ 4768×3190; 56.8 fps @ 3168×2124; 191 fps @ 1024×706
- Interface
- 10GigE
Complete Specifications
Sensor & Imaging
| Sensor | Sony IMX455AQK |
|---|---|
| Effective Pixels / Resolution | 60.0MP (9568×6380) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 3.76 µm × 3.76 µm |
| Sensor Size | 35.96 mm × 23.99 mm |
| Diagonal | 2.7" (Full Frame, 43.23 mm) |
| Resolution | 60.0MP (9568×6380) |
Performance
| Frame Rate (Full Resolution) | 17.2 fps @ 9568×6380; 45 fps @ 4768×3190; 56.8 fps @ 3168×2124; 191 fps @ 1024×706 |
|---|---|
| Exposure Time | 150 µs ~ 15 s |
| Conversion Gain | 0.79 e- (HCG); 1.62 e- (LCG) |
| Read Noise | 3.51 e- (HCG); 5.39 e- (LCG) |
| Full Well Capacity | 51550.45 e- (HCG); 87353.34 e- (LCG) |
| Signal-to-Noise Ratio | 47.12 dB (HCG); 49.41 dB (LCG) |
| Dark Current | 0.07 mV |
| Gain Range | 1×–50× |
| Binning | Hardware 2×2, 3×3, 9×9; Software 2×2, 3×3, 9×9 |
| Dynamic Range | 83.34 dB (HCG); 84.18 dB (LCG) |
| Bit Depth | 8/16-bit |
| Sensitivity | 484.5 mV |
| Frame Rate | 17.2 fps @ 9568×6380; 45 fps @ 4768×3190; 56.8 fps @ 3168×2124; 191 fps @ 1024×706 |
Interface & Connectivity
| Data Interface | 10GigE |
|---|---|
| GPIO | 1× optically isolated input, 1× optically isolated output, 2× non-isolated I/O |
| Interface | 10GigE |
Cooling & Mechanical
| Lens Mount | M52 mount |
|---|---|
| Dimensions | 88 mm × 88 mm × 51.3 mm |
| Weight | 540 g |
| Power Supply | DC 12 V |
| Power Consumption | 13.4 W |
| Operating Temperature / Humidity | -10 °C ~ +50 °C / 20%–80% (non-condensing) |
| Storage Temperature / Humidity | -30 °C ~ +70 °C / 20%–80% (non-condensing) |
Other Published Specifications
| Model | IUC60000KPA-10G |
|---|---|
| Operating System | Win32/WinRT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64 |
| Software | imaging software; complete SDK package |
| Certification | CE, FCC |
