Microscopy Cameras/Microscope Cameras

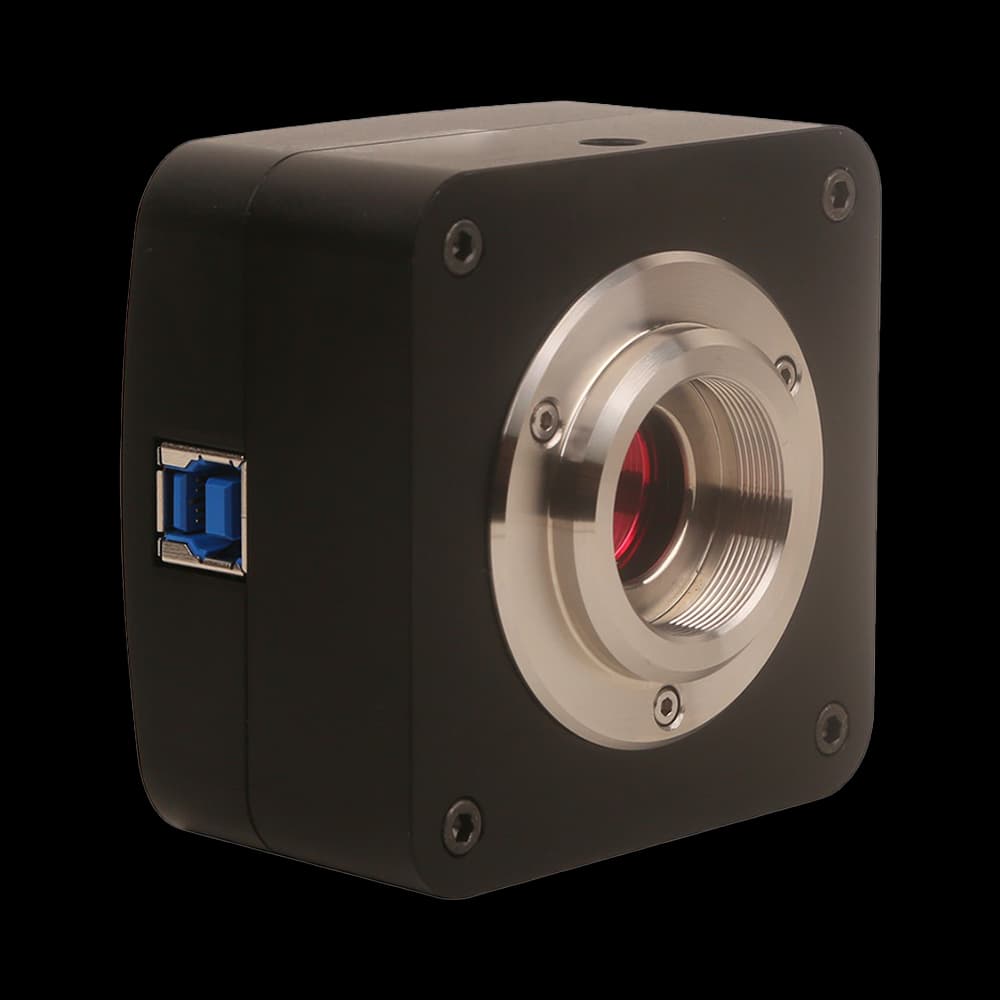

E3CMOS01200KPA
E3CMOS01200KPA Microscopy Cameras/Microscope Cameras with IMX224 (C) sensor, 1.2M (1280×960) for professional imaging.
- Sensor
- IMX224 (C)
- Resolution
- 1.2M (1280×960)
- Pixel Size
- 3.75 µm × 3.75 µm
- Frame Rate
- 60 fps @ 1280×960; 120 fps @ 640×480
- Interface
- USB3.0
Specifications
E3CMOS01200KPA
22 specification rows
The E3CMOS01200KPA is a microscopy camera in the E3CMOS series, built around a IMX224 (C) sensor, 1.2M (1280×960) resolution, 3.75 µm × 3.75 µm pixels, frame rates up to 60 fps @ 1280×960; 120 fps @ 640×480, a USB3.0 interface. It suits microscopy cameras/microscope cameras where reliable imaging performance and interface compatibility matter.
Key Parameters
| Model | E3CMOS01200KPA |
|---|---|
| Sensor | IMX224 (C) |
| Effective Pixels / Resolution | 1.2M (1280×960) |
| Frame Rate (Full Resolution) | 60 fps @ 1280×960; 120 fps @ 640×480 |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
Imaging Performance
| Pixel Size | 3.75 µm × 3.75 µm |
|---|---|
| Sensor Size | 4.80 mm × 3.60 mm |
| Diagonal | 1/2.5" (6.00 mm) |
| Dynamic Range | Available on request |
| Bit Depth | 8/12-bit |
| Sensitivity | 2040 mV with 1/30s; 0.15 mV with 1/30s |
Interface & Mechanical
| Data Interface | USB3.0 |
|---|---|
| GPIO | Available on request |
| Lens Mount | C-mount |
| Dimensions | Available on request |
| Weight | Available on request |
| Power Supply | USB3.0 interface power |
Environment & Certification
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 30%~80%RH |
|---|---|
| Storage Temperature / Humidity | 20 °C ~ +60 °C / 10%~60%RH |
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Certification | CE, FCC |
System integration
Integration and compatibility
Use these checks to connect E3CMOS01200KPA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Lens and microscope interface
- Lens Mount: C-mount
- Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
- Sensor and sampling
- Sensor: IMX224 (C) · Resolution: 1.2M (1280×960)
- Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
- Interface and data rate
- Frame Rate: 60 fps @ 1280×960; 120 fps @ 640×480 · Interface: USB3.0
- Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
- Hardware synchronization
- GPIO: Available on request
- Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
- Cooling and noise floor
- Dynamic Range: Available on request
- Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Technical FAQ
Integration questions for E3CMOS01200KPA
What lens mount is required for the E3CMOS01200KPA?
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
What sensor and pixel pitch does the E3CMOS01200KPA use?
Sensor: IMX224 (C) · Resolution: 1.2M (1280×960). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
How does the E3CMOS01200KPA connect to the acquisition computer?
Frame Rate: 60 fps @ 1280×960; 120 fps @ 640×480 · Interface: USB3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Does the E3CMOS01200KPA support hardware triggering?
GPIO: Available on request. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
What is the noise performance of the E3CMOS01200KPA?
Dynamic Range: Available on request. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Zoom lenses for the E3CMOS01200KPA
See which of our C-mount zoom lenses suit this sensor, with the field of view, µm per pixel and depth of field at each zoom setting.
Model selection
Nearby series comparison
Compare E3CMOS01200KPA with the closest available models in the E3CMOS family.
| Selection parameter | E3CMOS01200KPA (current) | E3CMOS00400KPA | E3CMOS01500KMA |
|---|---|---|---|
| Sensor | IMX224 (C) | IMX287 (C,GS) | IMX273 (M,GS) |
| Resolution | 1.2M (1280×960) | 0.4M (720×540) | 1.5M (1440×1080) |
| Sensor size | 4.80 mm × 3.60 mm | 4.97 mm × 3.73 mm | 4.968 mm × 3.726 mm |
| Pixel size / frame rate | 3.75 µm × 3.75 µm | 6.9 µm × 6.9 µm | 3.45 µm × 3.45 µm |
