Planetary lucky imaging
120 fps capture supports frame selection and stacking for Jupiter, Saturn, Mars and Venus.
Planetary and guide
G3M224C

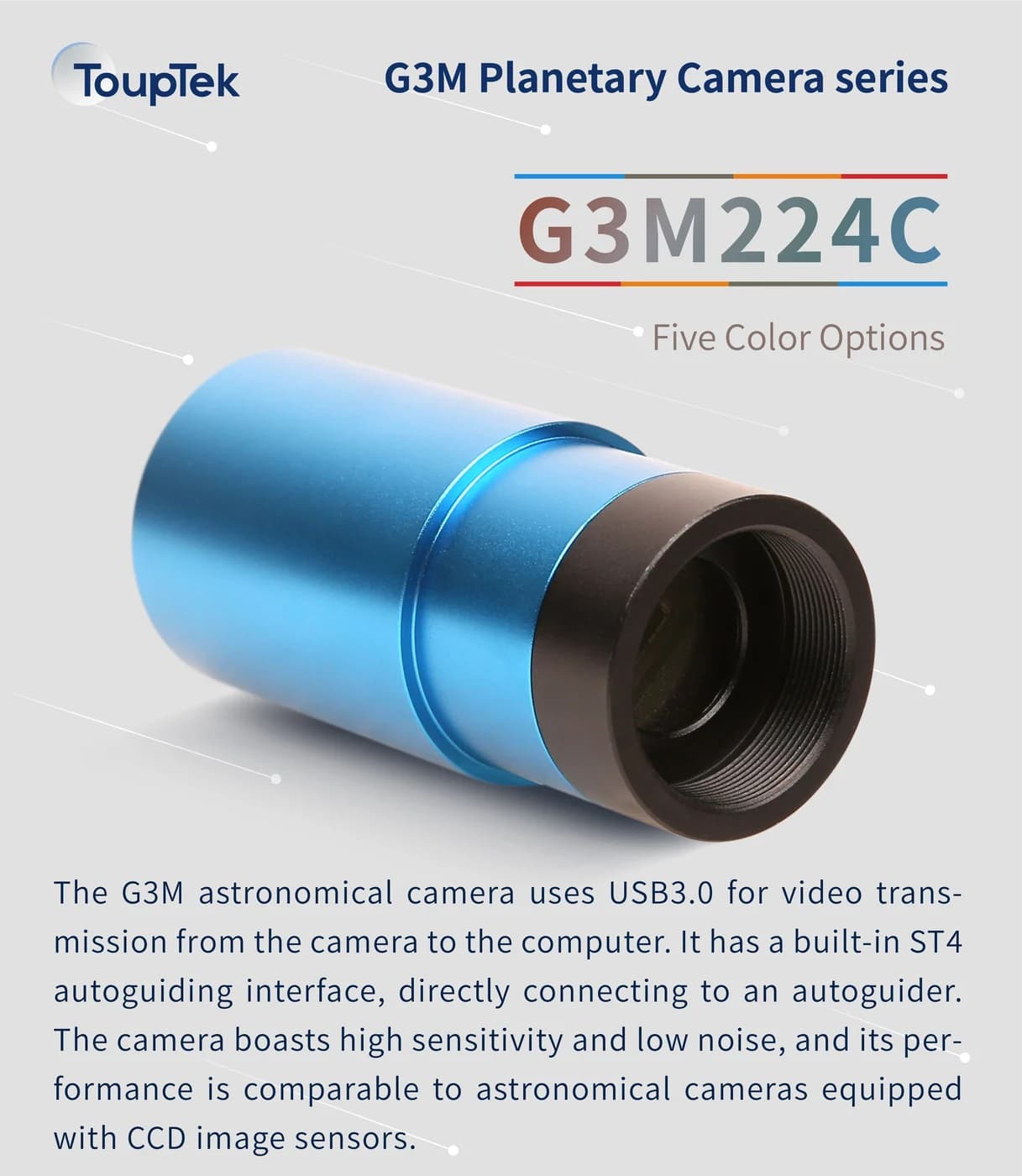

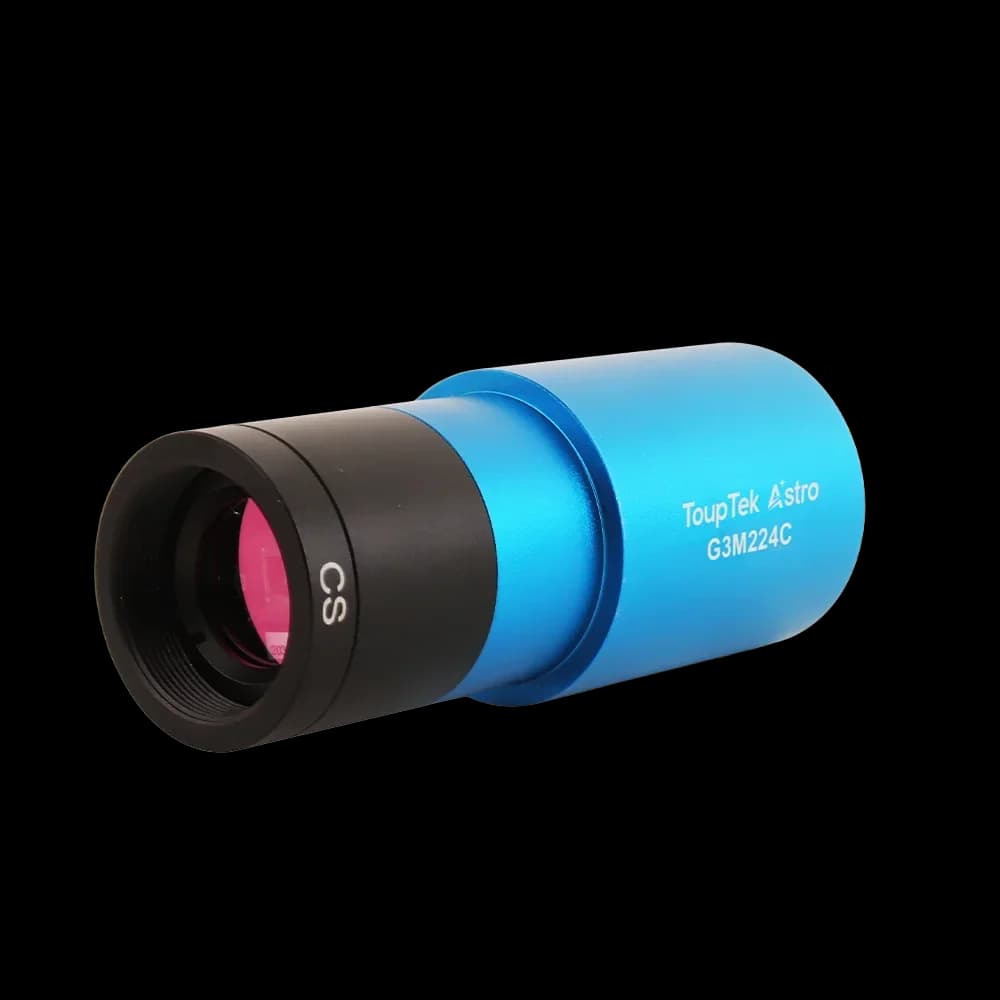

ToupTek G3M224C is a planetary astronomy camera using the IMX224 sensor, with 1.2 MP (1280 × 960), 3.75 µm pixels and 120 fps. Designed for planetary lucky imaging, lunar surface imaging, one-shot colour planetary imaging. Available from Precisometer for professional astronomy systems.
- Sensor
- Sony IMX224 color CMOS
- Sensor Type
- STARVIS back-illuminated color CMOS
- Resolution
- 1.2 MP (1280 × 960)
- Pixel Size
- 3.75 µm
- Frame Rate
- 120 fps
- Interface
- USB 3.0
Application context
Why this design is used
Choose the G3M224C when 120 fps acquisition, 3.75 µm sampling and the IMX224 sensor match your telescope's focal length and seeing conditions.
Lunar surface imaging
3.75 µm pixels and 1.2 MP (1280 × 960) resolution support detailed lunar mosaics and close-up imaging.
One-shot colour planetary imaging
The colour IMX224 sensor provides a direct RGB workflow for planets and the Moon.
High-speed solar and occultation capture
Fast acquisition supports brief events and solar imaging when the telescope uses a correctly specified solar filter.

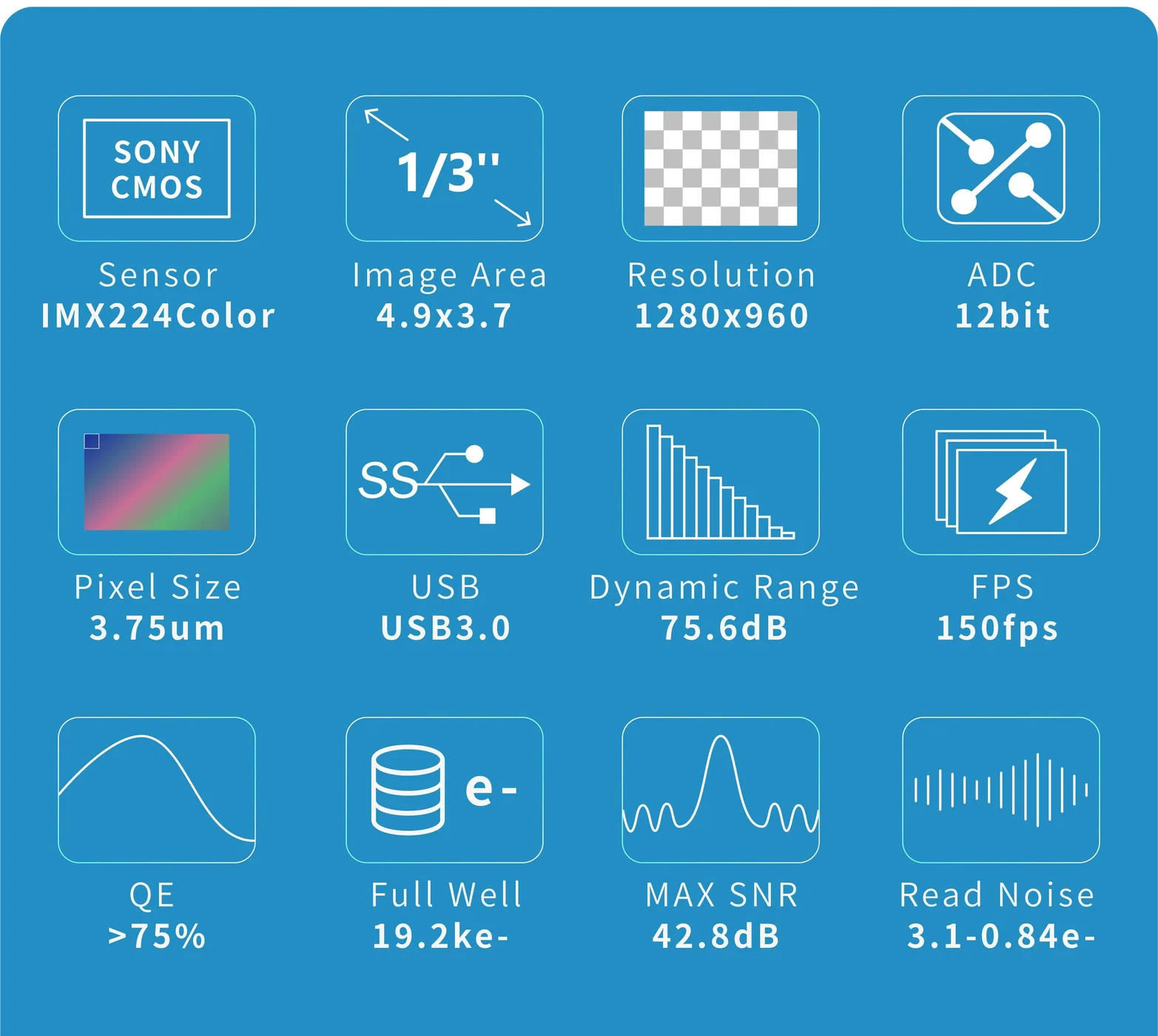

Specifications
G3M224C
23 specification rows
The G3M224C is an astronomy camera in the G3M planetary / guide series, built around a Sony IMX224 color CMOS sensor, 1.2 MP (1280 × 960) resolution, 3.75 µm pixels, frame rates up to 120 fps, a USB 3.0 interface. It suits planetary and guide where reliable imaging performance and interface compatibility matter.
Sensor & Imaging
| Model | G3M224C |
|---|---|
| Status | Current |
| Application | Planetary and guide |
| Sensor | Sony IMX224 color CMOS |
| Sensor Type | STARVIS back-illuminated color CMOS |
| Sensor Size | 1/3-inch, 4.9 × 3.7 mm |
| Resolution | 1.2 MP (1280 × 960) |
| Pixel Size | 3.75 µm |
| Shutter Type | Rolling shutter |
Performance
| Frame Rate | 120 fps |
|---|---|
| ADC | 12-bit |
| Peak QE | >75% |
| Dynamic Range | 75.6 dB |
| Read Noise | 3.1–0.84 e⁻ |
| Full Well | 19.2 ke⁻ |
| Spectral Range | 380–690 nm |
Interface & Thermal
| Interface | USB 3.0 |
|---|---|
| Mount | 1.25-inch telescope nosepiece / C-mount |
| Cooling | Passive cooling |
Additional Published Specifications
| Sensor Diagonal | 6.14mm |
|---|---|
| Maximum SNR | 42.8dB |
| Protective Window | IR/AR |
| Color Filter Array | RGGB |
Technical media
Performance graphs and technical drawings
Official sensor-response, performance, and mechanical imagery for the G3M224C.
System integration
Integration and compatibility
Use these checks to connect G3M224C to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Lens and microscope interface
- Mount: 1.25-inch telescope nosepiece / C-mount
- Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
- Sensor and sampling
- Sensor: Sony IMX224 color CMOS · Sensor Type: STARVIS back-illuminated color CMOS
- Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
- Interface and data rate
- Frame Rate: 120 fps · Interface: USB 3.0
- Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
- Cooling and noise floor
- Dynamic Range: 75.6 dB · Read Noise: 3.1–0.84 e⁻
- Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Technical FAQ
Integration questions for G3M224C
What lens mount is required for the G3M224C?
Mount: 1.25-inch telescope nosepiece / C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
What sensor and pixel pitch does the G3M224C use?
Sensor: Sony IMX224 color CMOS · Sensor Type: STARVIS back-illuminated color CMOS. Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
How does the G3M224C connect to the acquisition computer?
Frame Rate: 120 fps · Interface: USB 3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
What is the noise performance of the G3M224C?
Dynamic Range: 75.6 dB · Read Noise: 3.1–0.84 e⁻. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Zoom lenses for the G3M224C
See which of our C-mount zoom lenses suit this sensor, with the field of view, µm per pixel and depth of field at each zoom setting.
Model selection
Nearby series comparison
Compare G3M224C with the closest available models in the G3M planetary / guide family.
| Selection parameter | G3M224C (current) | G3M2210M | G3M290C |
|---|---|---|---|
| Sensor | Sony IMX224 color CMOS | SmartSens SC2210 monochrome CMOS | Sony IMX290 color CMOS |
| Resolution | 1.2 MP (1280 × 960) | 2.1 MP (1920 × 1080) | 2.1 MP (1920 × 1080) |
| Sensor size | 1/3-inch, 4.9 × 3.7 mm | 1/1.8-inch, 7.68 × 4.32 mm | 1/2.8-inch, 5.57 × 3.13 mm |
| Pixel size / frame rate | 3.75 µm | 4 µm | 2.9 µm |
