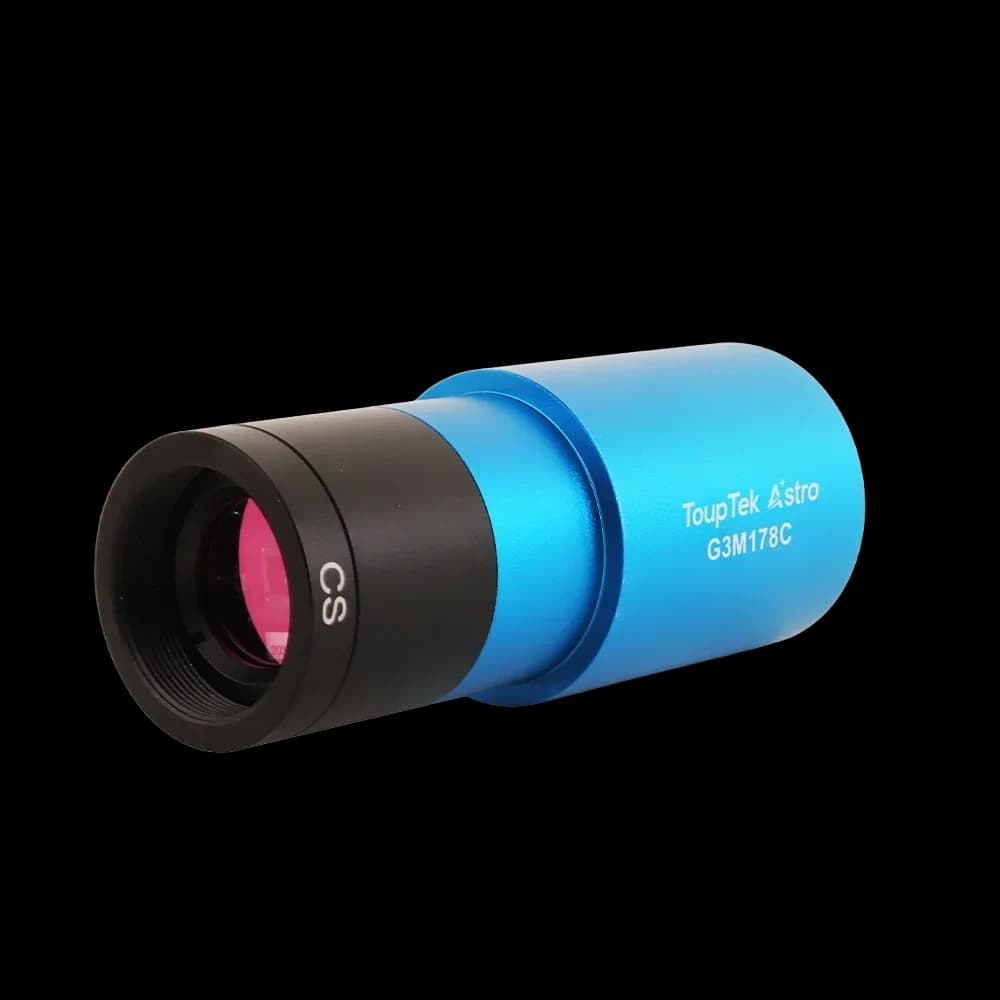

G3M178C IMX178 6.2 MP color USB 3.0 astronomy camera

  • Sensor: Sony IMX178 color CMOS
  • Sensor Type: STARVIS back-illuminated color CMOS
  • Resolution: 6.2 MP (3040 × 2048)
  • Pixel Size: 2.4 µm
  • Frame Rate: 58.6 fps
  • Cooling: Passive cooling
G3M178C

Complete Specifications

Sensor & Imaging

Sensor & Imaging
SensorSony IMX178 color CMOS
Sensor TypeSTARVIS back-illuminated color CMOS
Sensor Size1/1.8-inch, 7.4 × 5.0 mm
Resolution6.2 MP (3040 × 2048)
Pixel Size2.4 µm
Shutter TypeRolling shutter
Peak QE>81%
Spectral Range380–690 nm
Sensor Diagonal8.92mm
Color Filter ArrayRGGB

Performance

Performance
Frame Rate58.6 fps
ADC14-bit
Dynamic Range82 dB
Read Noise2.2–1.4 e⁻
Full Well10.7 ke⁻
Maximum SNR40dB
Maximum Frame Rate (USB 3.0)14-bit: 29.1 FPS @ 3040×2048 8-bit: 58.6 FPS @ 3040×2048
Exposure Time Range0.1ms - 3600s
Gain Range1× - 100×

Interface & Connectivity

Interface & Connectivity
InterfaceUSB 3.0
Supported OSWindows XP/Vista/7/8/10/11 Mac OS X, Linux
SDK SupportNative C/C++, C#/VB.NET, Python Java, DirectShow, Twain, etc.

Cooling & Mechanical

Cooling & Mechanical
Mount1.25-inch telescope nosepiece / C-mount
CoolingPassive cooling
Protective WindowIR/AR
Back Focus Distance17.5mm with C adapter 12.5mm with CS adapter
Camera DimensionsDiameter 37mm × Height 72.4mm
Weight70 grams

Other Published Specifications

Other Published Specifications
ModelG3M178C
StatusCurrent
ApplicationPlanetary and guide
Camera AdapterStandard 1.25" for telescope connection Standard C adapter for industrial lens

Technical Files & Images

Technical images (3)

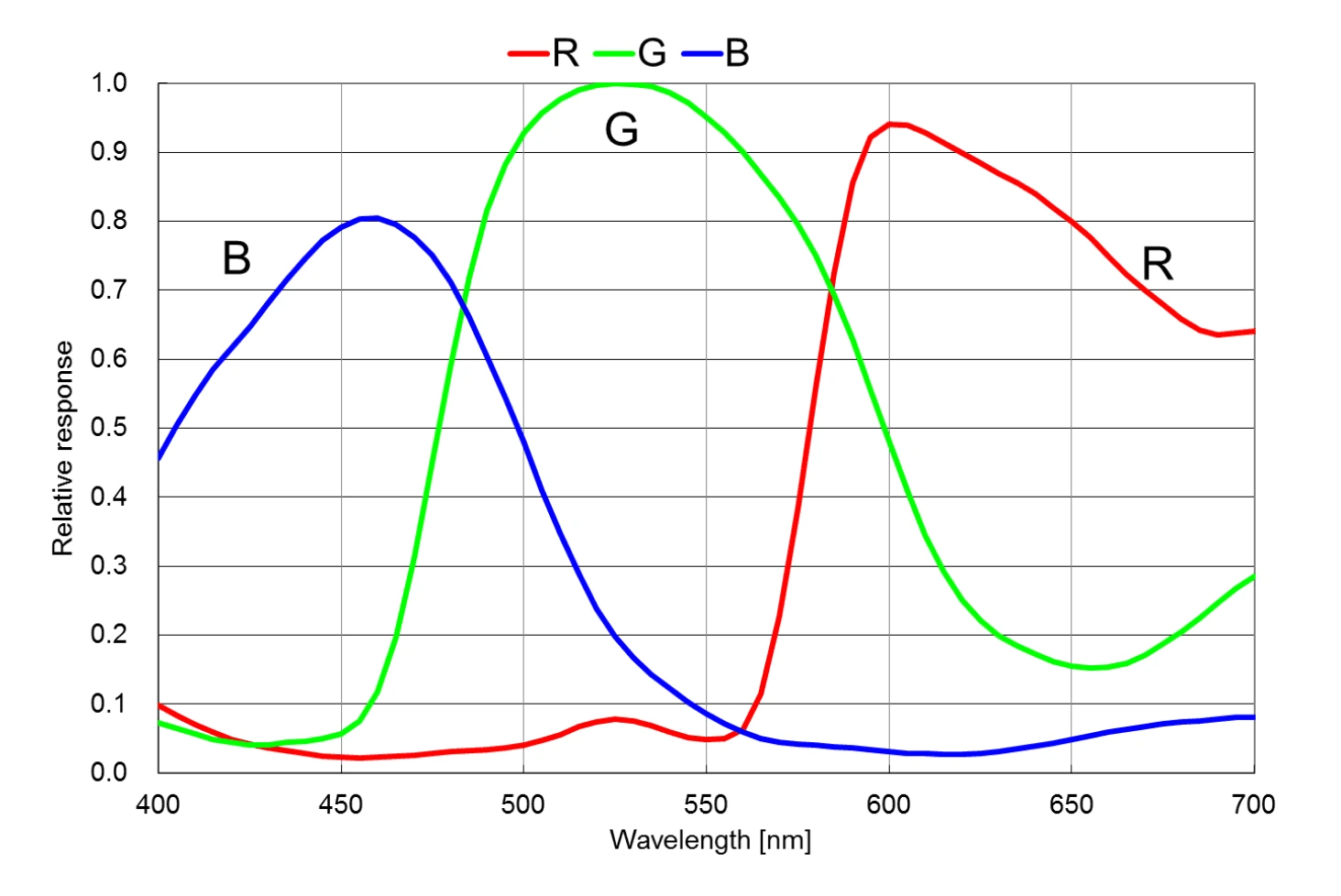

IMX178 Spectral Sensitivity Characteristic
IMX178 Spectral Sensitivity Characteristic

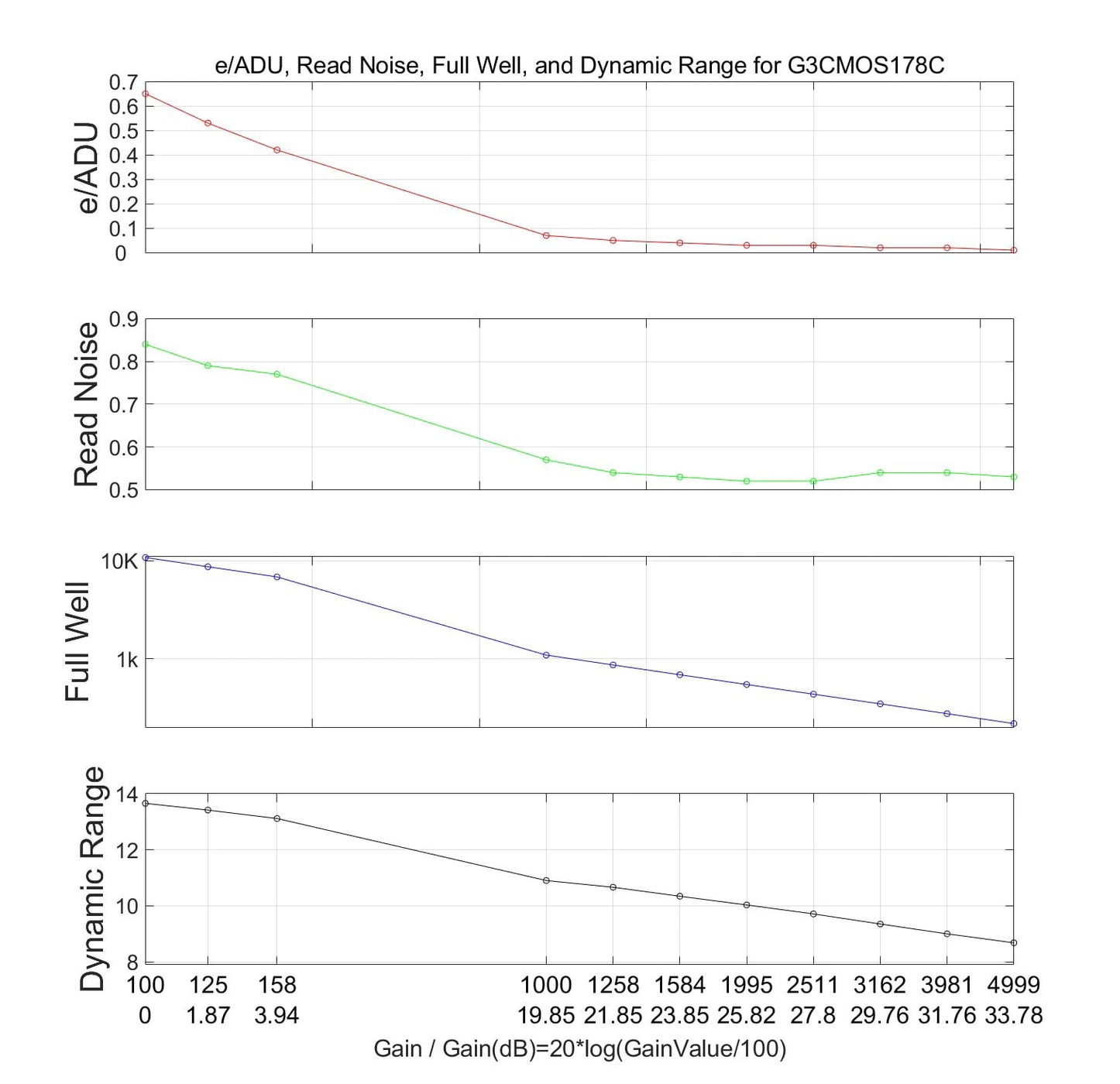

G3M178C Performance Curves: X-axis shows gain values (100-4999), Y-axis displays e⁻/ADU conversion, read noise, full well capacity and dynamic range relationships
G3M178C Performance Curves: X-axis shows gain values (100-4999), Y-axis displays e⁻/ADU conversion, read noise, full well capacity and dynamic range relationships

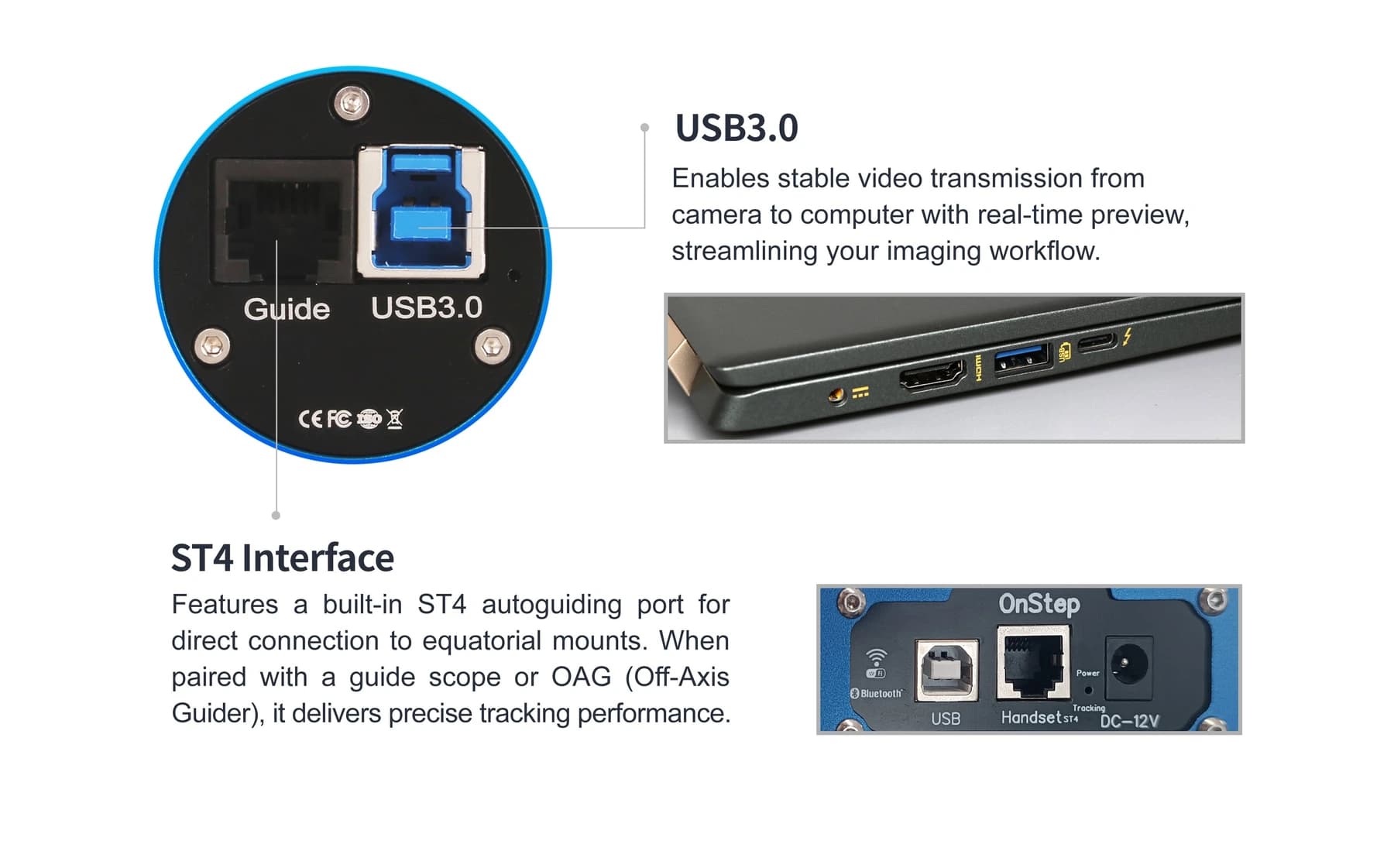

Camera Interface
Camera Interface

Ask Precisometer

Will G3M178C work in your setup?

Send us your application and we’ll discuss G3M178C, the connection to your optics and the software you need.

  • Your sample, microscope or lens
  • Wavelength range, exposure or frame rate
  • Computer, software and triggering requirements

You don’t need a complete specification to start. Share what you know, and we can discuss the remaining choices.

About: G3M178C

We use your details to reply to this enquiry. You won’t be subscribed to marketing. Privacy policy.

Selection parameterG3M178C (current)G3M178MSame IMX178 sensorE3CMOS06300KMASame IMX178 sensorE3CMOS06300KPASame IMX178 sensor
SensorSony IMX178 color CMOSSony IMX178 monochrome CMOSIMX178 (M,RS)IMX178 (C,RS)
Image typeColorMonochromeMonochromeColor
Resolution6.2 MP (3040 × 2048)6.2 MP (3040 × 2048)6.3M (3072×2048)6.3M (3072×2048)
Pixel size2.4 µm2.4 µm2.4 µm × 2.4 µm2.4 µm × 2.4 µm
Published QE>81%>81%——
Read noise2.2–1.4 e⁻2.2–1.4 e⁻——
Frame / line rate58.6 fps58.6 fps30 fps @ 3072×2048; 50 fps @ 1536×102415 fps @ 3072×2048; 26 fps @ 1536×1024
InterfaceUSB 3.0USB 3.0USB3.0USB3.0
Cooling / shutterPassive coolingPassive coolingRolling ShutterRolling Shutter
Compare all IMX178 cameras
