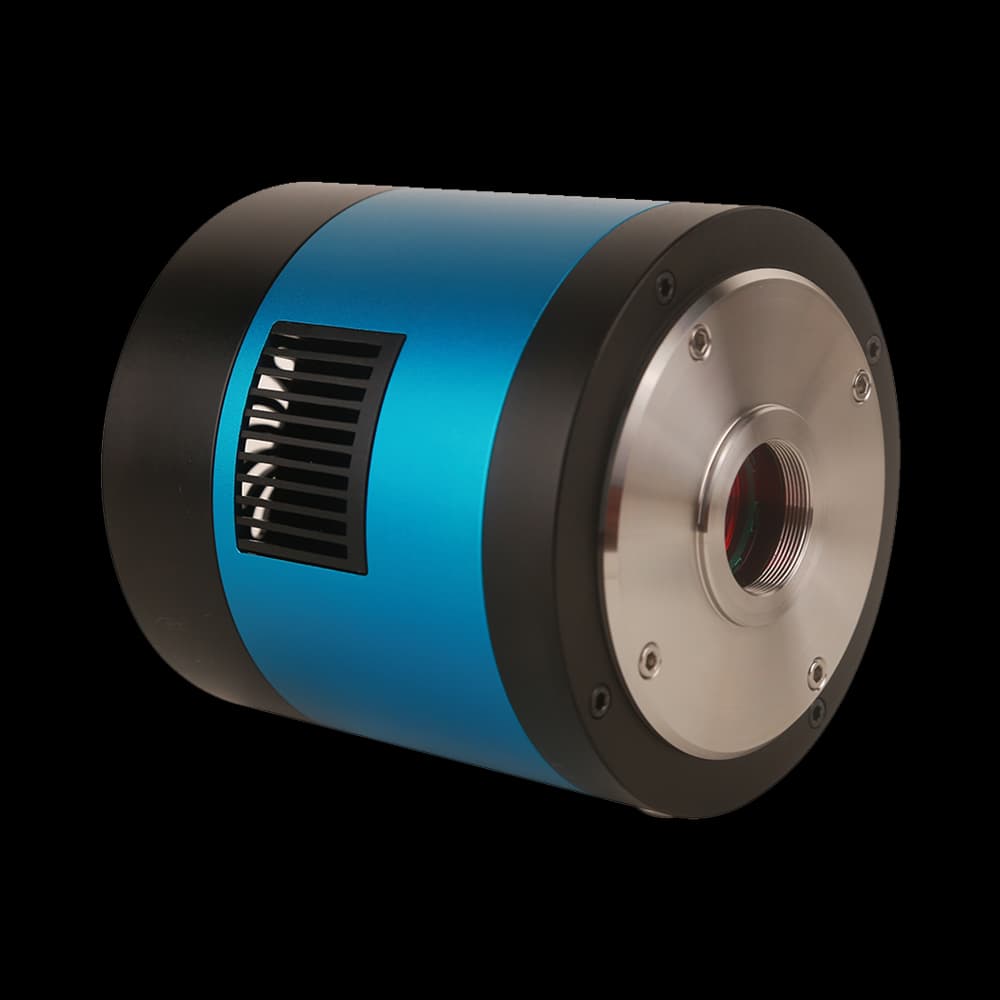

Low Light Imaging/Semiconductor Cooled Camera
MTR3CCD01400KPA
MTR3CCD01400KPA Low Light Imaging/Semiconductor Cooled Camera with ICX285AQ (C) sensor, 1.4MP (1360×1024) for professional imaging.
- Sensor
- ICX285AQ (C)
- Resolution
- 1.4MP (1360×1024)
- Pixel Size
- 6.45 µm × 6.45 µm
- Frame Rate
- 15 fps @ 1360×1024
- Interface
- USB3.0
Specifications
MTR3CCD01400KPA
23 specification rows
The MTR3CCD01400KPA is a low-light & cooled camera in the MTR3CCD series, built around a ICX285AQ (C) sensor, 1.4MP (1360×1024) resolution, 6.45 µm × 6.45 µm pixels, frame rates up to 15 fps @ 1360×1024, a USB3.0 interface. It suits low light imaging/semiconductor cooled camera where reliable imaging performance and interface compatibility matter.
Key Parameters
| Model | MTR3CCD01400KPA |
|---|---|
| Sensor | ICX285AQ (C) |
| Effective Pixels / Resolution | 1.4MP (1360×1024) |
| Frame Rate (Full Resolution and Key Resolution Modes) | 15 fps @ 1360×1024 |
| Exposure Time | 0.07 ms ~ 1 h |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
Imaging Performance
| Pixel Size | 6.45 µm × 6.45 µm |
|---|---|
| Sensor Size | 8.88 mm × 6.70 mm |
| Diagonal | 2/3" (11.12 mm) |
| Dynamic Range | Available on request |
| Bit Depth | 8/14-bit |
| Sensitivity | 1240 mV (1/30s), 10 mV dark current |
Interface & Mechanical
| Data Interface | USB3.0 |
|---|---|
| GPIO | Available on request |
| Lens Mount | C-mount |
| Dimensions | See dimensional drawings |
| Weight | Available on request |
| Power Supply | USB3.0 interface power + external DC 12 V 3 A cooling power |
Environment & Certification
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 30%~80%RH |
|---|---|
| Storage Temperature / Humidity | 20 °C ~ +60 °C / 10%~60%RH |
| OS Support | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Certification | CE, FCC |
System integration
Integration and compatibility
Use these checks to connect MTR3CCD01400KPA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Lens and microscope interface
- Lens Mount: C-mount
- Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
- Sensor and sampling
- Sensor: ICX285AQ (C) · Resolution: 1.4MP (1360×1024)
- Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
- Interface and data rate
- Frame Rate: 15 fps @ 1360×1024 · Interface: USB3.0
- Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
- Hardware synchronization
- GPIO: Available on request
- Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
- Cooling and noise floor
- Dynamic Range: Available on request
- Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Technical FAQ
Integration questions for MTR3CCD01400KPA
What lens mount is required for the MTR3CCD01400KPA?
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
What sensor and pixel pitch does the MTR3CCD01400KPA use?
Sensor: ICX285AQ (C) · Resolution: 1.4MP (1360×1024). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
How does the MTR3CCD01400KPA connect to the acquisition computer?
Frame Rate: 15 fps @ 1360×1024 · Interface: USB3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Does the MTR3CCD01400KPA support hardware triggering?
GPIO: Available on request. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
What is the noise performance of the MTR3CCD01400KPA?
Dynamic Range: Available on request. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Zoom lenses for the MTR3CCD01400KPA
See which of our C-mount zoom lenses suit this sensor, with the field of view, µm per pixel and depth of field at each zoom setting.
Model selection
Nearby series comparison
Compare MTR3CCD01400KPA with the closest available models in the MTR3CCD family.
| Selection parameter | MTR3CCD01400KPA (current) | MTR3CCD01400KMB | MTR3CCD01400KPB |
|---|---|---|---|
| Sensor | ICX285AQ (C) | ICX825ALA (M) | ICX825AQA (C) |
| Resolution | 1.4MP (1360×1024) | 1.4MP (1376×1040) | 1.4MP (1376×1040) |
| Sensor size | 8.88 mm × 6.70 mm | 8.88 mm × 6.70 mm | 8.88 mm × 6.70 mm |
| Pixel size / frame rate | 6.45 µm × 6.45 µm | 6.45 µm × 6.45 µm | 6.45 µm × 6.45 µm |
