Industrial Camera/Analytical Imaging

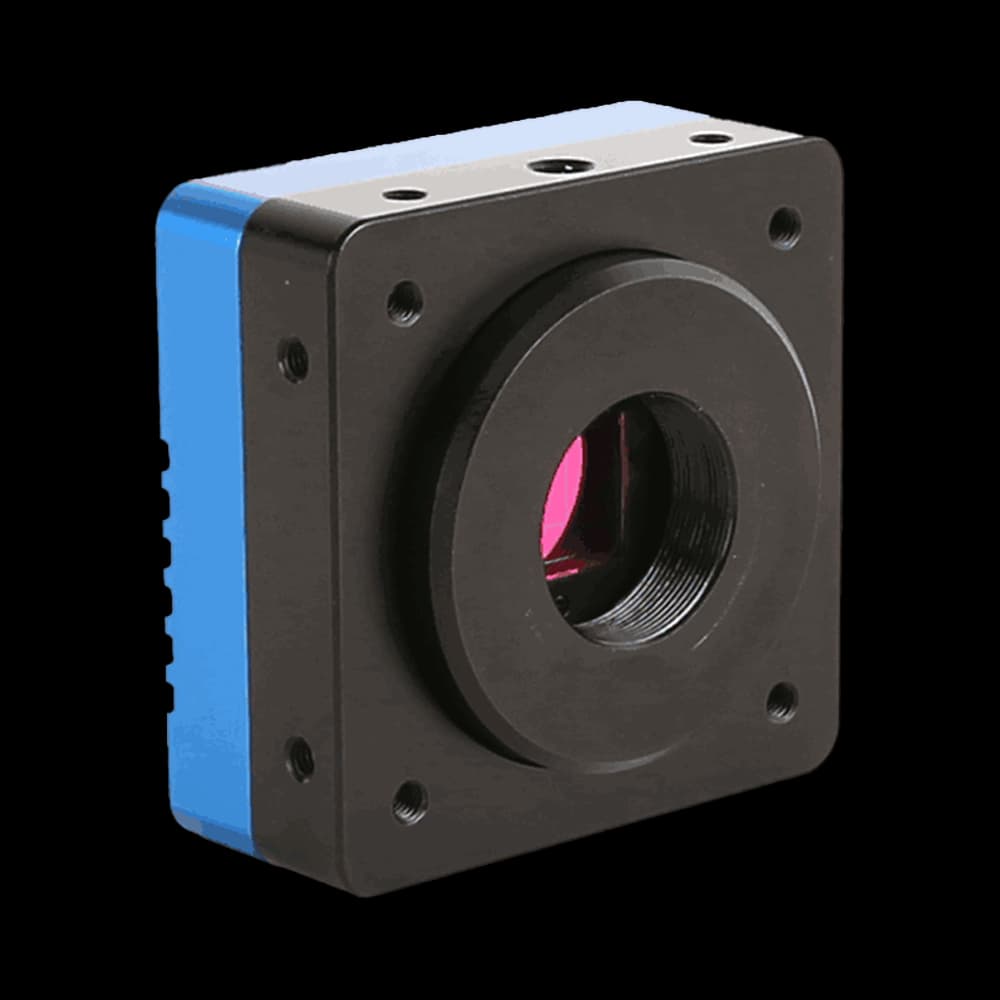

IUA1500KMA Industrial Camera/Analytical Imaging with Sony IMX273LLR sensor, 1.5MP (1440×1080) for professional imaging.
Application context
IUA1500KMA: The Sony IMX273LLR sensor, 1.5MP (1440×1080) resolution, and 3.45 µm × 3.45 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 235.5 fps @ 1440×1080; 523 fps @ 720×540 frame-rate listing also sets the fastest full-frame acquisition regime.
IUA1500KMA: The Sony IMX273LLR sensor, 1.5MP (1440×1080) resolution, and 3.45 µm × 3.45 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 235.5 fps @ 1440×1080; 523 fps @ 720×540 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
23 specification rows
The IUA1500KMA is an industrial & analytical camera in the IUA series, built around a Sony IMX273LLR sensor, 1.5MP (1440×1080) resolution, 3.45 µm × 3.45 µm pixels, frame rates up to 235.5 fps @ 1440×1080; 523 fps @ 720×540, a USB3.0 (USB3.1 GEN1) interface. It suits industrial camera/analytical imaging where reliable imaging performance and interface compatibility matter.
| Model | IUA1500KMA |
|---|---|
| Sensor | Sony IMX273LLR |
| Effective Pixels / Resolution | 1.5MP (1440×1080) |
| Frame Rate (Full Resolution) | 235.5 fps @ 1440×1080; 523 fps @ 720×540 |
| Exposure Time | 15 µs ~ 15 s |
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Pixel Size | 3.45 µm × 3.45 µm |
|---|---|
| Sensor Size | 4.97 mm × 3.73 mm |
| Diagonal | 1/2.5" (6.21 mm) |
| Dynamic Range | 72 dB |
| Bit Depth | 8/12-bit |
| Sensitivity | 1830 mV |
| Data Interface | USB3.0 (USB3.1 GEN1) |
|---|---|
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output ports |
| Lens Mount | C-mount |
| Dimensions | 68 mm × 68 mm × 28.1 mm |
| Weight | 219g |
| Power Supply | USB3.0 bus power / DC 12 V power |
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 20%~80% non-condensing |
|---|---|
| Storage Temperature / Humidity | 30 °C ~ +70 °C / Available on request |
| Operating System | Windows 32-bit/Windows RT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64 |
| Certification | CE, FCC |
System integration
Use these checks to connect IUA1500KMA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX273LLR · Resolution: 1.5MP (1440×1080). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 235.5 fps @ 1440×1080; 523 fps @ 720×540 · Interface: USB3.0 (USB3.1 GEN1). Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output ports. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 72 dB. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare IUA1500KMA with the closest available models in the IUA family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | IUA1500KMA (current) | IUA1300KMA(GPixel UV) | IUA1500KPA |
|---|---|---|---|
| Sensor | Sony IMX273LLR | GPixel GLUX9701BSI | Sony IMX273LQR |
| Resolution | 1.5MP (1440×1080) | 1.3MP (1280×1024) | 1.5MP (1440×1080) |
| Sensor size | 4.97 mm × 3.73 mm | 12.49 mm × 9.99 mm | 4.97 mm × 3.73 mm |
| Pixel size / frame rate | 3.45 µm × 3.45 µm | 9.76 µm × 9.76 µm | 3.45 µm × 3.45 µm |
The IMX273 appears in 6 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
