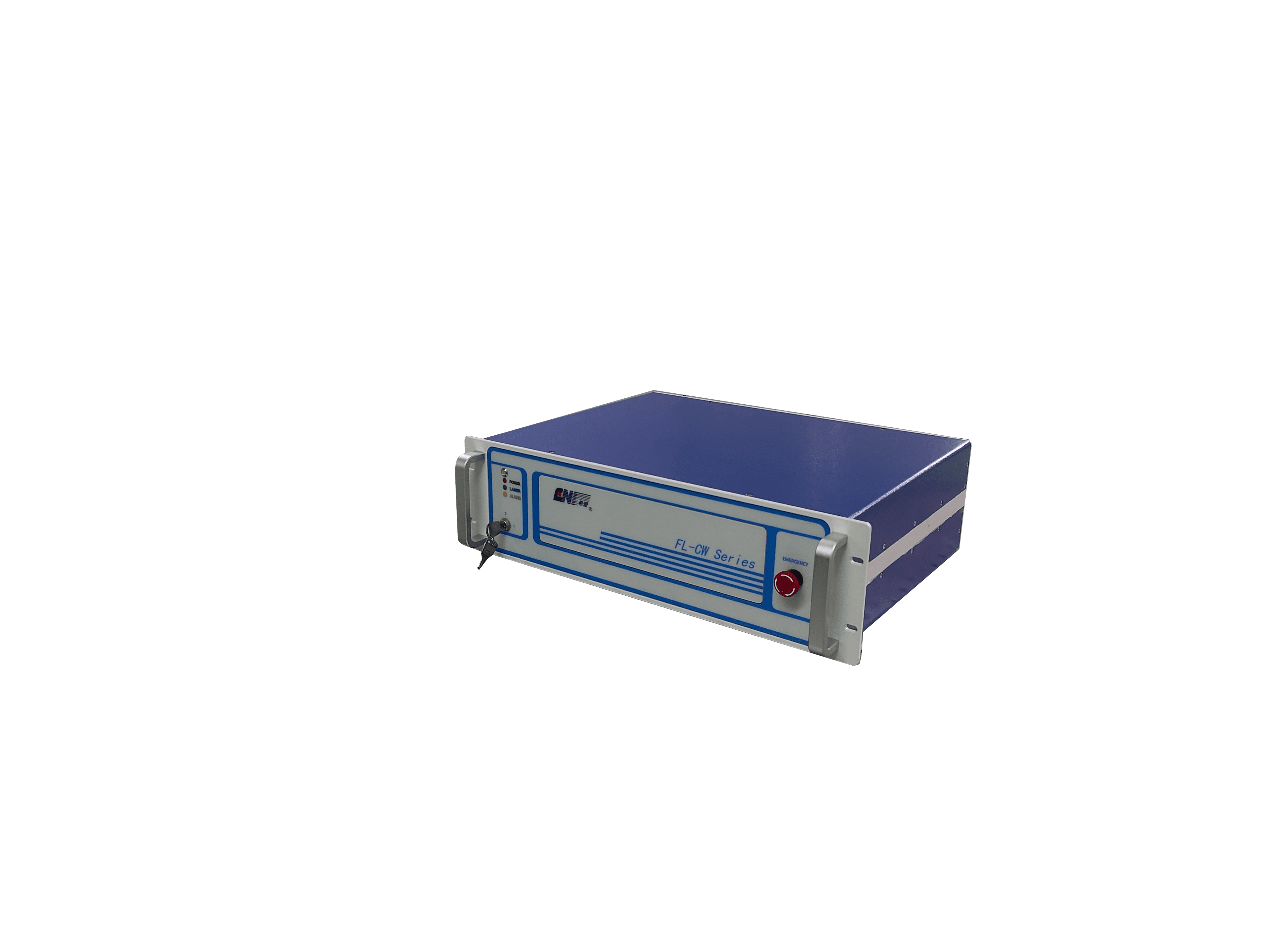

Fiber Lasers — 388 models | Laser Selector

388 models · 108 series

266nm CW DUV Laser

3 models

Model	Wavelength	Output / average power	Pulse energy	Repetition rate	Pulse width	Power stability (rms, 4 hours , ±3℃)	Mode-locked all fiber pulsed laser at 266nm	M2	Polarization ratio (dB)	Warm-up time (minutes)	Delivery fiber length(cm)	Cooled method	Operating temperature (℃)	Operating voltage (VDC)	Expected lifetime (hours)	Fundamental Frequency	Delivery fiber length (cm)
FL-266-PS	266 nm	1~10 mW	0.02~0.5 nJ	20-50 MHz	<10 ps	<5%, <3%	Pulse duration (ps) / <10	<2	>15 Horizontal (Vertical optional)	<15	60	Air cooled	15-35	12V/11.5A	>10000	Forth harmonic	–	Datasheet
FL-266-Pico	266 nm	1~50 mW	0.05~500 nJ	100 kHz-20 MHz	50-900 ps (fixed)	<5%, <3%	–	<2	>15 Horizontal (Vertical optional)	<15	–	Air cooled	15-35	12V/11.5A	>10000	Forth harmonic	60	Datasheet
FL-266-Nano	266 nm	1~50 mW	1~500 nJ	100 kHz-1 MHz	0.5-50 ns (fixed)	<5%, <3%	–	<1.8	>15 Horizontal (Vertical optional)	<15	60	Air cooled	15-35	12V/11.5A	–	Forth harmonic	–	Datasheet

349nm CW Pulse UV Laser

1 model

Model	Wavelength	Output / average power	Spectral linewidth	Power stability	Transverse mode	M2	Fiber connector	Fiber jacket	Fiber length	Warm-up time (minutes)	Operating Temperature (°C)	Modulation option	Power supply (100-240VAC)	Expected lifetime (hours)
UV-FN-349-SM	349 nm	1~50 mW	<0.2 nm	<1%	TEM00	<1.2	FC/APC	PVC	1m	<10	10-35	DC-1kHz; TTL and Analog optional	PSU-H-FDA/PSU-H-LED/PSU-SR	>10000	Datasheet

355nm CW Pulse UV Laser

5 models

Model	Wavelength	Output / average power	Pulse energy	Repetition rate	Pulse width	Power stability (rms, 4 hours ± 3°C)	Transverse mode	Beam divergence, full angle (mrad)	Polarization ratio	Warm-up time (minutes)	Operating temperature (℃)	Operating voltage (VDC)	Expected lifetime (hours)	Power stability (rms, 4 hours , ±3℃)	Picosecond all fiber pulsed laser at 355nm	M2	Polarization ratio (dB)	Delivery fiber length(cm)	Cooled method	Fundamental Frequency	Delivery fiber length (cm)
FL-355	355 nm	1~1000 mW	1~50 uJ	~20 kHz	~3 ns	<3%, <2%, <1%	TEM00	~1.0	>100:1 Vertical	<15	10-35	PSU-FL-FDA (12V/25A) / PSU-FL-OEM (12V/25A)	>10000	–	–	–	–	–	–	–	–	Datasheet
MPL-FL-355	355 nm	1~1000 mW	1~50 uJ	~20 kHz	~5 ns	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
FL-355-PS	355 nm	1~50 mW	0.05~2.5 nJ	20-50 MHz	<10 ps	<3%, <2%, <1%	TEM00	~1.0	>100:1 Vertical	<15	10-35	PSU-FL-FDA (12V/25A) / PSU-FL-OEM (12V/25A)	>10000	–	–	–	–	–	–	–	–	Datasheet
FL-355-Pico	355 nm	1~50 mW	10~500 nJ	0.1-20 MHz	100-900 ps	–	–	–	–	<15	15-35	12V/11.5A	>10000	<5%, <3%	Pulse duration (ps)2 / 100-900	<2	>15 Horizontal (Vertical optional)	60	Air cooled	Third harmonic	–	Datasheet
FL-355-Nano	355 nm	10~300 mW	0.1~3 uJ	0.1-1 MHz	0.5-50 ns	–	–	–	–	<15	15-35	12V/11.5A	>10000	<5%, <3%	–	<2	>15 Horizontal (Vertical optional)	–	Air cooled	Third harmonic	60	Datasheet

405nm CW Pulse Violet Blue Laser

3 models

Model	Wavelength	Output / average power	Power stability	Transverse mode	Beam divergence, full angle (mrad)	Warm-up time (minutes)	Cooled method	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)	Fiber core diameter	Fiber Connector	Fiber length	Fiber jacket	Operating temperature (℃)	Warm-up time	Operating voltage(PSU-V-OEM)	Operating voltage(PSU-I-OEM)	Connection	Operating temperature	Storage temperature	Humidity	Dimensions of laser head
MDL-III-405-SM	405 nm	1~30 mW	<0.5%	Multimode	<2.5×1.0	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
OEM-I-405	405 nm	120 mW	<0.5%	–	–	<5	Conduction	–	PSU-III-LED	>10000	3um, 0.12NA	FC/ APC/ PC optional	1m	PVC	20-30	–	–	–	–	–	–	–	–	Datasheet
PGL-V-H-FP-405	405 nm	1~200 mW	<1%	Near TEM00 / Multimode	<0.5 / <3×0.5	–	–	–	–	10000	–	–	–	–	–	minutes / <10	100-240VAC	12VDC	9 pin connector	-10°C to 50°C	-20°C to 80°C	< 90%, non-condensing	92(L)×40(W)×40(H)mm3	Datasheet

410nm CW Pulse Violet Blue Laser

1 model

Model	Wavelength	Output / average power	Power stability	Transverse mode	Beam divergence, full angle (mrad)	Warm-up time (minutes)	Cooled method	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)
MDL-III-410-SM	410 nm	1~40 mW	<0.5%	Multimode	<0.5×2.0	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Datasheet

473nm CW Pulse Blue Laser

2 models

Model	Wavelength	Output / average power	Spectral linewidth	Power stability	Transverse mode	M2	Fiber numerical aperture	Fiber type	Fiber connector	Fiber jacket	Fiber length	Polarization (optional)	Warm-up time (minutes)	Operating temperature (°C)	Power supply (100-240VAC)	Power supply (5VDC)	Expected lifetime (hours)	Fiber Jacket	Cooled method
MBL-S-473-SM	473 nm	1~50 mW	< 0.2 nm	<2%	TEM00 (single mode fiber output)	<1.2	0.10-0.12	SM fiber (PM fiber optional)	FC/APC	PVC (black)	1m	>50:1 after PM fiber	<10	10-35	PSU-III-FDA/PSU-III-LED	PSU-A-F-OEM (5V/5A)	>10000	–	–	Datasheet
MBL-W-473-SM	473 nm	50~1000 mW	< 0.1 nm	<2%	TEM00 (single mode fiber output)	<1.1	–	SM fiber (PM fiber optional)	FC/APC	–	1m	>50:1 after PM fiber	<10	10-30	PSU-W-LED	–	＞10000	PVC, Metal optional	Air cooled / Water cooled	Datasheet

507 NM Green Laser.

2 models

Model	Wavelength	Output / average power	Free space output power (mW)	Fiber coupled output power (mW)	Transverse mode	Longitudinal mode	Current adjustment range	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)	Power stability (rms, 4 hours , ±3℃)	Spectral linewidth (nm)
FL-507-SLM	507 nm	1~500 mW	1-500	1-250	TEM00	SLM	1-100%	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	–	–	Datasheet
FL-507-LN-L	507 nm	1~500 mW	1-500	1-250	TEM00	SLM	1-100%	<0.1%, <0.05%	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	<2%, <1%	<0.002	Datasheet

509 NM Green Laser.

2 models

Model	Wavelength	Output / average power	Free space output power (mW)	Fiber coupled output power (mW)	Transverse mode	Longitudinal mode	Current adjustment range	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)	Power stability (rms, 4 hours , ±3℃)	Spectral linewidth (nm)
FL-509-SLM	509 nm	1~2000 mW	1-2000	1-500	TEM00	SLM	1-100%	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	–	–	Datasheet
FL-509-LN-L	509 nm	1~2000 mW	1-2000	1-500	TEM00	SLM	1-100%	<0.1%, <0.05%	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	<2%, <1%	<0.002	Datasheet

513 NM Green Laser.

2 models

Model	Wavelength	Output / average power	Free space output power (mW)	Fiber coupled output power (mW)	Transverse mode	Longitudinal mode	Current adjustment range	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)	Power stability (rms, 4 hours , ±3℃)	Spectral linewidth (nm)
FL-513-SLM	513 nm	1~1000 mW	1-1000	1-500	TEM00	SLM	1-100%	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	–	–	Datasheet
FL-513-LN-L	513 nm	1~1000 mW	1-1000	1-500	TEM00	SLM	1-100%	<0.1%, <0.05%	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	<2%, <1%	<0.002	Datasheet

525 NM Green Laser.

2 models

Model	Wavelength	Output / average power	Free space output power (mW)	Fiber coupled output power (mW)	Transverse mode	Longitudinal mode	Current adjustment range	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)	Power stability (rms, 4 hours , ±3℃)	Spectral linewidth (nm)
FL-525-SLM	525 nm	1~2000 mW	1-2000	1-500	TEM00	SLM	1-100%	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	–	–	Datasheet
FL-525-LN-L	525 nm	1~2000 mW	1-2000	1-500	TEM00	SLM	1-100%	<0.1%, <0.05%	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	<2%, <1%	<0.002	Datasheet

550 NM Green Laser, Solid State Laser |

5 models

Model	Wavelength	Output / average power	Free space output power (mW)	Fiber coupled output power (mW)	Transverse mode	Longitudinal mode	Current adjustment range	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)	Spectral line width (nm)	Beam diameter at the aperture (1/e2, mm)	Beam divergence (mrad)	Polarization ratio	Pointing stability over temperature (μrad/°C)	Operating temperature (°C)	Power supply (100-240VAC)	Power supply (12VDC)	Beam divergence, full angle (mrad)	Pointing stability over temperature (urad/°C)	Operating voltage (VDC)	Power stability (rms, 4 hours , ±3℃)	Spectral linewidth (nm)	Power stability (rms, 4 hours±3℃)	Polarization Ratio	Operating Temperature (°C)	Modulation optional
FL-550-SLM	550 nm	1~500 mW	1-500	1-250	TEM00	SLM	1-100%	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
MLL-U-550	550 nm	1~100 mW	–	–	TEM00	–	–	–	–	–	–	–	–	–	<5	–	–	–	>10000	<0.1, <0.003	<1.0	<1.5	>100:1, Vertical (Horizontal optional)	<8	10-35	PSU-H-FDA	PSU-SR-OEM (12V/25A)	–	–	–	–	–	–	–	–	–	Datasheet
MLL-FN-550	550 nm	100~500 mW	–	–	TEM00	–	–	–	–	–	–	–	–	–	<5	–	–	–	>10000	–	–	–	–	–	10-35	PSU-H-FDA	–	<1.5	<8	PSU-SR-OEM (12V/25A)	–	–	–	–	–	–	Datasheet
FL-550-LN-L	550 nm	1~500 mW	1-500	1-250	TEM00	SLM	1-100%	<0.1%, <0.05%	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	–	–	–	–	–	–	–	–	–	–	–	<2%, <1%	<0.002	–	–	–	–	Datasheet
MGL-FN-550	550 nm	1~500 mW	–	–	TEM00	–	–	–	–	–	–	–	–	–	<5	–	–	–	>10000	–	–	–	–	–	–	PSU-H-FDA/PSU-H-LED/PSU-SR	–	<1.5	–	–	–	–	<3%, <2%, <1%	>100:1, Vertical (Horizontal Optional)	10-35	DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional	Datasheet

Infrared Laser, 1014 NM Infrared Laser Module, Infrared Fiber Lasers.

2 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Longitudinal mode	Current adjustment range	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8 hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Beam diameter (mm)	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Power supply (VAC)	Expected lifetime (hours)	Spectral linewidth (nm)	Frequency shift (MHz) (over ±2℃and 8 hours)
FL-1014-SLM	1014 nm	1~5 W	<2%, <1%, <0.5%	TEM00	SLM	1-100%	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	–	–	Datasheet
FL-1014-LN-L	1014 nm	1~5 W	<2%, <1%, <0.5%	TEM00	SLM	1-100%	<0.1%, <0.05%	–	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	<0.004	<±200	Datasheet

Infrared Laser, 1018 NM Infrared Laser Module, Infrared Fiber Lasers.

3 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Longitudinal mode	Current adjustment range	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8 hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Beam diameter (mm)	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Power supply (VAC)	Expected lifetime (hours)	Spectral linewidth (nm)	Frequency shift (MHz) (over ±2℃and 8 hours)	Line width(nm)	Fiber length (m)	Polarization state
FL-1018-SLM	1018 nm	1~10 W	<2%, <1%, <0.5%	TEM00	SLM	1-100%	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	–	–	–	–	–	Datasheet
FL-1018-LN-L	1018 nm	1~10 W	<2%, <1%, <0.5%	TEM00	SLM	1-100%	<0.1%, <0.05%	–	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	<0.004	<±200	–	–	–	Datasheet
FL-1018-CW	1018 nm	1~10 W	–	–	–	–	–	–	–	FC/APC, Collimator optional	–	PVC, Metal optional	4±1 (Collimator output)	–	<15	Air cooled	15-35	110/220VAC	>10000	–	–	<2nm	1	Random	Datasheet

Infrared Laser, 1027 NM Infrared Laser Module, Infrared Fiber Lasers.

2 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Longitudinal mode	Current adjustment range	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8 hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Beam diameter (mm)	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Power supply (VAC)	Expected lifetime (hours)	Spectral linewidth (nm)	Frequency shift (MHz) (over ±2℃and 8 hours)
FL-1027-SLM	1027 nm	1~10 W	<2%, <1%, <0.5%	TEM00	SLM	1-100%	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	–	–	Datasheet
FL-1027-LN-L	1027 nm	1~10 W	<2%, <1%, <0.5%	TEM00	SLM	1-100%	<0.1%, <0.05%	–	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	<0.004	<±200	Datasheet

1070 NM Infrared Laser, Solid State Laser, DPSS Laser |

1 model

Model	Wavelength	Output / average power	Line width(nm)	Fiber connector	Fiber length (m)	Fiber jacket	Beam diameter (mm)	Polarization state	Warm-up time (minutes)	Operating temperature (℃)	Cooled method	Power supply (VAC)	Expected lifetime (hours)
FL-1070-CW	1070 nm	1~100 W	<2nm	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	Random	<15	15-35	Air cooled	110/220VAC	>10000	Datasheet

1080nm Laser, Infrared Laser |

8 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Longitudinal mode	Current adjustment range	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8 hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Beam diameter (mm)	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Power supply (VAC)	Expected lifetime (hours)	Power stability (rms, 4 hours ± 3°C)	Noise of amplitude (rms, 20Hz-20MHz)	Beam divergence, full angle (mrad)	Operating temperature (°C)	Power supply (100-240VAC)	Spectral linewidth (nm)	Frequency shift (MHz) (over ±2℃and 8 hours)	Fiber type	Fiber Core diameter	M2 after fiber
FL-1080-SLM	1080 nm	1-10 W	<2%, <1%, <0.5%	TEM00	SLM	1-100%	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	–	–	–	–	–	–	–	–	–	–	Datasheet
TEM-LN-1080	1080 nm	1~400 mW	–	TEM00	–	–	–	–	<1.1	–	–	–	–	–	<5	–	–	–	>10000	<2%, <1%, <0.5%	<1%, <0.5%	<1.5	25±3	PSU-III-FDA/PSU-III-LED/PSU-A-D	–	–	–	–	–	Datasheet
FL-1080-LN-L	1080 nm	1~10 W	<2%, <1%, <0.5%	TEM00	SLM	1-100%	<0.1%, <0.05%	–	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	–	–	–	–	–	<0.004	<±200	–	–	–	Datasheet
MLL-III-1080-SM	1080 nm	1~400 mW	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
TEM-F-1080	1080 nm	1~400 mW	–	TEM00	–	–	–	–	<1.1	–	–	–	–	–	<5	–	–	–	>10000	<2%, <1%, <0.5%	–	<1.5	25±3	PSU-III-FDA/PSU-III-LED/PSU-A-D	–	–	–	–	–	Datasheet
MDL-III-1080-SM	1080 nm	1~400 mW	–	TEM00	–	–	–	–	–	FC/PC, FC/APC optional	–	Metal, PVC optional	–	–	<5	Conduction	–	–	>10000	<2%, <1%, <0.5%	–	–	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	–	–	SM fiber, PM fiber optional	6-9μm, 0.13NA	~1.1	Datasheet
FL-1080-CW	1080 nm	1~500 W	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
FC-OEM-1080	1080 nm	1~400 mW	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–

1090 NM Infrared Laser, Solid State Laser, DPSS Laser |

1 model

Model	Wavelength	Output / average power	Line width(nm)	Fiber connector	Fiber length (m)	Fiber jacket	Beam diameter (mm)	Polarization state	Warm-up time (minutes)	Operating temperature (℃)	Cooled method	Power supply (VAC)	Expected lifetime (hours)
FL-1090-CW	1090 nm	1~20 W	<2nm	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	Random	<15	15-35	Air cooled	110/220VAC	>10000	Datasheet

Infrared Laser, 1100 NM Infrared Laser Module, Infrared Fiber Lasers.

7 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Longitudinal mode	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8 hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Beam diameter (mm)	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Power supply (VAC)	Expected lifetime (hours)	Spectral linewidth (nm)	Frequency shift (MHz) (over ±2℃and 8 hours)	Line width(nm)	Fiber length (m)	Polarization state	Power stability (rms, 4 hours ± 3°C)	Fiber type	Fiber Core diameter	M2 after fiber	Operating temperature (°C)	Power supply (100-240VAC)	Noise of amplitude (rms, 20Hz-20MHz)	Fiber
FL-1100-SLM	1100 nm	1~5 W	<2%, <1%, <0.5%	TEM00	SLM	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
FL-1100-LN-L	1100 nm	1~5 W	<2%, <1%, <0.5%	TEM00	SLM	<0.1%, <0.05%	–	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	<0.004	<±200	–	–	–	–	–	–	–	–	–	–	–	Datasheet
FL-1100-CW	1100 nm	1~10 W	–	–	–	–	–	–	FC/APC, Collimator optional	–	PVC, Metal optional	4±1 (Collimator output)	–	<15	Air cooled	15-35	110/220VAC	>10000	–	–	<2nm	1	Random	–	–	–	–	–	–	–	–	Datasheet
MDL-III-1100-SM	1100 nm	1~400 mW	–	TEM00	–	–	–	–	FC/PC, FC/APC optional	–	Metal, PVC optional	–	–	<5	Conduction	–	–	>10000	–	–	–	–	–	<2%, <1%, <0.5%	SM fiber, PM fiber optional	4-9μm, 0.12NA	~1.1	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	–	–	Datasheet
MLL-III-1100-SM	1100 nm	1~400 mW	–	TEM00	–	–	–	–	–	–	–	–	–	<5	Conduction	–	–	>10000	–	–	–	–	–	<2%, <1%, <0.5%	–	–	~1.1	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	<1%, <0.5%	1m	Datasheet
TEM-F-1100	1100 nm	1~400 mW	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
TEM-LN-1100	1100 nm	1~400 mW	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–

1120 NM IR Laser, Infrared Diode Laser |

9 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Longitudinal mode	Current adjustment range	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8 hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Beam diameter (mm)	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Power supply (VAC)	Expected lifetime (hours)	Power stability (rms, 4 hours ± 3°C)	Noise of amplitude (rms, 20Hz-20MHz)	Beam divergence, full angle (mrad)	Operating temperature (°C)	Power supply (100-240VAC)	Spectral linewidth (nm)	Frequency shift (MHz) (over ±2℃and 8 hours)	biomedicine, spectroscopy, laser sintering, laser	Polarization ratio	Operating voltage (VAC)
FL-1120-SLM	1120 nm	1~2 W	<2%, <1%, <0.5%	TEM00	SLM	1-100%	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	–	–	–	–	–	–	–	–	–	–	Datasheet
MLL-III-1120	1120 nm	1~1000 mW	–	Multimode	–	–	–	–	–	–	–	–	–	–	<5	Conduction	–	–	>10000	<2%, <1%, <0.5%	<1%, <0.5%	<3.0	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	–	–	–	–	–	Datasheet
FL-1120-LN-L	1120 nm	1~2 W	<2%, <1%, <0.5%	TEM00	SLM	1-100%	<0.1%, <0.05%	–	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	–	–	–	–	–	<0.004	<±200	–	–	–	Datasheet
MLL-H-1120	1120 nm	1~2.5 W	–	Multimode	–	–	–	–	–	–	–	–	–	–	<5	Air cooled	–	–	>10000	<2%, <1%, <0.5%	<1%, <0.5%	<3.0	10-35	PSU-H-FDA/PSU-H-LED	–	–	–	–	–	Datasheet
MLL-F-1120	1120 nm	2.5~5 W	–	–	–	–	–	–	–	–	–	–	–	–	<5	Air cooled	10-35	–	>10000	<2%, <1%, <0.5%	<1%, <0.5%	<3.0	–	PSU-H-FDA/PSU-H-LED	–	–	–	–	–	Datasheet
MDL-III-1120	1120 nm	1~1000 mW	–	Multimode	–	–	–	–	–	–	–	–	–	–	<5	Conduction	–	–	>10000	<2%, <1%, <0.5%	–	<3.0	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	–	–	–	–	–	Datasheet
MDL-H-1120	1120 nm	1~2.5 W	–	Multimode	–	–	–	–	–	–	–	–	–	–	<5	Air cooled	–	–	>10000	<2%, <1%, <0.5%	–	<3.0	10-35	PSU-H-FDA/PSU-H-LED	–	–	–	–	–	Datasheet
MDL-F-1120	1120 nm	2.5~5 W	–	Multimode	–	–	–	–	–	–	–	–	–	–	<5	Air cooled	10-35	–	>10000	–	–	<3.0	–	PSU-H-FDA/PSU-H-LED	–	–	–	–	–	Datasheet
FL-1120-CW	1120 nm	1~20 W	<2%, <1%, <0.5%	–	–	–	–	–	<1.3	–	1	PVC, Metal optional	4±1 (Collimator output)	–	<15	Air cooled	15-35	–	>10000	–	–	–	–	–	–	–	Fiber connector2 / FC/APC, Collimator optional	Random	110/220VAC	Datasheet

1178nm Laser, Infrared Laser |

1 model

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Spectral linewidth (nm)	M2	Fiber connector	Fiber length(m)	Fiber jacket	Beam diameter (mm)	Polarization ratio	Cooled method	Warm-up time (minutes)	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)
FL-1178-CW	1178 nm	1~10 W	<2%, <1%, <0.5%	>±5nm	<1.3	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	Random	Air cooled	<15	15-35	110/220VAC	>10000	Datasheet

1240nm Laser, Infrared Laser |

1 model

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Spectral linewidth (nm)	ultra compact, long lifetime,	Fiber connector	Fiber length(m)	Fiber jacket	Beam diameter (mm)	Polarization ratio	Cooled method	Warm-up time (minutes)	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)
FL-1240-CW	1240 nm	1~15 W	<2%, <1%, <0.5%	>±5nm	M2 / <1.3	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	Random	Air cooled	<15	15-35	110/220VAC	>10000	Datasheet

1250nm DFB Laser, Infrared Laser, DPSS Laser |

3 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours ± 3°C)	Transverse mode	M2	Beam divergence, full angle (mrad)	Warm-up time (minutes)	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)
TEM-F-1250	1250 nm	1~40 mW	<2%, <1%, <0.5%	TEM00	<1.1	<1.5	<5	25±3	PSU-III-FDA/PSU-III-LED/PSU-A-D	>10000	Datasheet
MDL-III-1250-SM	1250 nm	1~40 mW	–	–	–	–	–	–	–	–
FC-OEM-1250	1250 nm	1~40 mW	–	–	–	–	–	–	–	–

1268nm DFB Laser, Infrared Laser, DPSS Laser |

4 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours ± 3°C)	Fiber type	Fiber Core diameter	Fiber connector	Fiber jacket	Transverse mode	M2 after fiber	Warm-up time (minutes)	Cooled method	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)
TEM-F-1268DFB	1268 nm	1~10 mW	–	–	–	–	–	–	–	–	–	–	–	–
MDL-III-1268-SM	1268 nm	1~10 mW	<2%, <1%, <0.5%	SM fiber, PM fiber optional	4-9μm, 0.12NA	FC/PC, FC/APC optional	Metal, PVC optional	TEM00	~1.1	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Datasheet
MDL-III-1268DFB-SM	1268 nm	1~10 mW	–	–	–	–	–	–	–	–	–	–	–	–
FC-OEM-1268	1268 nm	1~10 mW	–	–	–	–	–	–	–	–	–	–	–	–

1273nm DFB Laser, Infrared Laser, DPSS Laser |

4 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours ± 3°C)	Fiber type	Fiber Core diameter	Fiber connector	Fiber jacket	Transverse mode	M2 after fiber	Warm-up time (minutes)	Cooled method	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)
TEM-F-1273DFB	1273 nm	1~10 mW	–	–	–	–	–	–	–	–	–	–	–	–
MDL-III-1273DFB-SM	1273 nm	1~10 mW	–	–	–	–	–	–	–	–	–	–	–	–
MDL-III-1273-SM	1273 nm	1~10 mW	<2%, <1%, <0.5%	SM fiber, PM fiber optional	4-9μm, 0.12NA	FC/PC, FC/APC optional	Metal, PVC optional	TEM00	~1.1	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Datasheet
FC-OEM-1273	1273 nm	1~10 mW	–	–	–	–	–	–	–	–	–	–	–	–

1290nm DFB Laser, Infrared Laser, DPSS Laser |

3 models

Model	Wavelength	Output / average power
MDL-III-1290DFB-SM	1290 nm	1~15 mW
MDL-III-1290-SM	1290 nm	1~15 mW
FC-OEM-1290	1290 nm	1~15 mW

1309nm DFB Laser, Infrared Laser, DPSS Laser |

4 models

Model	Wavelength	Output / average power
TEM-F-1309DFB	1309 nm	1~15 mW
MDL-III-1309DFB-SM	1309 nm	1~15 mW
MDL-III-1309-SM	1309 nm	1~15 mW
FC-OEM-1309	1309 nm	1~15 mW

1312nm DFB Laser, Infrared Laser, DPSS Laser |

4 models

Model	Wavelength	Output / average power
TEM-F-1312DFB	1312 nm	1~10 mW
MDL-III-1312DFB-SM	1312 nm	1~10 mW
MDL-III-1312-SM	1312 nm	1~10 mW
FC-OEM-1312	1312 nm	1~10 mW

Infrared Laser,1320 NM Infrared Diode Lasers,infrared Diode Laser System.

2 models

Model	Wavelength	Output / average power	Power stability(rms, over 4 hours)	Transverse mode	Beam divergence, full angle (mrad)	Warm-up time	Expected lifetime (hours)	Warranty (years)	Operating voltage(PSU-V-OEM)	Operating voltage(PSU-I-OEM)	Connection	Operating temperature	Storage temperature	Humidity	Dimensions of laser head
PGL-V-H-FC-1320	1320 nm	1~500 mW	<5%, <3%, <1%	Multimode	<10	minutes / <10	10000	1	100-240VAC	12VDC	9 pin connector	-10°C to 50°C	-20°C to 80°C	< 90%, non-condensing	92(L)×40(W)×40(H)mm3	Datasheet
PGL-V-H-1320	1320 nm	1~1000 mW	<5%, <3%, <1%	Multimode	<10	minutes / <10	10000	1	100-240VAC	12VDC	9 pin connector	-10°C to 50°C	-20°C to 80°C	< 90%, non-condensing	92(L)×40(W)×40(H)mm3	Datasheet

1330nm DFB Laser, Infrared Laser, DPSS Laser |

3 models

Model	Wavelength	Output / average power
MDL-III-1330-SM	1330 nm	1~15 mW
MDL-III-1330DFB-SM	1330 nm	1~15 mW
FC-OEM-1330	1330 nm	1~15 mW

1350nm DFB Laser, Infrared Laser, DPSS Laser |

3 models

Model	Wavelength	Output / average power
MDL-III-1350-SM	1350 nm	1~15 mW
MDL-III-1350DFB-SM	1350 nm	1~15 mW
FC-OEM-1350	1350 nm	1~15 mW

1368nm DFB Laser, Infrared Laser, DPSS Laser |

3 models

Model	Wavelength	Output / average power
MDL-III-1368-SM	1368 nm	1~10 mW
MDL-III-1368DFB-SM	1368 nm	1~10 mW
FC-OEM-1368	1368 nm	1~10 mW

Infrared Laser,1370 NM Infrared Diode Lasers,infrared Diode Laser System.

1 model

Model	Wavelength	Output / average power
FC-OEM-1370	1370 nm	1~15 mW

1390nm DFB Laser, Infrared Laser, DPSS Laser |

3 models

Model	Wavelength	Output / average power
MDL-III-1390-SM	1390 nm	1~15 mW
MDL-III-1390DFB-SM	1390 nm	1~15 mW
FC-OEM-1390	1390 nm	1~15 mW

1392nm DFB Laser, Infrared Laser, DPSS Laser |

4 models

Model	Wavelength	Output / average power
TEM-F-1392DFB	1392 nm	1~10 mW
MDL-III-1392-SM	1392 nm	1~15 mW
MDL-III-1392DFB-SM	1392 nm	1~15 mW
FC-OEM-1392	1392 nm	1~15 mW

1410nm DFB Laser, Infrared Laser, DPSS Laser |

3 models

Model	Wavelength	Output / average power
MDL-III-1410-SM	1410 nm	1~15 mW
MDL-III-1410DFB-SM	1410 nm	1~15 mW
FC-OEM-1410	1410 nm	1~15 mW

Infrared Laser,1430 NM Infrared Diode Lasers,infrared Diode Laser System.

5 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours ± 3°C)	Transverse mode	Beam divergence, full angle (mrad)	Warm-up time (minutes)	Cooled method	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)
MDL-III-1430	1430 nm	1~500 mW	<2%, <1%, <0.5%	Multimode	<3.0	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Datasheet
MDL-H-1430	1430 nm	500~1500 mW	<2%, <1%, <0.5%	Multimode	<3.0	<5	Air cooled	10-35	PSU-H-FDA/PSU-H-LED	>10000	Datasheet
MDL-III-1430-SM	1430 nm	1~15 mW	<2%, <1%, <0.5%	Multimode	<3.0	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Datasheet
MDL-III-1430DFB-SM	1430 nm	1~15 mW	<2%, <1%, <0.5%	Multimode	<3.0	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Datasheet
FC-OEM-1430	1430 nm	1~15 mW	–	–	–	–	–	–	–	–

1484nm Laser, Infrared Laser |

1 model

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Spectral linewidth (nm)	M2	Fiber connector	Fiber length(m)	Fiber jacket	Beam diameter (mm)	Polarization ratio	Cooled method	Warm-up time (minutes)	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)
FL-1484-CW	1484 nm	1~10 W	<2%, <1%, <0.5%	>±5nm	<1.2	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	Random	Air cooled	<15	15-35	110/220VAC	>10000	Datasheet

1490nm DFB Laser, Infrared Laser, DPSS Laser |

3 models

Model	Wavelength	Output / average power
TEM-F-1490DFB	1490 nm	1~20 mW
MDL-III-1490-SM	1490 nm	1~15 mW
MDL-III-1490DFB-SM	1490 nm	1~15 mW

1510nm DFB Laser, Infrared Laser, DPSS Laser |

3 models

Model	Wavelength	Output / average power
MDL-III-1510-SM	1510 nm	1~15 mW
MDL-III-1510DFB-SM	1510 nm	1~15 mW
FC-OEM-1510	1510 nm	1~15 mW

1512nm DFB Laser, Infrared Laser, DPSS Laser |

3 models

Model	Wavelength	Output / average power
MDL-III-1512-SM	1512 nm	1~10 mW
MDL-III-1512DFB-SM	1512 nm	1~10 mW
FC-OEM-1512	1512 nm	1~10 mW

1530nm DFB Laser, Infrared Laser, DPSS Laser |

3 models

Model	Wavelength	Output / average power
MDL-III-1530-SM	1530 nm	1~15 mW
MDL-III-1530DFB-SM	1530 nm	1~15 mW
FC-OEM-1530	1530 nm	1~15 mW

1540nm DFB Laser, Infrared Laser, DPSS Laser |

4 models

Model	Wavelength	Output / average power
MLL-III-1540-SM	1540 nm	1~15 mW
TEM-F-1540DFB	1540 nm	1~20 mW
MDL-III-1540-SM	1540 nm	1~15 mW
MDL-III-1540DFB-SM	1540 nm	1~15 mW

1560nm DFB Laser, Infrared Laser, DPSS Laser |

4 models

Model	Wavelength	Output / average power
MLL-III-1560-SM	1560 nm	1~15 mW
TEM-F-1560DFB	1560 nm	1~20 mW
MDL-III-1560-SM	1560 nm	1~15 mW
MDL-III-1560DFB-SM	1560 nm	1~15 mW

Infrared Laser, 1568 NM Infrared Laser Module, Infrared DPSS Lasers.

4 models

Model	Wavelength	Output / average power
TEM-F-1568DFB	1568 nm	1~20 mW
MDL-III-1568-SM	1568 nm	1~15 mW
MDL-III-1568DFB-SM	1568 nm	1~15 mW
FC-OEM-1568	1568 nm	1~15 mW

Infrared Laser, 1570 NM Infrared Laser Module, Infrared DPSS Lasers.

3 models

Model	Wavelength	Output / average power
MDL-III-1570-SM	1570 nm	1~15 mW
MDL-III-1570DFB-SM	1570 nm	1~15 mW
FC-OEM-1570	1570 nm	1~15 mW

Infrared Laser, 1580 NM Infrared Laser Module, Infrared DPSS Lasers.

6 models

Model	Wavelength	Output / average power
TEM-F-1580DFB	1580 nm	1~20 mW
MDL-III-1580DFB-SM	1580 nm	1~15 mW
MDL-III-1580-SLD	1580 nm	1~17 mW
MDL-III-1580-SM	1580 nm	1~15 mW
MDL-III-1580-SLD-SM	1580 nm	1~17 mW
FC-OEM-1580	1580 nm	1~15 mW

Infrared Diode Laser AT 1908 NM.

3 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Longitudinal mode	Current adjustment range	Spectral linewidth (kHz)	Relative intensity noise (rms, 10Hz-3MHz)	M2	Fiber connector	Fiber length(m)	Fiber jacket	Pointing stability (urad)	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Power supply (VAC)	Expected lifetime (hours)	Spectral linewidth (nm)	Relative intensity noise (rms,10Hz-3MHz)
FL-1908-SLM	1908 nm	1~5 W	<2%, <1%, <0.5%	TEM00	SLM	1-100%	<50	<0.3%, <0.1%, (<0.05% optional)	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	<5 / <10	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	–	–	Datasheet
FL-1908-LN-L	1908 nm	1~5 W	<2%, <1%	TEM00	SLM	1-100%	–	–	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	<5 / <10	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	<0.006	<0.1%, <0.05%	Datasheet
FL-SLM-Seed(1800-2000)	1800 nm	1~10 mW	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–

Infrared Laser, 937 NM Infrared Diode Lasers, High Power Diode Laser System.

2 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours ± 3°C)	M2	Beam divergence, full angle (mrad)	Cooled method	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)
MDL-III-937L	937 nm	1~200 mW	<2%, <1%, <0.5%	<1.5	<1.0	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Datasheet
MDL-III-937-SM	937 nm	1~50 mW	–	–	–	–	–	–	–

618 NM RED Laser, DPSS Laser, RED Laser |

3 models

Model	Wavelength	Output / average power	Free space output power (mW)	Fiber coupled output power (mW)	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Longitudinal mode	Current adjustment range	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8 hours)	M2	Fiber connector	Fiber length(m)	Fiber jacket	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)	Spectral linewidth (nm)	Relative intensity noise (rms,10Hz-3MHz)	Frequency shift (MHz)(over ±2℃and 8hours )	Beam diameter at the aperture (1/e2, mm)	Polarization ratio	Power supply (100-240VAC)
FL-618-SLM	618 nm	1-50 mW	1-50	1-25	<2%, <1%	TEM00	SLM	1-100%	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	–	–	–	–	–	–	Datasheet
FL-618-LN-L	618 nm	1~50 mW	1-50	1-25	<2%, <1%	TEM00	SLM	1-100%	–	–	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	<0.002	<0.1%, <0.05%	<±200	–	–	–	Datasheet
MRL-U-618-SF	618 nm	1~50 mW	–	–	–	TEM00	–	–	–	–	–	–	–	–	–	<10	Air Cooled/ Water Cooled	–	–	>10000	–	–	–	~3.0	>100:1	PSU-SF	Datasheet

620 NM RED Diode Laser.

1 model

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Spectral linewidth (nm)	M2	Beam diameter (mm)	Polarization ratio (dB)	Cooled method	Warm-up time (minutes)	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)	Fundamental Frequency
FL-620-CW	620 nm	1~500 mW	<2%, <1%, <0.5%	<0.5	<1.2	~2	>15 Horizontal (Vertical optional)	Air cooled	<15	15-35	110/220VAC	>10000	Second harmonic	Datasheet

631 NM RED Diode Laser.

4 models

Model	Wavelength	Output / average power	Free space output power (mW)	Fiber coupled output power (mW)	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Longitudinal mode	Current adjustment range	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8 hours)	M2	Fiber connector	Fiber length(m)	Fiber jacket	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)	Spectral linewidth (nm)	Relative intensity noise (rms,10Hz-3MHz)	Frequency shift (MHz)(over ±2℃and 8hours )	Beam diameter at the aperture (1/e2, mm)	Polarization ratio	Power supply (100-240VAC)	Power stability (rms, 4 hours ± 3°C)	Beam divergence, full angle (mrad)	Operating temperature (°C)
FL-631-SLM	631 nm	1~1500 mW	1mW-1.5W	1-500	<2%, <1%	TEM00	SLM	1-100%	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	–	–	–	–	–	–	–	–	–	Datasheet
FL-631-LN-L	631 nm	1~1500 mW	1mW-1.5W	1-500	<2%, <1%	TEM00	SLM	1-100%	–	–	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	<0.002	<0.1%, <0.05%	<±200	–	–	–	–	–	–	Datasheet
MRL-U-631-SF	631 nm	1~200 mW	–	–	–	TEM00	–	–	–	–	–	–	–	–	–	<10	Air Cooled/ Water Cooled	–	–	>10000	–	–	–	~3.0	>100:1	PSU-SF	–	–	–	Datasheet
MDL-III-631	631 nm	1~800 mW	–	–	–	Multimode	–	–	–	–	–	–	–	–	–	<5	Conduction	–	–	>10000	–	–	–	–	–	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	<2%, <1%, <0.5%	<3.0×0.5	10-35	Datasheet

637 NM RED Diode Laser |

1 model

Model	Wavelength	Output / average power	Power stability (rms, 4 hours ± 3°C)	M2	Beam divergence, full angle (mrad)	Warm-up time (minutes)	Cooled method	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)
MDL-III-637-SM	637 nm	SM Fiber output laser	<2%, <1%, <0.5%	<1.5 / <1.2	<1.0	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Datasheet

775nm

2 models

Model	Wavelength	Output / average power	Free space output power (mW)	Fiber coupled output power (mW)	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Longitudinal mode	Current adjustment range	Spectral linewidth (kHz)	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz)(over ±2℃and 8hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)	Spectral linewidth (nm)	Frequency shift (MHz) (over ±2℃and 8 hours)
FL-775-SLM	775 nm	1~2000 mW	1-2000	1-500	<2%, <1%	TEM00	SLM	1-100%	<20	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	–	–	Datasheet
FL-775-LN-L	775 nm	1~2000 mW	1-2000	1-500	<2%, <1%	TEM00	SLM	1-100%	–	<0.1%, <0.05%	–	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	<0.002	<±200	Datasheet

560nm Q Switched Yellow Green Laser.

2 models

Model	Wavelength	Output / average power	Free space output power (mW)	Fiber coupled output power (mW)	Transverse mode	Longitudinal mode	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)	Power stability (rms, 4 hours , ±3℃)	Spectral linewidth (nm)
FL-560-SLM	560 nm	1-100 mW	1-100	1-50	TEM00	SLM	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	–	–	Datasheet
FL-560-LN-L	560 nm	1~100 mW	1-100	1-50	TEM00	SLM	<0.1%, <0.05%	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	<2%, <1%	<0.002	Datasheet

588nm Yellow Laser, Yellow Orange Solid State Laser, DPSS Laser |

7 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3°C)	Transverse mode	M2	Beam diameter at the aperture (1/e2, mm)	Beam divergence (mrad)	Polarization ratio	Warm-up time (minutes)	Pointing stability over temperature (μrad/°C)	Shock tolerance (6ms)	Operating temperature (℃)	Modulation optional	Power supply (100-240VAC)	Expected lifetime (hours)	Operating temperature (°C)	Power supply (12VDC)	Power Stability (rms, 4 hours ± 3°C)	Pointing Stability Over Temperature (urad/°C)	Beam divergence, full angle (mrad)	Modulation option	Fiber numerical aperture	Fiber type	Fiber connector	Fiber jacket	Fiber length	Polarization (optional)	Power supply (5VDC)
MGL-S-588	588 nm	1~50 mW	<3%, <2%, <1%, (<0.5% optional)	TEM00	<1.2	<1.0	<1.5	>100:1, Horizontal (Vertical optional)	<5	<8	7g laterally, 15g vertically	10-35	DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional	PSU-A-D/PSU-A-F	>10000	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
MGL-U-588	588 nm	50~200 mW	<3%, <2%, <1%	TEM00	–	<1.0	<1.5	>100:1, Horizontal (Vertical optional)	<5	<8	–	–	DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional	PSU-H-FDA/PSU-H-LED/PSU-SR	>10000	10-35	PSU-SR-OEM(12V/25A)	–	–	–	–	–	–	–	–	–	–	–	Datasheet
MGL-F-588	588 nm	200~300 mW	–	–	–	–	–	>100:1, Horizontal (Vertical optional)	<5	–	–	–	DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional	PSU-H-FDA/PSU-H-LED/PSU-SR	>10000	10-35	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
MGL-FN-588	588 nm	300~800 mW	–	–	–	–	<1.5	>100:1, Horizontal (Vertical optional)	<5	<8	–	–	DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional	PSU-H-FDA/PSU-H-LED/PSU-SR	>10000	10-35	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
MGL-N-588	588 nm	300~500 mW	–	Near TEM00	<3.0	–	–	>50:1(100:1 optional), Horizontal(Vertical optional)	<10	–	–	–	–	PSU-H-FDA/PSU-H-LED/PSU-H-OEM	>10000	10-35	–	<3%, <2%, (<1% optional)	<20	–	–	–	–	–	–	–	–	–	Datasheet
MGL-W-588A	588 nm	500~7000 mW	–	Near TEM00	–	~4.0	–	>50:1(100:1 optional), Horizontal(Vertical optional)	–	–	–	10-35	–	PSU-W-LED	>10000	–	–	<3%, <2%, (<1% optional)	–	<2.0	DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional	–	–	–	–	–	–	–	Datasheet
MGL-S-588-SM	588 nm	1~20 mW	–	TEM00 (single mode fiber output)	<1.1	–	–	–	<10	–	–	–	DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional	PSU-III-FDA/PSU-III-LED	>10000	10-35	–	–	–	–	–	0.10-0.12	SM fiber (PM fiber optional)	FC/APC	PVC (black)	1m	>50:1 after PM fiber	PSU-A-F-OEM (5V/5A)	Datasheet

457 NM Blue Laser.

1 model

Model	Wavelength	Output / average power	Power Stability (rms, 4 hours ± 3°C)	Transverse mode	M2	Polarization (optional)	Fiber core diameter	Fiber connector	Fiber length	Fiber Jacket	Warm-up time (minutes)	Cooled method	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)
MLL-K-457-SM	457 nm	SM Fiber output laser Water cooled	<3%, <2%, (<1% optional)	TEM00 (single mode fiber output)	<1.1	>50:1 after PM fiber	3.5um,0.10NA	FC/APC	1m	PVC, Metal optional	<10	Water cooled	10-30	PSU-W-LED	＞10000	Datasheet

460nm Blue Laser

11 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours ± 3°C)	Transverse mode	M2	Beam divergence, full angle (mrad)	Warm-up time (minutes)	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)	Cooled method	Operating temperature (℃)	Polarization direction	Power stability (rms, over 4 hours)	TTL / Analog modulation	Warranty
TEM-F-460	460 nm	1~50 mW	<2%, <1%, <0.5%	TEM00	<1.1	<1.5	<5	25±3	PSU-III-FDA/PSU-III-LED/PSU-A-D	>10000	–	–	–	–	–	–	Datasheet
MDL-III-460	460 nm	1~800 mW	<2%, <1%, <0.5%	Multimode	–	<2.1×1.6 / <2.5×0.2	<5	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Conduction	–	–	–	–	–	Datasheet
MDL-F-460	460 nm	800~1500 mW	–	Multimode	–	~2.5×0.5	<5	–	PSU-H-FDA/PSU-H-LED	>10000	Air cooled	10-35	–	–	–	–	Datasheet
MDL-MD-460	460 nm	1~6000 mW	<2%, <1%, <0.5%	Multimode	–	~3.4×3.8 / ~3.3×3.8	<5	–	PSU-H-FDA/PSU-H-LED/PSU-N-LED	>10000	–	25±3	Horizontal+ Vertical / Horizontal/ Vertical	–	–	–	Datasheet
MDL-HD-460	460 nm	4~8 W	–	–	–	–	–	–	–	–	–	–	–	–	–	–
MDL-XD-460	460 nm	8~16 W	–	–	–	<2.4×2.0	<5	–	PSU-N-LED/ PSU-N-FDA	10000	–	10-35	Horizontal+Vertical	<1%, <2%, <3%	TTL or Analog with 1Hz-1kHz 1kHz-10kHz, 10kHz-30kHz optional	1 year	Datasheet
MDL-III-460-SM	460 nm	1~50 mW	<2%, <1%, <0.5%	Multimode	–	<2.1×1.6 / <2.5×0.2	<5	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Conduction	–	–	–	–	–	Datasheet
PGL-FP-460	460 nm	1~50 mW	–	–	–	–	–	–	–	–	–	–	–	–	–	–
YL-I-460	460 nm	1~20 W	–	–	–	–	–	–	–	–	–	–	–	–	–	–
FC-W-460C	460 nm	30~50 W	–	–	–	–	–	–	–	–	–	–	–	–	–	–
FC-W-460H-II	460 nm	50~200 W	–	–	–	–	–	–	–	–	–	–	–	–	–	–

488 NM Blue Diode Laser.

1 model

Model	Wavelength	Output / average power	Power stability (rms, 4 hours ± 3°C)	Transverse mode	Beam divergence, full angle (mrad)	Warm-up time (minutes)	Cooled method	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)
MDL-III-488-SM	488 nm	SM Fiber output laser	<2%, <1%, <0.5%	Multimode	~2.5×1.0	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Datasheet

1040 NM Infrared Solid State Laser

5 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Longitudinal mode	Current adjustment range	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8 hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Beam diameter (mm)	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Power supply (VAC)	Expected lifetime (hours)	Spectral line width (nm)	Noise of amplitude (rms, 20Hz-20MHz)	Beam divergence (mrad)	Operating temperature (°C)	Power supply (100-240VAC)	Power supply (12VDC)	Spectral linewidth (nm)	Frequency shift (MHz) (over ±2℃and 8 hours)	Beam diameter at the aperture (1/e2, mm)	Polarization ratio	Line width(nm)	Fiber length (m)	Polarization state
FL-1040-SLM	1040 nm	1~10 W	<2%, <1%, <0.5%	TEM00	SLM	1-100%	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
MLL-H-1040	1040 nm	1~100 mW	–	TEM00	–	–	–	–	<1.5	–	–	–	–	–	<5	–	–	–	>10000	<0.1	<1%	<2.0	10-35	PSU-H-FDA	PSU-SR-OEM (12V/25A)	–	–	–	–	–	–	–	Datasheet
FL-1040-LN-L	1040 nm	1~10 W	<2%, <1%, <0.5%	TEM00	SLM	1-100%	<0.1%, <0.05%	–	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	–	–	–	–	–	–	<0.004	<±200	–	–	–	–	–	Datasheet
MIL-H-1040	1040 nm	1~100 mW	–	TEM00	–	–	–	–	<1.5	–	–	–	–	–	<5	–	–	–	>10000	–	–	<2.0	10-35	PSU-H-FDA/PSU-H-LED/PSU-SR	–	–	–	~1.2	>100:1, Horizontal (Vertical optional)	–	–	–	Datasheet
FL-1040-CW	1040 nm	1~100 W	–	–	–	–	–	–	–	FC/APC, Collimator optional	–	PVC, Metal optional	4±1 (Collimator output)	–	<15	Air cooled	15-35	110/220VAC	>10000	–	–	–	–	–	–	–	–	–	–	<2nm	1	Random	Datasheet

Infrared Laser, 1053 NM Infrared Laser Module, Infrared DPSS Lasers.

2 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Longitudinal mode	Current adjustment range	Spectral linewidth (nm)	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8 hours)	M2	Fiber connector	Fiber length(m)	Fiber jacket	Beam diameter (mm)	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Power supply (VAC)	Expected lifetime (hours)	Relative intensity noise (rms,10Hz-3MHz)	Pointing stability (urad)
FL-1053-LN-L	1053 nm	1~10 W	<2%, <1%, <0.5%	TEM00	SLM	1-100%	<0.004	<0.1%, <0.05%	<±200	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	–	–	Datasheet
FL-1053-LN-H	1053 nm	10~35 W	<1%, <0.5%	TEM00	SLM	1-100%	<0.004	–	–	TEM00, <1.1	Collimator	<3	Metal	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled (≤20W) / Water cooled (≤35W)	15-30	110/220VAC	>10000	<0.1%, <0.05%	<5 / <10	Datasheet

Infrared Laser,1450 NM Infrared Diode Lasers,infrared Diode Laser System.

8 models

Model	Wavelength	Output / average power	Power stability (rms, over 4 hours)	Transverse mode	Beam divergence, full angle (mrad)	Warm-up time (minutes)	TTL / Analog modulation	Expected lifetime (hours)	Warranty	Power stability (rms, 4 hours ± 3°C)	Cooled method	Operating temperature (°C)	Power supply (100-240VAC)	Beam divergence (mrad)	Laser operation mode	Modulation optional	Connection	Storage temperature (°C)	Humidity (%)	Weight (g)
TEM-F-1450DFB	1450 nm	1~20 mW	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
MDL-III-1450R	1450 nm	1~200 mW	<1%, <2%, <3%	Round	~10 / ~20	<5	TTL or Analog with 1Hz-1kHz 1kHz-10kHz, 10kHz-30kHz, 30kHz-100kHz optional	10000	1 year	–	–	–	–	–	–	–	–	–	–	–	Datasheet
MDL-III-1450	1450 nm	1~1000 mW	–	Multimode	<3.0	<5	–	>10000	–	<2%, <1%, <0.5%	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	–	–	–	–	–	–	–	Datasheet
MDL-III-1450-SM	1450 nm	1~15 mW	–	Multimode	<3.0	<5	–	>10000	–	<2%, <1%, <0.5%	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	–	–	–	–	–	–	–	Datasheet
MDL-III-1450DFB-SM	1450 nm	1~15 mW	–	Multimode	<3.0	<5	–	>10000	–	<2%, <1%, <0.5%	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	–	–	–	–	–	–	–	Datasheet
FC-OEM-1450	1450 nm	1~15 mW	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
PGL-LF-1450	1450 nm	1~10 mW	–	–	–	–	–	–	–	–	–	-10°C to +45°C	–	<1.5	CW	TTL 30kHz or analog (0-3V or 0-5V)	Cable with flying leads	-20°C to +80°C	< 90 %, non-condensing	45g	Datasheet
PGL-V-H-FC-1450	1450 nm	1~500 mW	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–

Infrared Laser,1532 NM Infrared Diode Lasers, Infrared Fiber Coupled Laser System.

5 models

Model	Wavelength	Output / average power	Spectral line width (nm)	Power stability (rms, 4 hours ± 3°C)	Transverse mode	Beam divergence, full angle (mrad)	Warm-up time (minutes)	Cooled method	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)	Operating temperature (℃)
TEM-F-1532DFB	1532 nm	1~20 mW	–	–	–	–	–	–	–	–	–	–
MDL-H-1532	1532 nm	1~800 mW	<0.5	<2%, <1%, <0.5%	Multimode	<3.0	<5	Air cooled	10-35	PSU-H-FDA/PSU-H-LED	>10000	–	Datasheet
MDL-XF-1532	1532 nm	800~2000 mW	–	–	Multimode	<3.0	<5	Air cooled	–	PSU-H-FDA/PSU-H-LED	>10000	10-35	Datasheet
MDL-III-1532-SM	1532 nm	1~15 mW	<0.5	<2%, <1%, <0.5%	Multimode	<3.0	<5	Air cooled	10-35	PSU-H-FDA/PSU-H-LED	>10000	–	Datasheet
MDL-III-1532DFB-SM	1532 nm	1~15 mW	<0.5	<2%, <1%, <0.5%	Multimode	<3.0	<5	Air cooled	10-35	PSU-H-FDA/PSU-H-LED	>10000	–	Datasheet

Infrared Diode Laser, 880 NM Infrared Diode Lasers.

9 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours ± 3°C)	M2	Beam divergence, full angle (mrad)	Warm-up time (minutes)	Cooled method	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)	Transverse mode
MDL-III-880L	880 nm	1~5 mW	<2%, <1%, <0.5%	<1.5	<1.0	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	–	Datasheet
MDL-III-880-SLD	880 nm	1~8 mW	<2%, <1%, <0.5%	–	<3.0	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Multimode	Datasheet
MDL-III-880	880 nm	1~1000 mW	<2%, <1%, <0.5%	–	<3.0	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Multimode	Datasheet
MDL-H-880	880 nm	1~2 W	<2%, <1%, <0.5%	–	<3.0	<5	Air cooled	10-35	PSU-H-FDA/PSU-H-LED	>10000	Multimode	Datasheet
MDL-III-880-SM	880 nm	1~2 mW	<2%, <1%, <0.5%	–	<3.0	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Multimode	Datasheet
MDL-III-880-SLD-SM	880 nm	1~8 mW	<2%, <1%, <0.5%	–	<3.0	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Multimode	Datasheet
PGL-FP-880	880 nm	1 mW	–	–	–	–	–	–	–	–	–
PGL-LF-880	880 nm	1~10 mW	–	–	–	–	–	–	–	–	–
TEM-F-880	880 nm	1~2 mW	–	–	–	–	–	–	–	–	–

680 NM RED Diode Laser.

3 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours ± 3°C)	Transverse mode	Beam divergence, full angle (mrad)	Warm-up time (minutes)	Cooled method	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)
MDL-III-680R	680 nm	1~200 mW	<3%, <2%, <1%	Round	~10 / ~20	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Datasheet
MDL-III-680	680 nm	1~1500 mW	<2%, <1%, <0.5%	Multimode	<3.0	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Datasheet
MDL-III-680-SM	680 nm	1~20 mW	<2%, <1%, <0.5%	Multimode	<3.0	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Datasheet

685 NM RED Diode Laser.

3 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours ± 3°C)	Transverse mode	M2	Beam divergence, full angle (mrad)	Warm-up time (minutes)	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)	Cooled method
TEM-F-685	685 nm	1~20 mW	<2%, <1%, <0.5%	TEM00	<1.1	<1.5	<5	25±3	PSU-III-FDA/PSU-III-LED/PSU-A-D	>10000	–	Datasheet
MDL-III-685L	685 nm	1~50 mW	<2%, <1%, <0.5%	–	<1.5	<1.0	<5	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Conduction	Datasheet
MDL-III-685-SM	685 nm	1~20 mW	–	–	–	–	–	–	–	–	–

705 NM RED Diode Laser.

3 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours ± 3°C)	M2	Beam divergence, full angle (mrad)	Warm-up time (minutes)	Cooled method	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)
MDL-XS-705	705 nm	1~25 mW	–	–	–	–	–	–	–	–
MDL-III-705L	705 nm	1~25 mW	<2%, <1%, <0.5%	<1.5	<1.0	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	Datasheet
MDL-III-705-SM	705 nm	1~15 mW	–	–	–	–	–	–	–	–

Single Longitudinal Mode SLM Laser, Green and Infrared Single Frequency Laser AT 532 NM and 1064 NM.

34 models

Model	Wavelength	Output / average power	Spectral linewidth	Optical noise	M²	Free space output power (mW)	Fiber coupled output power (mW)	Transverse mode	Longitudinal mode	Current adjustment range	Frequency shift (MHz) (over ±2℃and 8hours )	Fiber connector	Fiber length(m)	Fiber jacket	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)	Free space output power (W)	Power stability (rms, 4 hours , ±3℃)	M2	Beam diameter (mm)	Pointing stability (urad)	Fundamental Frequency	Beam divergence, full angle (mrad)	Polarization ratio	Warm-up time of warm boot(minutes)	Warm-up time of cold boot(hours)	Frequency shift (MHz) (over ±2℃and 8 hours)	Frequency shift (MHz)(over ±2℃and 8hours )	Frequency shift (MHz) (over ±2℃and 8 hours )	Power supply (VAC)	Single pulse energy (nJ)	Rep. rate (MHz)	Ave power stability (rms, 4 hours±3℃)	pulse	M2 factor	Power supply (100-240VAC)	Frequency doubler
507	507 nm	1~500 mW	<20 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
509	509 nm	1~2000 mW	<20 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
513	513 nm	1~1000 mW	<20 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
FL-515-SLM	515 nm	1~2000 mW	<20 kHz	<0.05% RIN(DC-3 MHz)	<1.1	1-2000	1-500	TEM00	SLM	1-100%	<±200	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
520	520 nm	1~2000 mW	<20 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
525	525 nm	1~2000 mW	<20 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
FL-532-SLM	532 nm	1~3000 mW	<20 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	TEM00	SLM	1-100%	–	–	–	–	>20 Horizontal (Vertical optional)	<30	Water cooled	15-30	110/220V	>10000	3-10 / 10-15	<2%, <1%, <0.5%	<1.1 / <1.2	~0.8	<15 / <50	Second harmonic / WATER CHILLER (WCH-580)	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
FL-532-SLM-H	532 nm	3-15 W	<50 kHz	<0.1% RIN(DC-3 MHz)	<1.1	–	–	TEM00	SLM	1-100%	–	–	–	–	>20 Horizontal (Vertical optional)	<30	Water cooled	15-30	110/220V	>10000	3-10 / 10-15	<2%, <1%, <0.5%	<1.1 / <1.2	~0.8	<15 / <50	Second harmonic / WATER CHILLER (WCH-580)	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
FL-532-SLM-E	532 nm	20-40 W	<50 kHz	<0.1% RIN(DC-3 MHz)	<1.2	–	–	TEM00	SLM	–	–	–	–	–	–	–	Water cooled	15-30	110/220VAC	>10000	–	<2%, <1%, <0.5%	–	~1.6	<15 / <50	–	<1	Vertical, >100:1	<30	<2	–	–	–	–	–	–	–	–	–	–	–	Datasheet
540	540 nm	1~2000 mW	<20 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
560	560 nm	1~100 mW	<20 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
618	618 nm	1~50 mW	<100 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
631	631 nm	1~1500 mW	<20 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
FL-633-SLM	633 nm	1~1500 mW	<20 kHz	<0.05% RIN(DC-3 MHz)	<1.1	1mW-1.5W	1-500	TEM00	SLM	1-100%	–	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	–	<2%, <1%	–	–	–	–	–	–	–	–	<±200	–	–	–	–	–	–	–	–	–	–	Datasheet
775	775 nm	1~2000 mW	<20 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
FL-780-SLM	780 nm	1~2000 mW	<20 kHz	<0.05% RIN(DC-3 MHz)	<1.1	1-2000	1-500	TEM00	SLM	1-100%	–	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	–	<2%, <1%	–	–	–	–	–	–	–	–	–	<±200	–	–	–	–	–	–	–	–	–	Datasheet
FL-785-SLM	785 nm	1~500 mW	<20 kHz	<0.05% RIN(DC-3 MHz)	<1.1	1-500	1-250	TEM00	SLM	1-100%	–	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	–	<2%, <1%	–	–	–	–	–	–	–	–	–	<±200	–	–	–	–	–	–	–	–	–	Datasheet
1014	1014 nm	1~5 W	<10 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
1018	1018 nm	1~10 W	<10 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
1027	1027 nm	1~10 W	<10 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
FL-1030-SLM	1030 nm	1~10 W	<10 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	TEM00	SLM	1-100%	–	FC/APC, Collimator optional	1	PVC, Metal optional	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	–	>10000	–	<2%, <1%, <0.5%	–	4±1 (Collimator output)	–	–	–	–	–	–	–	–	<±200	110/220VAC	–	–	–	–	–	–	–	Datasheet
1040	1040 nm	1~10 W	<10 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
1050	1050 nm	1~10 W	<10 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
FL-1053-SLM	1053 nm	1~10 W	<10 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	TEM00	SLM	1-100%	–	FC/APC, Collimator optional	1	PVC, Metal optional	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	–	>10000	–	<2%, <1%, <0.5%	–	4±1 (Collimator output)	–	–	–	–	–	–	–	–	<±200	110/220VAC	–	–	–	–	–	–	–	Datasheet
FL-1064-SLM	1064 nm	1-10 W	<5 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	TEM00	SLM	1-100%	–	Collimator	1	Metal	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	–	>10000	–	<2%, <1%, <0.5%	–	4±1 (Collimator output)	<5 / <10	–	–	–	–	–	–	–	–	110/220VAC	–	–	–	–	–	–	–	Datasheet
FL-1064-SLM-H	1064 nm	10-70 W	<10 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	TEM00	SLM	1-100%	–	Collimator	1	Metal	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	–	>10000	–	<2%, <1%, <0.5%	–	4±1 (Collimator output)	<5 / <10	–	–	–	–	–	–	–	–	110/220VAC	–	–	–	–	–	–	–	Datasheet
1080	1080 nm	1~10 W	<10 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
1100	1100 nm	1~5 W	<20 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
1120	1120 nm	1~2 W	<100 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
1550	1550 nm	1~10 W	<5 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
1908	1908 nm	1~5000 mW	<50 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	TEM00	–	–	–	–	–	–	–	<10	Air cooled	10-35	–	>10000	–	–	–	–	–	–	–	>100:1 Vertical	–	–	–	–	–	–	0.1-0.6	80±2	<2%, <1%	duration, / high	<1.2	12V/6.67A	LASER HEAD (780) / POWER SUPPLY	Datasheet
1014-1120	1014-1120 nm	1-50 mW	<5 kHz	<0.05% RIN(DC-3 MHz)	<1.05	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
1525-1596	1525-1596 nm	1-40 mW	<5 kHz	<0.05% RIN(DC-3 MHz)	<1.05	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
1800-2000	1800-2000 nm	1-10 mW	<50 kHz	<0.05% RIN(DC-3 MHz)	<1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–

535 NM Green Laser.

1 model

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Pulse duration (ps)	M2	Rep. rate	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VDC)	Expected lifetime (hours)	Fundamental Frequency
FL-535-Pico	535 nm	1~1000 mW	<5%, <3%, <2%	100-900	<1.5 / <2	100kHz-20MHz / 100kHz-1MHz	>15 Horizontal (Vertical optional)	<15	Air cooled	15-35	12V/11.5A	>10000	Second harmonic	Datasheet

540 NM Green Laser, Green Solid State Laser |

4 models

Model	Wavelength	Output / average power	Free space output power (mW)	Fiber coupled output power (mW)	Transverse mode	Longitudinal mode	Current adjustment range	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)	Power stability (rms, 4 hours , ±3℃)	Spectral linewidth (nm)	Pulse duration (ps)	Rep. rate	Operating voltage (VDC)	Fundamental Frequency	stability, good beam profile, ultra compact,
FL-540-SLM	540 nm	1-2000 mW	1-2000	1-500	TEM00	SLM	1-100%	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	–	–	–	–	–	–	–	Datasheet
FL-540-LN-L	540 nm	1~2000 mW	1-2000	1-500	TEM00	SLM	1-100%	<0.1%, <0.05%	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	<2%, <1%	<0.002	–	–	–	–	–	Datasheet
FL-540-Pico	540 nm	1-1000 mW	–	–	–	–	–	–	–	<1.5 / <2	–	–	–	>15 Horizontal (Vertical optional)	<15	Air cooled	15-35	–	>10000	<5%, <3%, <2%	–	100-900	100kHz-20MHz / 100kHz-1MHz	12V/11.5A	Second harmonic	–	Datasheet
FL-540-Nano	540 nm	1-1000 mW	–	–	–	–	–	–	–	<1.8	–	–	–	>15 Horizontal (Vertical optional)	<15	Air cooled	15-35	–	>10000	<3%, <2%	–	–	–	12V/11.5A	Second harmonic	Rep. rate3 / 100kHz-1MHz	Datasheet

780 NM Infrared Laser.

1 model

Model	Wavelength	Output / average power	Free space output power (mW)	Fiber coupled output power (mW)	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Longitudinal mode	Current adjustment range	Spectral linewidth (nm)	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8 hours)	M2	Fiber connector	Fiber length(m)	Fiber jacket	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)
FL-780-LN-L	780 nm	1~2000 mW	1-2000	1-500	<2%, <1%	TEM00	SLM	1-100%	<0.002	<0.1%, <0.05%	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	Datasheet

Infrared Laser, 1050 NM Infrared Laser Module, Infrared DPSS Lasers.

3 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Longitudinal mode	Current adjustment range	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8 hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Beam diameter (mm)	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Power supply (VAC)	Expected lifetime (hours)	Spectral linewidth (nm)	Frequency shift (MHz) (over ±2℃and 8 hours)	Line width(nm)	Fiber length (m)	Polarization state
FL-1050-SLM	1050 nm	1~10 W	<2%, <1%, <0.5%	TEM00	SLM	1-100%	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	–	–	–	–	–	Datasheet
FL-1050-LN-L	1050 nm	1~10 W	<2%, <1%, <0.5%	TEM00	SLM	1-100%	<0.1%, <0.05%	–	<1.1	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	<0.004	<±200	–	–	–	Datasheet
FL-1050-CW	1050 nm	1~100 W	–	–	–	–	–	–	–	FC/APC, Collimator optional	–	PVC, Metal optional	4±1 (Collimator output)	–	<15	Air cooled	15-35	110/220VAC	>10000	–	–	<2nm	1	Random	Datasheet

1270nm DFB Laser, Infrared Laser, DPSS Laser |

2 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Spectral linewidth (nm)	ultra compact, long lifetime,	Fiber connector	Fiber length(m)	Fiber jacket	Beam diameter (mm)	Polarization ratio	Cooled method	Warm-up time (minutes)	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)
FC-W-1270H	1270 nm	5~30 W	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
FL-1270-CW	1270 nm	1~1000 mW	<3%, <2%, <1%	>±5nm	M2 / <1.3	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	Random	Air cooled	<15	15-35	110/220VAC	>10000	Datasheet

976 NM Infrared Laser.

3 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Spectral linewidth (nm)	M2	Fiber connector	Fiber length (m)	Fiber jacket	Beam diameter (mm)	Polarization ratio	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)
FC-W-976	976 nm	20~50 W	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
FC-W-976H	976 nm	50~150 W	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
FL-976-CW	976 nm	1~2 W	<3%, <2%	<0.3nm	<1.2	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	Random	<15	Air cooled	15-35	110/220VAC	>10000	Datasheet

343nm UV Ultraviolet Laser.

3 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Pulse duration (ps)	M2	Rep. rate	Polarization ratio (dB)	Warm-up time (minutes)	Delivery fiber length (cm)	Cooled method	Operating temperature (℃)	Operating voltage (VDC)	Expected lifetime (hours)	Fundamental Frequency	Delivery fiber length(cm)	Pulse duration (ns)	frequency	Rep. rate (MHz)
FL-343-PS	343 nm	1~50 mW	<5%, <3%	<10	<2	20-50MHz	>15 Horizontal (Vertical optional)	<15	60	Air cooled	15-35	12V/11.5A	>10000	Third harmonic	–	–	–	–	Datasheet
FL-343-Pico	343 nm	1~50 mW	<5%,<3%	100-900	<2	100kHz-20MHz	>15 Horizontal (Vertical optional)	<15	–	Air cooled	15-35	12V/11.5A	>10000	Third harmonic	60	–	–	–	Datasheet
FL-343-Nano	343 nm	10~300 mW	<5%, <3%	–	<2	–	>15 Horizontal (Vertical optional)	<15	60	Air cooled	15-35	12V/11.5A	>10000	Third harmonic	–	0.5-50	all / fiber / pulsed / laser / at	0.1-1	Datasheet

375 NM UV Diode Laser.

2 models

Model	Wavelength	Output / average power	Fiber Core Diameter (um)	Fiber Connector	Power stability (rms, over 4 hours)	Warm-up time (minutes)	Operating temperature (℃)	Modulation option	Cooling Way	Dimensions(mm3)	Expected lifetime (hours)	Warranty	FC-W-375H-II (Water Cooled)
FC-W-375C	375 nm	5~10 W	400, 600…	SMA905/ FC/ QBH	<1%	<5	10-40	TTL/ Analog 1Hz-30KHz, TTL on/ off	Air Cooled	447 (L)×483.4 (W)×148 (H)mm3	10000	1 year	–	Datasheet
FC-W-375H-II	375 nm	10~20 W	400, 600…	SMA905/ FC/ QBH	<1%	<5	10-40	TTL/ Analog 1Hz-30KHz, TTL on/ off	Water Cooled	518 (L)×450 (W)×147.5 (H)mm3	10000	1 year	Water Chiller (WCH-370) (Optional)	Datasheet

445 NM Blue Violet Diode Laser.

2 models

Model	Wavelength	Output / average power	Cooled method	Fiber Core Diameter (um)	Fiber Connector	Fiber lengths	Fiber Jacket	Power stability (rms, 4 hours±3℃)	Warm-up time (minutes)	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)
FC-W-445C	445 nm	30~50 W	Air cooled	100, 200, 400, 600, 0.22NA	SMA905, FC optional	1m	PVC, Metal optional	<2%, <1%	<5	0-30	100-240	>10000	Datasheet
FC-W-445H-II	445 nm	50~200 W	Water cooled	200, 400, 600, 0.22NA	SMA905, FC, QBH optional	1m	PVC, Metal optional	<2%, <1%, <0.5%	<5	0-30	100-240	>10000	Datasheet

447 NM Blue Violet Diode Laser.

2 models

Model	Wavelength	Output / average power	Cooled method	Fiber Core Diameter (um)	Fiber Connector	Fiber lengths	Fiber Jacket	Power stability (rms, 4 hours±3℃)	Warm-up time (minutes)	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)
FC-W-447C	447 nm	30~50 W	Air cooled	100, 200, 400, 600, 0.22NA	SMA905, FC/PC optional	1m	PVC, Metal optional	<2%, <1%	<5	0-30	100-240	>10000	Datasheet
FC-W-447H-II	447 nm	50~200 W	Water cooled	200, 400, 600, 0.22NA	SMA905, FC, QBH optional	1m	PVC, Metal optional	<2%, <1%, <0.5%	<5	0-30	100-240	>10000	Datasheet

450 NM Blue Violet Diode Laser.

5 models

Model	Wavelength	Output / average power	Cooled method	Fiber Core Diameter (um)	Fiber Connector	Fiber lengths	Fiber Jacket	Power stability (rms, 4 hours±3℃)	Warm-up time (minutes)	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)
FC-W-450C	450 nm	30~50 W	Air cooled	100, 200, 400, 600, 0.22NA	SMA905, FC optional	1m	PVC, Metal optional	<2%, <1%	<5	0-30	100-240	>10000	Datasheet
FC-W-450H-II-50W	450 nm	50 W	Water cooled	105, 0.22NA	SMA905	2.5m	PVC, Metal optional	<2%, <1%, <0.5%	<5	0-30	100-240	>10000	Datasheet
FC-W-450H-II-100W	450 nm	100 W	–	–	–	–	–	–	–	–	–	–
FC-W-450H-II-200W	450 nm	200 W	–	–	–	–	–	–	–	–	–	–
FC-W-450H-II-500W	450 nm	500 W	–	–	–	–	–	–	–	–	–	–

515 NM Green Laser.

5 models

Model	Wavelength	Output / average power	Free space output power (mW)	Fiber coupled output power (mW)	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Longitudinal mode	Current adjustment range	Spectral linewidth (nm)	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)	Power stability (rms, over 4 hours)	Pulse duration (ps)	Rep. rate	Delivery fiber length(cm)	Operating voltage (VDC)	Fundamental Frequency	Delivery fiber length (cm)
FL-515-LN-L	515 nm	1~2000 mW	1-2000	1-500	<2%, <1%	TEM00	SLM	1-100%	<0.002	<0.1%, <0.05%	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	–	–	–	–	–	–	–	Datasheet
FL-515-PS	515 nm	1-200 mW	–	–	–	–	–	–	–	–	–	<1.5	–	–	–	>15 Horizontal (Vertical optional)	–	Air cooled	15-35	–	>10000	<3%, <2%	<10	20-50MHz	60	12V/11.5A	Second harmonic	–	Datasheet
FL-515-Pico	515 nm	1-1000 mW	–	–	<5%, <3%, <2%	–	–	–	–	–	–	<1.5 / <2	–	–	–	>15 Horizontal (Vertical optional)	<15	Air cooled	15-35	–	>10000	–	100-900	100kHz-20MHz / 100kHz-1MHz	–	12V/11.5A	Second harmonic	60	Datasheet
FL-515-Nano	515 nm	1-1000 mW	–	–	<3%, <2%	–	–	–	–	–	–	<1.8	–	–	–	>15 Horizontal (Vertical optional)	<15	Air cooled	15-35	–	>10000	–	–	100kHz-1MHz	–	12V/11.5A	Second harmonic	60	Datasheet
FL-H-515-PS	515 nm	1-5 W	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet

520 NM Green Laser.

2 models

Model	Wavelength	Output / average power	Free space output power (mW)	Fiber coupled output power (mW)	Transverse mode	Longitudinal mode	Current adjustment range	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)	Power stability (rms, 4 hours , ±3℃)	Spectral linewidth (nm)
FL-520-SLM	520 nm	1~2000 mW	1-2000	1-500	TEM00	SLM	1-100%	<0.3%, <0.1%, (<0.05% optional)	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	–	–	Datasheet
FL-520-LN-L	520 nm	1~2000 mW	1-2000	1-500	TEM00	SLM	1-100%	<0.1%, <0.05%	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	<2%, <1%	<0.002	Datasheet

Infrared Laser, 1030 NM Infrared Laser Module, Infrared DPSS Lasers.

10 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Fiber connector	Fiber length(m)	Fiber jacket	Polarization ratio (dB)	M2	Relative intensity noise (rms, 10Hz-10MHz)	Relative intensity noise (dBc/Hz)	Peak intensity noise (dBc/Hz)	Relaxation oscillation peak frequency (MHz)	Cooled method	Operating temperature (℃)	Operating voltage (VDC)	Expected lifetime (hours)	Longitudinal mode	Current adjustment range	Spectral linewidth (nm)	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8 hours)	Beam diameter (mm)	Warm-up time (minutes)	Power supply (VAC)	Excess relative intensity noise (rms, 10Hz-3MHz)	laser radar, etc. Fiber length(m)	Single pulse energy (nJ)	Rep. Rate(	Ave power stability (rms, 4 hours±3℃)	Beam divergence, full angle (mrad)	Polarization ratio	Power supply (100-240VAC)	Pulse duration (ns)	Fiber length (m)	Fiber Jacket	Power stability (rms, over 4 hours)	Pulse duration (ps)	Rep. rate	Operating voltage (VDC/VAC)
FL-SLM-Seed(1014-1120)	1014 nm	1~50 mW	<3%, <2%, <1%	TEM00	FC/APC	1	PVC, Metal optional	>20, after PM fiber	<1.05	<0.1%, <0.05%, (<0.03% optional)	<-140 (10MHz)	<-130	2-3	Conduction cooled	15-30	12V/11.5A	>10000	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
FL-1030-LN-L	1030 nm	1~10 W	<2%, <1%, <0.5%	TEM00	FC/APC, Collimator optional	1	PVC, Metal optional	>15, after PM fiber	<1.1	–	–	–	–	Air cooled or Water cooled	15-30	–	>10000	SLM	1-100%	<0.004	<0.1%, <0.05%	<±200	4±1 (Collimator output)	<30	110/220VAC	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
FL-LN-FA(1014-1120)	1014 nm	1~10 W	<2%, <1%, <0.5%	–	FC/APC, Collimator optional	–	PVC, Metal optional	>15, after PM fiber	–	–	–	–	–	Air cooled (≤30W) or Water cooled (≤50W)	15-30	–	>10000	–	–	–	–	–	4±1 (Collimator output)	–	110/220VAC	<0.03%	1	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
FL-H-1030-PS	1030 nm	1~20 W	–	TEM00	–	–	–	–	<1.2	–	–	–	–	Water cooled	15-35	–	>10000	–	–	–	–	–	–	<10	–	–	–	1-500	20-120	<2%, <1%	<1	>100:1 Vertical	RAD1PS	–	–	–	–	–	–	–	Datasheet
FL-1030-CW	1030 nm	1~100 W	–	TEM00	–	–	–	–	<1.2	–	–	–	–	Water cooled	15-35	–	>10000	–	–	–	–	–	–	<10	–	–	–	1-500	20-120	<2%, <1%	<1	>100:1 Vertical	RAD1PS	–	–	–	–	–	–	–	Datasheet
FL-1030-S	1030 nm	1 uW	<3%, <2%, <1%	–	FC/APC, Collimator optional	–	–	Random / >15	<1.2	–	–	–	–	Conduction	15-35	12V/11.5A	>10000	–	–	–	–	–	4±1 (Collimator output)	<5	–	–	–	–	–	–	–	–	–	5-100 (adjustable)	1	PVC, Metal optional	–	–	–	–	Datasheet
FL-1030-PS-Seed	1030 nm	0.5-1 mW	–	–	FC/APC	–	PVC, Metal optional	Random / > 15	<1.2	–	–	–	–	–	15-35	12V/11.5A	>10000	–	–	–	–	–	–	<15	–	–	–	–	–	–	–	–	–	–	1	–	<3%, <2%, <1%	<10	20-50MHz	–	Datasheet
FL-1030-PS	1030 nm	1-2000 mW	–	TEM00	–	–	–	–	<1.2	–	–	–	–	Water cooled	15-35	–	>10000	–	–	–	–	–	–	<10	–	–	–	1-500	20-120	<2%, <1%	<1	>100:1 Vertical	RAD1PS	–	–	–	–	–	–	–	Datasheet
FL-1030-Pico	1030 nm	10-5000 mW	<3%, <2%	–	FC/APC, Collimator optional	–	PVC, Metal optional	Random / >15	<1.2 / <1.8	–	–	–	–	Air cooled	15-35	–	>10000	–	–	–	–	–	4±1 (Collimator output)	<15	–	–	–	–	–	–	–	–	–	–	1	–	–	100-900	100kHz-20MHz	12V/11.5A	Datasheet
FL-1030-Nano	1030 nm	0.5-10 W	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet

Infrared Laser,1060 NM Infrared Diode Lasers,infrared Diode Laser System.

2 models

Model	Wavelength	Output / average power	After fiber output power (W)	Power stability (rms, over 4 hours)	Fiber core diameter (μm)	Fiber NA	Fiber connector	Fiber length (m)	Operating temperature (℃)	TTL / Analog modulation	Cooling Way	Dimensions(mm3)	Expected lifetime (hours)	Warranty	Line width(nm)	Fiber jacket	Beam diameter (mm)	Polarization state	Warm-up time (minutes)	Cooled method	Power supply (VAC)
FC-W-1060B	1060 nm	20~300 W	>20, …, 30 / >30, …, 80 / 80~300(On request)	<2%, <1%, <0.5%	400/600	0.22	SMA905	2	10~40	TTL or Analog with 1Hz-1kHz 1kHz-10kHz, 10kHz-30kHz optional	Air Cooled / Water Cooled	On request	10000	1 year	–	–	–	–	–	–	–	Datasheet
FL-1060-CW	1060 nm	1~100 W	–	–	–	–	FC/APC, Collimator optional	1	15-35	–	–	–	>10000	–	<2nm	PVC, Metal optional	4±1 (Collimator output)	Random	<15	Air cooled	110/220VAC	Datasheet

Infrared Laser,1310 NM Infrared Diode Lasers,infrared Diode Laser System.

1 model

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Spectral linewidth (nm)	ultra compact, long lifetime,	Fiber connector	Fiber length(m)	Fiber jacket	Beam diameter (mm)	Polarization ratio	Cooled method	Warm-up time (minutes)	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)
FL-1310-CW	1310 nm	1~5 W	<3%, <2%, <1%	>±5nm	M2 / <1.3	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	Random	Air cooled	<15	15-35	110/220VAC	>10000	Datasheet

Infrared Diode Laser AT 1900 NM.

1 model

Model	Wavelength	Output / average power	After fiber output power (W)	Power stability (rms, over 4 hours)	Fiber core diameter (μm)	Fiber NA	Fiber connector	Fiber length (m)	Operating temperature (℃)	TTL / Analog modulation	Cooling Way	Dimensions(mm3)	Expected lifetime (hours)	Warranty
FC-W-1908B	1908 nm	10~60 W	>10, 11, …, 20 / 20~60(On request)	<2%, <1%, <0.5%	400/600	0.22	SMA905	2	10~40	TTL or Analog with 1Hz-1kHz 1kHz-10kHz, 10kHz-30kHz optional	Air Cooled / Water Cooled	370 (L) ×406 (W) ×188 (H) / On request	10000	1 year	Datasheet

Infrared Diode Laser AT 1940 NM.

1 model

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Spectral linewidth (nm)	M2	Fiber connector	Fiber length(m)	Fiber jacket	Beam diameter (mm)	Polarization ratio	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)
FL-1940-CW	1940 nm	1~100 W	<2%, <1%, <0.5%	<2nm	<1.5	Collimator	1	PVC, Metal optional	~7mm (Collimator outptut)	Random	Air cooled (≤30W) / Water cooled (>30W)	15-35	110/220VAC	>10000	Datasheet

Infrared Laser,785 NM Infrared Diode Lasers,infrared Diode Laser System.

1 model

Model	Wavelength	Output / average power	Free space output power (mW)	Fiber coupled output power (mW)	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Longitudinal mode	Current adjustment range	Spectral linewidth (nm)	Relative intensity noise (rms, 10Hz-3MHz)	Frequency shift (MHz) (over ±2℃and 8 hours)	M2	Fiber connector	Fiber length(m)	Fiber jacket	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)
FL-785-LN-L	785 nm	1~500 mW	1-500	1-250	<2%, <1%	TEM00	SLM	1-100%	<0.002	<0.1%, <0.05%	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	Datasheet

Infrared Diode Laser, 808 NM Infrared Diode Lasers, High Power Diode Laser System.

2 models

Model	Wavelength	Output / average power
FC-W-808/810	808 nm	20~50 W	Datasheet
FC-W-808H	808 nm	50~2000 W	Datasheet

RED Laser, 633 NM RED Laser, HE NE Laser |

1 model

Model	Wavelength	Output / average power	Free space output power (mW)	Fiber coupled output power (mW)	Power stability (rms, 4 hours , ±3℃)	Transverse mode	Longitudinal mode	Current adjustment range	Spectral linewidth (nm)	Relative intensity noise (rms,10Hz-3MHz)	Frequency shift (MHz)(over ±2℃and 8hours )	M2	Fiber connector	Fiber length(m)	Fiber jacket	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)
FL-633-LN-L	633 nm	1~1500 mW	1mW-1.5W	1-500	<2%, <1%	TEM00	SLM	1-100%	<0.002	<0.1%, <0.05%	<±200	<1.1	FC/APC	1	PVC, Metal optional	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	110/220V	>10000	Datasheet

640 NM RED Diode Laser.

1 model

Model	Wavelength	Output / average power
FC-W-640	640 nm	3~40 W	Datasheet

Yellow Laser, 589 NM Yellow DPSS Lasers.

1 model

Model	Wavelength	Output / average power	Power stability (rms, 4 hours , ±3℃)	Spectral linewidth (nm)	M2	Beam diameter (mm)	Polarization ratio (dB)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)	Fundamental Frequency
FL-589-CW	589 nm	1~500 mW	<2%, <1%	<0.5	<1.2	~1.5	>15 Horizontal (Vertical optional)	Air cooled	15-35	110/220V	>10000	Second harmonic	Datasheet

Supercontinuum Source

3 models

Model	Wavelength	Output / average power	Repetition rate	Pulse width	Power stability	M²
FL-SC-OEM (1~200 mW)	470~2400 nm	1~200 mW	2 MHz	~350 ps	<2%	<1.1
FL-SC-OEM (200~350 mW)	470~2400 nm	200~350 mW	4 MHz	~350 ps	<1%	<1.1
FL-SC-OEM (350~500 mW)	470~2400 nm	350~500 mW	50kHz~200kHz, 1 MHz	~350 ps	<1%	<1.1

1305nm DFB Laser, Infrared Laser, DPSS Laser |

4 models

Model	Wavelength	Output / average power
FC-OEM-1305	1305 nm	1~15 mW
MDL-III-1305DFB-SM	1305 nm	1~15 mW
MDL-III-1305-SM	1305 nm	1~15 mW
TEM-F-1305DFB	1305 nm	1~10 mW

1658nm DFB Laser, Infrared Laser, DPSS Laser |

5 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours ± 3°C)	Fiber type	Fiber Core diameter	Fiber connector	Fiber length	Fiber jacket	M2 after fiber	Warm-up time (minutes)	Cooled method	Operating temperature (°C)	Operating voltage (VDC)	Expected lifetime (hours)	Transverse mode	Power supply (100-240VAC)	Spectral line width (MHz)	M2	Beam divergence, full angle (mrad)
FC-OEM-1658	1658 nm	1~5 mW	<2%, <1%, <0.5%	SM fiber, PM fiber optional	4-9μm, 0.12NA	FC/PC, FC/APC optional	0.8m	0.9mm PVC	~1.1	<5	Conduction	10-35	5V	>10000	–	–	–	–	–	Datasheet
MDL-III-1658DFB-SM	1658 nm	1~5 mW	<2%, <1%, <0.5%	SM fiber, PM fiber optional	4-9μm, 0.12NA	FC/PC, FC/APC optional	–	Metal, PVC optional	~1.1	<5	Conduction	10-35	–	>10000	TEM00	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	–	–	–	Datasheet
MDL-III-1658-SM	1658 nm	1~5 mW	<2%, <1%, <0.5%	SM fiber, PM fiber optional	4-9μm, 0.12NA	FC/PC, FC/APC optional	–	Metal, PVC optional	~1.1	<5	Conduction	10-35	–	>10000	TEM00	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	–	–	–	Datasheet
TEM-F-1658	1658 nm	1~5 mW	<2%, <1%, <0.5%	–	–	–	–	–	–	<5	–	25±3	–	>10000	TEM00	PSU-III-FDA/PSU-III-LED/PSU-A-D	~3	<1.1	<1.5	Datasheet
TEM-F-1658DFB	1658 nm	1~5 mW	<2%, <1%, <0.5%	–	–	–	–	–	–	<5	–	25±3	–	>10000	TEM00	PSU-III-FDA/PSU-III-LED/PSU-A-D	~3	<1.1	<1.5	Datasheet

1742nm DFB Laser, Infrared Laser, DPSS Laser |

5 models

Model	Wavelength	Output / average power	Power stability (rms, 4 hours ± 3°C)	Fiber type	Fiber Core diameter	Fiber connector	Fiber length	Fiber jacket	M2 after fiber	Warm-up time (minutes)	Cooled method	Operating temperature (°C)	Operating voltage (VDC)	Expected lifetime (hours)	Transverse mode	Power supply (100-240VAC)	Spectral line width (MHz)	M2	Beam divergence, full angle (mrad)
FC-OEM-1742	1742 nm	1~5 mW	<2%, <1%, <0.5%	SM fiber, PM fiber optional	4-9μm, 0.12NA	FC/PC, FC/APC optional	0.8m	0.9mm PVC	~1.1	<5	Conduction	10-35	5V	>10000	–	–	–	–	–	Datasheet
MDL-III-1742DFB-SM	1742 nm	1~5 mW	<2%, <1%, <0.5%	SM fiber, PM fiber optional	4-9μm, 0.12NA	FC/PC, FC/APC optional	–	Metal, PVC optional	~1.1	<5	Conduction	10-35	–	>10000	TEM00	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	–	–	–	Datasheet
MDL-III-1742-SM	1742 nm	1~5 mW	<2%, <1%, <0.5%	SM fiber, PM fiber optional	4-9μm, 0.12NA	FC/PC, FC/APC optional	–	Metal, PVC optional	~1.1	<5	Conduction	10-35	–	>10000	TEM00	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	–	–	–	Datasheet
TEM-F-1742	1742 nm	1~5 mW	<2%, <1%, <0.5%	–	–	–	–	–	–	<5	–	25±3	–	>10000	TEM00	PSU-III-FDA/PSU-III-LED/PSU-A-D	~3	<1.1	<1.5	Datasheet
TEM-F-1742DFB	1742 nm	1~5 mW	<2%, <1%, <0.5%	–	–	–	–	–	–	<5	–	25±3	–	>10000	TEM00	PSU-III-FDA/PSU-III-LED/PSU-A-D	~3	<1.1	<1.5	Datasheet

1710 NM IR Laser, Infrared Diode Laser |

1 model

Model	Wavelength	Output / average power
FC-W-1710H	1710 nm	1~100 W

462 NM Blue Violet Diode Laser.

2 models

Model	Wavelength	Output / average power
FC-W-462C	462 nm	30~40 W
FC-W-462H-II	462 nm	50~200 W

RGB Laser |

1 model

Model	Wavelength	Output / average power	Power stability	Cooled method	Fiber Core Diameter (um)	Fiber Connector	Fiber Jacket	Warm-up time (minutes)	Operating temperature (℃)	Operating voltage (VAC)	Modulation option	Expected lifetime (hours)
FC-W-638/525/450/940/980C	638 nm	71 W	<1%	Air cooled	200, 400, 0.22NA	SMA905, FC/PC optional	PVC, Metal optional	<5	0-30	100-240	DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional	>10000	Datasheet

Infrared Diode Laser, 793 NM Infrared Diode Lasers, High Power Diode Laser System.

2 models

Model	Wavelength	Output / average power
FC-W-793	793 nm	5~50 W
FC-W-793H	793 nm	50~100 W

Nanosecond Fiber Laser |

9 models

Model	Wavelength	Output / average power	Pulse width	Power stability	M²	Single pulse energy (uJ)	Energy stability (rms)	features of high output power stability, good	Rep. rate	Transverse mode	Fiber connector	Fiber length(m)	Fiber jacket	Beam diameter (mm)	Polarization state (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC/VDC)	Expected lifetime (hours)	High frequency all fiber pulsed laser at	M2	Fiber length (m)	Polarization ratio(dB)	Operating voltage (VDC/VAC)	Polarization ratio (dB)	Operating voltage (VDC)	frequency	stability,	Pulsed width (ns)	Fiber Jacket	stability, good	fiber	Single pulse energy(nJ)	lifetime,	Delivery fiber length (m)	Fundamental Frequency
FL-1064-AO	1064 nm	1-20 uJ	0.5-50 ns	–	<1.1	>2 / >20	<3%, <2%	Pulsed width (ns) / 0.5-5 / 5-50	1-1000kHz (adjustable)	TEM00	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	Random / >15	<15	Air cooled	15-35	110/220VAC or 12V/11.5A	>10000	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
FL-1064-Nano	1064 nm	0.5-30 W	0.5-250 ns (Adjustable)	<3%, <2%	<1.3	–	–	–	100kHz-1MHz(adjustable) / 20kHz-1MHz	–	FC/APC, Collimator optional / Collimator	–	PVC, Metal optional	4±1 (Collimator output) / 6±1 (Collimator output)	–	<15	Air cooled	15-35	–	>10000	Power stability (rms, 4 hours ±3℃) / <3%, <2%	<1.8 / <1.3	1 / 4	Random / > 15	12V/11.5A or 110/220VAC / 24V/21A	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
FL-1064-S	1064 nm	1 uW-500 mW Peak power	5-100 ns (Adjustable)	<3%, <2%, <1%	<1.2	–	–	–	1Hz-100KHz, 1Hz-10MHz (adjustable)	–	FC/APC, Collimator optional	–	PVC, Metal optional	4±1 (Collimator output)	–	<5	Conduction	15-35	–	>10000	Power stability (rms, 4 hours ±3℃) / <3%, <2%, <1%	–	1	–	–	Random / >15	12V/11.5A	–	–	–	–	–	–	–	–	–	–	Datasheet
FL-1080-Nano	1080 nm	0.5-10 W	0.5-250 ns (Adjustable)	<3%, <2%	<1.8	–	–	–	100kHz-1MHz (adjustable)	–	FC/APC, Collimator optional	–	PVC, Metal optional	4±1 (Collimator output)	–	<15	Air cooled	15-35	–	>10000	–	–	1	–	12V/11.5A or 110/220VAC	Random / >15	–	all / fiber / pulsed / laser / at	good / beam / profile, / ultra	–	–	–	–	–	–	–	–	Datasheet
FL-1550-AO	1550 nm	1-20 uJ	0.5-50 ns	–	<1.1	>2 / >20	<3%, <2%	–	1-200Hz (adjustable)	TEM00	FC/APC, Collimator optional	1	–	4±1 (Collimator output)	Random / >15	<15	Air cooled	15-35	110/220VAC or 12V/11.5A	>10000	–	–	–	–	–	–	–	–	–	0.5-5 / 5-50	PVC, Metal optional	–	–	–	–	–	–	Datasheet
FL-1550-Nano	1550 nm	50-1000 mW	0.5-50 ns (Adjustable)	<3%, <2%	<1.5	–	–	–	50kHz-1MHz	TEM00	FC/APC, Collimator optional	–	PVC, Metal optional	4±1 (Collimator output)	Random / >15	–	Air cooled	15-35	–	>10000	–	–	1	–	12V/11.5A or 110/220VAC	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
FL-1550-S	1550 nm	1 uW-10 mW Peak power	5-100 ns (Adjustable)	<3%, <2%, <1%	<1.2	–	–	–	1Hz-100KHz, 1Hz-10MHz (adjustable)	–	–	–	–	4±1 (Collimator output)	–	<5	Conduction	15-35	–	>10000	–	–	–	–	–	Random / >15	12V/11.5A	all / fiber / pulsed	–	–	–	beam / profile,	sensing, / life	–	–	–	–	Datasheet
FL-532-AO	532 nm	10-100 nJ	0.5-50 ns	–	<1.2	–	<3%, <2%	–	–	TEM00	–	–	–	–	–	<15	Air cooled	15-35	–	>10000	–	–	–	–	–	>15 Horizontal (Vertical optional)	12V/11.5A	–	–	0.5-5 / 5-50	–	–	–	10-100	Rep. rate / 1-1000Hz (adjustable)	–	–	Datasheet
FL-532-Nano	532 nm	1 mW-20 W	0.5-50 ns	<3%, <2%	<1.3	–	–	–	100kHz-1MHz / 20kHz-1MHz	–	–	–	–	–	–	<15	Air cooled	15-35	–	>10000	–	<1.8 / <1.3	–	–	–	>15 Horizontal (Vertical optional)	12V/11.5A / 24V/21A	–	–	–	–	–	–	–	–	0.6 / 4	Second harmonic	Datasheet

LOW Noise Fiber Laser |

5 models

Model	Wavelength	Output / average power	Spectral linewidth	Power stability	Optical noise	M²	Transverse mode	Longitudinal mode	Current adjustment range	M2	Fiber connector	Fiber length(m)	Fiber jacket	Beam diameter (mm)	Pointing stability (urad)	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Power supply (VAC)	Expected lifetime (hours)	Frequency shift (MHz) (over ±2℃and 8 hours)	characteristics of ultra-stable output power,	Free space output power (W)	Operating voltage (VAC)	Fundamental Frequency	Free space output power (mW)	Fiber coupled output power (mW)	Frequency shift (MHz) (over ±2℃and 8hours )
FL-1064-LN-H	1064 nm	10-50 W	<0.004 nm	<1%, <0.5%	<0.05%	–	TEM00	SLM	1-100%	<1.1	Collimator	<3	Metal	4±1 (Collimator output)	<5 / <10	>15, after PM fiber	<30	Air cooled (≤20W) / Water cooled (≤50W)	15-30	110/220VAC	>10000	–	–	–	–	–	–	–	–	Datasheet
FL-1064-LN-L	1064 nm	1-10000 mW	<0.004 nm	<2%, <1%, <0.5%	<0.05%	<1.1	TEM00	SLM	1-100%	–	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	–	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	<±200	–	–	–	–	–	–	–	Datasheet
FL-1550-LN-L	1550 nm	1-10000 mW	<0.004 nm	<2%, <1%, <0.5%	<0.05%	<1.1	TEM00	SLM	–	–	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	<5 / <10	>15, after PM fiber	<30	Air cooled or Water cooled	15-30	110/220VAC	>10000	–	Current adjustment range / 1-100%	–	–	–	–	–	–	Datasheet
FL-532-LN-H	532 nm	3-10 W	<0.002 nm	<2%, <1%	<0.1%	–	TEM00	SLM	1-100%	<1.1	–	–	–	~1	<15 / <50	>20 Horizontal (Vertical optional)	<30	Water cooled	15-30	–	>10000	–	–	3-10	110/220V	Second harmonic / WATER CHILLER (WCH-580)	–	–	–	Datasheet
FL-532-LN-L	532 nm	1-3000 mW	<0.002 nm	<2%, <1%	<0.05%	–	TEM00	SLM	1-100%	<1.1	FC/APC	1	PVC, Metal optional	–	–	>15 Horizontal (Vertical optional)	<30	Air cooled or Water cooled	15-30	–	>10000	–	–	–	110/220V	–	1-3000	1-500	<±200	Datasheet

Picosecond Fiber Laser |

10 models

Model	Wavelength	Output / average power	Repetition rate	Pulse width	Power stability	M²	stability,	Fiber connector	Fiber length (m)	Fiber jacket	Beam diameter (mm)	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VDC/VAC)	Expected lifetime (hours)	fiber	M2	Operating voltage (VDC)	Delivery fiber length (cm)	Fundamental Frequency
FL-1064-Pico	1064 nm	10-5000 mW	0.1-20 MHz	100-900 ps	<3%, <2%	<1.2	M2 / <1.2 / <1.8	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	Random / >15	<15	Air cooled	15-35	12V/11.5A	>10000	–	–	–	–	–	Datasheet
FL-1064-PS	1064 nm	1-2000 mW	20-60 MHz	<10 ps	<3%, <2%, <1%, <0.5%	<1.2	–	–	–	–	–	Random / > 15	<15	Air cooled	15-35	–	>10000	pulsed / laser / at	<1.2 / <1.5	12V/11.5A	–	–	Datasheet
FL-1064-PS-Seed	1064 nm	0.5-1 mW	20-60 MHz	<10 ps	<3%, <2%, <1%	<1.2	–	FC/APC	1	PVC, Metal optional	–	Random / > 15	<15	–	15-35	–	>10000	–	–	12V/11.5A	–	–	Datasheet
FL-1070-Pico	1070 nm	10-5000 mW	0.1-20 MHz	100-900 ps	<3%, <2%	<1.2	–	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	Random / >15	<15	Air cooled	15-35	12V/11.5A	>10000	–	<1.2 / <1.8	–	–	–	Datasheet
FL-1080-Pico	1080 nm	10-5000 mW	0.1-20 MHz	100-900 ps	<3%, <2%	<1.2	M2 / <1.2 / <1.8	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	Random / >15	<15	Air cooled	15-35	12V/11.5A	>10000	–	–	–	–	–	Datasheet
FL-1550-Pico	1550 nm	100-1000 mW	0.1-20 MHz	100-900 ps	<3%, <2%	<1.2	Rep. rate3 / 100kHz-20MHz	FC/APC, Collimator optional	1	PVC, Metal optional	4±1 (Collimator output)	Random / > 15	<15	Air cooled	15-35	12V/11.5A	>10000	–	–	–	–	–	Datasheet
FL-1550-PS	1550 nm	1-2000 mW	20-60 MHz	<10 ps	<3%, <2%, <1%, <0.5%	<1.2	–	–	–	–	–	Random / > 15	<15	Air cooled	15-35	–	>10000	pulsed / laser / at	<1.2 / <1.5	12V/11.5A	–	–	Datasheet
FL-532-Pico	532 nm	1-1000 mW	0.1-20 MHz	100-900 ps	<5%, <3%, <2%	<1.5	–	–	–	–	–	>15 Horizontal (Vertical optional)	–	Air cooled	15-35	–	>10000	–	<1.5 / <2	12V/11.5A	60	Second harmonic	Datasheet
FL-532-PS	532 nm	1-150 mW	20-60 MHz	<10 ps	<3%, <2%	<1.5	–	–	–	–	–	>15 Horizontal (Vertical optional)	–	Air cooled	15-35	–	>10000	–	–	12V/11.5A	60	–	Datasheet
FL-775-Pico	775 nm	50-200 mW	0.1-20 MHz	100-900 ps	<5%, <3%	<1.5	–	–	–	–	–	>15 Horizontal (Vertical optional)	–	Air cooled	15-35	–	>10000	–	–	12V/11.5A	–	Second harmonic	Datasheet

Single Frequency Fiber Laser |

2 models

Model	Wavelength	Output / average power	Spectral linewidth	Power stability	Optical noise	M²	Free space output power (mW)	Transverse mode	Longitudinal mode	Current adjustment range	Fiber length(m)	Pointing stability (urad)	Polarization ratio (dB)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Operating voltage (VAC)	Expected lifetime (hours)	Fundamental Frequency
FL-1550-SLM	1550 nm	1-10000 mW	<10 kHz, <5 kHz	<2%, <1%, <0.5%	<0.05% optional	< 1.1	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
FL-852-SLM	852 nm	1-1000 mW	<50 kHz	<2%, <1%	<0.1%, <0.3%	< 1.1	1-500 / 1-1000	TEM00	SLM	1-100%	1.5-2	<15 / <50	>15 Horizontal (Vertical optional)	<30	Air cooled / Water cooled	15-30	110/220V	>10000	SFG Module (Free space)	Datasheet

Picosecond Diode Laser |

2 models

Model	Wavelength	Output / average power	Repetition rate	Power stability	M²	Single pulse energy (nJ)	Warm-up time (minutes)	Transverse mode	Beam divergence, full angle (mrad)	Polarization ratio	Cooled method	Operating temperature (℃)	Power supply (100-240VAC)	Expected lifetime (hours)	Pulse duration (ps)
FL-H-1064-PS	1064 nm	1-20 W	20-120 MHz (Fixed)	<2%, <1%	<1.2	1-500	<10	TEM00	<1	>100:1 Vertical	Water cooled	15-35	RAD1PS	>10000	–	Datasheet
FL-H-532-PS	532 nm	1-5000 mW	20-120 MHz (Fixed)	<2%, <1%	<1.2	–	<10	TEM00	–	>100:1 Horizontal	Air cooled	15-35	12V/6.67A	>10000	<8ps; or one fixed value between 10 ps-150 ps	Datasheet

SM Fiber Coupled Laser |

14 models

Model	Wavelength	Output / average power	Power stability	M²	Spectral line width (nm)	Transverse mode	Warm-up time (minutes)	Cooled method	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)	Fiber type	Fiber Core diameter	Fiber connector	Fiber jacket	machine vision, metrology, fiber optic	Fiber	linewidth, short coherent length, long	Noise of amplitude (rms, 20Hz-20MHz)
MDL-III-1300-SLD	1300 nm	1~10 mW	<2%, <1%, <0.5%	<1.5	~40	Near TEM00	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	–	–	–	–	–	–	–	–	Datasheet
MDL-III-1300-SLD-SM	1300 nm	1~10 mW	<2%, <1%, <0.5%	1.1	~40	TEM00	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	SM fiber, PM fiber optional	4-9μm, 0.12NA	FC/PC, FC/APC optional	Metal, PVC optional	M2 after fiber / ~1.1	–	–	–	Datasheet
MDL-III-1550-SLD	1550 nm	1~8 mW	<2%, <1%, <0.5%	<1.5	~60	Near TEM00	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	–	–	–	–	–	–	–	–	Datasheet
MDL-III-1550-SLD-SM	1550 nm	1~8 mW	<2%, <1%, <0.5%	1.1	~60	TEM00	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	SM fiber, PM fiber optional	4-9μm, 0.12NA	FC/PC, FC/APC optional	Metal, PVC optional	M2 after fiber / ~1.1	–	–	–	Datasheet
MDL-III-514.5-SM	514.5 nm	1~10 mW	<2%, <1%, <0.5%	1.1	–	TEM00	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	SM fiber, PM fiber optional	4-9μm, 0.12NA	FC/PC, SMA905 optional	Metal, PVC optional	–	–	–	–	Datasheet
MDL-III-635-SLD	635 nm	1~8 mW	<2%, <1%, <0.5%	<1.5	~5	Near TEM00	–	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	–	–	–	–	–	–	–	–	Datasheet
MDL-III-635-SLD-SM	635 nm	1~8 mW	<2%, <1%, <0.5%	1.1	~5	TEM00	–	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	–	–	–	–	–	1m	Fiber jacket / Metal, PVC optional	–	Datasheet
MDL-III-820-SLD	820 nm	1~12 mW	<2%, <1%, <0.5%	<1.5	~25	Near TEM00	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	–	–	–	–	–	–	–	–	Datasheet
MDL-III-820-SLD-SM	820 nm	1~12 mW	<2%, <1%, <0.5%	1.1	~25	TEM00	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	–	–	–	–	–	1m	Fiber jacket / Metal, PVC optional	–	Datasheet
MDL-III-850-SLD	850 nm	1~4 mW	<2%, <1%, <0.5%	<1.5	~35	Near TEM00	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	–	–	–	–	–	–	–	–	Datasheet
MDL-III-850-SLD-SM	850 nm	1~4 mW	<2%, <1%, <0.5%	1.1	~35	TEM00	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	–	–	–	–	–	1m	Fiber jacket / Metal, PVC optional	–	Datasheet
MDL-III-915-SM	915 nm	1~400 mW	<2%, <1%, <0.5%	1.1	–	TEM00	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	SM fiber, PM fiber optional	4-9μm, 0.12NA	FC/PC, FC/APC optional	Metal, PVC optional	–	–	–	–	Datasheet
MLL-III-514.5-SM	514.5 nm	1~10 mW	<2%, <1%, <0.5%	1.1	–	TEM00	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	–	–	–	–	–	1m	–	<1%, <0.5%	Datasheet
MLL-III-915-SM	915 nm	1~400 mW	<2%, <1%, <0.5%	1.1	–	TEM00	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	–	4-9μm, 0.12NA	FC/PC, FC/APC optional	–	–	–	–	<1%, <0.5%	Datasheet

High Stability 532nm Laser |

4 models

Model	Wavelength	Output / average power	Power stability	M²	Transverse mode	Polarization (optional)	Fiber connector	Fiber length	Fiber Jacket	Warm-up time (minutes)	Cooled method	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)	Fiber numerical aperture	Fiber type	Fiber jacket	Modulation optional	Power supply (5VDC)	M2	Polarization ratio	Power supply (12VDC)
MGL-F-532-SM	532 nm	400~700 mW	<1%	<1.1	TEM00 (single mode fiber output)	>50:1 after PM fiber	FC/APC	1m	PVC, Metal optional	<10	Air Cooled (Water Cooled optional)	10-30	PSU-H-FDA/PSU-H-LED	＞10000	–	–	–	–	–	–	–	–	Datasheet
MGL-S-532-SM	532 nm	1~150 mW	<0.5%	<1.1	TEM00 (single mode fiber output)	>50:1 after PM fiber	FC/APC	1m	–	<10	–	10-35	PSU-III-FDA/PSU-III-LED	>10000	0.10-0.12	SM fiber (PM fiber optional)	PVC (black)	DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional	PSU-A-F-OEM (5V/5A)	–	–	–	Datasheet
MGL-U-532-SM	532 nm	1-400 mW	<1%	–	TEM00 (single mode fiber output)	–	FC/APC	1m (Other lengths can be customized)	–	<10	–	20-35	PSU-H-LED/PSU-H-FDA/PSU-SR	>10000	0.10-0.15	SM fiber (PM fiber optional)	PVC (black)	–	–	<1.1	No / Polarization (>50:1 after PM fiber)	PSU-SR-OEM (12V/25A)	Datasheet
MGL-V-532-SM	532 nm	700~5000 mW	<1%	–	TEM00 (single mode fiber output)	>50:1 after PM fiber	FC/APC	1m	PVC, Metal optional	<10	Air Cooled (Water Cooled optional)	10-30	PSU-W-LED	＞10000	–	SM fiber (PM fiber optional)	–	–	–	<1.1	–	–	Datasheet

THE Manufacturer High Stability 1064nm Laser

2 models

Model	Wavelength	Output / average power	Power stability	(including polarization-maintaining,	Transverse mode	M2	Fiber numerical aperture	Fiber type	Fiber connector	Fiber jacket	Fiber length	Polarization (optional)	Warm-up time (minutes)	Operating temperature (°C)	Power supply (100-240VAC)	Power supply (VDC)	Expected lifetime (hours)	Polarization ratio	Cooled method	Operating temperature (℃)
MIL-S-1064-SM	1064 nm	1~1500 mW	<1%	or PM, fiber) coupling, delivering high power	TEM00 (single mode fiber output)	<1.2	0.10~0.12	SM fiber (PM fiber optional)	FC/APC	PVC (black)	1m	>50:1 after PM fiber	<10	10-35	PSU-III-FDA/PSU-III-LED / PSU-SR	PSU-A-F-OEM (5V/5A) / PSU-SR-OEM (12V/25A)	>10000	–	–	–	Datasheet
MIL-T-1064-SM	1064 nm	1~5 W	<1%	–	TEM00 (single mode fiber output)	<1.1	0.10-0.12	SM fiber (PM fiber optional)	FCAPC	PVC	1m (Other lengths can be customized)	–	<10	–	PSU-W-LED/ PSU-W-FDA	–	＞10000	(optional) / >50:1 after PM fiber	Air Cooled	10-30	Datasheet

THE Manufacturer LOW Noise 532nm Laser

4 models

Model	Wavelength	Output / average power	Spectral linewidth	Power stability	Optical noise	M²	Transverse mode	Polarization (optional)	Fiber type	Fiber core diameter	Fiber connector	Fiber length	Fiber Jacket	Warm-up time (minutes)	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)	M2	Polarization ratio	Cooled method	Fiber numerical aperture	Fiber jacket	Power supply (12VDC)	Polarization ratio (optional)	Modulation option
MLL-F-532-SM	532 nm	200~1000 mW	<0.1 nm	<3%, <2%, <1%	<1%	<1.2	TEM00 (single mode fiber output)	>50:1 after PM fiber	SM fiber (PM fiber optional)	3.5um,0.10NA	FC/APC	1m	PVC, Metal optional	<10	10-30	PSU-H-FDA/ PSU-H-LED	＞10000	–	–	–	–	–	–	–	–	Datasheet
MLL-K-532-SM	532 nm	1000~8000 mW	<0.1 nm	<2%, <1%, <0.5%	<0.2%	–	TEM00 (single mode fiber output)	–	SM fiber (PM fiber optional)	10um,0.10NA	FC/APC	1m	Metal	<10	10-30	PSU-W-LED	＞10000	<1.1	(optional) / >50:1 after PM fiber	Water Cooled	–	–	–	–	–	Datasheet
MLL-U-532-SM	532 nm	1~200 mW	<0.003 nm	<3%, <2%, <1%, <5%	<1%	<1.1	TEM00 (single mode fiber output)	>50:1 after PM fiber	SM fiber (PM fiber optional)	–	FC/APC	1m	–	<10	10-35	PSU-H-FDA	>10000	–	–	–	0.10-0.15	PVC (black)	PSU-SR-OEM (12V/25A)	–	–	Datasheet
MLL-V-532-SM	532 nm	1000~5000 mW	<0.1 nm	<3%, <2%, <1%	<1%	–	TEM00 (single mode fiber output)	–	SM fiber (PM fiber optional)	3.5um,0.10NA	FC/APC	1m	PVC, Metal optional	<10	10-30	PSU-W-LED	＞10000	<1.1	–	Air Cooled (Water Cooled optional)	–	–	–	>50:1 after PM fiber	DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional	Datasheet

THE Manufacturer LOW Noise 1064nm Laser

1 model

Model	Wavelength	Output / average power	Spectral linewidth	Power stability	Optical noise	M²	Transverse mode	Fiber numerical aperture	Polarization ratio	Fiber type	Fiber connector	Fiber jacket	Fiber length	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Power supply (100-240VAC)	Expected lifetime (hours)
MLL-T-1064-SM	1064 nm	1~7000 mW	<0.02 nm	<2%, <1%	<1%	<1.1	TEM00 (single mode fiber output)	0.10-0.12	(optional) / >50:1 after PM fiber	SM fiber (PM fiber optional)	FCAPC	PVC	1m (Other lengths can be customized)	<10	Air Cooled	10-30	PSU-W-LED/ PSU-W-FDA	＞10000	Datasheet

Not sure which model fits?

Send the physics — wavelength, mode, power or energy, linewidth or pulse width, delivery, control and safety — and we qualify the source.

Open advisor View enquiry list
