Build the measurement around the signal
Spectroscopy& Imaging
Separate wavelengths, capture fast events and measure weak signals. Explore instruments and configured systems by the job they need to do.
Explore 50 product families
Wavelength & resolution
Choose the spectral range, grating and focal length before matching the detector. Narrower slits improve resolution while reducing light collection.
Time & event behaviour
Use a gated camera for a selected exposure, a framing camera for a sequence, or a streak camera for a continuous time trace.
Signal & sample geometry
Match detector material and cooling to the signal, then define fibre collection, sample handling and synchronisation.
Seven categories, one connected catalogue
Find the right measurement platform
Looking for transient imaging cameras?Compare gated, framing and streak cameras, intensifier modules and timing.Explore transient imaging50 product families
Spectrometers & monochromators
Choose focal length, imaging performance and stray-light rejection around the measurement.

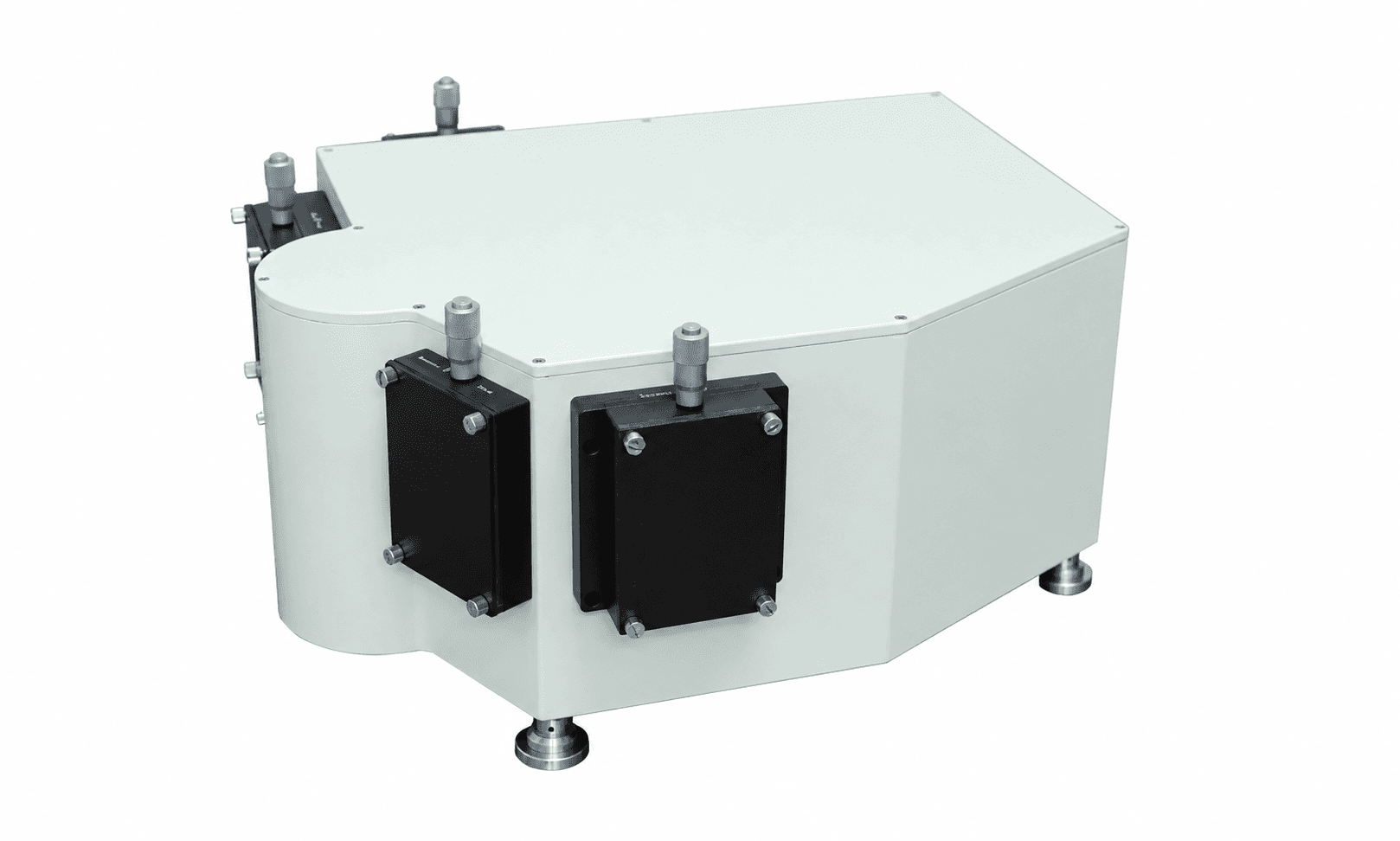

Omni-λ300s / Omni-500S / Omni-λ750S
Omni-S Imaging Spectrometers & Monochromators
Three imaging-corrected grating platforms with 320, 500 and 750 mm focal lengths. Interchangeable triple-grating turrets support wavelength scanning and array-camera spectroscopy; the 500S adds motorised focus adjustment for each grating.
View specifications

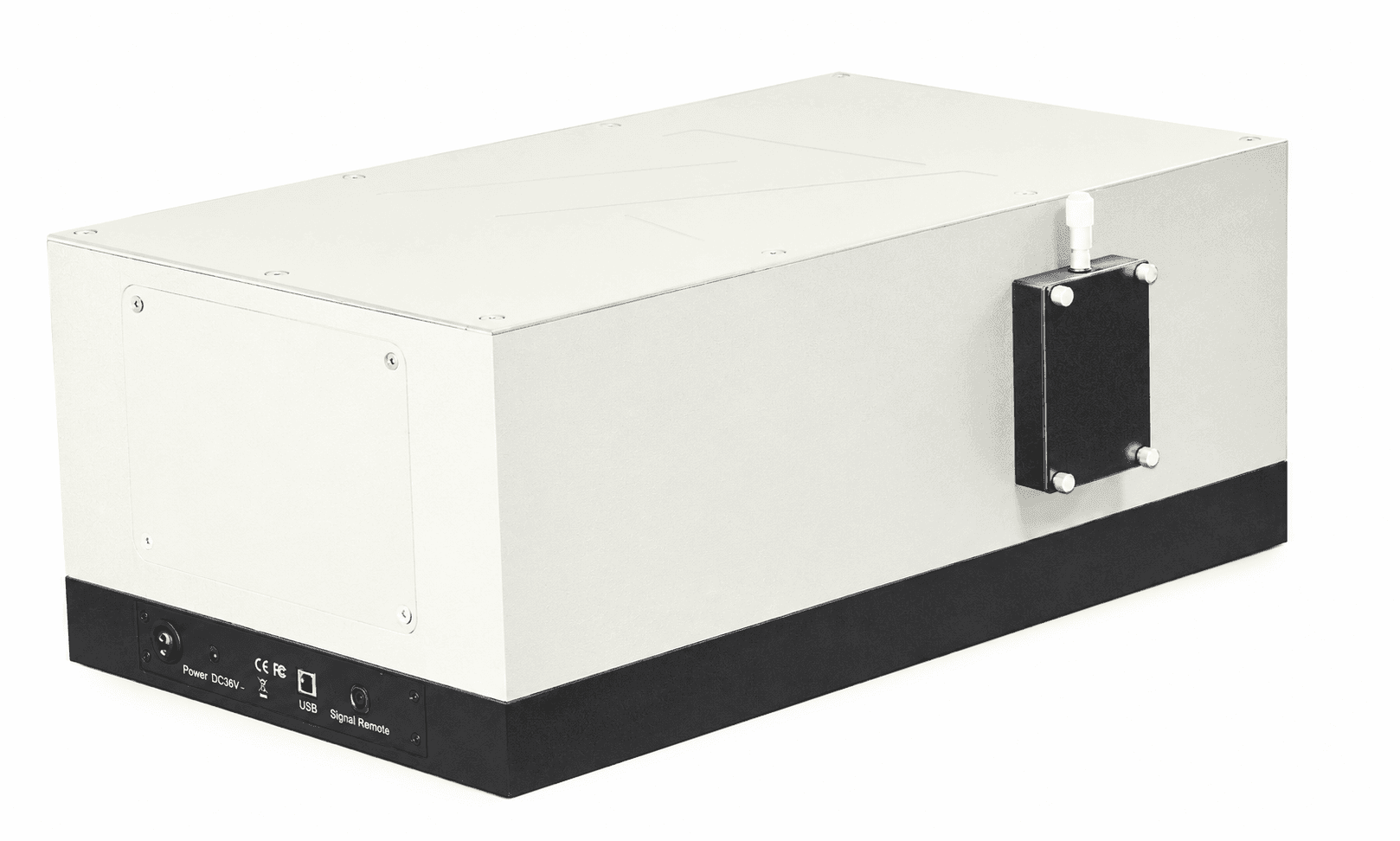

Omni-λ180Di / Omni-λ180D
Omni-λ180Di Subtractive Double Monochromator
An integrated 180 mm double monochromator in subtractive dispersion. Two matched stages suppress stray light for monochromatic excitation and detector-response calibration.
View specifications

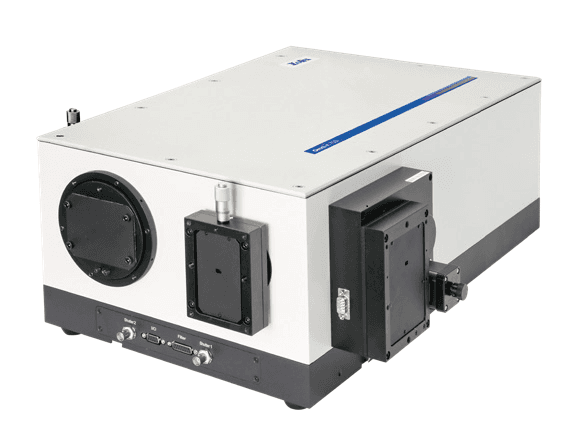

Omni-λ Series
Omni-λ Monochromators and Spectrographs
The Czerny-Turner monochromator and spectrograph line the rest of the spectroscopy range is built around, in 200, 320, 500 and 750 mm focal lengths. Every model ships pre-aligned and pre-calibrated, and the 320 mm and longer models take an interchangeable triple grating turret so UV, visible and NIR gratings can be swapped under software control.
View specifications

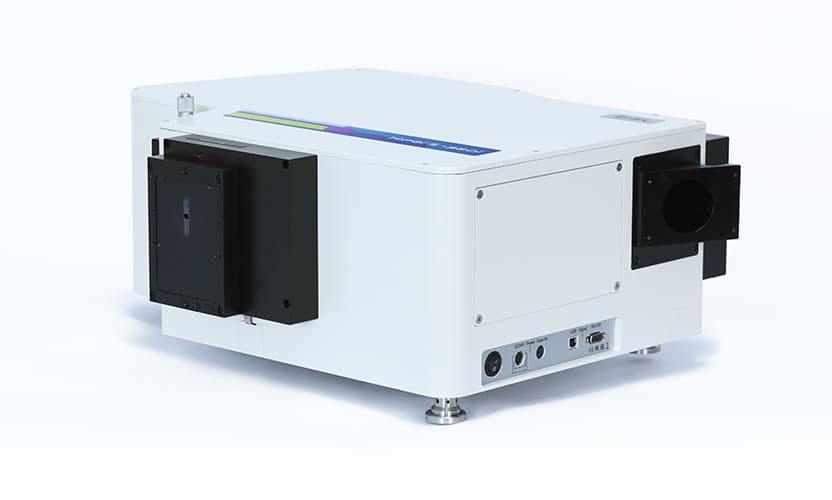

HiperS-320i
HiperS-320i Full Focal Plane Aberration-Free Imaging Spectrometer
A 320 mm aberration-corrected imaging spectrograph. An on-axis rotation turret and an automatic focus mirror remove astigmatism across the whole focal plane, so intensity values stay reliable over the full width of the detector rather than only near the centre.
View specifications
Omni-iSpecT
Omni-iSpecT High Performance Raman Spectrometer
A transmissive f/2.3 Raman spectrograph built around a volume phase holographic grating and a lens-based optical train rather than mirrors. The high throughput and low focal-plane distortion suit weak Raman signals and fast mapping.
View specifications

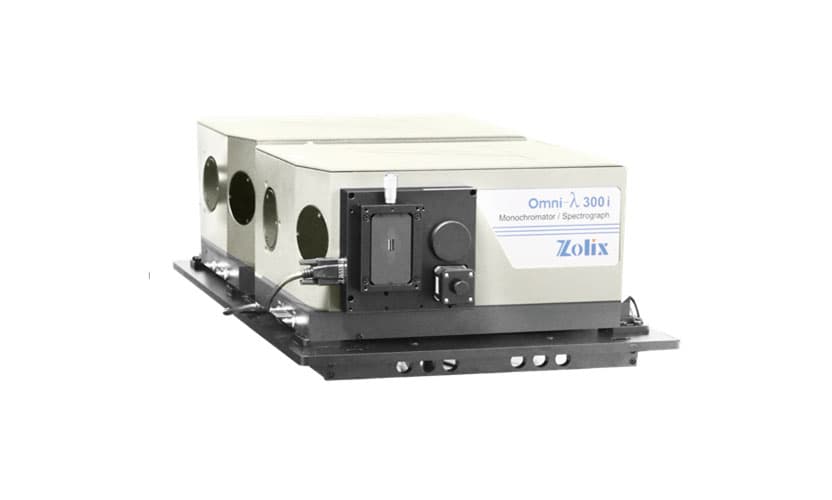

Omni-λ300Di / Omni-λ500Di
Double Monochromators and Spectrographs
Two finely aligned monochromators in series, switchable between additive and subtractive dispersion. Additive mode doubles the effective focal length and resolution; subtractive mode holds the focal length and cuts stray light by two orders of magnitude.
View specifications

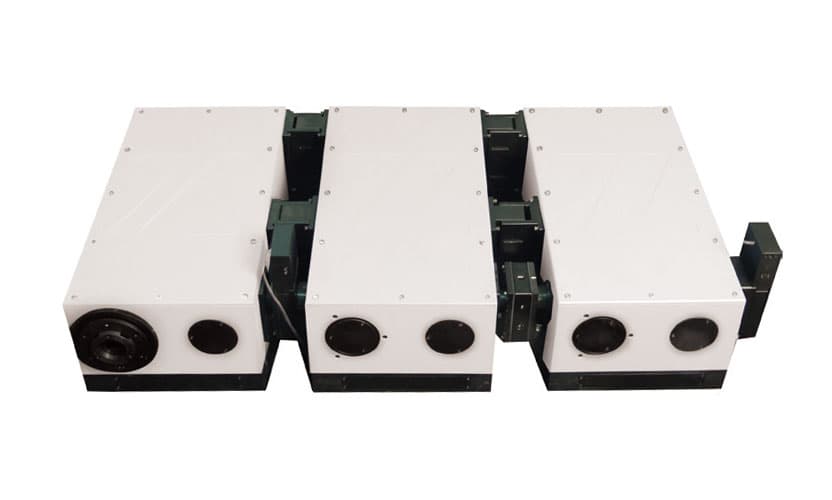

Omni-λ5008Ti
Triple Monochromator
Three finely adjusted imaging monochromators in one instrument. The first two run in subtractive dispersion to suppress stray light and the last two in additive dispersion to build resolution, and the system can be operated as a single, double or triple monochromator.
View specificationsCompact fibre spectrometers
Complete USB instruments with SMA905 input for UV, visible and near-infrared acquisition.

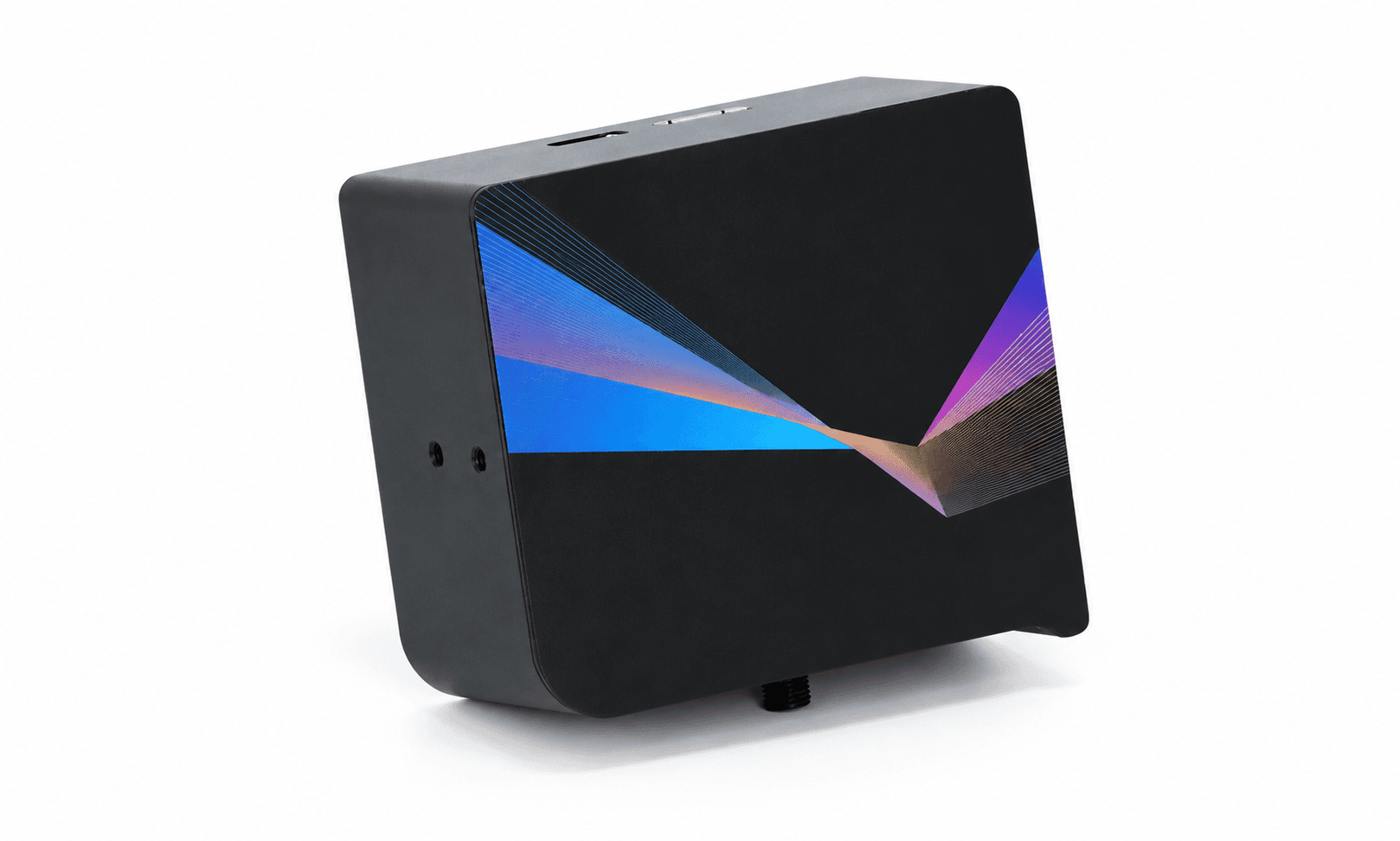

SGM30 Series
SGM30 Compact Fibre Spectrometers
A 211 g USB spectrometer family with SMA905 fibre input and four configured wavelength intervals. Its compact Czerny–Turner bench suits laboratory measurements and OEM process monitoring.
View specifications

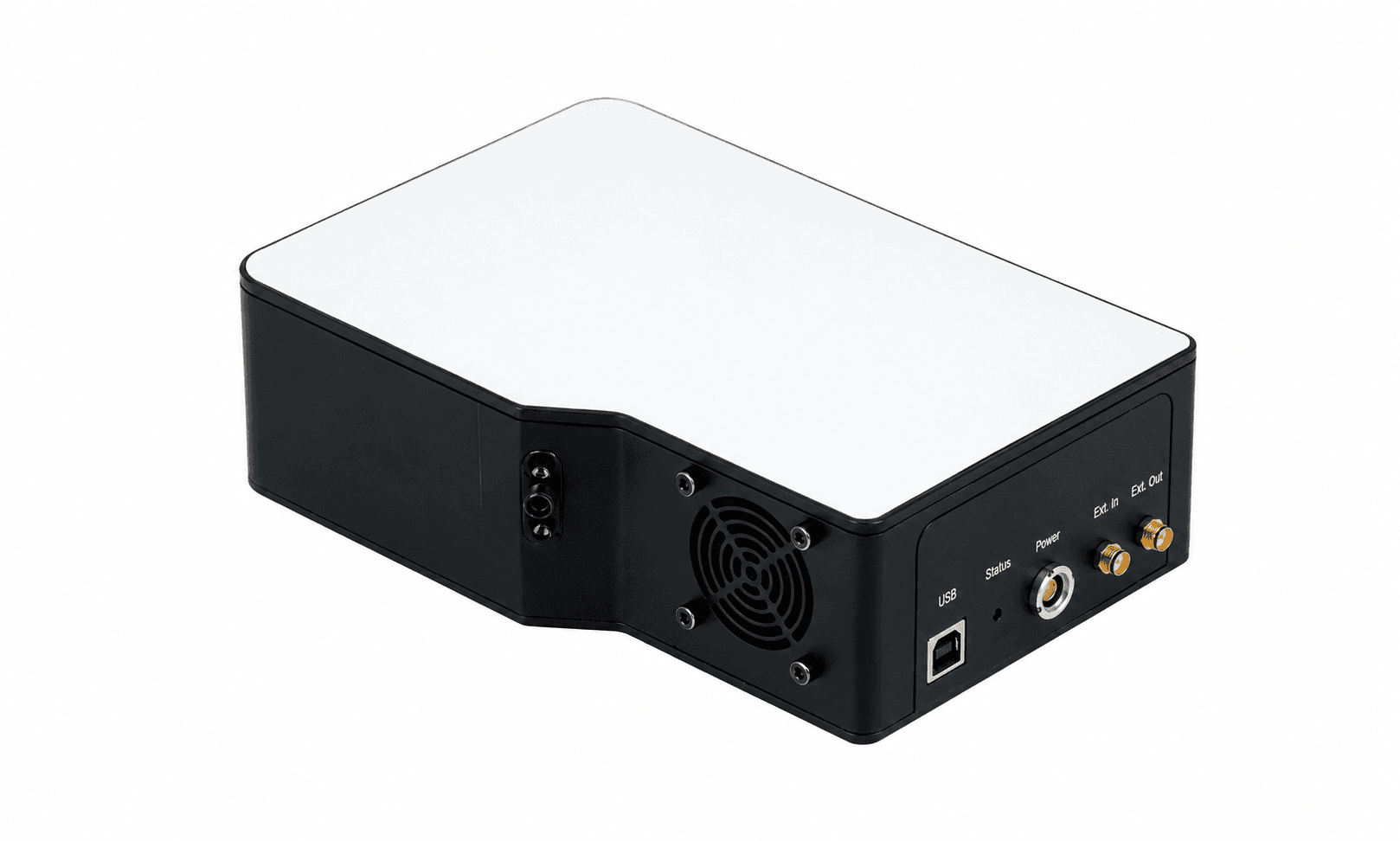

SGM1700
SGM1700 Cooled NIR Fibre Spectrometer
A complete 900–1700 nm fibre spectrometer with a cooled 512-pixel detector and a 100 mm crossed Czerny–Turner optical bench. Select sensitivity or dynamic-range operation around the sample signal.
View specificationsGated, framing & streak cameras
Resolve fast events with a gated exposure, a sequence of frames or a continuous streak trace.
IsCMOS / SIC Series
IsCMOS Intensified Scientific Cameras
An intensified, cooled sCMOS assembly for nanosecond gated imaging and spectroscopy. A fibre faceplate couples the intensifier to a 2048 × 2048 scientific sensor, with integrated delay and gate control.
View specifications
ICCD / SIC-6M Series
ICCD Intensified High-Resolution Cameras
A cooled CCD and fast intensifier assembly for time-resolved imaging or spectral acquisition. Lens or fibre coupling is configured around the required spatial resolution and collection efficiency.
View specifications
FC Series
FC Ultrafast Framing Cameras
A beam-splitting camera assembly records two, four or eight gated images from one event. Single-exposure and four-channel double-exposure configurations address different frame-count and timing requirements.
View specifications
T-lab ST10 / T40
T-lab Streak Cameras
A streak-camera assembly for recording optical intensity against time and position. The ST10 supports triggered and high-frequency scanning; the T40 provides a longer slit for triggered measurements.
View specifications
TIMART ST10 / T40 / T40-HDR
TIMART ST10, T40 & T40-HDR Streak Cameras
A streak-camera family spanning synchronised ultrafast scanning and long-slit triggered acquisition. ST10, T40 and T40-HDR configurations differ in temporal resolution, slit length and readout coupling.
View specifications
IIM-A / IIM-B / IIM-C
IIM Camera Image-Intensifier Modules
A lens-coupled intensifier module adds low-light sensitivity to a compatible high-speed camera or spectrograph. Desktop, remote-control and manual configurations share a 25 mm intensifier format.
View specifications
HIC-G05 / HIC-G30
HIC G05/G30 Intensified Gated Cameras
A 12-megapixel intensified camera with integrated timing control. G05 provides a fixed 500 ps gate option alongside an adjustable gate; G30 offers adjustable gating from 3 ns to continuous operation.
View specificationsSpectral cameras & detectors
Read an entire spectrum with an array, or scan wavelength with a single-point detector.

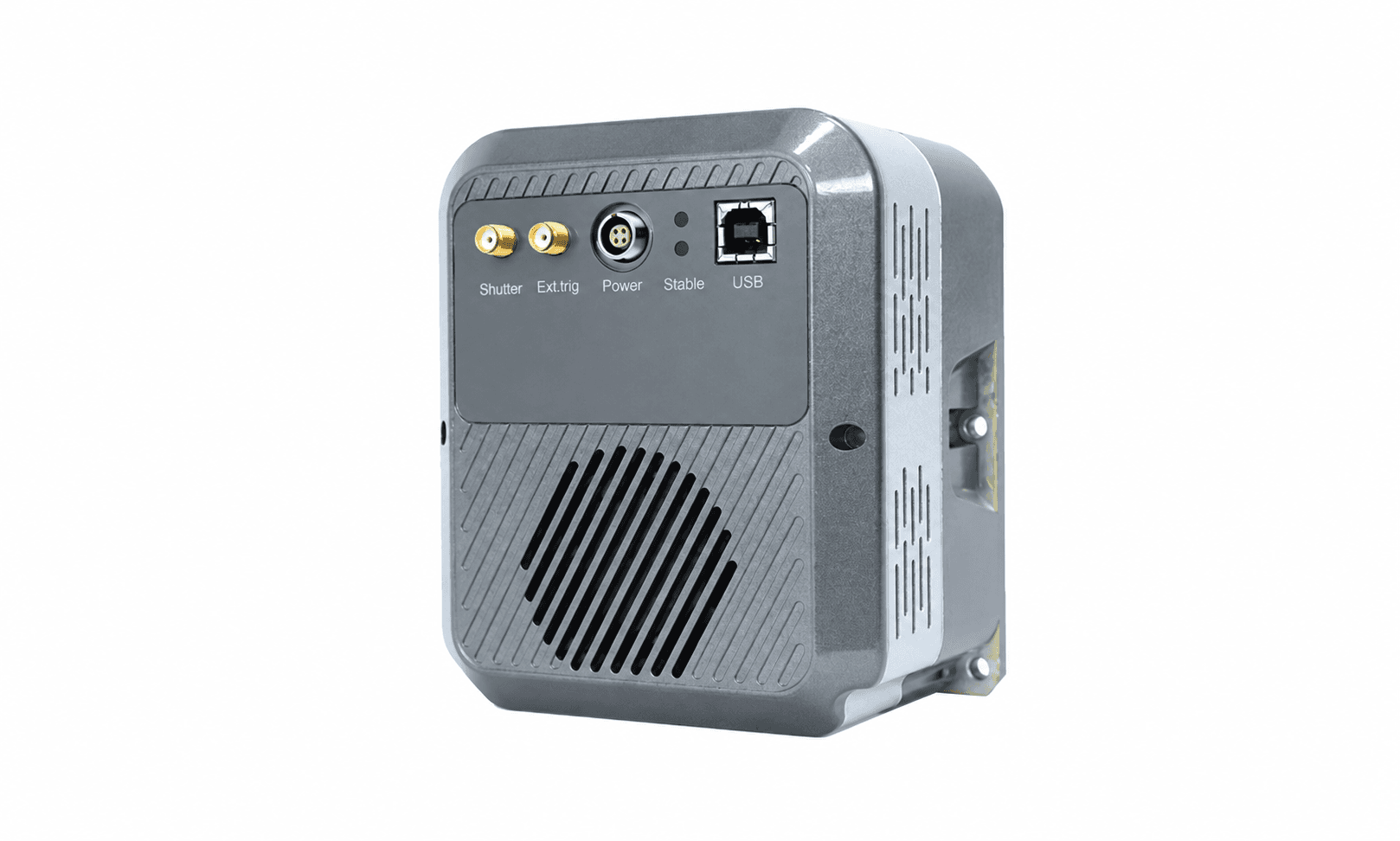

DField-VS-A1 / A2 / A3
DField-VS-A1/A2/A3 Cooled Spectral CCDs
Scientific CCD readout heads for weak-signal spectroscopy across 200–1100 nm. Select A1 for UV-sensitive acquisition, A3 for near-infrared sensitivity or the deeply cooled A2 for low-light integration.
View specifications

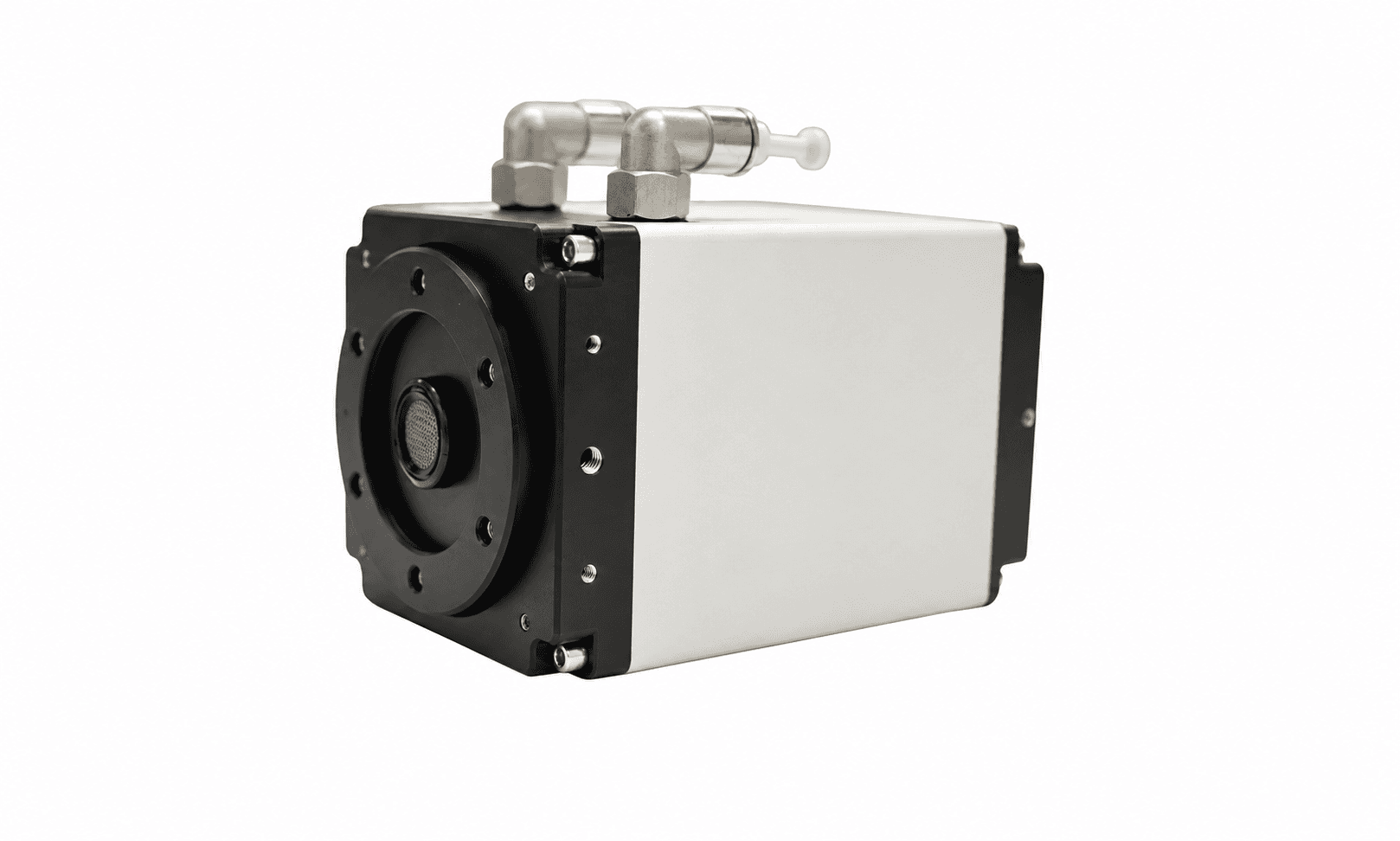

Dfield-SWIR-640-DC
Dfield-SWIR-640-DC Cooled InGaAs Camera
A cooled 640 × 512 InGaAs camera for 0.9–1.7 µm imaging and spectrograph integration. Full vertical binning supports spectral acquisition; ROI operation increases readout speed.
View specifications

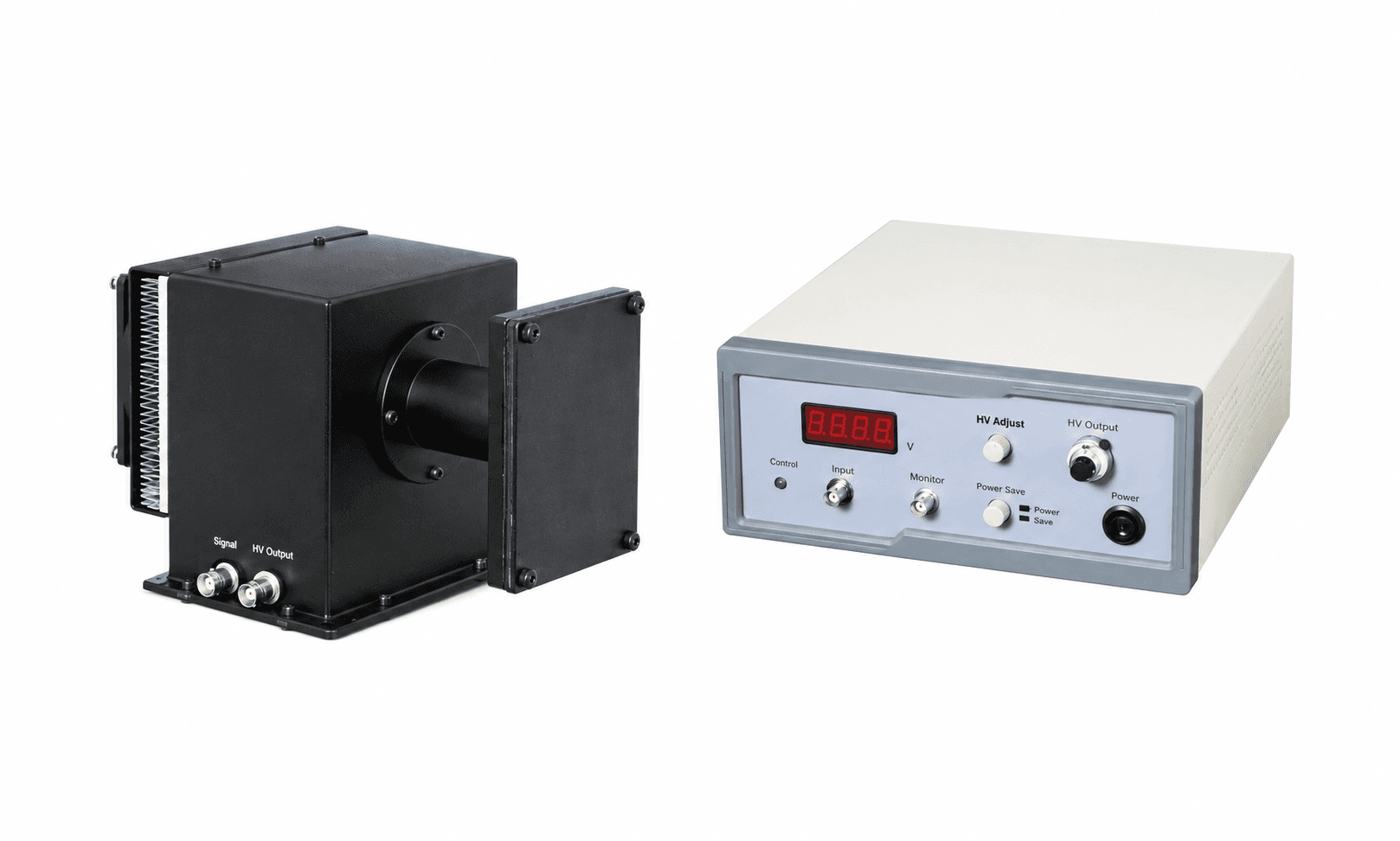

TEHVPMT-CR131 / TEHVPMT-R928
TEHVPMT Cooled Photomultiplier Assemblies
A thermoelectrically cooled photomultiplier assembly combines high voltage, a shielded detector housing and a selectable side-window tube for weak optical signals.
View specifications
DInAs3800-TE
DInAs3800-TE Cooled InAs Detector
A thermoelectrically cooled indium-arsenide detector assembly for 1–3.8 µm measurements. Current output connects to a suitable transimpedance stage or compatible current-input acquisition unit.
View specifications

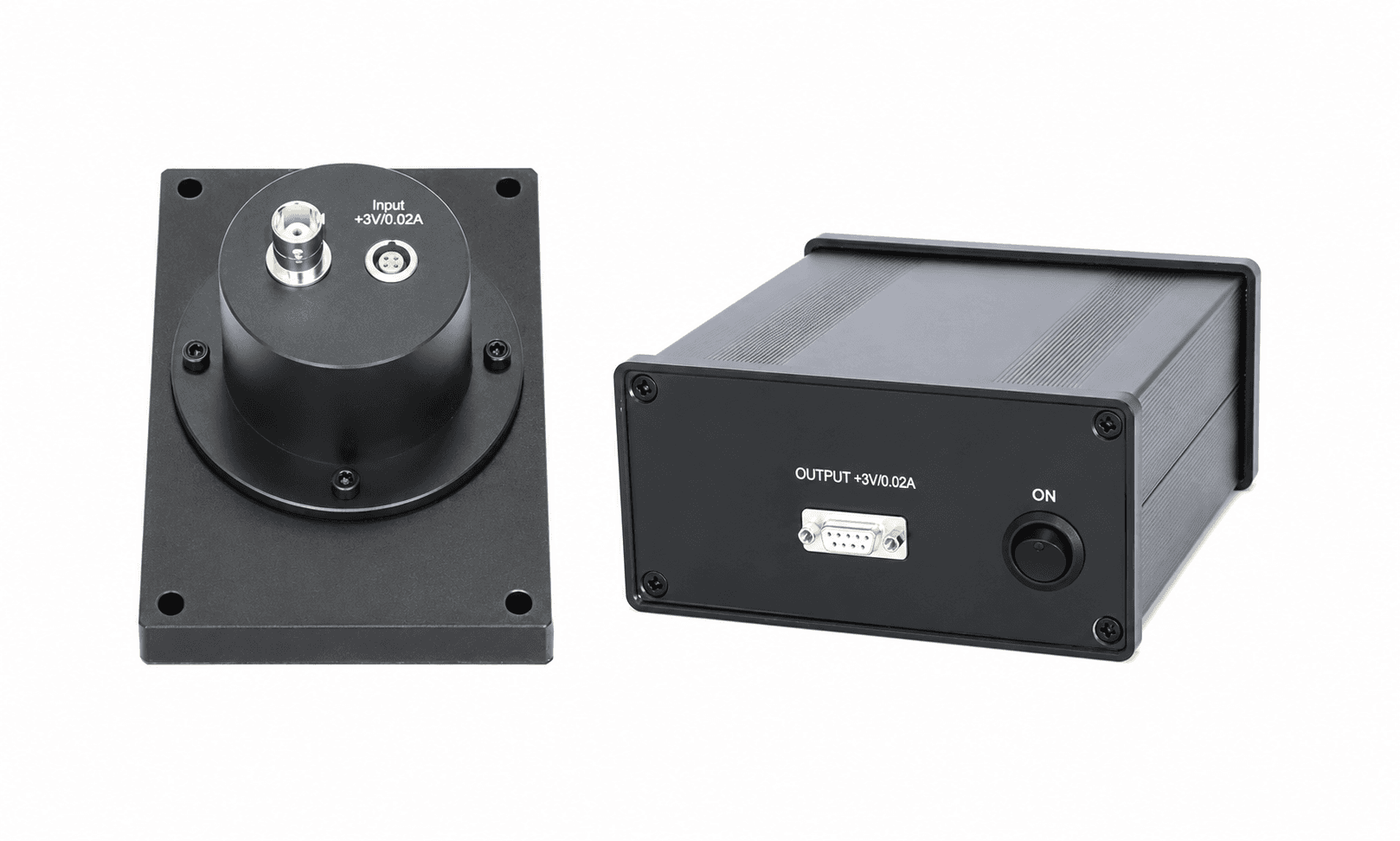

DPE12
DPE12 Pyroelectric Infrared Detector
A room-temperature infrared detector assembly with an internal preamplifier and voltage output. Modulated illumination and synchronous detection support scanning infrared measurements.
View specifications

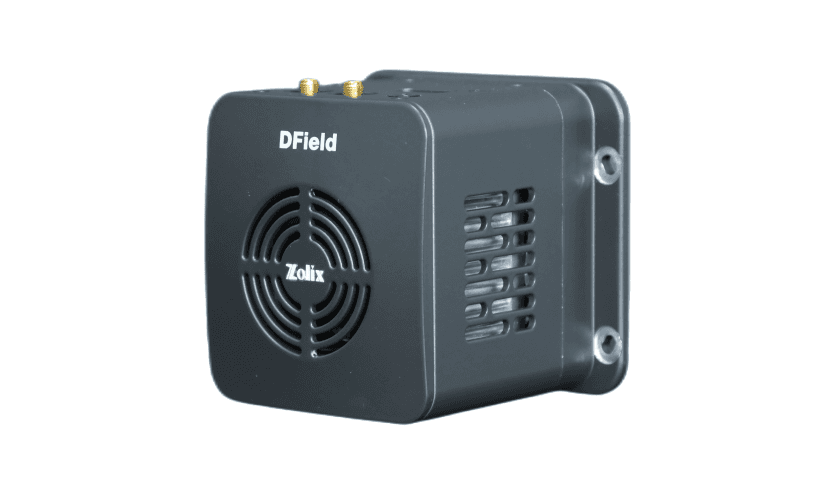

DField-VS-A4
DField-VS-A4 TE-Cooled CCD
A deeply cooled 2048 × 264 scientific CCD detector head with a 30.7 mm-wide active spectral axis, 15 µm pixels and peak quantum efficiency of 95% at 800 nm.
View specifications

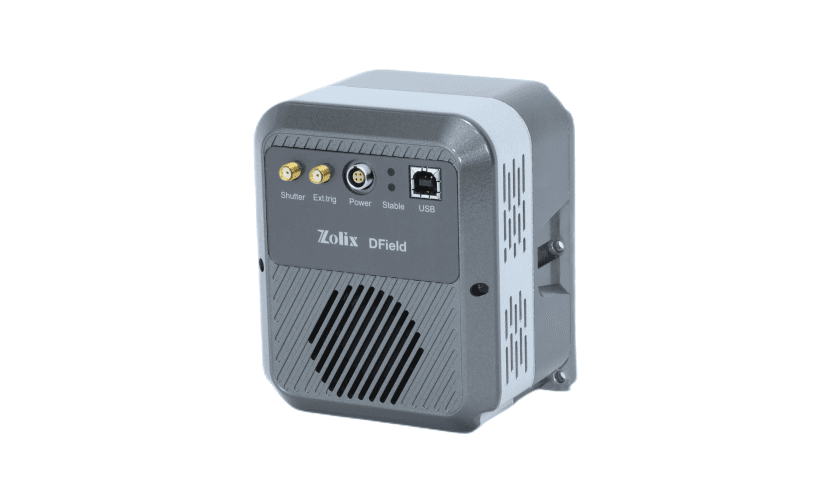

DField-NIR Series
DField Series InGaAs Linear Array Detectors
A 512-pixel InGaAs linear-array detector family for spectroscopic measurements from the near infrared into the extended NIR, with three wavelength-range configurations.
View specifications
DSi200 / DSi300
DSi Silicon Photodetectors
Large-area silicon photodetectors in UV-enhanced and blue-enhanced versions, with current output and spectral response extending to 1100 nm.
View specifications

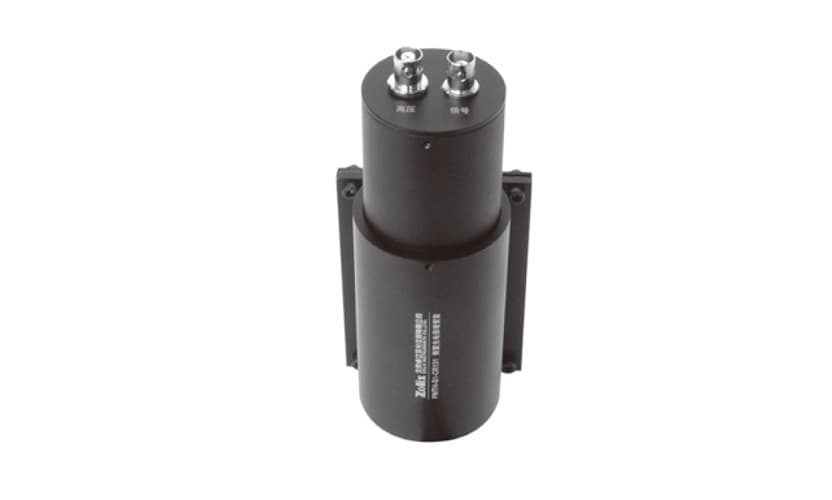

PMTH Series
PMTH Room-Temperature Photomultiplier Tubes
Light-tight photomultiplier detector housings with multiple tube options for high-sensitivity UV–visible spectroscopy and direct coupling to Omni-λ spectrographs.
View specifications

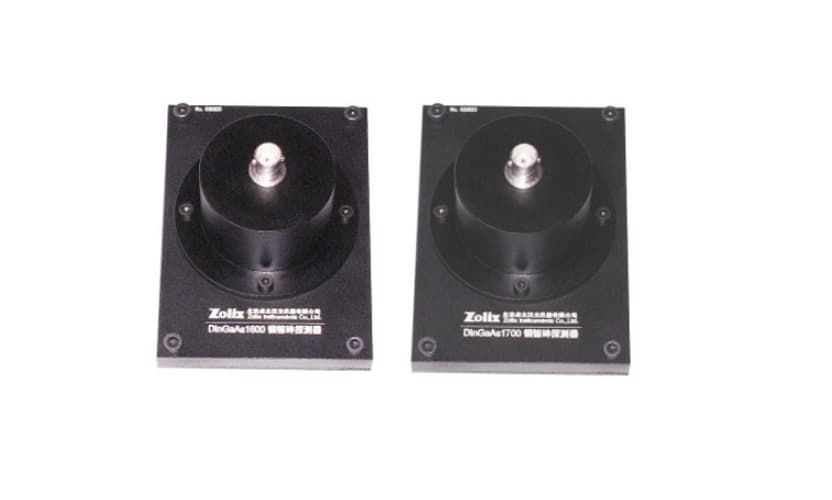

DInGaAs Series
DInGaAs Near-Infrared Detectors
Three-millimetre active-area InGaAs detector options covering standard and extended near-infrared spectral measurements with current output.
View specifications

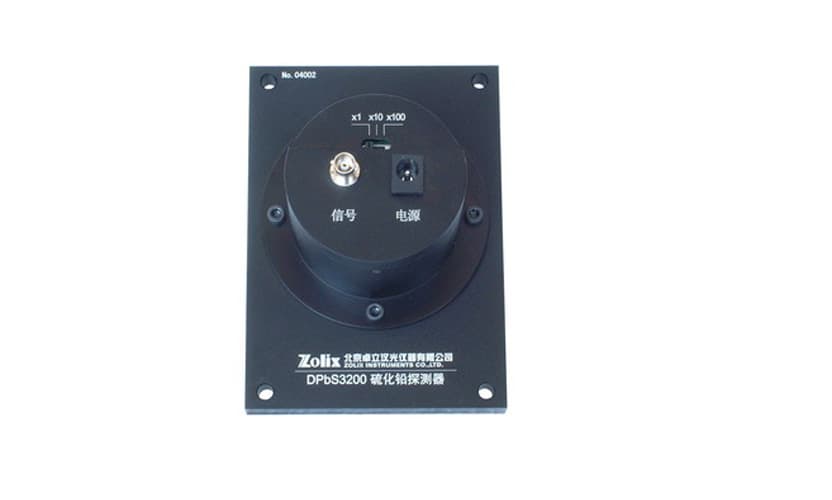

DPbS Series
DPbS Room-Temperature PbS Detectors
Room-temperature lead-sulfide detector modules for near- and mid-infrared scanning measurements, with integrated gain selection and voltage output.
View specifications

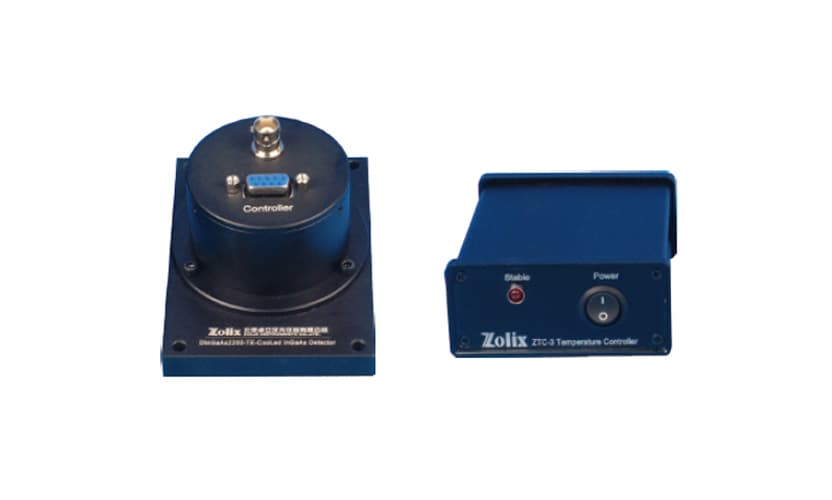

DInGaAs1700-TE / DInGaAs2600-TE
DInGaAs TE-Cooled InGaAs Detectors
Two-stage thermoelectrically cooled InGaAs detector heads covering the standard and extended near-infrared bands, with current output and regulated −40 °C detector operation.
View specifications

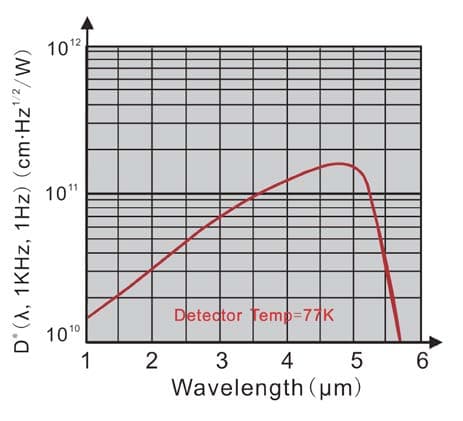

DInSb5 Series
DInSb Liquid-Nitrogen-Cooled InSb Detectors
Liquid-nitrogen-cooled indium-antimonide detector heads in general-purpose and high-speed configurations, including a model with an integrated preamplifier.
View specificationsDMCT Series
DMCT Liquid-Nitrogen-Cooled MCT Detectors
Liquid-nitrogen-cooled mercury-cadmium-telluride detector heads with four long-wavelength cut-off options plus a high-speed 12 µm configuration.
View specificationsTiming & signal acquisition
Synchronise the experiment, amplify detector current and acquire weak optical signals.
TD104
TD104 Four-Channel Pulse Delay Generator
Four independently controlled pulse outputs synchronise optical experiments. Touchscreen, buttons and a rotary control provide local setup, with USB and Ethernet for remote control.
View specifications

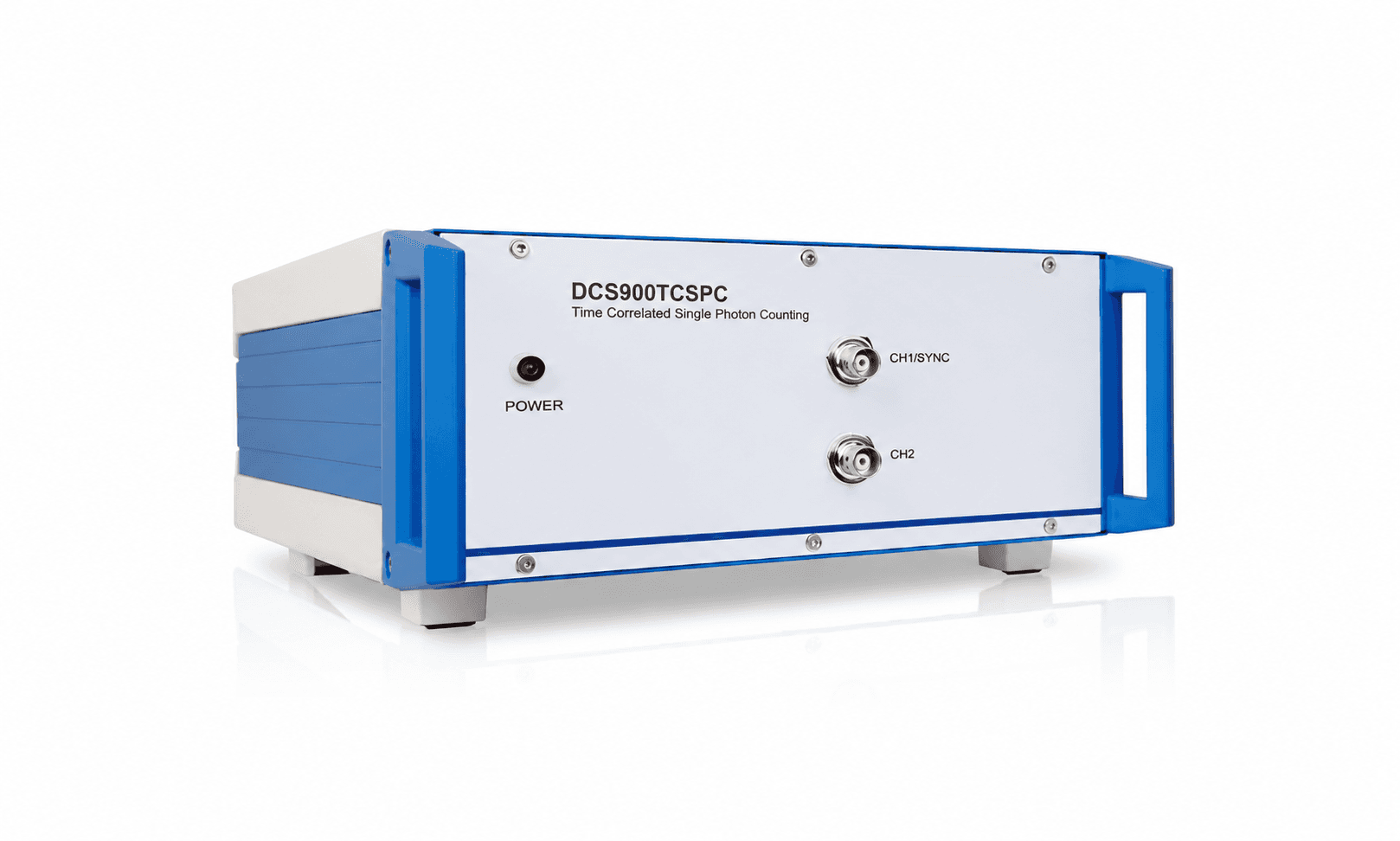

DCS900PC
DCS900PC Time-Correlated Photon Counting
A time-correlated single-photon counting acquisition unit covers fluorescence decay, phosphorescence and afterglow measurements with selectable time bins and a wide acquisition window.
View specifications
ZAMP-A / ZAMP-B
ZAMP Detector Transimpedance Amplifiers
A low-noise current-to-voltage amplifier family connects current-output optical detectors to voltage-input acquisition equipment. Eight gain settings cover different detector signal levels.
View specifications

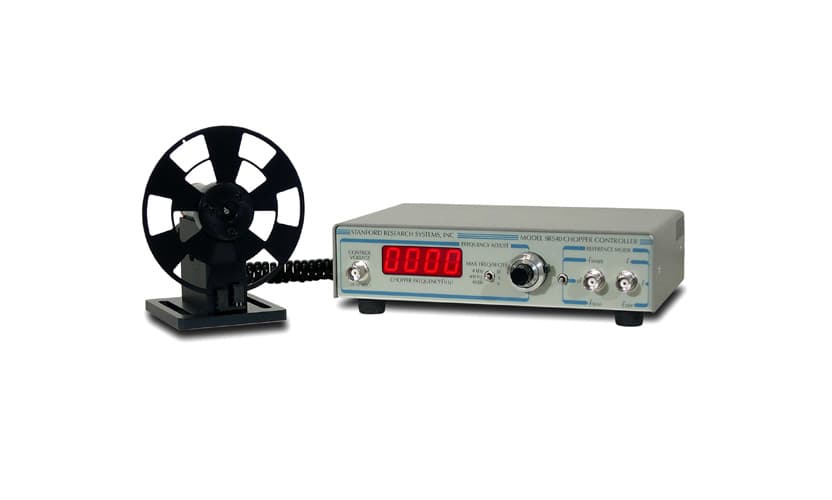

DCS540
DCS540 Optical Chopper System
A chopper controller and blade set for lock-in detection. Six blades cover 1 Hz to 5 kHz, and a two-frequency blade provides separate input and output chopping for pump-probe style experiments.
View specifications
DCS500PA
DCS500PA High Performance Lock-in Amplifier
A digital lock-in amplifier covering 50 mHz to 120 kHz with low-noise voltage and current inputs, up to 100 dB dynamic reserve and time constants from 10 µs to 30 s.
View specifications

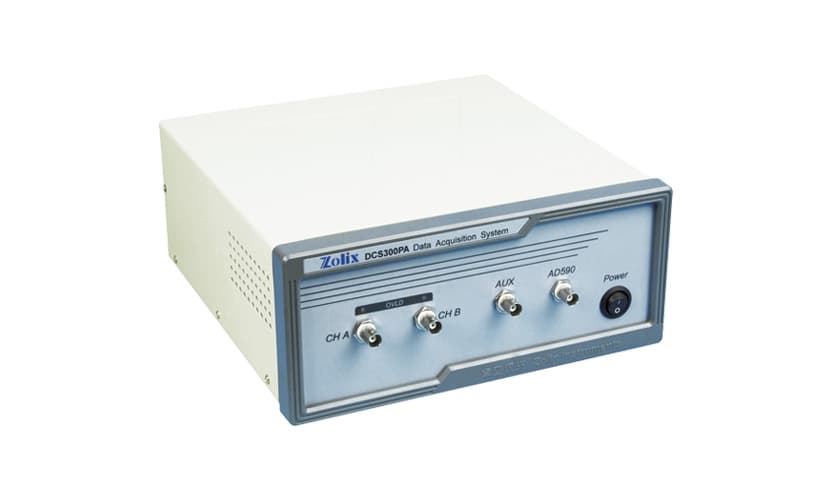

DCS300PA
DCS300PA Data Acquisition System
A dual-channel weak-signal pre-amplifier and acquisition unit, and the successor to the DCS103. The added multi-position high-gain pre-amplifier is what makes it suitable for low-level detector signals.
View specifications

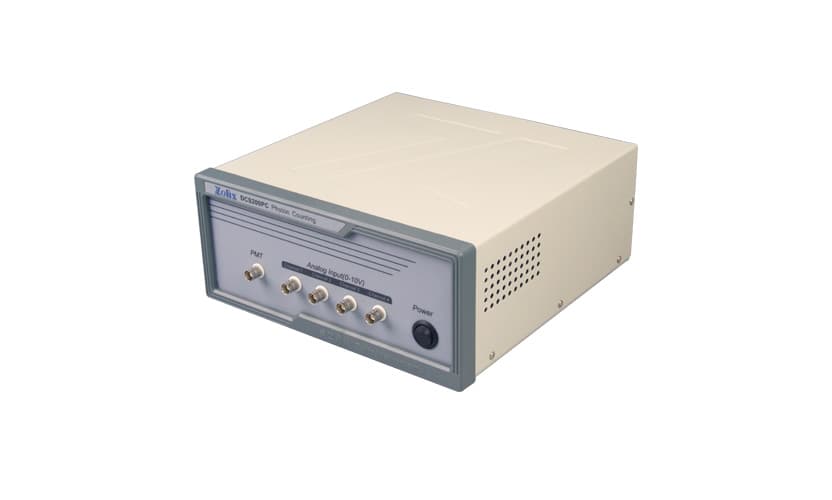

DCS210PC
DCS210PC Photon Counter
A single-photon counter with a chopper control function and a lifetime measurement mode, plus analog input and output channels so it can act as the acquisition hub of an Omni-λ system.
View specificationsSpectroscopy measurement systems
Configured platforms for time-resolved emission, laser diagnostics and optical material characterisation.
ST10 Time-Resolved Spectroscopy System
ST10 Ultrafast Time-Resolved Spectroscopy System
An integrated spectrograph, streak camera, relay optics and software platform records wavelength and time in the same image. Optical collection is configured for fibres, samples or microscopy.
View specifications
Flame image-C-LIF
Flame image-C-LIF Planar Fluorescence Imaging
A configured planar laser-induced fluorescence platform images selected species in a combustion field. A laser sheet defines the measurement plane and a gated camera captures its fluorescence.
View specifications
LIBS-Lab
LIBS-Lab Laboratory Elemental Spectroscopy
A configurable laser-induced breakdown spectroscopy platform combines sample excitation, collection optics, a Czerny–Turner spectrograph and time-gated detection for elemental emission analysis.
View specifications
PlasmaD-TS
PlasmaD-TS Thomson-Scattering Diagnostics
A configurable optical diagnostic system measures laser light scattered by plasma electrons. Spectral filtering and gated detection support extraction of electron density and temperature.
View specifications
PlasmaD-LIF
PlasmaD-LIF Laser-Induced Fluorescence Diagnostics
A tunable-excitation spectroscopy solution probes selected plasma species through laser-induced fluorescence. Gated detection separates the fluorescence signal in time and wavelength.
View specifications
OmniTR
OmniTR Transmission, Reflection & Absorption Systems
A configured scanning spectroscopy platform measures optical transmission and reflection, with absorption analysis where the measurement geometry supports it. Optical paths are selected for films, glass, lenses or infrared samples.
View specifications
OmniDR / Omni-DR300 / Omni-DR600
OmniDR Diffuse Reflectance Measurement Systems
An integrating-sphere system measures wavelength-dependent diffuse reflectance with monochromatic illumination. DR300 handles powders; DR600 accommodates flat materials and adds transmission measurement.
View specifications
OmniES
OmniES Emission Spectroscopy Systems
A modular emission-measurement platform combines spectral dispersion, optical detection, acquisition and software. Scanning and array-based configurations support different light sources and resolution needs.
View specificationsSpectrometer accessories
Match gratings, fibre coupling, slits, shutters and sample handling to the optical bench.
BFC / Slits / CCD Flanges / Shutters
Spectrometer Coupling, Slits & Shutters
Interface components connect fibres, camera focal planes and controlled apertures to a configured spectrometer. Choose the mechanical and optical interface as part of the complete measurement path.
View specifications

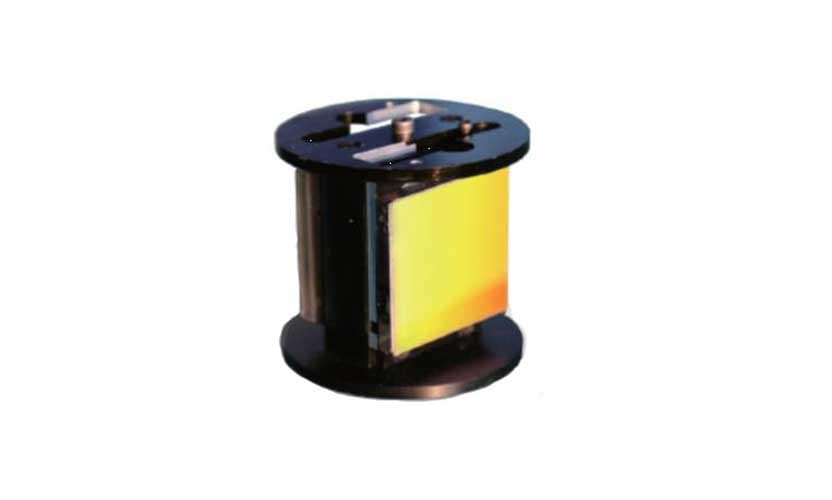

Diffraction gratings
Gratings for Omni-λ Turrets
The holographic and ruled grating range for the Omni-λ turrets, from 3600 g/mm for deep-UV work down to 50 g/mm reaching 22 µm in the mid-infrared. All catalogued gratings are 68 × 68 mm.
View specifications

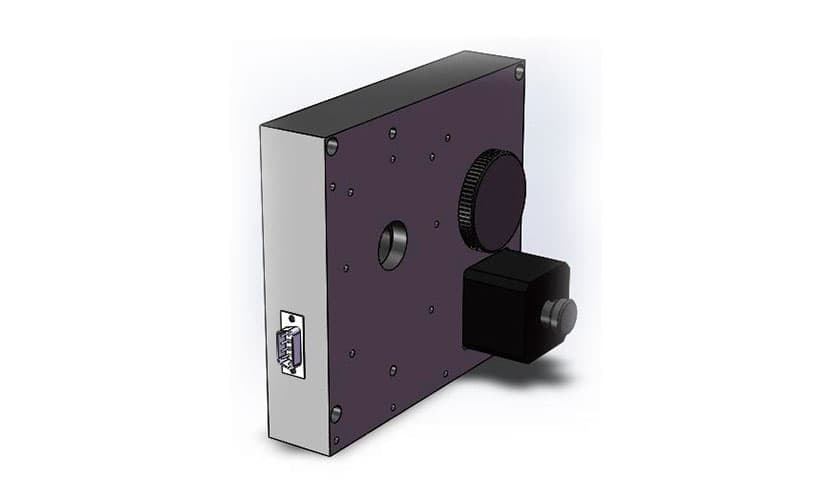

SD25 Series
SD25 Series Motorised Filter Wheels
A six-position stepping-motor filter wheel driven straight from the monochromator or spectrograph controller. It holds six 25 mm filters behind a 22 mm clear aperture and is used to block grating higher orders as the instrument scans.
View specifications
FLG Series
FLG Series Fibres and Fibre Bundles
Quartz fibres and 19-fibre bundles that connect an Omni-λ monochromator or sample chamber to the rest of an optical setup through a BFC series fibre coupler. Single fibres come in UV (200–1100 nm) and IR (350–2000 nm) grades.
View specifications

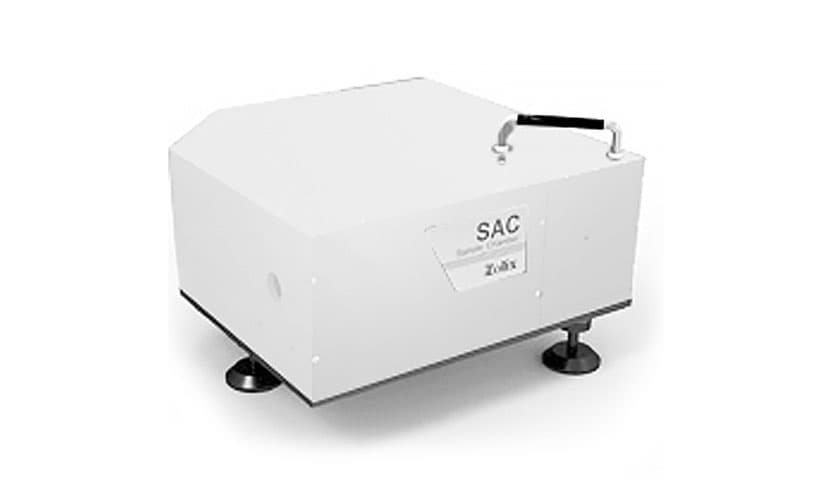

SAC Series
SAC Series Sample Chambers
Sample chambers that bolt directly to an Omni-λ spectrometer for fluorescence, photoluminescence, transmission, reflection and absorption measurements. The SAC-Fluo uses an f/1 collection design and takes a cryostat as an option.
View specificationsConfigure the complete optical path
Share the spectral interval, time resolution, signal level and sample geometry. We’ll help match the instrument, detector and accessories.
