Spectroscopy Detectors · Mid-infrared single-point detectors
DInSb5 Series
DInSb Liquid-Nitrogen-Cooled InSb Detectors
Liquid-nitrogen-cooled indium-antimonide detector heads in general-purpose and high-speed configurations, including a model with an integrated preamplifier.
Catalog context
Where DInSb5 Series fits
DInSb5 Series is listed as DInSb Liquid-Nitrogen-Cooled InSb Detectors in the Mid-infrared single-point detectors family. The local catalog record provides these first selection fields: Models: DInSb5-De02 / DInSb5-HS; Spectral range: 1–5.5 µm; Active area: Ø2 mm / 1 × 1 mm.
Specifications
| Models | DInSb5-De02 / DInSb5-HS |
|---|---|
| Spectral range | 1–5.5 µm |
| Active area | Ø2 mm / 1 × 1 mm |

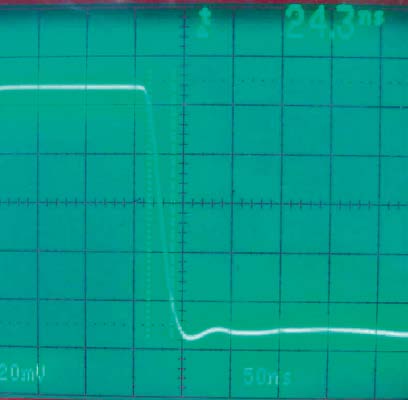

| Rise time | DInSb5-HS: < 25 ns |
| Preamplifier | Optional / integrated, model dependent |
| Signal output | Current / voltage, model dependent |
| Cooling | Liquid nitrogen |
Complete source specification
Model-by-model comparison
The full manufacturer-published comparison is transcribed below so model differences remain visible rather than being reduced to a single range.
| Parameter | DInSb5-De02 | DInSb5-HS |
|---|---|---|
| Effective area | Ø2 mm (Ø1, Ø4 and Ø7 mm optional) | 1 × 1 mm square |
| Spectral range | 1–5.5 µm | 1–5.5 µm |
| Peak responsivity | 3 A/W | 2 × 10⁴ V/W |
| Rise time | — | < 25 ns |

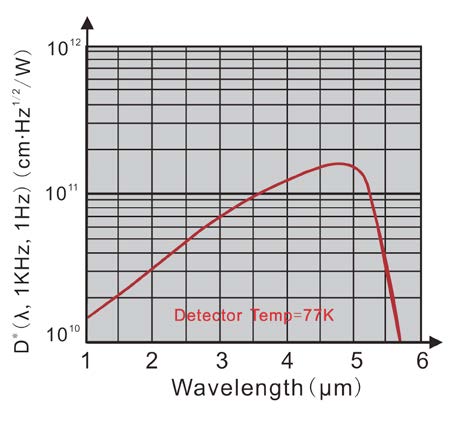

| D* at peak, 1 kHz | 1 × 10¹¹ cm·Hz¹ᐟ²/W | 1 × 10¹¹ cm·Hz¹ᐟ²/W |
| NEP at peak, 1 kHz | 1.6 pW/Hz¹ᐟ² | — |
| Dark current | 30 µA | — |
| Preamplifier | Optional | Integrated |
| Signal output | Current | Voltage |
| Output polarity | P | P |
Design and integration details
- Liquid-nitrogen-cooled side-window InSb detector family.
- General-purpose current-output detector or high-speed voltage-output detector with integrated preamplifier.
- The high-speed model uses a 20 MHz preamplifier for nanosecond time-resolved measurements.
Application and connection notes
- A preamplifier and lock-in amplifier improve sensitivity for the DInSb5-De02.
- The source states that one liquid-nitrogen fill can maintain operation for approximately eight hours.
- Standard configuration is for a manual Omni-λ slit; contact us for motorized-slit integration.
Values are transcribed from the archived product table and diagrams. Confirm the final detector, electronics and spectrograph interface for your configuration.
Archived manufacturer product pageSystem integration
Integration and compatibility
Use these checks to connect DInSb5 Series to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Spectral response
- Spectral range: 1–5.5 µm
- Responsivity varies strongly across the stated band. Read the figure at your own wavelength rather than at the peak the headline range implies.
- Active area
- Active area: Ø2 mm / 1 × 1 mm
- Active area sets both the alignment tolerance and, through capacitance, the achievable bandwidth. A larger element is easier to hit and slower to read.
- Noise and cooling
- Cooling: Liquid nitrogen
- Compare NEP or dark current at the operating temperature and bandwidth you will actually use; both figures improve with cooling and degrade with bandwidth, so a single number without conditions is not comparable.
- Output and bias
- Preamplifier: Optional / integrated, model dependent · Signal output: Current / voltage, model dependent
- Confirm whether the module is biased and amplified internally or expects an external supply and transimpedance stage. The two builds are not interchangeable and the wrong assumption destroys detectors.
Technical FAQ
Integration questions for DInSb5 Series
What wavelengths does the DInSb5 Series detect?
Spectral range: 1–5.5 µm. Responsivity varies strongly across the stated band. Read the figure at your own wavelength rather than at the peak the headline range implies.
What is the active area of the DInSb5 Series?
Active area: Ø2 mm / 1 × 1 mm. Active area sets both the alignment tolerance and, through capacitance, the achievable bandwidth. A larger element is easier to hit and slower to read.
What is the noise floor of the DInSb5 Series?
Cooling: Liquid nitrogen. Compare NEP or dark current at the operating temperature and bandwidth you will actually use; both figures improve with cooling and degrade with bandwidth, so a single number without conditions is not comparable.
How is the DInSb5 Series read out?
Preamplifier: Optional / integrated, model dependent · Signal output: Current / voltage, model dependent. Confirm whether the module is biased and amplified internally or expects an external supply and transimpedance stage. The two builds are not interchangeable and the wrong assumption destroys detectors.
Model selection
Nearby series comparison
Compare DInSb5 Series with the closest available models in the Mid-infrared single-point detectors family.
| Selection parameter | DInSb5 Series (current) | DMCT Series | DPbS Series |
|---|---|---|---|
| Spectral response | 1–5.5 µm | 2–12 / 2–14 / 2–16 / 2–22 µm, model dependent | 0.8–2.9 µm / 0.8–3.2 µm |
| Active area | Ø2 mm / 1 × 1 mm | 1 × 1 mm | 4 × 5 mm / 6 × 6 mm |
| Cooling / output | Liquid nitrogen | Liquid nitrogen | Voltage |
