FLG Series Fibres and Fibre Bundles
Model FLG Series

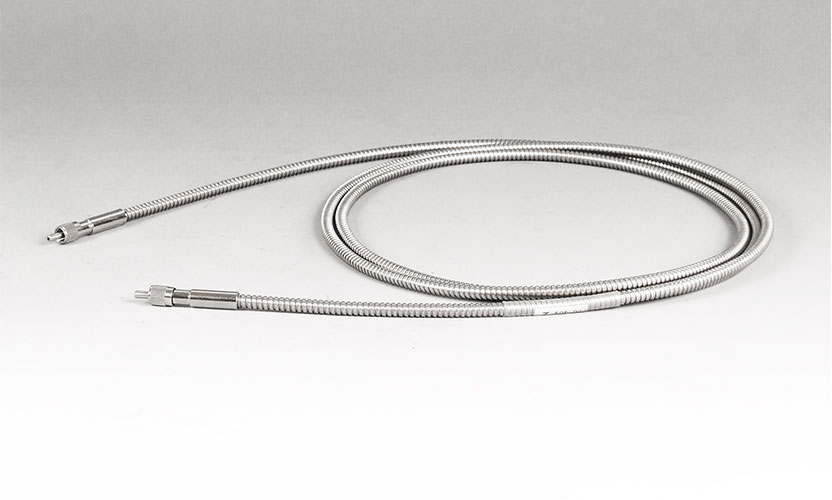

Quartz fibres and 19-fibre bundles that connect an Omni-λ monochromator or sample chamber to the rest of an optical setup through a BFC series fibre coupler. Single fibres come in UV (200–1100 nm) and IR (350–2000 nm) grades.
Best for
Getting light into or out of a monochromator without building a free-space relay.
Specifications
- Single fibre range
- 200–1100 nm (UV grades); 350–2000 nm (IR grades)
- Core diameters
- 50, 100, 200, 400, 600 µm
- Material
- Quartz
- Numerical aperture
- 0.22
- Divergence (full angle)
- 25°
- Termination
- SMA905 standard; FC and others optional
- Bundles
- 19 fibres of 200 µm; 200–1100, 400–1800 or 400–2400 nm depending on model
Ordering options
FLG-UV50/100/200/400/600-x
200–1100 nm quartz single fibres, x = length
FLG-IR50/100/200/400/600-x
350–2000 nm quartz single fibres, x = length
FLG-401-x to FLG-409-x
19-fibre bundles, 200 µm cores, Ø10/13 mm or SMA905 A-end

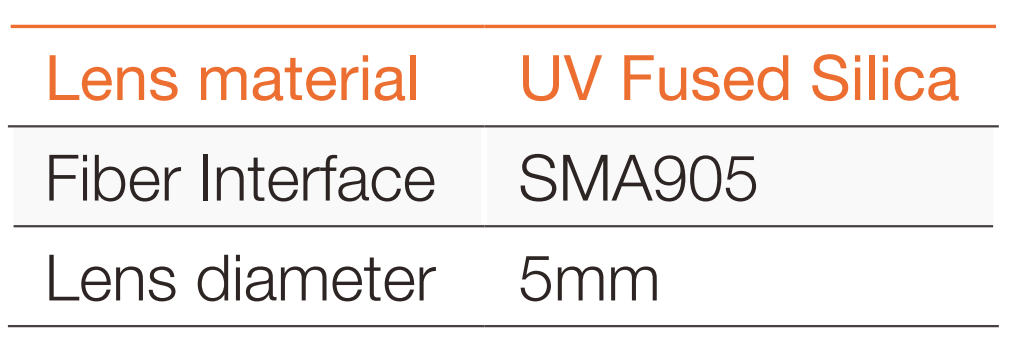

74-UV
Fibre collimator, UV fused silica, 5 mm lens, SMA905

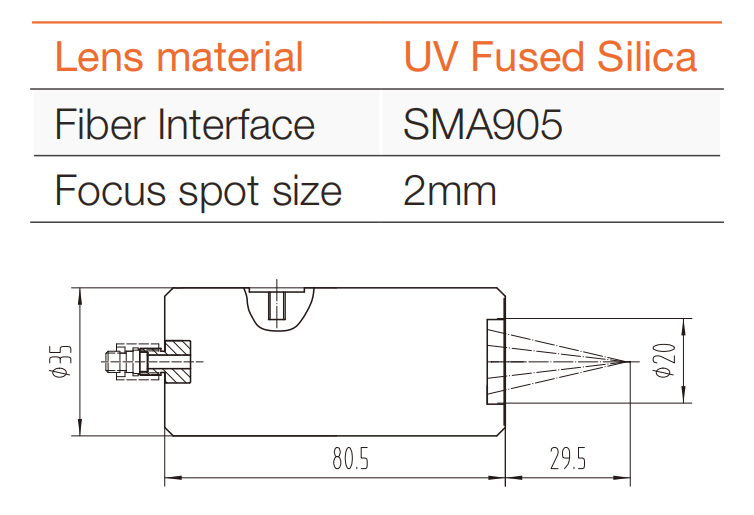

TLS-SMA905-GJ
Fibre focus accessory, UV fused silica, 2 mm focus spot
