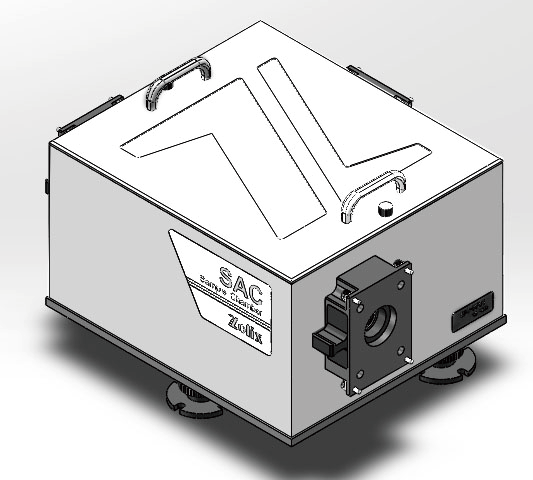

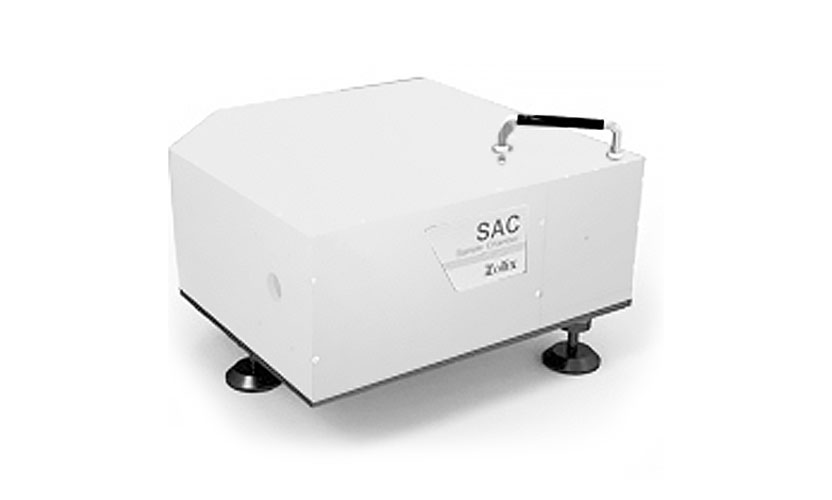

SAC Series Sample Chambers
Model SAC Series
Sample chambers that bolt directly to an Omni-λ spectrometer for fluorescence, photoluminescence, transmission, reflection and absorption measurements. The SAC-Fluo uses an f/1 collection design and takes a cryostat as an option.
Best for
Turning a monochromator into a complete fluorescence, PL or transmission measurement bench.
Specifications
- SAC-Fluo collection optics
- f/1 design, external laser excitation path, cryostat upgrade optional
- Filter mounting
- 25 / 25.4 mm filters in the collection path
- Standard sample holders
- Cuvette, SAC-SH15 cuvette holder, SAC-SH11 film holder, SAC-SH12A powder holder
- SAC-PL optical path
- Reflective, two laser traps; optical axis height 134–170 mm adjustable
- Compatibility
- SAC-Fluo and SAC-PL require an Omni-λ spectrometer with manual slit
Ordering options
SAC-Fluo
Fluorescence sample chamber, f/1 collection, large working space
SAC-PL05
Compact PL chamber, aluminium-coated mirror for UV-VIS-NIR
SAC-PL06
Compact PL chamber, gold-coated mirror for infrared
SAC-RF
Transmission and reflection sample chamber
SAC-FT
Transmission and absorption sample chamber
Gallery
