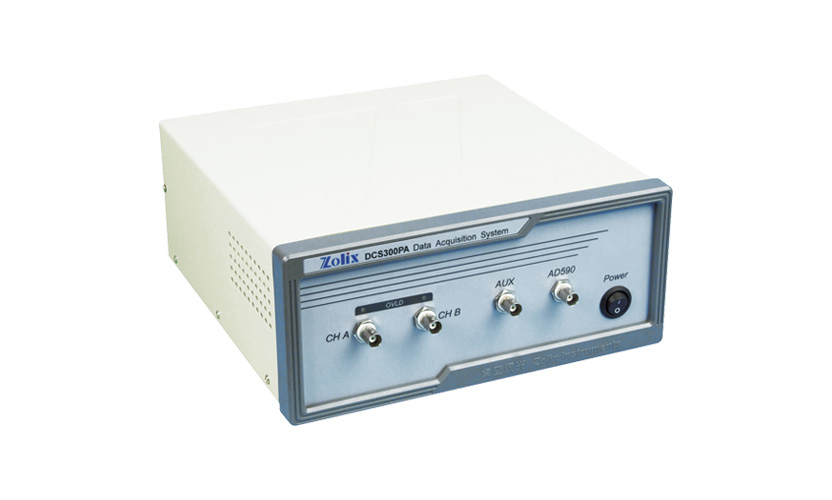

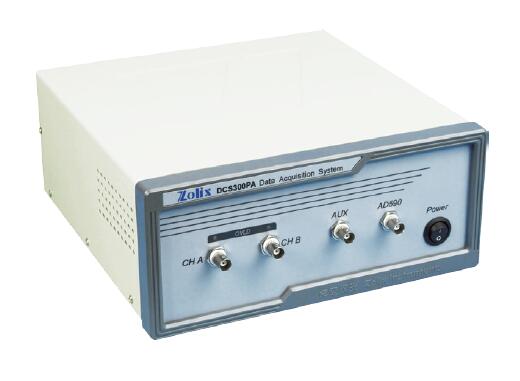

DCS300PA Data Acquisition System
Model DCS300PA
A dual-channel weak-signal pre-amplifier and acquisition unit, and the successor to the DCS103. The added multi-position high-gain pre-amplifier is what makes it suitable for low-level detector signals.
Best for
Reading out photodiodes and other single-point detectors on a scanning monochromator.
Specifications
- Analog input channels
- 2, 16-bit A/D
- Voltage input range
- ±1 mV to ±10 V
- Voltage gain
- 10⁰–10⁴
- Current gain
- 10³–10⁷
- AUX measurement range
- DC 0–10 V
- Analog output
- 2 channels, 12-bit D/A, DC 0–10 V
- Temperature measurement
- 1 channel, AD590 probe, −30 to 100 °C
- Integration time
- 10 µs to 10 s
- Data points
- ≤2000, stored in RAM
- Triggering
- Software and external trigger; TTL rising edge input
- I/O
- 5 input, 2 TTL output
- Interface
- USB 2.0
- Power
- AC 100–240 V, 50/60 Hz (DC 24 V, 0.3 A)
- Dimensions and weight
- 260 × 260 × 120 mm, 3.3 kg
