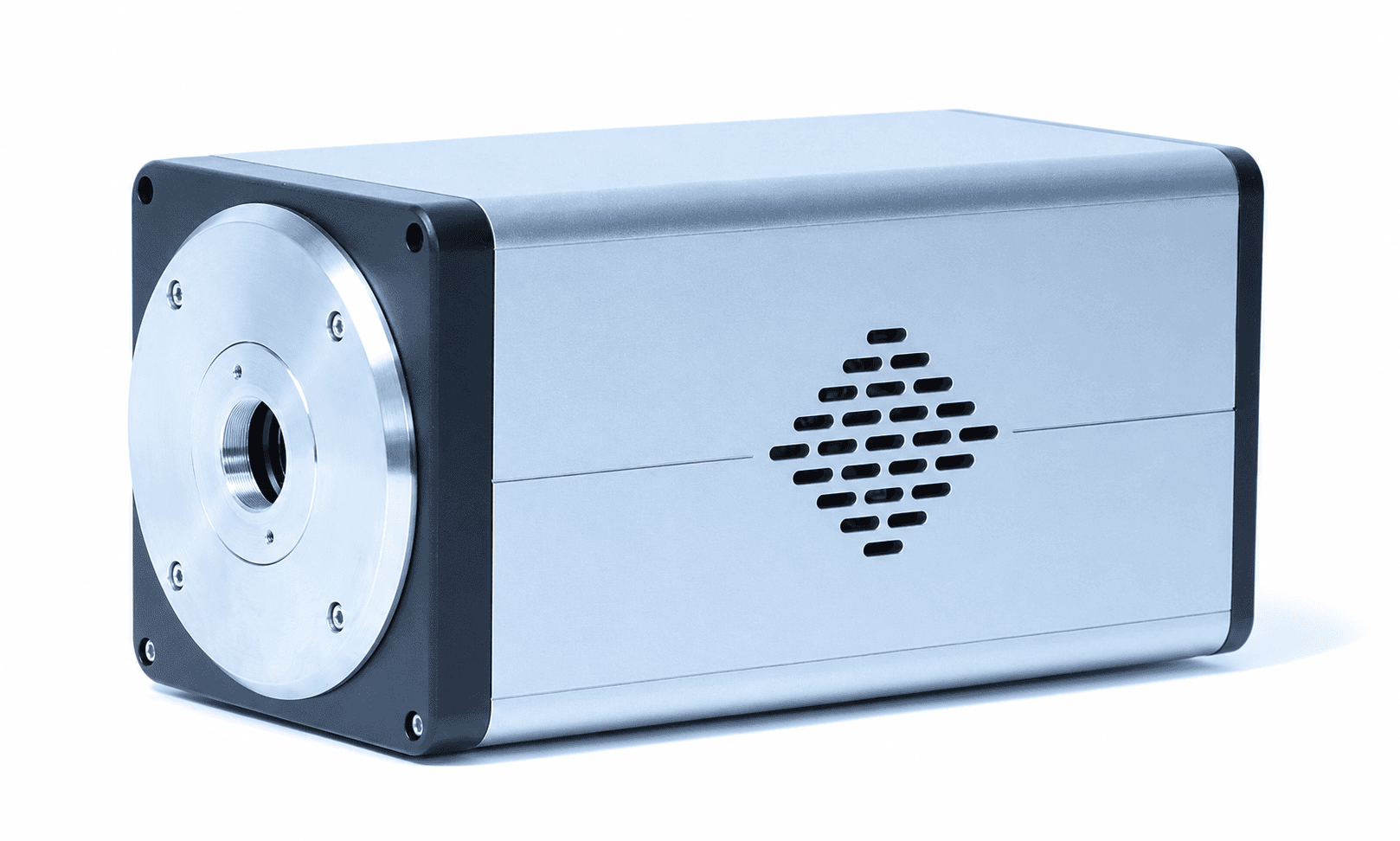

ICCD Intensified High-Resolution Cameras
A cooled CCD and fast intensifier assembly for time-resolved imaging or spectral acquisition. Lens or fibre coupling is configured around the required spatial resolution and collection efficiency.
Best suited to
Narrow spectral features, transient emission and high spatial resolution gated measurements.
Selecting a configuration
Specify the spectral band, projected slit image and required optical gate. Confirm the delivered sensor configuration because the source introduction and sensor table give different pixel counts.
Measurement & configuration
- Integrated digital delay generator.
- Full vertical binning and multiple spectral ROIs.
- Gate accumulation and automated delay stepping.
Plan the signal path
- 1Transient light
- 2Fast intensifier
- 3Cooled CCD
Specifications
| Minimum gate | ≤3 ns |
|---|---|
| Gate / delay step | 10 ps |
| Gate repetition | Up to 300 kHz |
| Delay range | 0–10 s |
| Pixel pitch | 4.54 µm |
| Readout noise | 5 e⁻ |
| Dark current | 0.02 e⁻/pixel/s at −10 °C |
| Readout | 16 bit; USB 2.0 |
| Cooling | 35 °C below ambient |
Configuration note: The source states 2750 × 2200 in its overview and 2700 × 2200 in its table. Confirm the active array at quotation. Photocathode selection determines the usable wavelength range.
Related gated, framing & streak cameras
IsCMOS Intensified Scientific Cameras
Time-gated plasma emission, LIBS and weak transient luminescence.
ExploreFC Ultrafast Framing Cameras
Non-repeatable combustion, discharge, detonation and plasma events.
ExploreT-lab Streak Cameras
Ultrafast fluorescence, semiconductor photoluminescence and plasma diagnostics.
ExploreConfigure ICCD / SIC-6M Series
Send the wavelength interval, signal level, timing and sample requirements for your experiment.
