Astronomy Cameras

Deep-sky, planetary and guide cameras with published sensor, cooling and interface specifications.

54 modelsOpen camera finder

54 models

Complete model range

Deep-sky cooled

25 models

SkyEye full-frame DSO · MonochromeCurrent

SkyEye62AM

Sensor: Sony IMX455 monochrome CMOS

Resolution

61 MP (9568 × 6380)

Pixel

3.76 µm

Frame rate

6.2 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT ≥35 °C

Full specifications →

SkyEye full-frame DSO · ColorCurrent

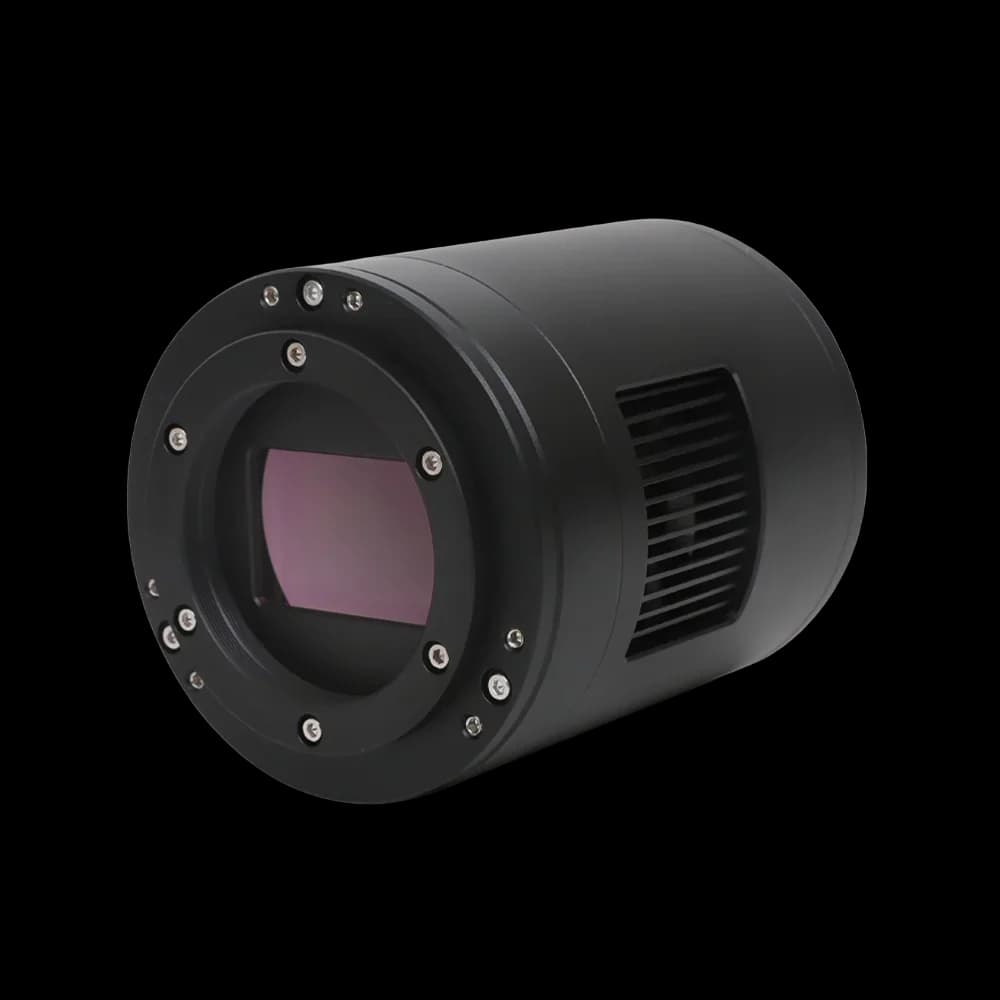

SkyEye62AC

Sensor: Sony IMX455 color CMOS

Resolution

61 MP (9568 × 6380)

Pixel

3.76 µm

Frame rate

6.2 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT ≥35 °C

Full specifications →

SkyEye full-frame DSO · ColorCurrent

SkyEye24AC

Sensor: Sony IMX410 color CMOS

Resolution

24 MP (6064 × 4040)

Pixel

5.94 µm

Frame rate

16 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT ≥35 °C

Full specifications →

ATR DSO cooled · MonochromeCurrent

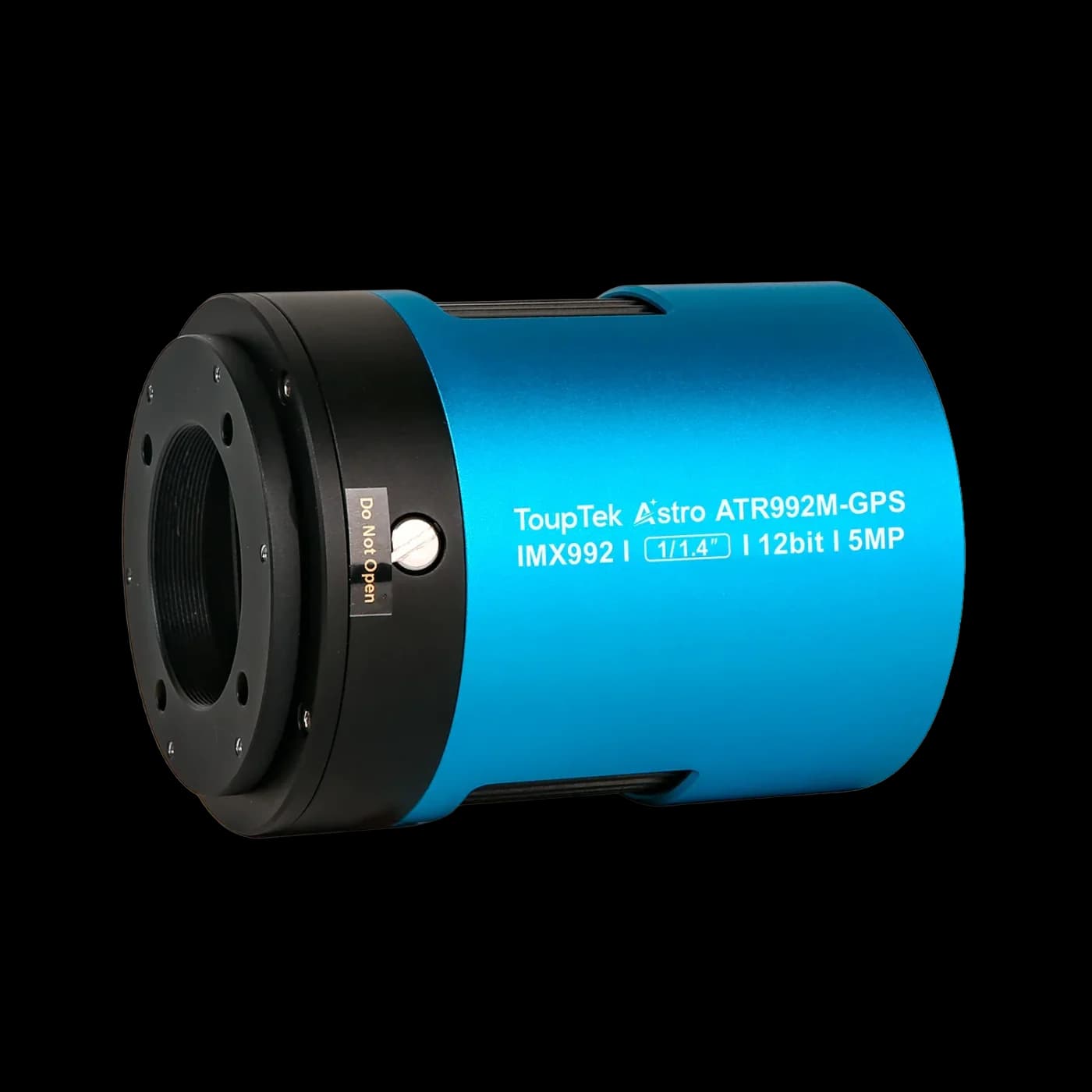

ATR992M

Sensor: Sony IMX992 SenSWIR InGaAs monochrome sensor

Resolution

5 MP (2560 × 2048)

Pixel

3.45 µm

Frame rate

36 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT ≈30 °C

Full specifications →

ATR DSO cooled · ColorCurrent

ATR2110C

Sensor: SmartSens SC2110 color CMOS

Resolution

2.3 MP (1920 × 1200)

Pixel

12 µm

Frame rate

120 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT up to 42 °C

Full specifications →

ATR DSO cooled · MonochromeCurrent

ATR2600M

Sensor: Sony IMX571 monochrome CMOS

Resolution

26 MP (6224 × 4168)

Pixel

3.76 µm

Frame rate

13.3 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT ≥42 °C

Full specifications →

ATR DSO cooled · ColorCurrent

ATR2600C

Sensor: Sony IMX571 color CMOS

Resolution

26 MP (6224 × 4168)

Pixel

3.76 µm

Frame rate

13.3 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT ≥42 °C

Full specifications →

ATR DSO cooled · MonochromeCurrent

ATR183M

Sensor: Sony IMX183 monochrome CMOS

Resolution

19.8 MP (5440 × 3648)

Pixel

2.4 µm

Frame rate

18 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT ≥45 °C

Full specifications →

ATR DSO cooled · ColorCurrent

ATR183C

Sensor: Sony IMX183 color CMOS

Resolution

19.8 MP (5440 × 3648)

Pixel

2.4 µm

Frame rate

18 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT ≥45 °C

Full specifications →

ATR DSO cooled · MonochromeCurrent

ATR294M

Sensor: Sony IMX492 monochrome CMOS

Resolution

11.6 MP (4128 × 2808)

Pixel

4.63 µm

Frame rate

33 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT ≥42 °C

Full specifications →

ATR DSO cooled · ColorCurrent

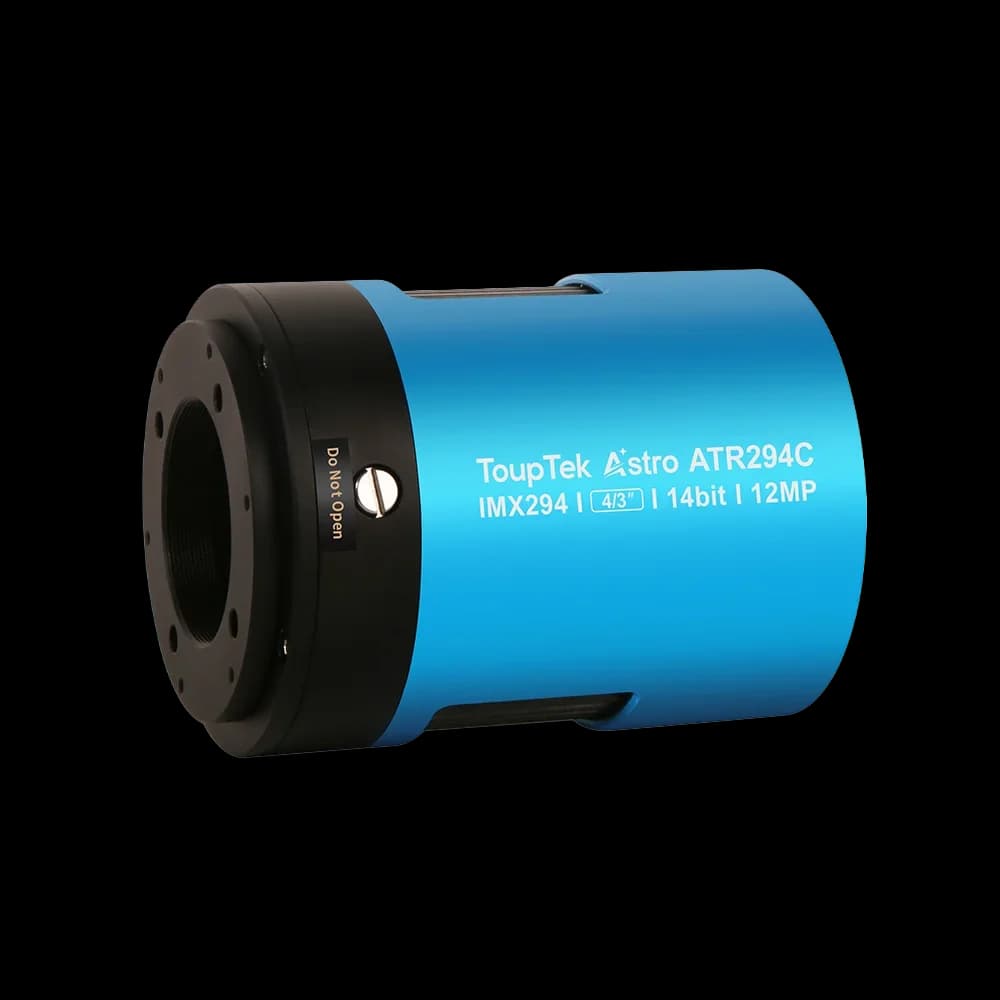

ATR294C

Sensor: Sony IMX294 color CMOS

Resolution

11.6 MP (4128 × 2808)

Pixel

4.63 µm

Frame rate

33 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT ≥42 °C

Full specifications →

ATR DSO cooled · MonochromeCurrent

ATR533M

Sensor: Sony IMX533 monochrome CMOS

Resolution

9 MP (3008 × 3008)

Pixel

3.76 µm

Frame rate

40 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT ≥45 °C

Full specifications →

ATR DSO cooled · ColorCurrent

ATR533C

Sensor: Sony IMX533 color CMOS

Resolution

9 MP (3008 × 3008)

Pixel

3.76 µm

Frame rate

40 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT ≥45 °C

Full specifications →

ATR DSO cooled · MonochromeCurrent

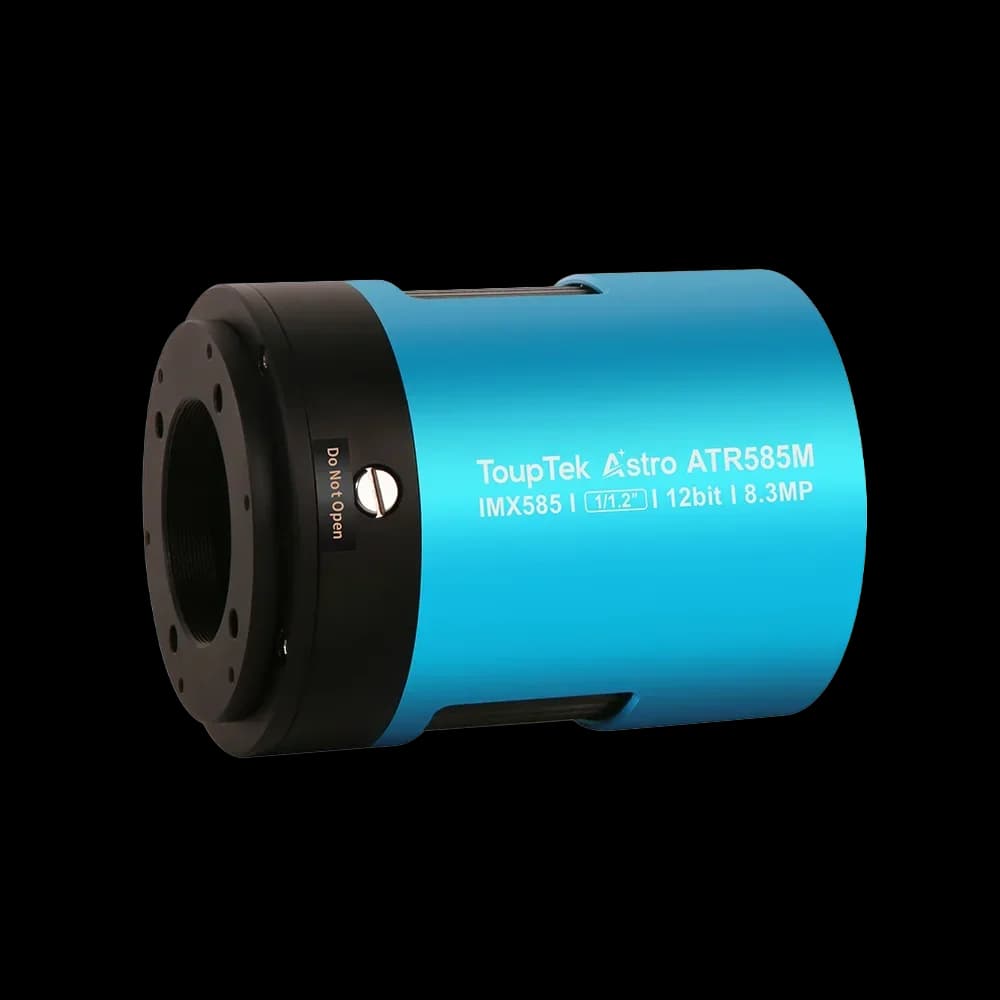

ATR585M

Sensor: Sony IMX585 monochrome CMOS

Resolution

8.3 MP (3840 × 2160)

Pixel

2.9 µm

Frame rate

47 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT ≥45 °C

Full specifications →

ATR DSO cooled · ColorCurrent

ATR585C

Sensor: Sony IMX585 color CMOS

Resolution

8.3 MP (3840 × 2160)

Pixel

2.9 µm

Frame rate

47 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT ≥45 °C

Full specifications →

ATR DSO cooled · MonochromeCurrent

ATR428M

Sensor: Sony IMX428 monochrome CMOS

Resolution

7.04 MP (3200 × 2200)

Pixel

4.5 µm

Frame rate

25.7 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT up to 45 °C

Full specifications →

ATR DSO cooled · ColorCurrent

ATR428C

Sensor: Sony IMX428 color CMOS

Resolution

7.04 MP (3200 × 2200)

Pixel

4.5 µm

Frame rate

25.7 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT up to 45 °C

Full specifications →

ATR DSO cooled · MonochromeCurrent

ATR432M

Sensor: Sony IMX432 monochrome CMOS

Resolution

1.76 MP (1600 × 1100)

Pixel

9 µm

Frame rate

128 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT ≥44 °C

Full specifications →

ATR DSO cooled · ColorCurrent

ATR432C

Sensor: Sony IMX432 color CMOS

Resolution

1.76 MP (1600 × 1100)

Pixel

9 µm

Frame rate

128 fps

Interface

USB 3.0

Cooling: Two-stage TEC, ΔT ≥44 °C

Full specifications →

Cooled astronomy cameras with USB hub · ColorCurrent

SkyEye62AC Plus

Sensor: Sony IMX455C Color CMOS

Resolution

61 MP (9568x6380)

Pixel

3.76 µm

Frame rate

6.2 fps

Interface

USB 3.0 / USB 2.0

Cooling: Dual-stage TEC, -35/-40°C

Full specifications →

Cooled astronomy cameras with USB hub · MonochromeCurrent

SkyEye62AM Plus

Sensor: Sony IMX455M Monochrome CMOS

Resolution

61 MP (9568x6380)

Pixel

3.76 µm

Frame rate

6.5 fps

Interface

USB 3.0 / USB 2.0

Cooling: Dual-stage TEC, -35/-40°C

Full specifications →

Cooled astronomy cameras with USB hub · ColorCurrent

SkyEye45AC Plus

Sensor: Sony IMX366C Color CMOS

Resolution

44.72 MP (8192x5460)

Pixel

4.40 µm

Frame rate

8.2 fps

Interface

USB 3.0 / USB 2.0

Cooling: Dual-stage TEC, -35/-40°C

Full specifications →

Cooled astronomy cameras with USB hub · ColorCurrent

SkyEye24AC Plus

Sensor: Sony IMX410C Color CMOS

Resolution

24 MP (6064x4040)

Pixel

5.94 µm

Frame rate

14.5 fps

Interface

USB 3.0 / USB 2.0

Cooling: Dual-stage TEC, -35/-40°C

Full specifications →

Cooled astronomy cameras with USB hub · ColorCurrent

SkyEye26AC Plus

Sensor: Sony IMX571C Color CMOS

Resolution

26 MP (6224x4168)

Pixel

3.76 µm

Frame rate

14.0 fps

Interface

USB 3.0 / USB 2.0

Cooling: Dual-stage TEC, -35/-43°C

Full specifications →

Cooled astronomy cameras with USB hub · MonochromeCurrent

SkyEye26AM Plus

Sensor: Sony IMX571M Monochrome CMOS

Resolution

26 MP (6224x4168)

Pixel

3.76 µm

Frame rate

14.0 fps

Interface

USB 3.0 / USB 2.0

Cooling: Dual-stage TEC, -35/-43°C

Full specifications →

Multi-purpose

2 models

AstroEye multi-purpose · ColorCurrent

AE676C

Sensor: Sony IMX676 color CMOS

Resolution

12.5 MP (3536 × 3536)

Pixel

2 µm

Frame rate

31 fps

Interface

USB 3.0 Type-C

Cooling: Single-stage TEC; detachable fan, ΔT up to 20 °C

Full specifications →

Multi-purpose astronomy cameras · MonochromeCurrent

AE676M

Sensor: Sony IMX676M Monochrome CMOS

Resolution

12.5 MP (3536x3536)

Pixel

2.0 µm

Frame rate

31 fps

Interface

USB 3.0

Cooling: Single-stage TEC: up to 5 °C below ambient without fan; up to 20 °C with magnetic fan; ±0.1 °C temperature stability. Measured at 25 °C with ventilation during long exposures.

Full specifications →

Planetary

19 models

G3M planetary / guide · ColorCurrent

G3M664C

Sensor: Sony IMX664 color CMOS

Resolution

4.1 MP (2688 × 1520)

Pixel

2.9 µm

Frame rate

91 fps

Interface

USB 3.0

Cooling: Passive cooling

Full specifications →

G3M planetary / guide · MonochromeCurrent

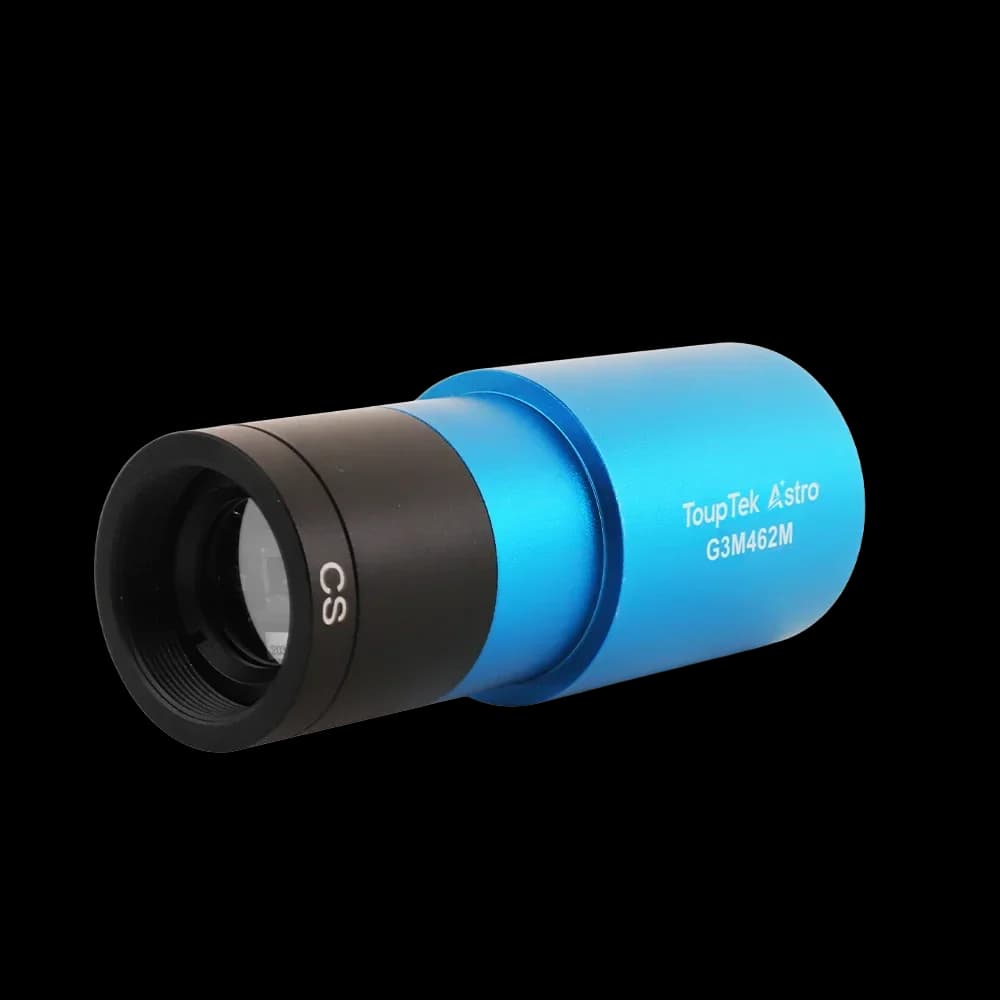

G3M462M

Sensor: Sony IMX462 monochrome CMOS

Resolution

2.1 MP (1920 × 1080)

Pixel

2.9 µm

Frame rate

152 fps

Interface

USB 3.0

Cooling: Passive cooling

Full specifications →

G3M planetary / guide · ColorCurrent

G3M462C

Sensor: Sony IMX462 color CMOS

Resolution

2.1 MP (1920 × 1080)

Pixel

2.9 µm

Frame rate

152 fps

Interface

USB 3.0

Cooling: Passive cooling

Full specifications →

G3M planetary / guide · MonochromeCurrent

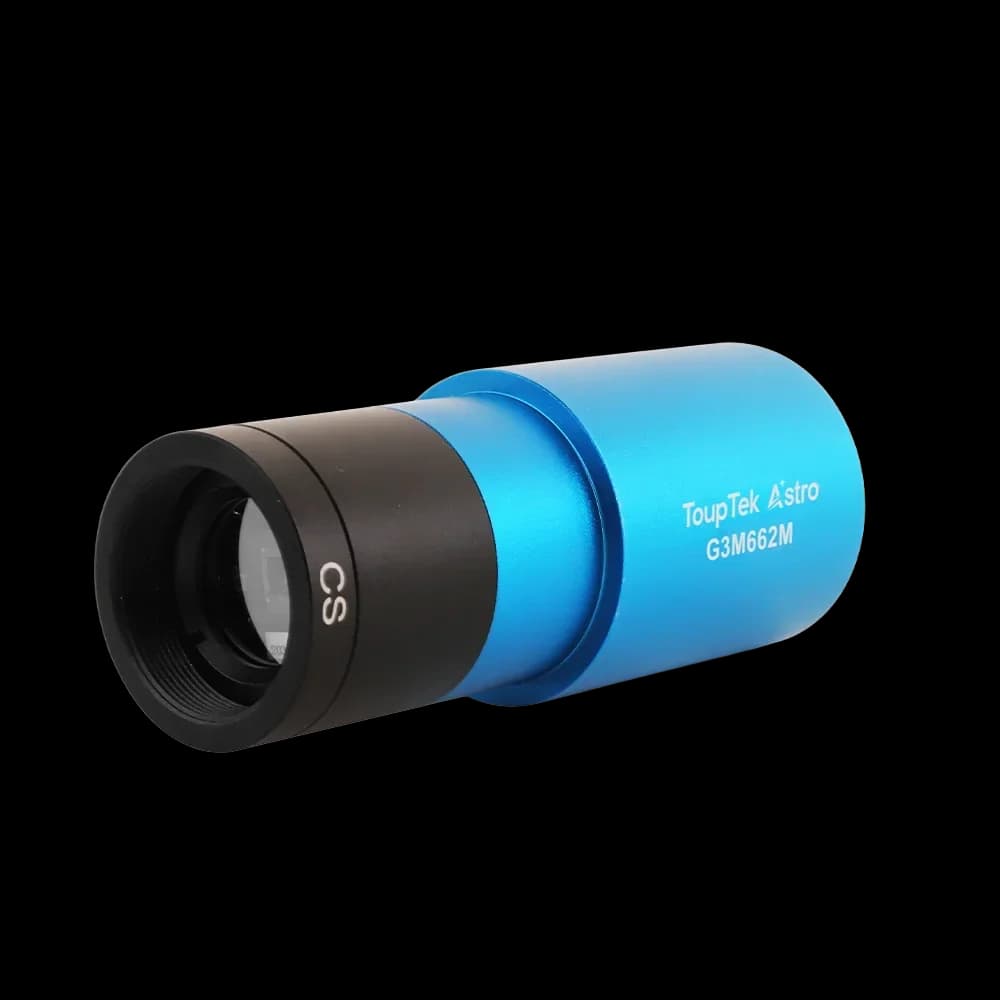

G3M662M

Sensor: Sony IMX662 monochrome CMOS

Resolution

2.1 MP (1920 × 1080)

Pixel

2.9 µm

Frame rate

107 fps

Interface

USB 3.0

Cooling: Passive cooling

Full specifications →

G3M planetary / guide · ColorCurrent

G3M662C

Sensor: Sony IMX662 color CMOS

Resolution

2.1 MP (1920 × 1080)

Pixel

2.9 µm

Frame rate

107 fps

Interface

USB 3.0

Cooling: Passive cooling

Full specifications →

G3M planetary / guide · MonochromeCurrent

G3M678M

Sensor: Sony IMX678 monochrome CMOS

Resolution

8.3 MP (3840 × 2160)

Pixel

2 µm

Frame rate

47 fps

Interface

USB 3.0

Cooling: Passive cooling

Full specifications →

G3M planetary / guide · ColorCurrent

G3M678C

Sensor: Sony IMX678 color CMOS

Resolution

8.3 MP (3840 × 2160)

Pixel

2 µm

Frame rate

47 fps

Interface

USB 3.0

Cooling: Passive cooling

Full specifications →

G3M planetary / guide · MonochromeCurrent

G3M2210M

Sensor: SmartSens SC2210 monochrome CMOS

Resolution

2.1 MP (1920 × 1080)

Pixel

4 µm

Frame rate

150 fps

Interface

USB 3.0

Cooling: Passive cooling

Full specifications →

G3M planetary / guide · ColorCurrent

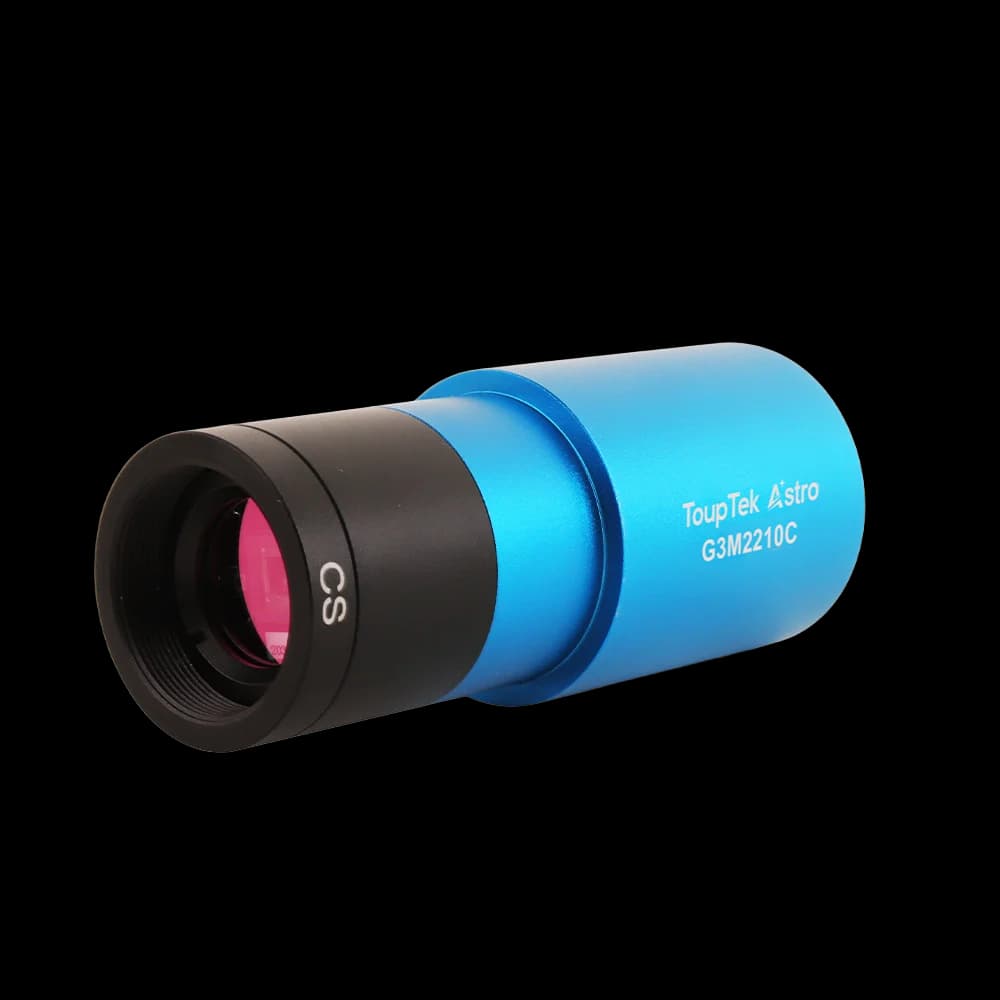

G3M2210C

Sensor: SmartSens SC2210 color CMOS

Resolution

2.1 MP (1920 × 1080)

Pixel

4 µm

Frame rate

90 fps

Interface

USB 3.0

Cooling: Passive cooling

Full specifications →

G3M planetary / guide · ColorCurrent

G3M715C

Sensor: Sony IMX715 color CMOS

Resolution

8.3 MP (3840 × 2160)

Pixel

1.45 µm

Frame rate

47 fps

Interface

USB 3.0

Cooling: Passive cooling

Full specifications →

G3M planetary / guide · MonochromeCurrent

G3M290M

Sensor: Sony IMX290 monochrome CMOS

Resolution

2.1 MP (1920 × 1080)

Pixel

2.9 µm

Frame rate

60 fps

Interface

USB 3.0

Cooling: Passive cooling

Full specifications →

G3M planetary / guide · ColorCurrent

G3M290C

Sensor: Sony IMX290 color CMOS

Resolution

2.1 MP (1920 × 1080)

Pixel

2.9 µm

Frame rate

60 fps

Interface

USB 3.0

Cooling: Passive cooling

Full specifications →

G3M planetary / guide · ColorCurrent

G3M224C

Sensor: Sony IMX224 color CMOS

Resolution

1.2 MP (1280 × 960)

Pixel

3.75 µm

Frame rate

120 fps

Interface

USB 3.0

Cooling: Passive cooling

Full specifications →

G3M planetary / guide · MonochromeCurrent

G3M178M

Sensor: Sony IMX178 monochrome CMOS

Resolution

6.2 MP (3040 × 2048)

Pixel

2.4 µm

Frame rate

58.6 fps

Interface

USB 3.0

Cooling: Passive cooling

Full specifications →

G3M planetary / guide · ColorCurrent

G3M178C

Sensor: Sony IMX178 color CMOS

Resolution

6.2 MP (3040 × 2048)

Pixel

2.4 µm

Frame rate

58.6 fps

Interface

USB 3.0

Cooling: Passive cooling

Full specifications →

G3CMOS planetary · MonochromeCurrent

G3CMOS20000KMA

Sensor: Sony IMX183 monochrome CMOS

Resolution

19.8 MP (5440 × 3648)

Pixel

2.4 µm

Frame rate

30 fps

Interface

USB 3.0

Cooling: Air-cooled

Full specifications →

G3CMOS planetary · ColorCurrent

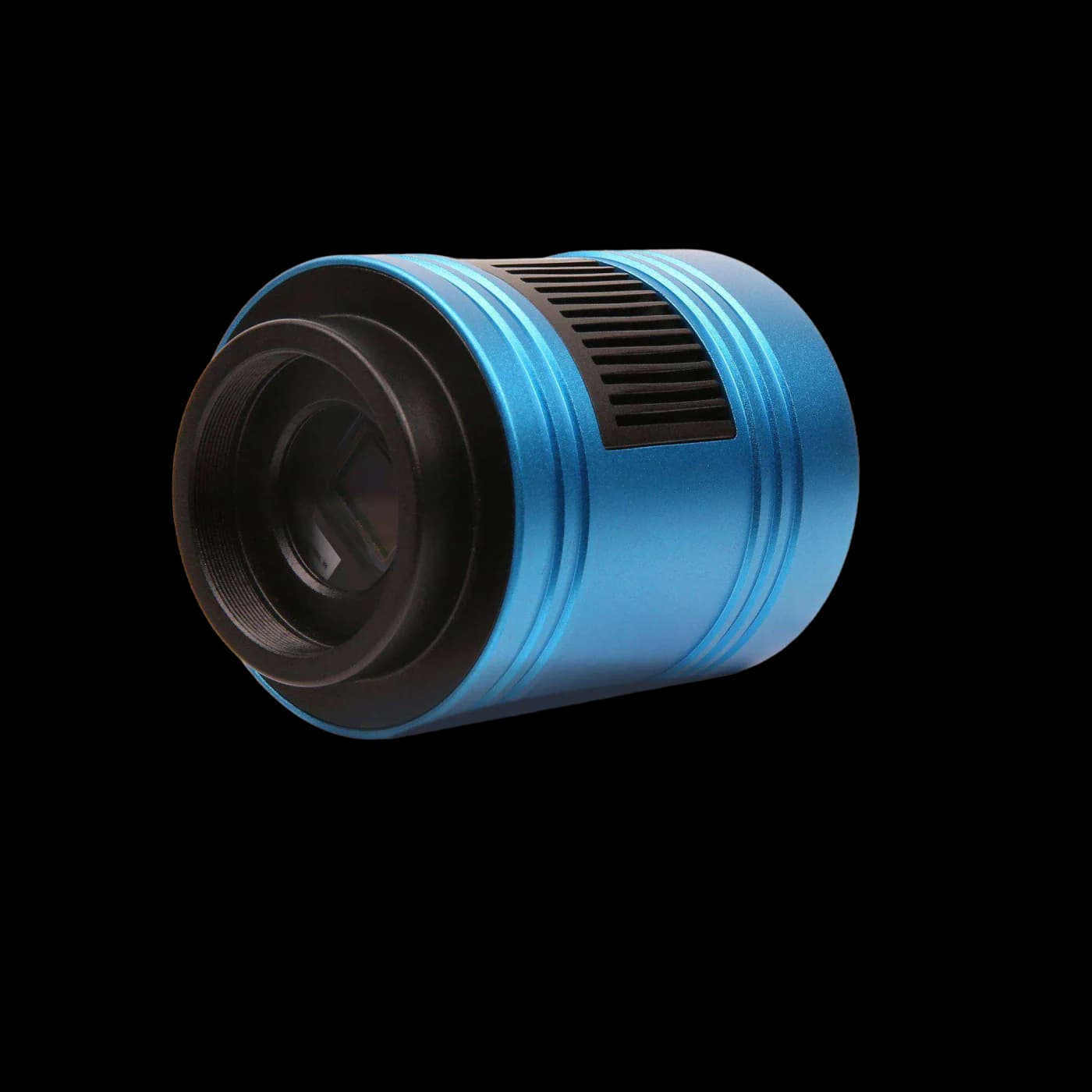

G3CMOS20000KPA

Sensor: Sony IMX183 color CMOS

Resolution

19.8 MP (5440 × 3648)

Pixel

2.4 µm

Frame rate

30 fps

Interface

USB 3.0

Cooling: Air-cooled

Full specifications →

G3CMOS planetary · ColorCurrent

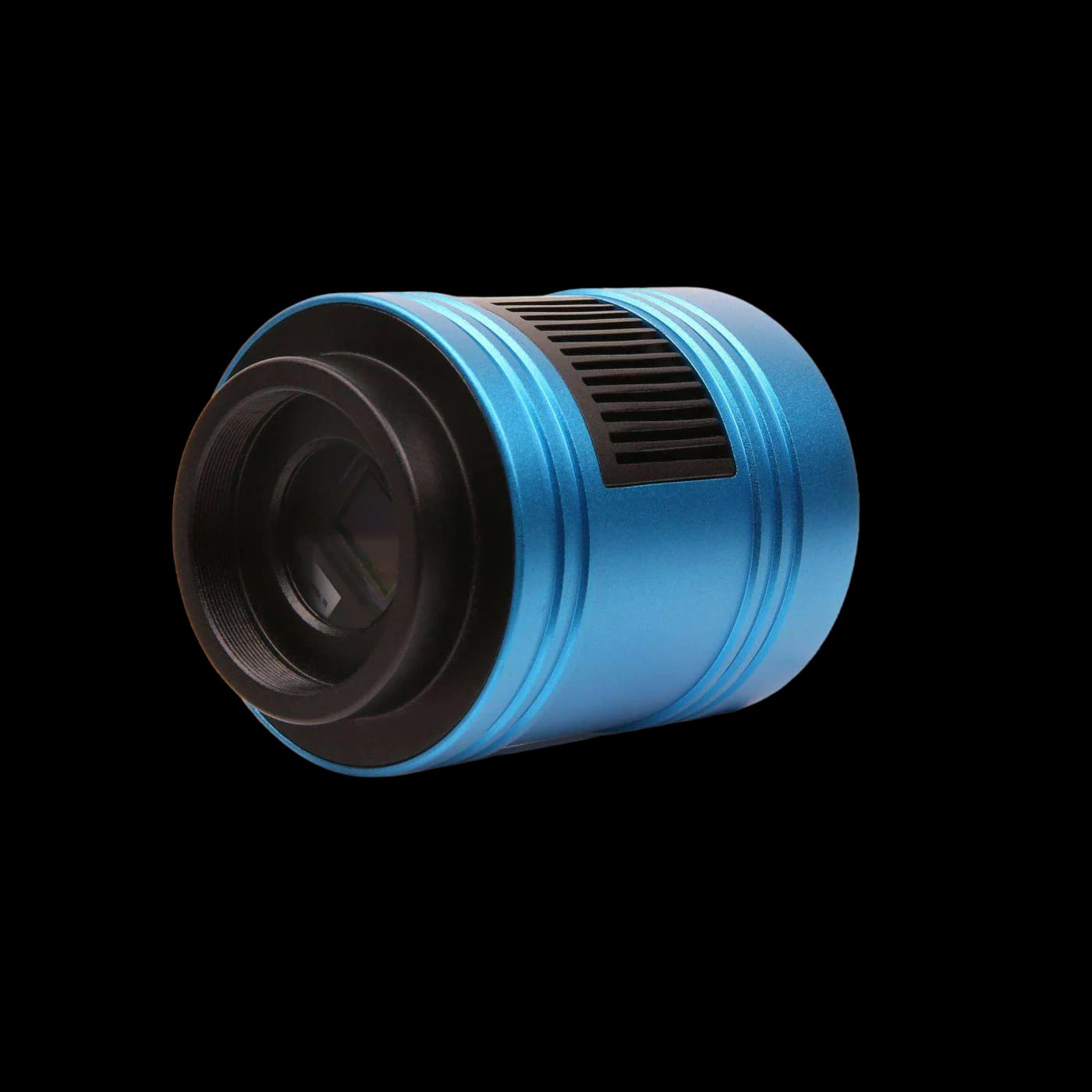

G3CMOS10300KPA

Sensor: Sony IMX294 color CMOS

Resolution

11.6 MP (4128 × 2808)

Pixel

4.63 µm

Frame rate

33 fps

Interface

USB 3.0

Cooling: Air-cooled

Full specifications →

G3CMOS planetary · ColorCurrent

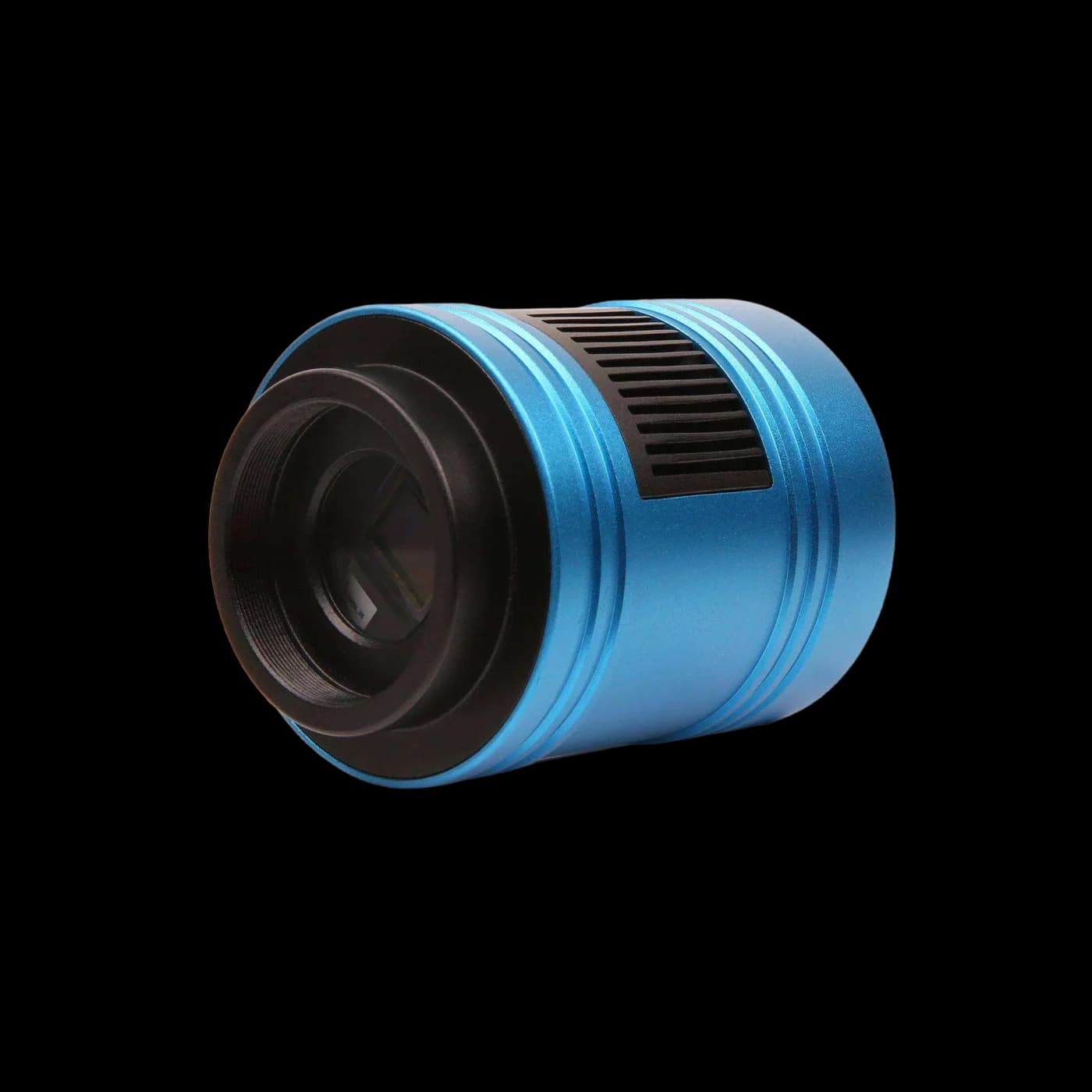

G3CMOS08300KPA

Sensor: Sony IMX585 color CMOS

Resolution

8.3 MP (3840 × 2160)

Pixel

2.9 µm

Frame rate

47 fps

Interface

USB 3.0

Cooling: Air-cooled

Full specifications →

Guide cameras

8 models

GPM guide · MonochromeCurrent

GPM662M

Sensor: Sony IMX662 monochrome CMOS

Resolution

2.1 MP (1920 × 1080)

Pixel

2.9 µm

Frame rate

17.8 fps

Interface

USB 2.0 Type-C + ST4

Cooling: Passive cooling

Full specifications →

GPM guide · ColorCurrent

GPM662C

Sensor: Sony IMX662 color CMOS

Resolution

2.1 MP (1920 × 1080)

Pixel

2.9 µm

Frame rate

17.8 fps

Interface

USB 2.0 Type-C + ST4

Cooling: Passive cooling

Full specifications →

GPM guide · MonochromeCurrent

GPM174M

Sensor: Sony IMX249 monochrome CMOS

Resolution

2.3 MP (1920 × 1200)

Pixel

5.86 µm

Frame rate

16 fps

Interface

USB 2.0 + ST4

Cooling: Passive cooling

Full specifications →

GPM guide · MonochromeDiscontinued

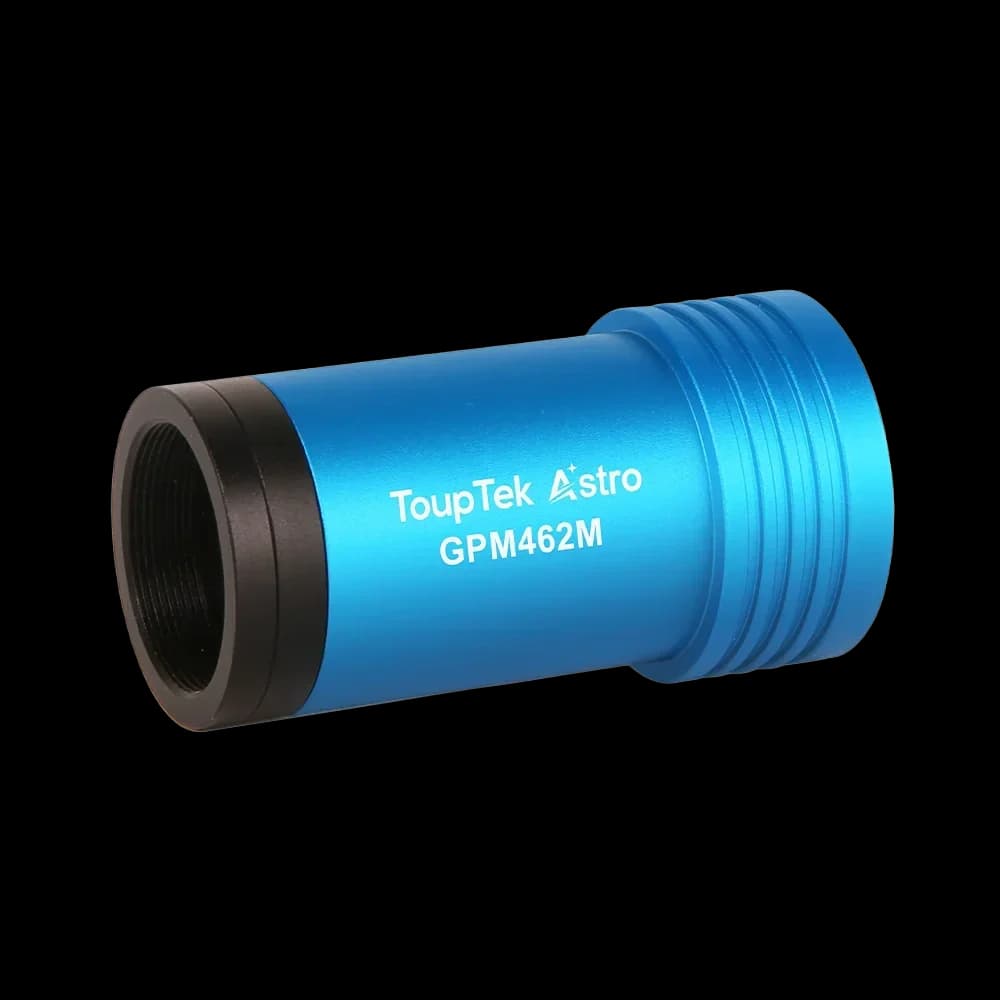

GPM462M

Sensor: Sony IMX462 monochrome CMOS

Resolution

2.1 MP (1920 × 1080)

Pixel

2.9 µm

Frame rate

17.8 fps

Interface

USB 2.0 + ST4

Cooling: Passive cooling

Full specifications →

GPM guide · ColorCurrent

GPM462C

Sensor: Sony IMX462 color CMOS

Resolution

2.1 MP (1920 × 1080)

Pixel

2.9 µm

Frame rate

17.8 fps

Interface

USB 2.0 + ST4

Cooling: Passive cooling

Full specifications →

GPCMOS guide · MonochromeDiscontinued

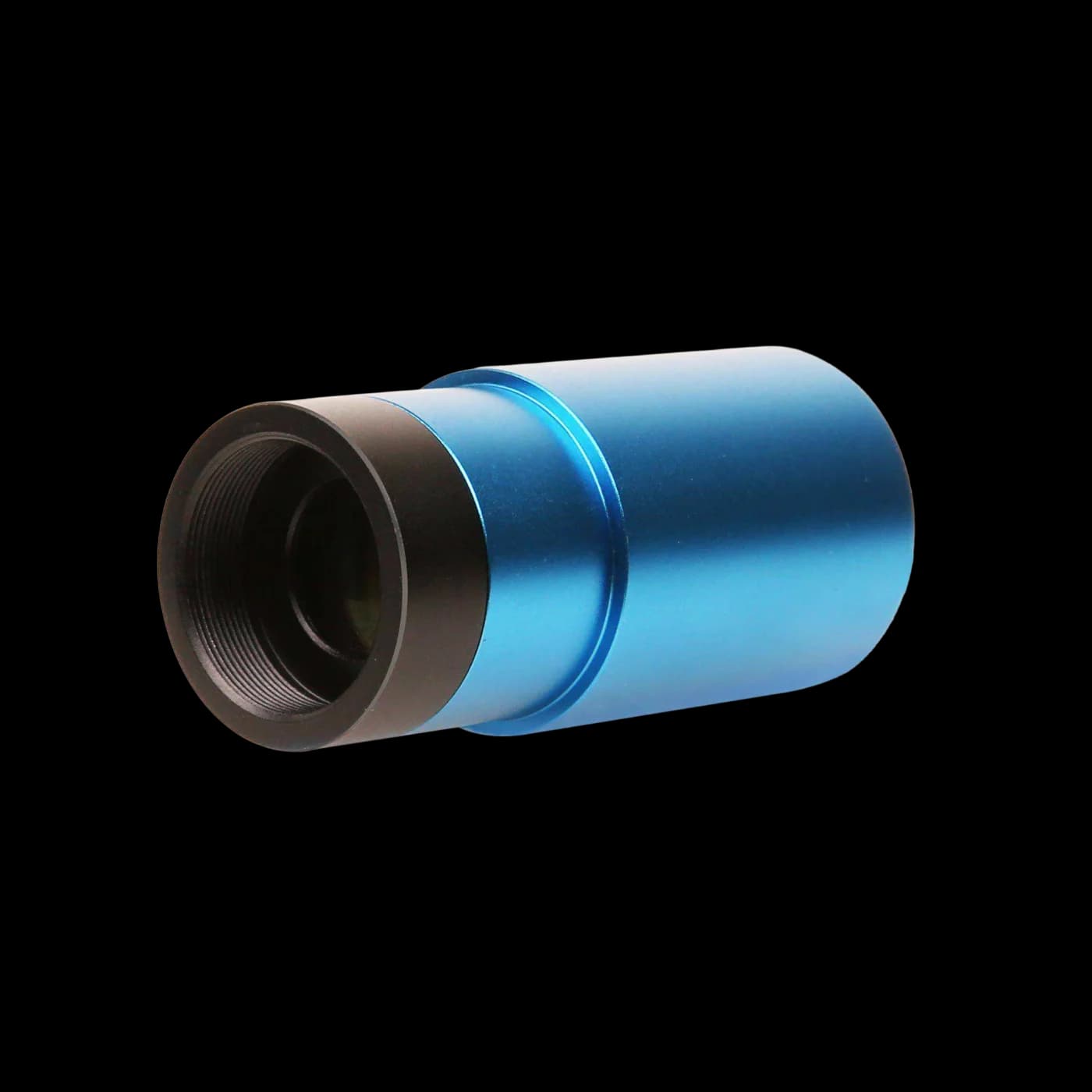

GPCMOS02000KMA

Sensor: Sony IMX290 monochrome CMOS

Resolution

2.1 MP (1920 × 1080)

Pixel

2.9 µm

Frame rate

18 fps

Interface

USB 2.0 + ST4

Cooling: Passive cooling

Full specifications →

GPCMOS guide · ColorDiscontinued

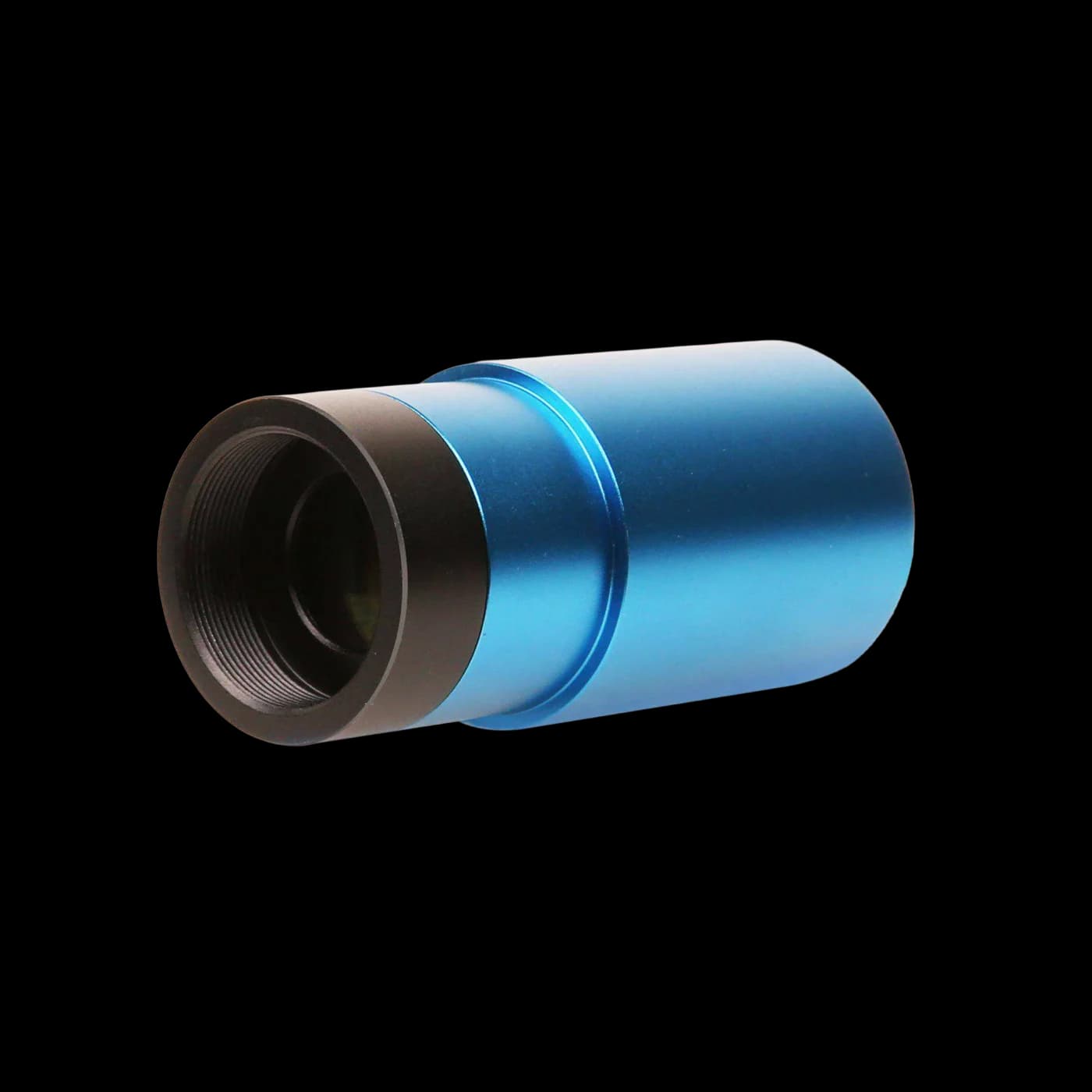

GPCMOS02000KPA

Sensor: Sony IMX290 color CMOS

Resolution

2.1 MP (1920 × 1080)

Pixel

2.9 µm

Frame rate

18 fps

Interface

USB 2.0 + ST4

Cooling: Passive cooling

Full specifications →

GPCMOS guide · ColorDiscontinued

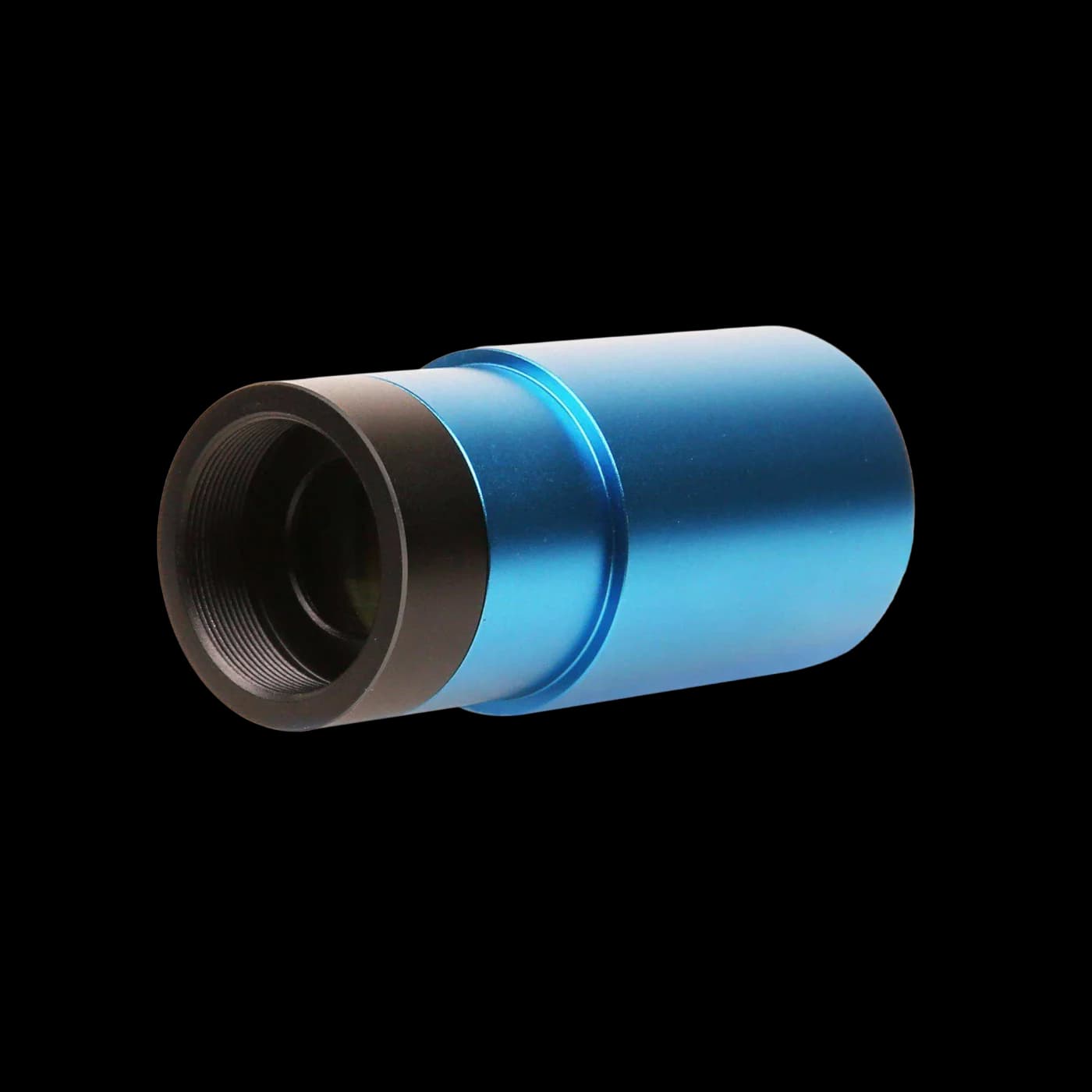

GPCMOS01200KPF

Sensor: Sony IMX225 color CMOS

Resolution

1.2 MP (1280 × 960)

Pixel

3.75 µm

Frame rate

30 fps

Interface

USB 2.0 + ST4

Cooling: Passive cooling

Full specifications →
