Monochrome · Deep-sky cooled

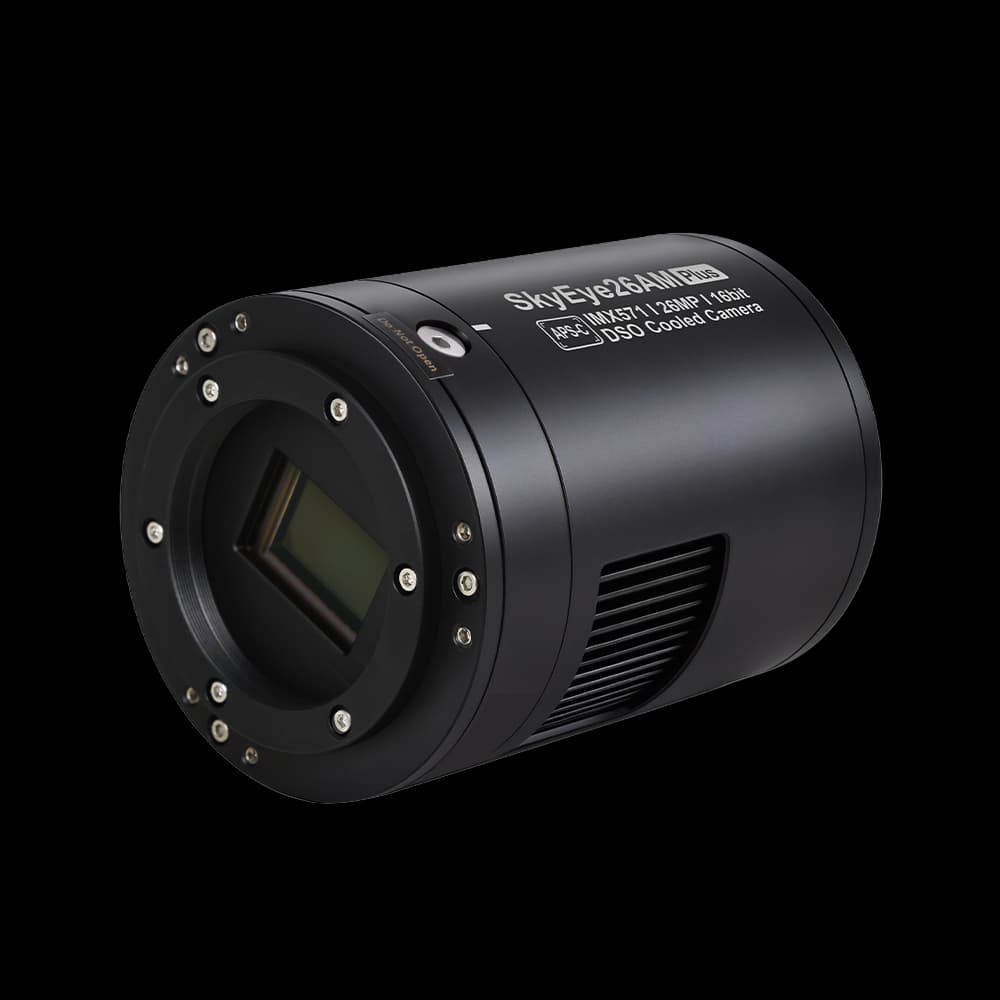

SkyEye26AM Plus
- Sensor
- Sony IMX571M Monochrome CMOS
- Sensor Type
- Monochrome CMOS
- Resolution
- 26 MP (6224x4168)
- Pixel Size
- 3.76 µm
- Frame Rate
- 14.0 fps
- Cooling
- Dual-stage TEC, -35/-43°C
Complete Specifications
Sensor & Imaging
| Sensor | Sony IMX571M Monochrome CMOS |
|---|---|
| Sensor Type | Monochrome CMOS |
| Sensor Size | 23.4x15.7mm (28.3mm) |
| Resolution | 26 MP (6224x4168) |
| Pixel Size | 3.76 µm |
| Shutter Type | Not published |
| Peak QE | >91% |
| Spectral Range | 380-1100nm |
| Sensor Diagonal | 28.3mm |
| Color Filter Array | Mono |
Performance
| Frame Rate | 14.0 fps |
|---|---|
| ADC | 16-bit |
| Dynamic Range | 87.9dB |
| Read Noise | 2.27-1.41e- (LCG); 1.16-0.77e- (HCG) |
| Full Well | 51ke- |
| Maximum ROI Frame Rate | 110.1fps |
| Maximum SNR | 47.1dB |
| Frame Buffer | 512MB |
Interface & Connectivity
| Interface | USB 3.0 / USB 2.0 |
|---|
Cooling & Mechanical
| Mount | M54×0.75 |
|---|---|
| Cooling | Dual-stage TEC, -35/-43°C |
| Power Supply | 12V/5A (3A minimum) |
| Dimensions | Φ89×117mm |
| Weight | 0.785kg |
| Back Focal Distance | 17.5/12.5mm |
| Protective Window | AR |
Other Published Specifications
| Model | SkyEye26AM Plus |
|---|---|
| Status | Current |
| Application | Deep-sky cooled |
| Accessory USB Hub | 4 × USB 2.0; 1 × USB 3.0 |
