Color · Deep-sky cooled

SkyEye62AC IMX455 61 MP color USB 3.0 astronomy camera

  • Sensor: Sony IMX455 color CMOS
  • Sensor Type: Back-illuminated full-frame color CMOS
  • Resolution: 61 MP (9568 × 6380)
  • Pixel Size: 3.76 µm
  • Frame Rate: 6.2 fps
  • Cooling: Two-stage TEC, ΔT ≥35 °C

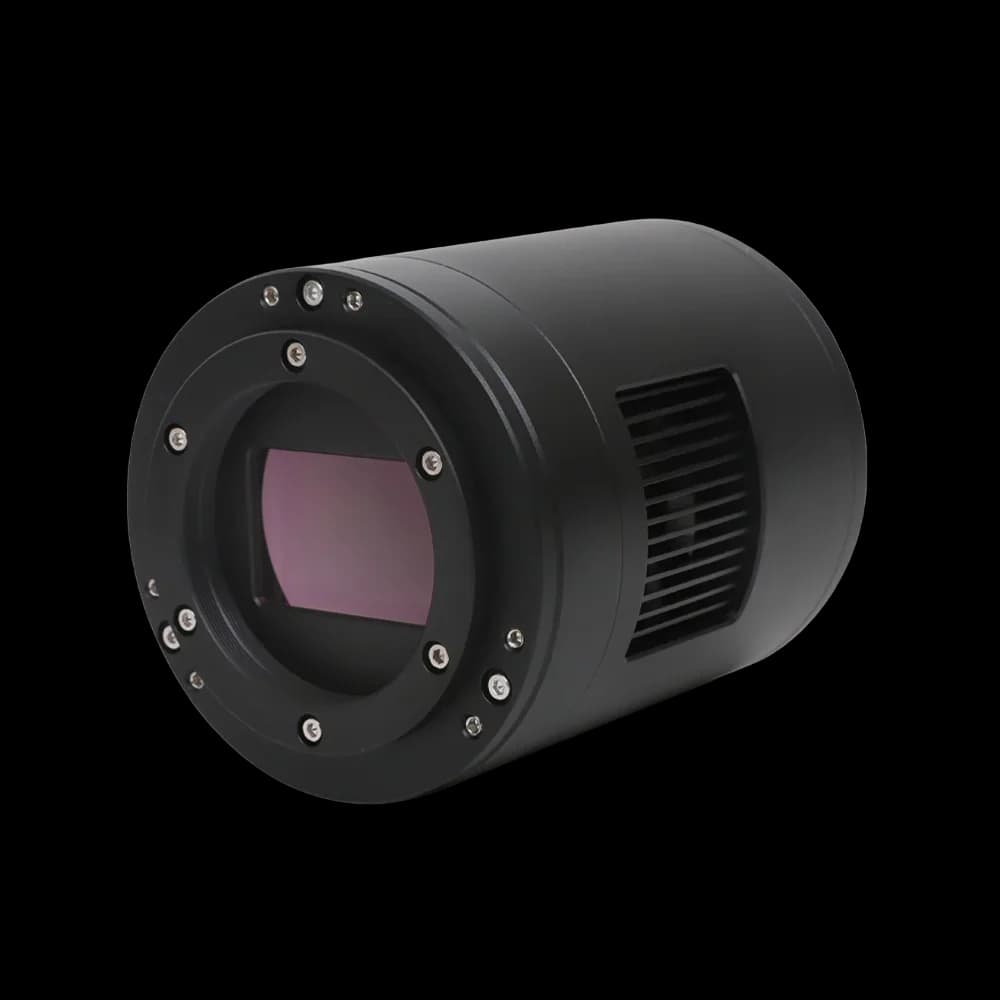

SkyEye62AC

Complete Specifications

Sensor & Imaging

Sensor & Imaging
SensorSony IMX455 color CMOS
Sensor TypeBack-illuminated full-frame color CMOS
Sensor SizeFull frame, 36 × 24 mm
Resolution61 MP (9568 × 6380)
Pixel Size3.76 µm
Shutter TypeRolling shutter
Peak QE>80%
Spectral Range380–690 nm
Sensor Diagonal43.27mm
Color Filter ArrayRGGB

Performance

Performance
Frame Rate6.2 fps
ADC16-bit
Dynamic Range85.8 dB
Read Noise2.58–0.89 e⁻
Full Well51 ke⁻
LCG Read Noise4.29 - 1.47e-
Maximum SNR47.1dB
Frame Buffer512MB
Maximum Frame Rate (USB 3.0)16-bit: 3.1 FPS @ 9568×6380 16-bit: 1.9 FPS @ 9568×6380 (Low Noise Mode) 8-bit: 6.2 FPS @ 9568×6380 8-bit: 55 FPS @ 3184×2124
Exposure Time Range0.1ms - 3600s
Gain Range1× - 150×

Interface & Connectivity

Interface & Connectivity
InterfaceUSB 3.0
Supported SystemsWindows XP/Vista/7/8/10/11 (32&64-bit) Mac OS X, Linux
SDK SupportNative C/C++, C#/VB.NET, Python Java, DirectShow, Twain, ASCOM, etc.

Cooling & Mechanical

Cooling & Mechanical
MountM42 / M54 astronomy adapters
CoolingTwo-stage TEC, ΔT ≥35 °C
Sensor Chamber WindowAdjustable heating window
Back Focal Distance17.5mm/12.5mm
Protective WindowIR/AR
Back Focus17.5mm / 12.5mm (Adjustable)
Weight713g

Other Published Specifications

Other Published Specifications
ModelSkyEye62AC
StatusCurrent
ApplicationDeep-sky cooled
Legacy Model NameSkyEye62AC

Construction details

  • Cooling assembly: Two-stage TEC, ΔT ≥35 °C.

Technical Files & Images

Technical images (3)

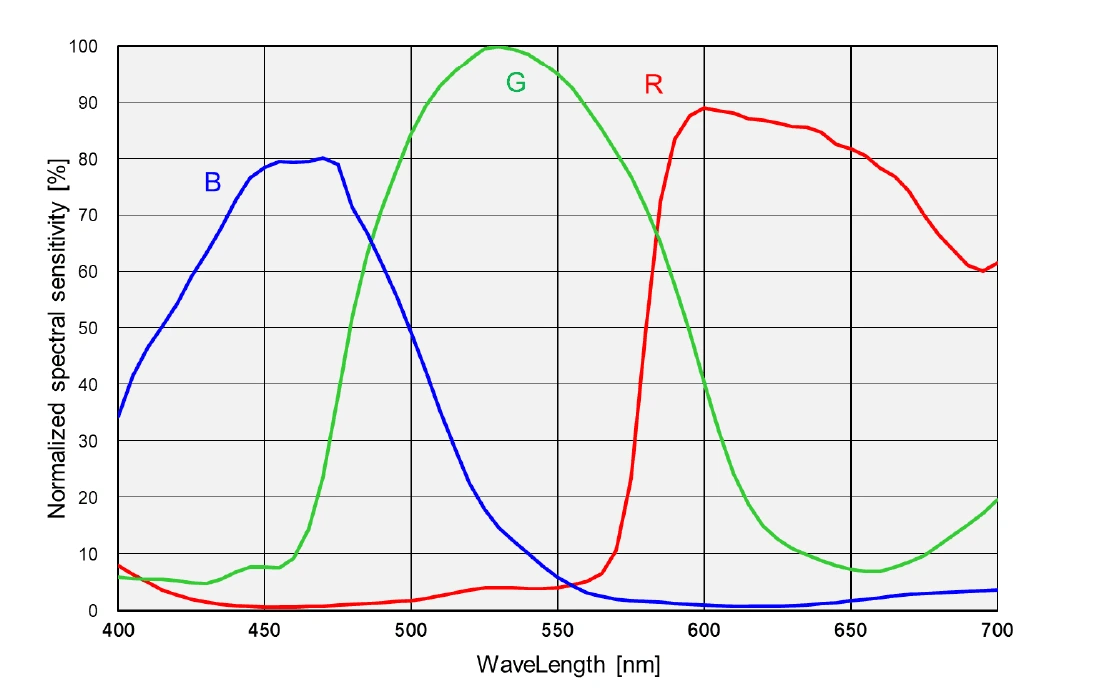

IMX455 Spectral Sensitivity Characteristics Curve
IMX455 Spectral Sensitivity Characteristics Curve

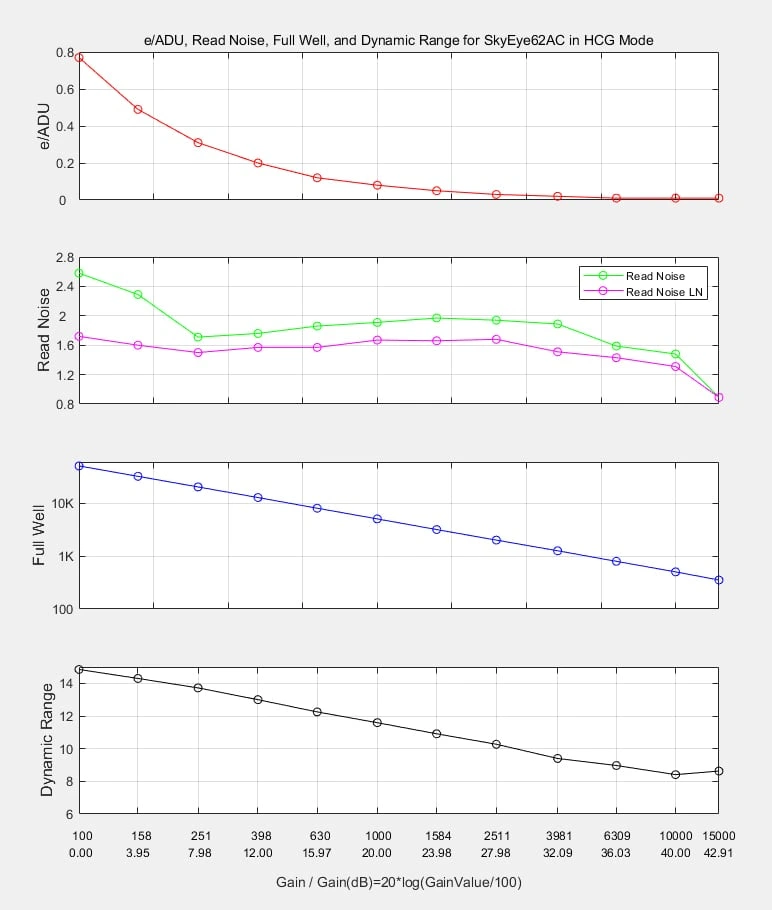

HCG Mode Performance Curve: Showing e/ADU, read noise, full well capacity, and dynamic range at different gains
HCG Mode Performance Curve: Showing e/ADU, read noise, full well capacity, and dynamic range at different gains

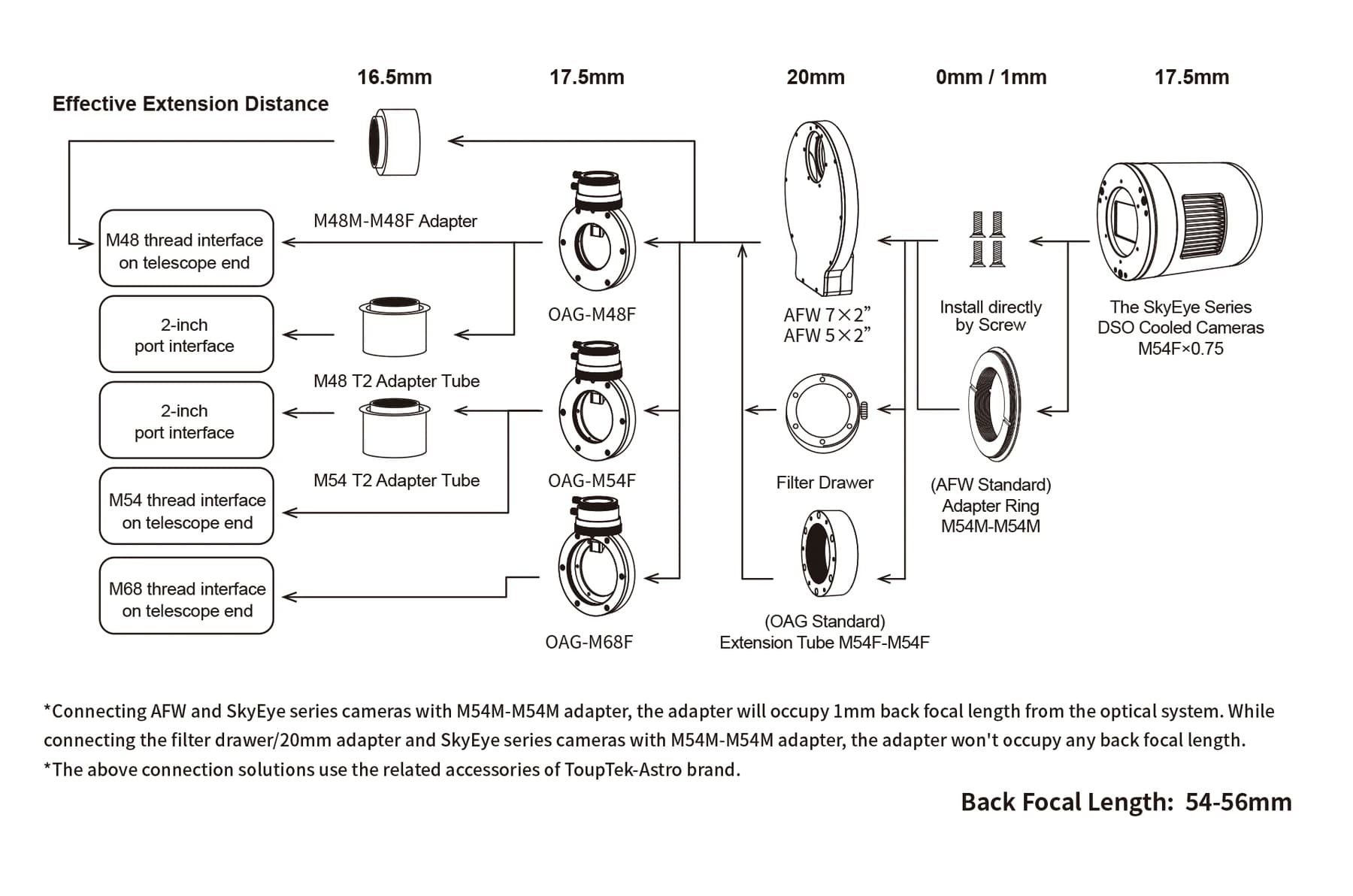

Back Focus Adjustment Diagram
Back Focus Adjustment Diagram

Ask Precisometer

Will SkyEye62AC work in your setup?

Send us your application and we’ll discuss SkyEye62AC, the connection to your optics and the software you need.

  • Your sample, microscope or lens
  • Wavelength range, exposure or frame rate
  • Computer, software and triggering requirements

You don’t need a complete specification to start. Share what you know, and we can discuss the remaining choices.

About: SkyEye62AC

We use your details to reply to this enquiry. You won’t be subscribed to marketing. Privacy policy.

Selection parameterSkyEye62AC (current)SkyEye62AMSame IMX455 sensorIUC60000KMASame IMX455 sensorIUC60000KMA-10GSame IMX455 sensor
SensorSony IMX455 color CMOSSony IMX455 monochrome CMOSSony IMX455ALKSony IMX455ALK
Image typeColorMonochromeMonochromeMonochrome
Resolution61 MP (9568 × 6380)61 MP (9568 × 6380)60.0MP (9568×6380)60.0MP (9568×6380)
Pixel size3.76 µm3.76 µm3.76 µm × 3.76 µm3.76 µm × 3.76 µm
Published QE>80%>80%——
Read noise2.58–0.89 e⁻2.8–0.9 e⁻——
Frame / line rate6.2 fps6.2 fps6.1 fps @ 9568×6380 (16-bit); 24.6 fps @ 4784×3190; 55.8 fps @ 3184×2124; 191.0 fps @ 1040×70620 fps @ 9568×6380 (16-bit); 40 fps @ 4784×3190; 57.52 fps @ 3184×2124; 199.37 fps @ 1040×706
InterfaceUSB 3.0USB 3.0USB3.010GigE
Cooling / shutterTwo-stage TEC, ΔT ≥35 °CTwo-stage TEC, ΔT ≥35 °CRolling ShutterRolling Shutter
