Color · Planetary and guide

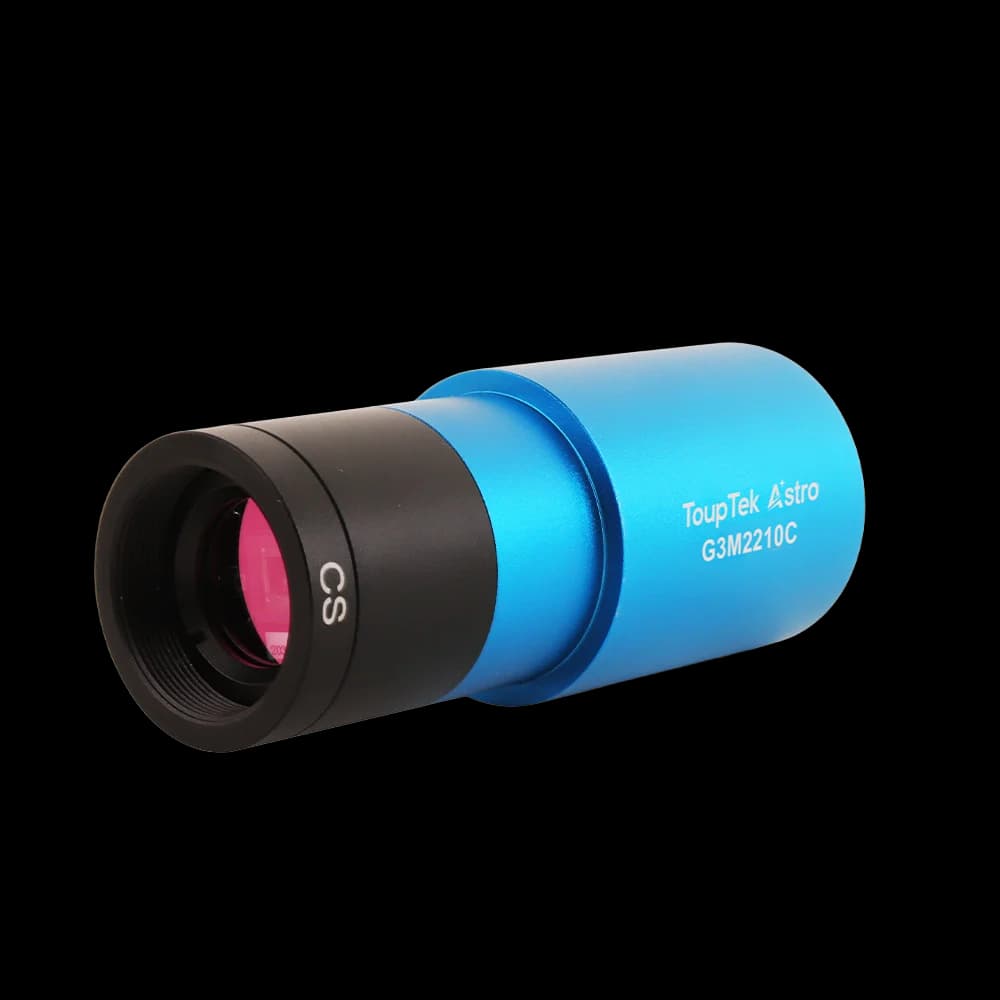

G3M2210C SC2210 2.1 MP color USB 3.0 astronomy camera

  • Sensor: SmartSens SC2210 color CMOS
  • Sensor Type: High-QE color CMOS
  • Resolution: 2.1 MP (1920 × 1080)
  • Pixel Size: 4 µm
  • Frame Rate: 90 fps
  • Cooling: Passive cooling
G3M2210C

Complete Specifications

Sensor & Imaging

Sensor & Imaging
SensorSmartSens SC2210 color CMOS
Sensor TypeHigh-QE color CMOS
Sensor Size1/1.8-inch, 7.68 × 4.32 mm
Resolution2.1 MP (1920 × 1080)
Pixel Size4 µm
Shutter TypeRolling shutter
Peak QE>92%
Spectral Range380–690 nm
Sensor Diagonal8.81mm
Color Filter ArrayRGGB

Performance

Performance
Frame Rate90 fps
ADC12-bit
Dynamic Range68.5 dB
Read Noise3.2–0.47 e⁻
Full Well8.5 ke⁻
Maximum SNR39.3dB
Frame Buffer512MB
Maximum Frame Rate150 FPS @ 1920×1080 (USB 3.0)
DDR3 Buffer512MB

Interface & Connectivity

Interface & Connectivity
InterfaceUSB 3.0
Supported OSWindows XP/Vista/7/8/10/11 Mac OS X, Linux
SDK SupportNative C/C++, C#/VB.NET, Python Java, DirectShow, Twain, etc.

Cooling & Mechanical

Cooling & Mechanical
Mount1.25-inch telescope nosepiece / C-mount
CoolingPassive cooling
Protective WindowIR/AR
Back Focus Distance17.5mm with C adapter 12.5mm with CS adapter
Camera DimensionsDiameter 37mm × Height 72.4mm
Weight70 grams

Other Published Specifications

Other Published Specifications
ModelG3M2210C
StatusCurrent
ApplicationPlanetary and guide
Camera AdapterStandard 1.25" outer diameter for telescope Standard C adapter for industrial lens

Construction details

  • Detector assembly: SmartSens SC2210 color CMOS.

Technical Files & Images

Technical images (2)
Camera Interface
Camera Interface
G3M2210C Planetary Camera Product Image
G3M2210C Planetary Camera Product Image

Ask Precisometer

Will G3M2210C work in your setup?

Send us your application and we’ll discuss G3M2210C, the connection to your optics and the software you need.

  • Your sample, microscope or lens
  • Wavelength range, exposure or frame rate
  • Computer, software and triggering requirements

You don’t need a complete specification to start. Share what you know, and we can discuss the remaining choices.

About: G3M2210C

We use your details to reply to this enquiry. You won’t be subscribed to marketing. Privacy policy.

Selection parameterG3M2210C (current)G3M2210MSame SC2210 sensorG3M178CSame G3M planetary / guide seriesG3M178MSame G3M planetary / guide series
SensorSmartSens SC2210 color CMOSSmartSens SC2210 monochrome CMOSSony IMX178 color CMOSSony IMX178 monochrome CMOS
Image typeColorMonochromeColorMonochrome
Resolution2.1 MP (1920 × 1080)2.1 MP (1920 × 1080)6.2 MP (3040 × 2048)6.2 MP (3040 × 2048)
Pixel size4 µm4 µm2.4 µm2.4 µm
Published QE>92%>92%>81%>81%
Read noise3.2–0.47 e⁻3.2–0.47 e⁻2.2–1.4 e⁻2.2–1.4 e⁻
Frame / line rate90 fps150 fps58.6 fps58.6 fps
InterfaceUSB 3.0USB 3.0USB 3.0USB 3.0
Cooling / shutterPassive coolingPassive coolingPassive coolingPassive cooling
