GPM662C IMX662 2.1 MP color astronomy camera

  • Sensor: Sony IMX662 color CMOS
  • Sensor Type: STARVIS 2 back-illuminated color CMOS
  • Resolution: 2.1 MP (1920 × 1080)
  • Pixel Size: 2.9 µm
  • Frame Rate: 17.8 fps
  • Cooling: Passive cooling

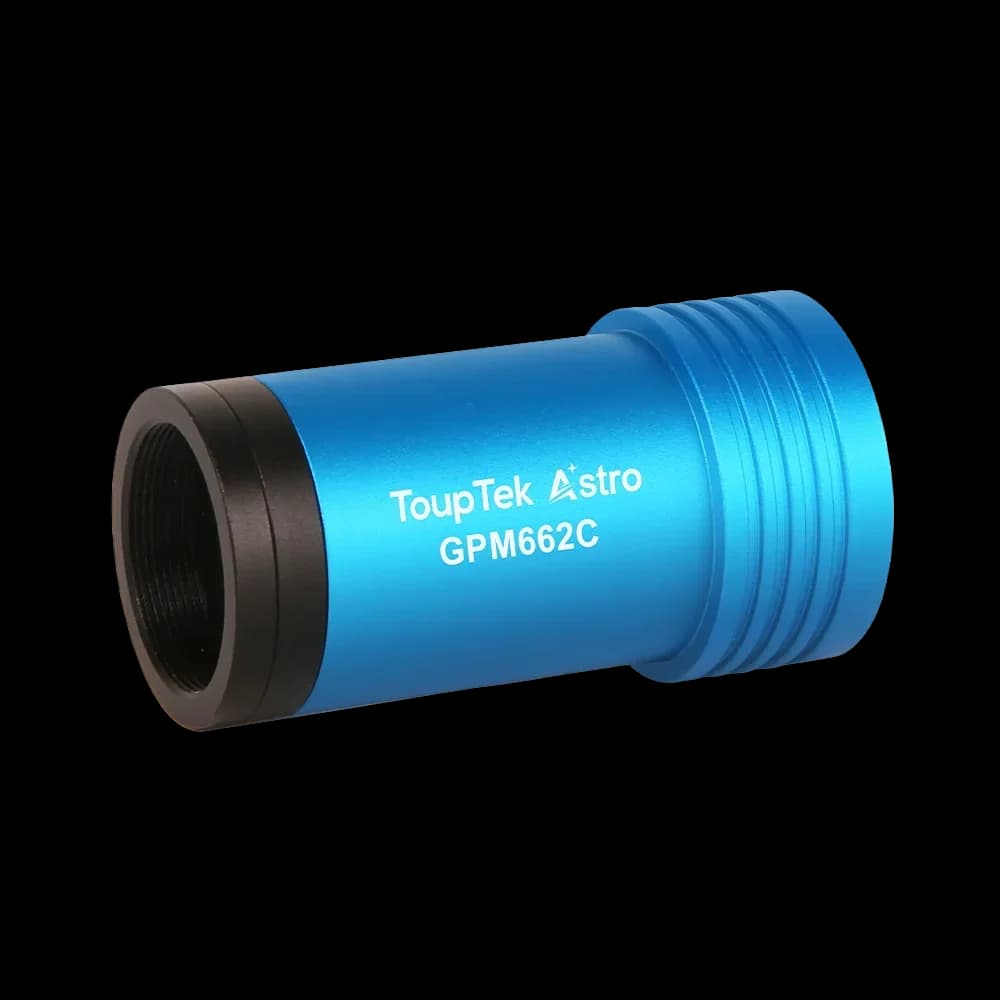

GPM662C

Complete Specifications

Sensor & Imaging

Sensor & Imaging
SensorSony IMX662 color CMOS
Sensor TypeSTARVIS 2 back-illuminated color CMOS
Sensor Size1/2.8-inch, 5.57 × 3.13 mm
Resolution2.1 MP (1920 × 1080)
Pixel Size2.9 µm
Shutter TypeRolling shutter
Peak QE>91%
Spectral Range380–690 nm
Sensor Diagonal6.45mm
Color Filter ArrayRGGB

Performance

Performance
Frame Rate17.8 fps
ADC12-bit
Dynamic Range75.2 dB
Read Noise6.81–0.48 e⁻
Full Well39.034 ke⁻
Maximum SNR45.9dB
Maximum Frame Rate (USB 2.0)12-bit: 8.9 FPS @ 1920×1080 8-bit: 17.8 FPS @ 1920×1080
Exposure Time Range0.1ms - 1000s
Gain Range1× - 150×
Frame BufferBuilt-in
Gain ModesHCG/LCG dual mode switching

Interface & Connectivity

Interface & Connectivity
InterfaceUSB 2.0 Type-C + ST4
Guide InterfaceBuilt-in ST4 autoguider port
Supported SystemsWindows XP/Vista/7/8/10/11 (32 & 64 bit) Mac OS X, Linux
SDK SupportNative C/C++, C#/VB.NET, Python Java, DirectShow, Twain, etc.

Cooling & Mechanical

Cooling & Mechanical
Mount1.25-inch telescope nosepiece / CS-mount
CoolingPassive cooling
Back Focal Distance / AdapterYes
Protective WindowIR/AR
Back Focal Distance8.5mm (17.5mm with C-mount, 12.5mm with CS-mount)
External DimensionsDiameter 37mm × Height 72.4mm
Weight65.3 grams

Other Published Specifications

Other Published Specifications
ModelGPM662C
StatusCurrent
ApplicationGuide camera
Camera AdapterStandard 1.25-inch for telescope connection Standard CS adapter for industrial lens

Technical Files & Images

Technical images (3)

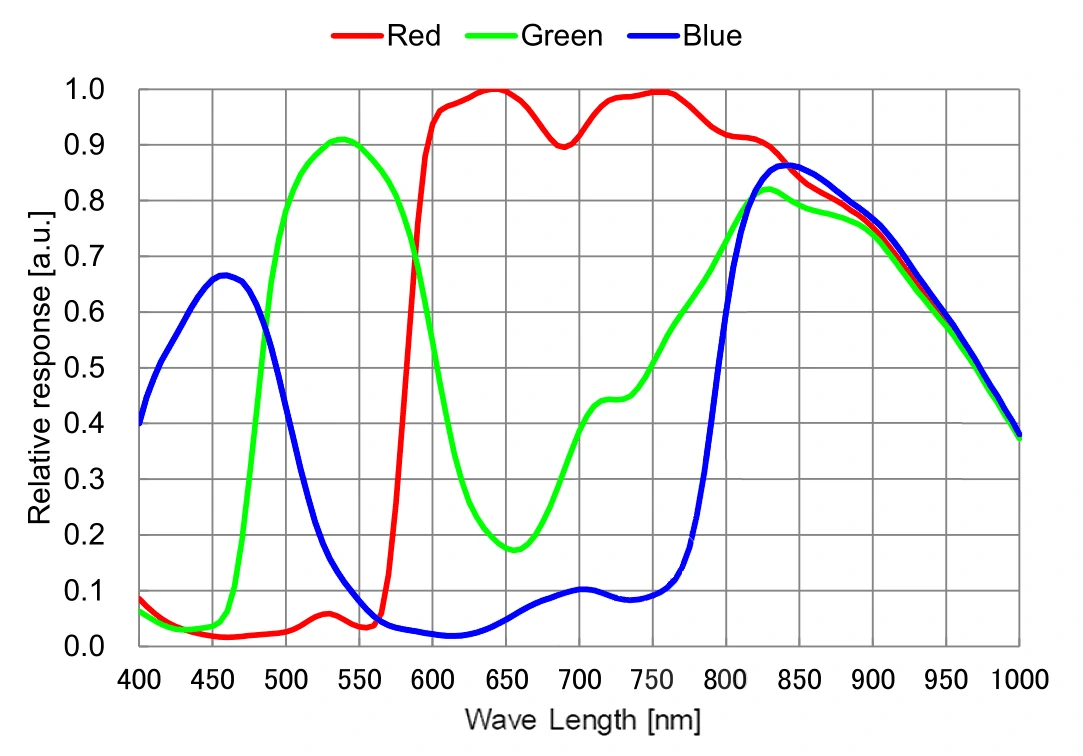

IMX662 Color Spectral Sensitivity Characteristic
IMX662 Color Spectral Sensitivity Characteristic
LCG Mode Performance Curve - e/ADU, Read Noise, Full Well and Dynamic Range
LCG Mode Performance Curve - e/ADU, Read Noise, Full Well and Dynamic Range
ST4 Guide Interface
ST4 Guide Interface

Ask Precisometer

Will GPM662C work in your setup?

Send us your application and we’ll discuss GPM662C, the connection to your optics and the software you need.

  • Your sample, microscope or lens
  • Wavelength range, exposure or frame rate
  • Computer, software and triggering requirements

You don’t need a complete specification to start. Share what you know, and we can discuss the remaining choices.

About: GPM662C

We use your details to reply to this enquiry. You won’t be subscribed to marketing. Privacy policy.

Selection parameterGPM662C (current)GPM662MSame IMX662 sensorG3M662CSame IMX662 sensorG3M662MSame IMX662 sensor
SensorSony IMX662 color CMOSSony IMX662 monochrome CMOSSony IMX662 color CMOSSony IMX662 monochrome CMOS
Image typeColorMonochromeColorMonochrome
Resolution2.1 MP (1920 × 1080)2.1 MP (1920 × 1080)2.1 MP (1920 × 1080)2.1 MP (1920 × 1080)
Pixel size2.9 µm2.9 µm2.9 µm2.9 µm
Published QE>91%>91%>91%>91%
Read noise6.81–0.48 e⁻5.86–0.4 e⁻5.35–0.46 e⁻5.08–0.47 e⁻
Frame / line rate17.8 fps17.8 fps107 fps107 fps
InterfaceUSB 2.0 Type-C + ST4USB 2.0 Type-C + ST4USB 3.0USB 3.0
Cooling / shutterPassive coolingPassive coolingPassive coolingPassive cooling
Compare all IMX662 cameras
