Monochrome · Guide camera

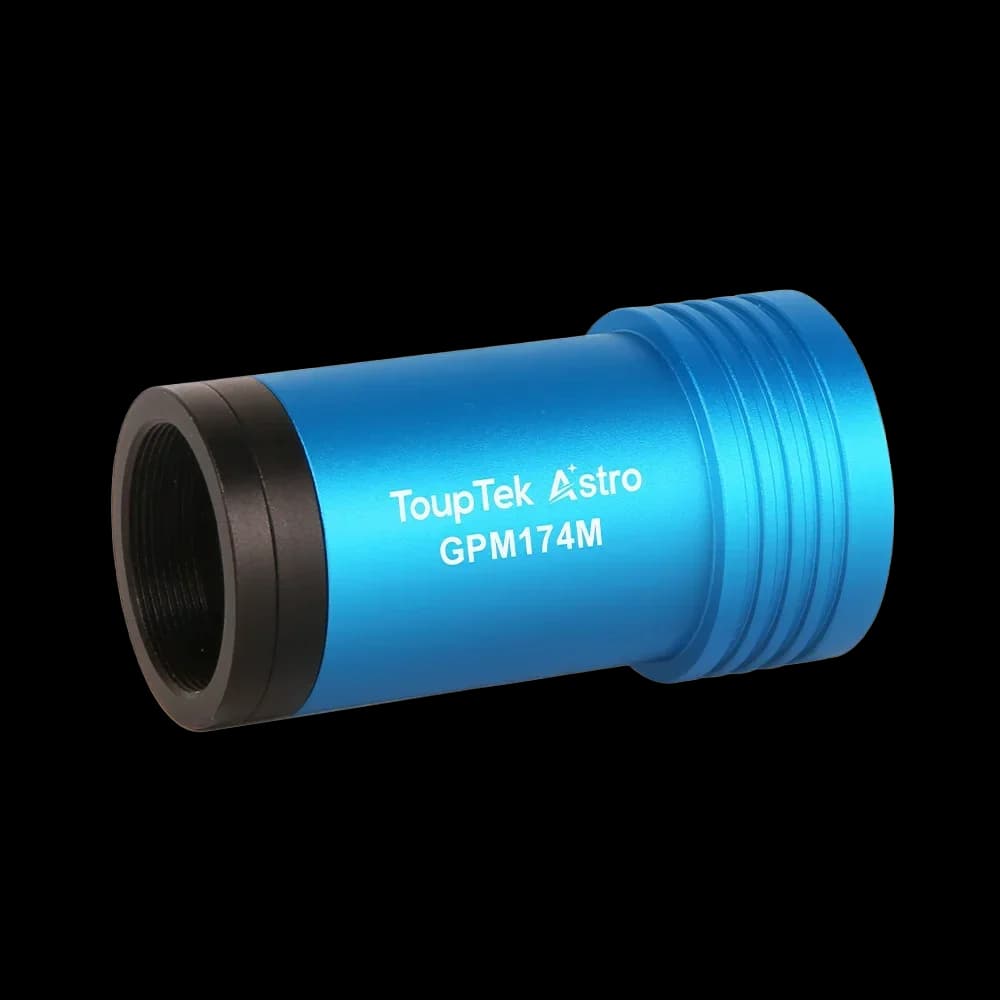

GPM174M IMX249 2.3 MP monochrome astronomy camera

  • Sensor: Sony IMX249 monochrome CMOS
  • Sensor Type: Pregius global-shutter monochrome CMOS
  • Resolution: 2.3 MP (1920 × 1200)
  • Pixel Size: 5.86 µm
  • Frame Rate: 16 fps
  • Cooling: Passive cooling
GPM174M

Complete Specifications

Sensor & Imaging

Sensor & Imaging
SensorSony IMX249 monochrome CMOS
Sensor TypePregius global-shutter monochrome CMOS
Sensor Size1/1.2-inch, 11.3 × 7.03 mm
Resolution2.3 MP (1920 × 1200)
Pixel Size5.86 µm
Shutter TypeGlobal shutter
Peak QE>89%
Spectral Range380–1100 nm
Sensor Diagonal13.31mm
Color Filter ArrayRGGB

Performance

Performance
Frame Rate16 fps
ADC12-bit
Dynamic Range72 dB
Read Noise6.48–3.96 e⁻
Full Well33.4 ke⁻
Maximum SNR45dB
Maximum Frame Rate (USB 2.0)12-bit: 8.5 FPS @ 1920×1200 8-bit: 16.2 FPS @ 1920×1200
Exposure Time Range0.42ms - 1000s
Gain Range1× - 480×
Frame BufferBuilt-in

Interface & Connectivity

Interface & Connectivity
InterfaceUSB 2.0 + ST4
Guide InterfaceBuilt-in ST4 autoguider port
Supported SystemsWindows XP/Vista/7/8/10 (32 & 64 bit) Mac OS X, Linux
SDK SupportNative C/C++, C#/VB.NET, Python Java, DirectShow, Twain, etc.

Cooling & Mechanical

Cooling & Mechanical
Mount1.25-inch telescope nosepiece / CS-mount
CoolingPassive cooling
Back Focal Distance / AdapterYes
Protective WindowIR/AR
Back Focal Distance8.5mm (17.5mm with C-mount, 12.5mm with CS-mount)
External DimensionsDiameter 37mm × Height 72.4mm
Weight70 grams

Other Published Specifications

Other Published Specifications
ModelGPM174M
StatusCurrent
ApplicationGuide camera
Camera AdapterStandard 1.25-inch for telescope connection Standard C adapter for industrial lens

Construction details

  • Detector assembly: Sony IMX249 monochrome CMOS.

Technical Files & Images

Technical images (3)

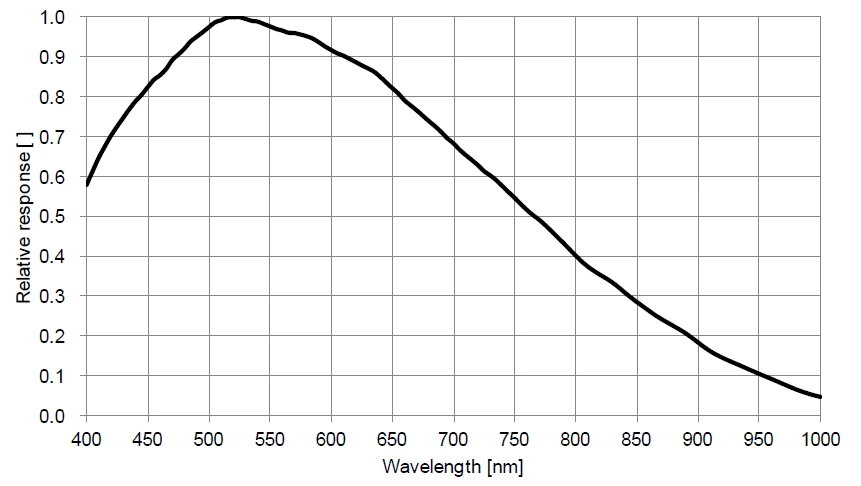

IMX249 Monochrome Spectral Sensitivity Characteristic
IMX249 Monochrome Spectral Sensitivity Characteristic

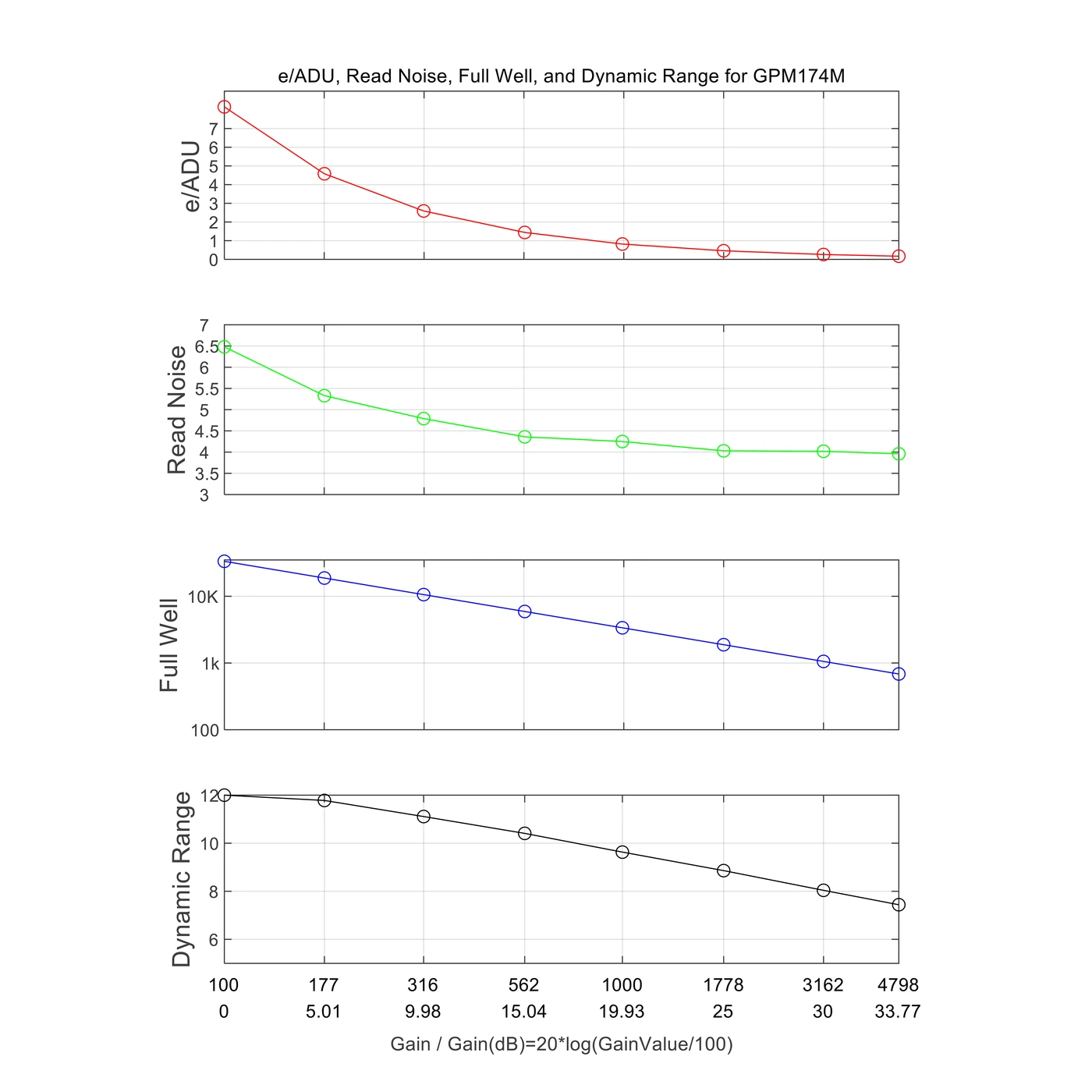

Performance Curve - e/ADU, Read Noise, Full Well and Dynamic Range
Performance Curve - e/ADU, Read Noise, Full Well and Dynamic Range

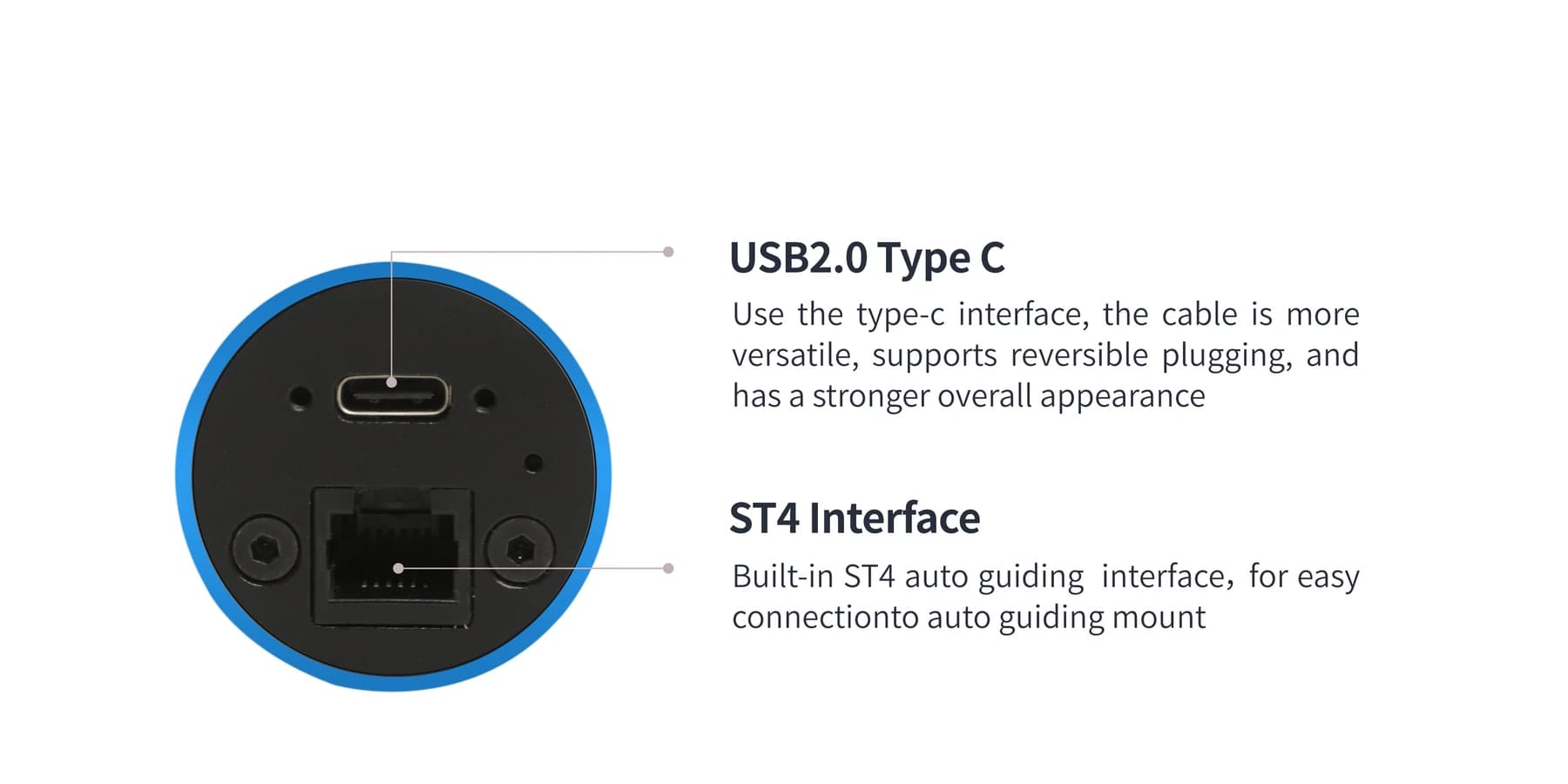

ST4 Guide Interface
ST4 Guide Interface

Ask Precisometer

Will GPM174M work in your setup?

Send us your application and we’ll discuss GPM174M, the connection to your optics and the software you need.

  • Your sample, microscope or lens
  • Wavelength range, exposure or frame rate
  • Computer, software and triggering requirements

You don’t need a complete specification to start. Share what you know, and we can discuss the remaining choices.

About: GPM174M

We use your details to reply to this enquiry. You won’t be subscribed to marketing. Privacy policy.

Selection parameterGPM174M (current)E3CMOS02300KPBSame IMX249 sensorI3CMOS02300KMBSame IMX249 sensorI3ISPM02300KPBSame IMX249 sensor
SensorSony IMX249 monochrome CMOSIMX249 (C,GS)Sony IMX249LLJSony IMX249LQJ
Image typeMonochromeColorMonochromeColor
Resolution2.3 MP (1920 × 1200)2.3M (1920×1200)2.3 MP (1920×1200)2.3 MP (1920×1200)
Pixel size5.86 µm5.86 µm × 5.86 µm5.86 µm × 5.86 µm5.86 µm × 5.86 µm
Published QE>89%———
Read noise6.48–3.96 e⁻———
Frame / line rate16 fps30 fps @ 1920×120030 fps @ 1920×120030 fps @ 1920×1200
InterfaceUSB 2.0 + ST4USB3.0USB3.0USB3.0
Cooling / shutterPassive coolingGlobal ShutterGlobal ShutterGlobal Shutter
Compare all IMX249 cameras
