Color · Guide camera

GPM462C IMX462 2.1 MP color astronomy camera

  • Sensor: Sony IMX462 color CMOS
  • Sensor Type: Back-illuminated color CMOS
  • Resolution: 2.1 MP (1920 × 1080)
  • Pixel Size: 2.9 µm
  • Frame Rate: 17.8 fps
  • Cooling: Passive cooling

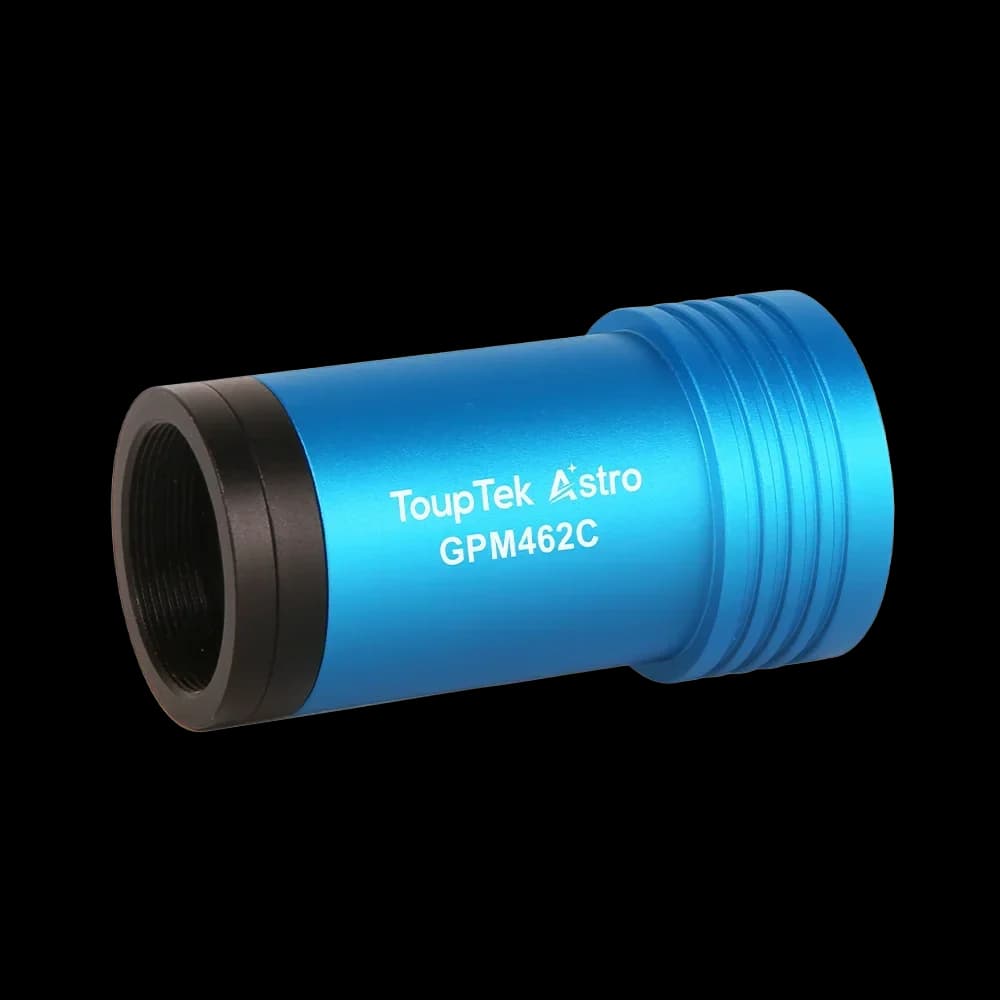

GPM462C

Complete Specifications

Sensor & Imaging

Sensor & Imaging
SensorSony IMX462 color CMOS
Sensor TypeBack-illuminated color CMOS
Sensor Size1/2.8-inch, 5.57 × 3.13 mm
Resolution2.1 MP (1920 × 1080)
Pixel Size2.9 µm
Shutter TypeRolling shutter
Peak QE>89%
Spectral Range380–690 nm
Sensor Diagonal6.39mm
Color Filter ArrayRGGB

Performance

Performance
Frame Rate17.8 fps
ADC12-bit
Dynamic Range74.1 dB
Read Noise2.4–0.76 e⁻
Full Well12.7 ke⁻
Maximum SNR41dB
Maximum Frame Rate (USB 2.0)12-bit: 8.9 FPS @ 1920×1080 8-bit: 17.8 FPS @ 1920×1080
Exposure Time Range0.1ms - 1000s
Gain Range1× - 500×
Frame BufferBuilt-in
Gain ModesHCG/LCG dual mode switching

Interface & Connectivity

Interface & Connectivity
InterfaceUSB 2.0 + ST4
Guide InterfaceBuilt-in ST4 autoguider port
Supported SystemsWindows XP/Vista/7/8/10 (32 & 64 bit) Mac OS X, Linux
SDK SupportNative C/C++, C#/VB.NET, Python Java, DirectShow, Twain, etc.

Cooling & Mechanical

Cooling & Mechanical
Mount1.25-inch telescope nosepiece / CS-mount
CoolingPassive cooling
Back Focal Distance / AdapterYes
Protective WindowIR/AR
Back Focal Distance8.5mm (17.5mm with C-mount, 12.5mm with CS-mount)
External DimensionsDiameter 37mm × Height 72.4mm
Weight70 grams

Other Published Specifications

Other Published Specifications
ModelGPM462C
StatusCurrent
ApplicationGuide camera
Camera AdapterStandard 1.25-inch for telescope connection Standard C adapter for industrial lens

Technical Files & Images

Technical images (3)

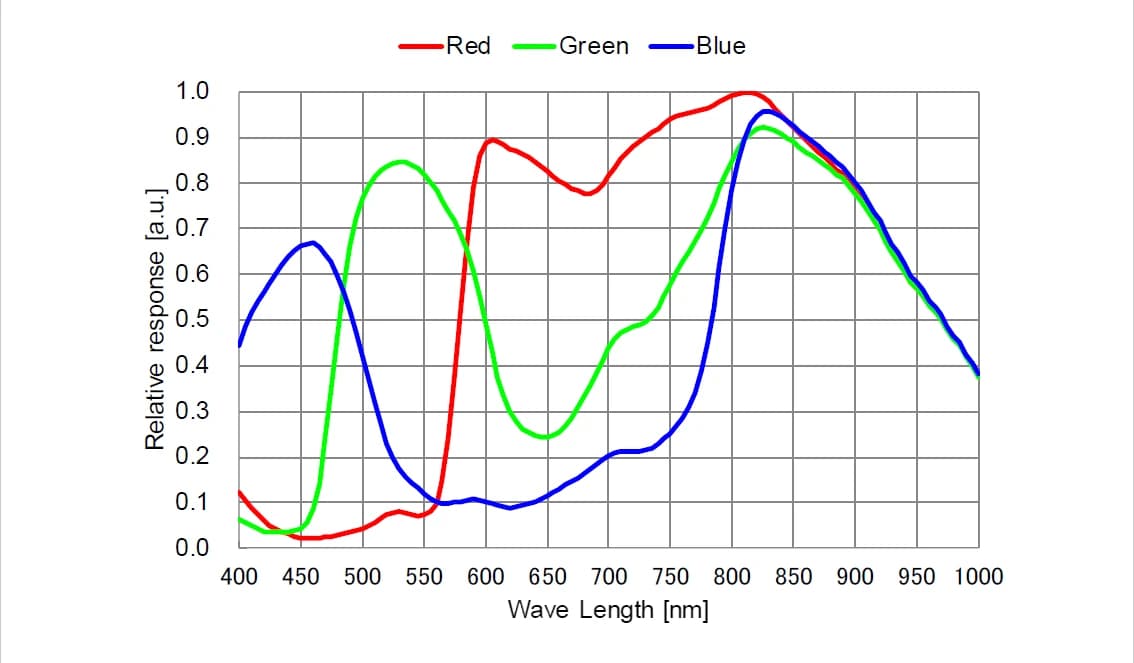

IMX462 Color Spectral Sensitivity Characteristic
IMX462 Color Spectral Sensitivity Characteristic

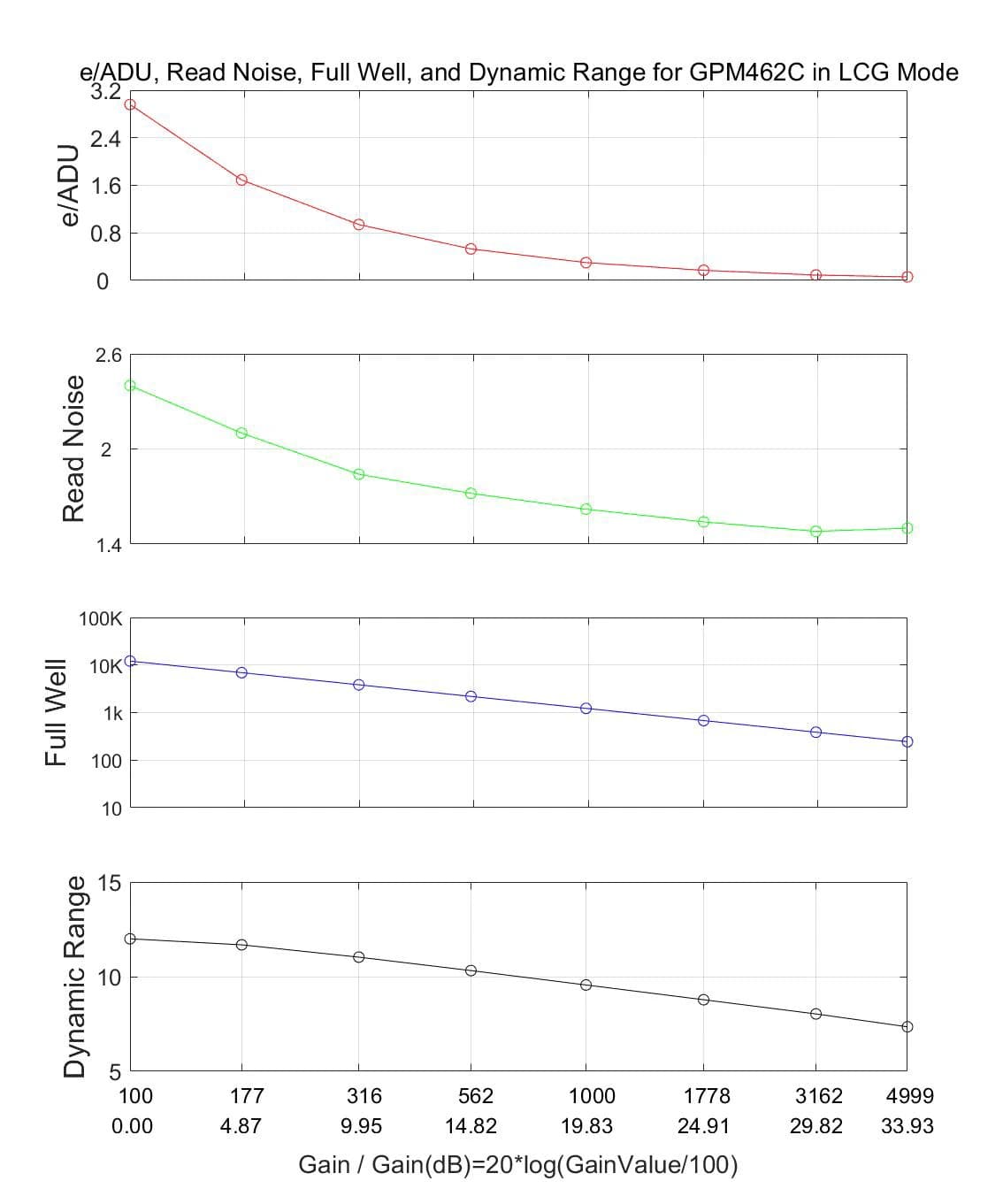

LCG Mode Performance Curve - e/ADU, Read Noise, Full Well and Dynamic Range
LCG Mode Performance Curve - e/ADU, Read Noise, Full Well and Dynamic Range
ST4 Guide Interface
ST4 Guide Interface

Ask Precisometer

Will GPM462C work in your setup?

Send us your application and we’ll discuss GPM462C, the connection to your optics and the software you need.

  • Your sample, microscope or lens
  • Wavelength range, exposure or frame rate
  • Computer, software and triggering requirements

You don’t need a complete specification to start. Share what you know, and we can discuss the remaining choices.

About: GPM462C

We use your details to reply to this enquiry. You won’t be subscribed to marketing. Privacy policy.

Selection parameterGPM462C (current)GPM462MSame IMX462 sensorAFDM101 (Discontinued)Same IMX462 sensorG3M462CSame IMX462 sensor
SensorSony IMX462 color CMOSSony IMX462 monochrome CMOSSony IMX462LQR-CSony IMX462 color CMOS
Image typeColorMonochromeColorColor
Resolution2.1 MP (1920 × 1080)2.1 MP (1920 × 1080)2MP (1920×1080)2.1 MP (1920 × 1080)
Pixel size2.9 µm2.9 µm2.9 µm × 2.9 µm2.9 µm
Published QE>89%>89%—>89%
Read noise2.4–0.76 e⁻2.61–0.76 e⁻—2.1–0.49 e⁻
Frame / line rate17.8 fps17.8 fpsHDMI: 60 fps@1920×1080152 fps
InterfaceUSB 2.0 + ST4USB 2.0 + ST4HDMI1.4, USB2.0USB 3.0
Cooling / shutterPassive coolingPassive coolingRolling ShutterPassive cooling
