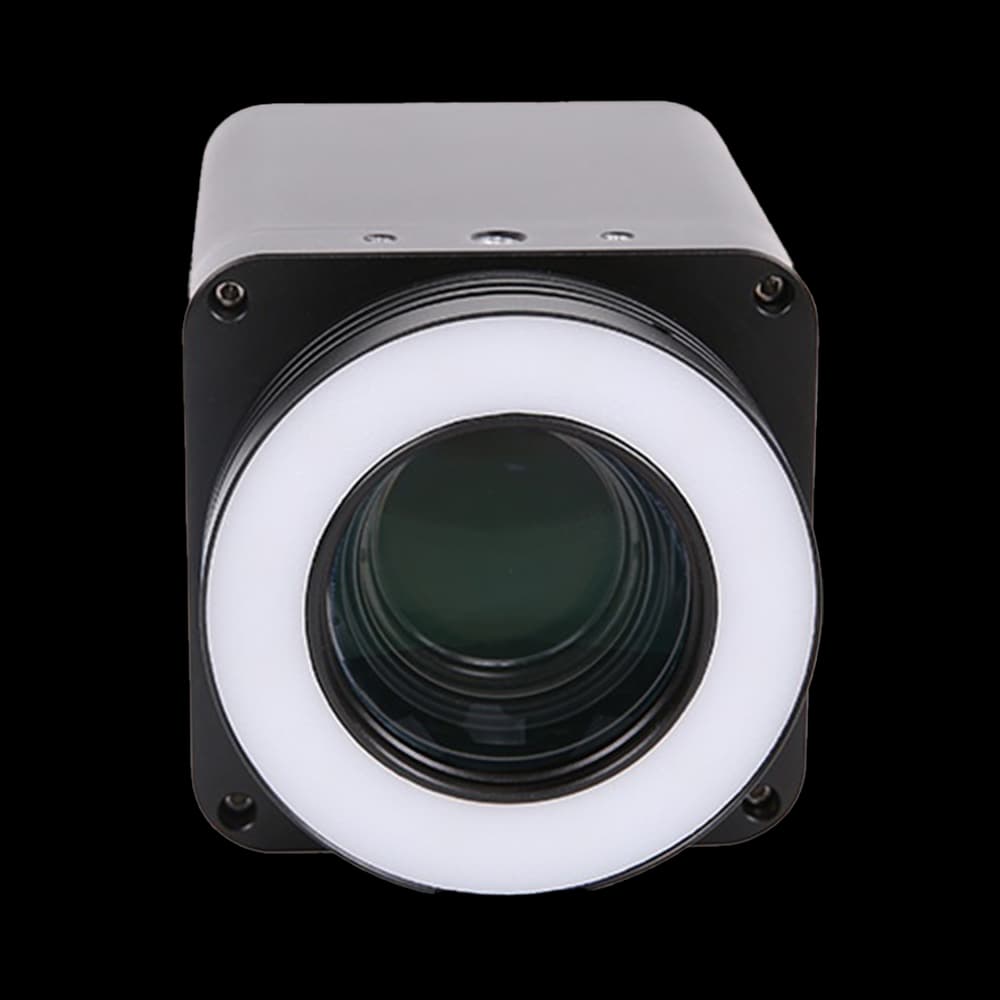

Continuous Zoom Autofocus Digital Microscope
AFDM101 (Discontinued) AFDM Series Autofocus Continuous Zoom Digital Microscopes with Sony IMX462LQR-C sensor, 2MP (1920×1080) for autofocus imaging.
Application context
AFDM101 (Discontinued): The Sony IMX462LQR-C sensor, 2MP (1920×1080) resolution, and 2.9 µm × 2.9 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The HDMI: 60 fps@1920×1080 frame-rate listing also sets the fastest full-frame acquisition regime.
AFDM101 (Discontinued): The Sony IMX462LQR-C sensor, 2MP (1920×1080) resolution, and 2.9 µm × 2.9 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The HDMI: 60 fps@1920×1080 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
27 specification rows
The AFDM101 (Discontinued) is an intelligent imaging camera in the AFDM series, built around a Sony IMX462LQR-C sensor, 2MP (1920×1080) resolution, 2.9 µm × 2.9 µm pixels, frame rates up to HDMI: 60 fps@1920×1080, a HDMI1.4, USB2.0 interface. It suits continuous zoom autofocus digital microscope where reliable imaging performance and interface compatibility matter.
| Product Model | AFDM101 (Discontinued) |
|---|---|
| Product Series | Continuous Zoom Autofocus Digital Microscope |
| Sensor Model | Sony IMX462LQR-C |
|---|---|
| Sensor Size | 1/2.8" (5.57×3.13 mm) |
| Diagonal | 6.3 mm |
| Pixel Size | 2.9 µm × 2.9 µm |
| Resolution | 2MP (1920×1080) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Lens Type | EMZO-20XA Integrated Lens |
|---|---|
| Optical Zoom | 20× (0.028X~0.56X) |
| Working Distance | 150-195 mm (standard 192 mm) |
| Field of View | Low magnification: 200×112.5 mm, High magnification: 10×5.6 mm |
| Autofocus | Supported |
| Frame Rate | HDMI: 60 fps@1920×1080 |
|---|---|
| Output Interfaces | HDMI1.4, USB2.0 |
| Storage Support | SD Card |
| Software Support | XFCamView |
| Power Supply | DC 12 V / 3 A |
|---|---|
| External Dimensions | 80 × 80 × 122 mm |
| Weight | 0.75 kg |
| Operating Temperature | 10 °C ~ +50 °C |
|---|---|
| Storage Temperature | 20 °C ~ +60 °C |
| Operating Humidity | 30~80% RH |
| Storage Humidity | 10~60% RH |
| Operating System Support | Windows, Linux, macOS |
|---|---|
| Certification | CE, FCC, RoHS |
System integration
Use these checks to connect AFDM101 (Discontinued) to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Sensor: Sony IMX462LQR-C · Resolution: 2MP (1920×1080). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: HDMI: 60 fps@1920×1080 · Interface: HDMI1.4, USB2.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare AFDM101 (Discontinued) with the closest available models in the AFDM family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | AFDM101 (Discontinued) (current) | AFDM411 | AFDM412 |
|---|---|---|---|
| Sensor | Sony IMX462LQR-C | Sony IMX415LQR-C | Sony IMX415LQR-C |
| Resolution | 2MP (1920×1080) | 8MP (3840×2160) | 8MP (3840×2160) |
| Sensor size | 1/2.8" (5.57×3.13 mm) | 1/2.8" (5.57×3.13 mm) | 1/2.8" (5.57×3.13 mm) |
| Pixel size / frame rate | 2.9 µm × 2.9 µm | 1.45 µm × 1.45 µm | 1.45 µm × 1.45 µm |
The IMX462 appears in 7 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
