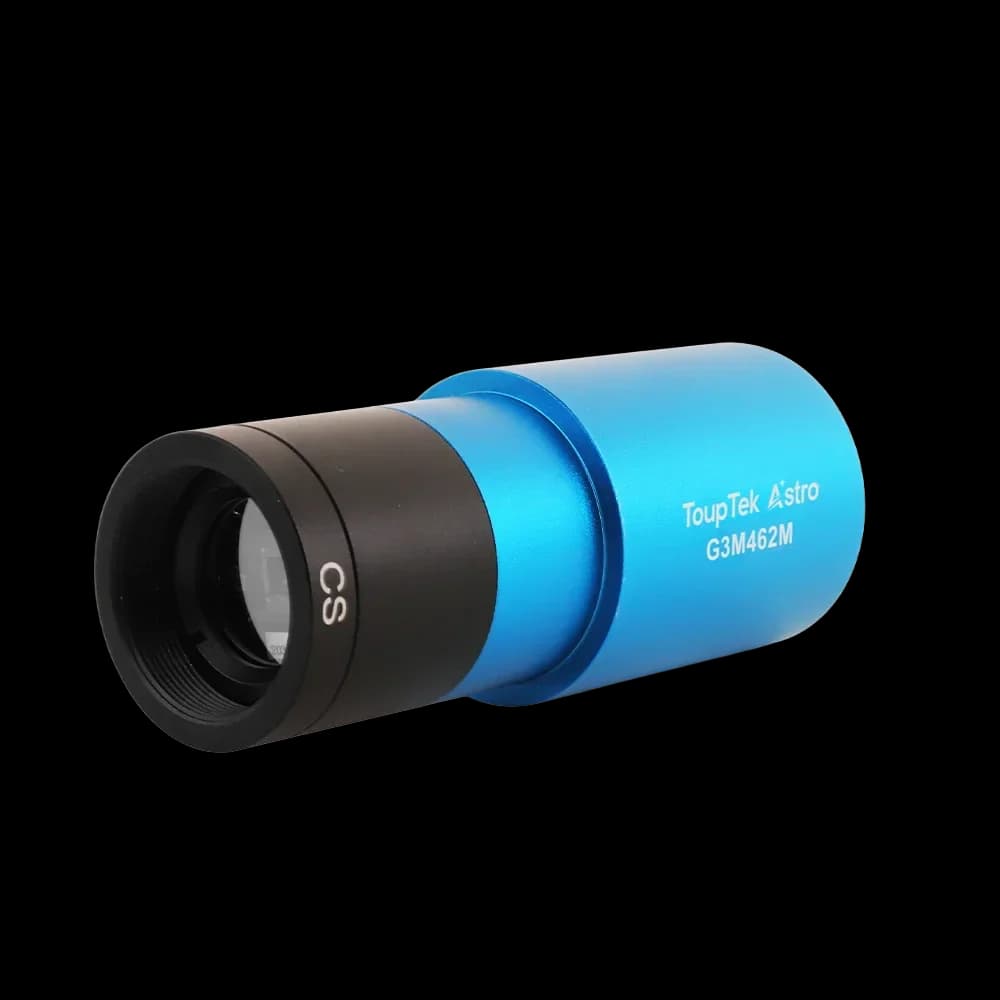

G3M462M IMX462 2.1 MP monochrome USB 3.0 astronomy camera

  • Sensor: Sony IMX462 monochrome CMOS
  • Sensor Type: Back-illuminated monochrome CMOS
  • Resolution: 2.1 MP (1920 × 1080)
  • Pixel Size: 2.9 µm
  • Frame Rate: 152 fps
  • Cooling: Passive cooling
G3M462M

Complete Specifications

Sensor & Imaging

Sensor & Imaging
SensorSony IMX462 monochrome CMOS
Sensor TypeBack-illuminated monochrome CMOS
Sensor Size1/2.8-inch, 5.57 × 3.13 mm
Resolution2.1 MP (1920 × 1080)
Pixel Size2.9 µm
Shutter TypeRolling shutter
Peak QE>89%
Spectral Range380–1100 nm
Sensor Diagonal6.39mm
Color Filter ArrayRGGB

Performance

Performance
Frame Rate152 fps
ADC12-bit
Dynamic Range75 dB
Read Noise2.1–0.49 e⁻
Full Well11.8 ke⁻
Maximum SNR41dB
Frame Buffer512MB
Maximum Frame Rate (USB 3.0)12-bit: 76.1 FPS @ 1920×1080 8-bit: 152 FPS @ 1920×1080
Exposure Time Range0.1ms - 1000s
Gain Range1× - 150×
DDR3 Buffer512MB (4Gb)

Interface & Connectivity

Interface & Connectivity
InterfaceUSB 3.0
Supported OSWindows XP/Vista/7/8/10/11 Mac OS X, Linux
SDK SupportNative C/C++, C#/VB.NET, Python Java, DirectShow, Twain, etc.

Cooling & Mechanical

Cooling & Mechanical
Mount1.25-inch telescope nosepiece / C-mount
CoolingPassive cooling
Protective WindowIR/AR
Back Focus Distance17.5mm with C adapter 12.5mm with CS adapter (optional)
Camera DimensionsDiameter 37mm × Height 72.4mm
Weight70 grams

Other Published Specifications

Other Published Specifications
ModelG3M462M
StatusCurrent
ApplicationPlanetary and guide
Camera AdapterStandard 1.25" for telescope connection Standard C adapter for industrial lens

Technical Files & Images

Technical images (3)

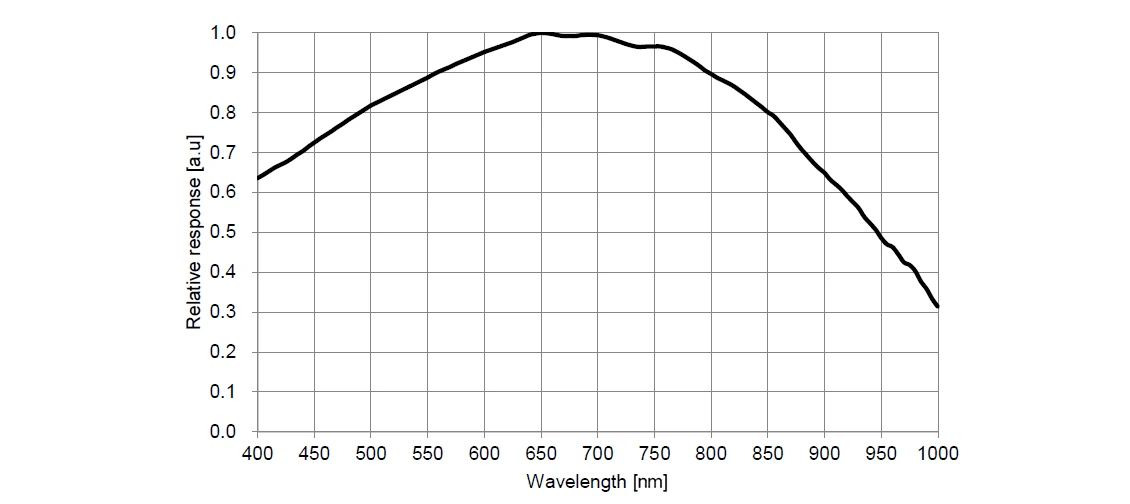

IMX462 Spectral Sensitivity Characteristic
IMX462 Spectral Sensitivity Characteristic

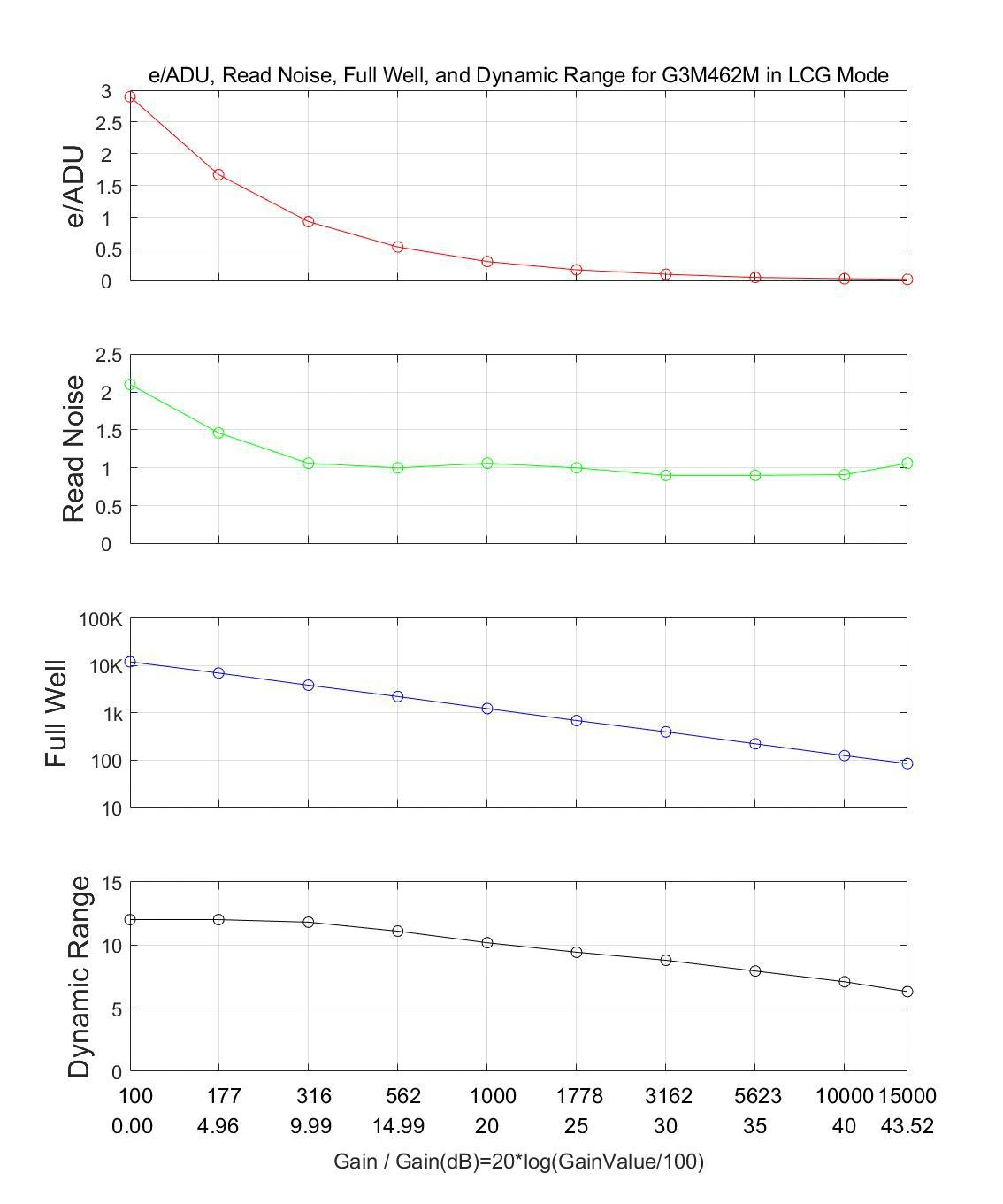

G3M462M LCG Mode Performance Curves
G3M462M LCG Mode Performance Curves
Camera Interface
Camera Interface

Ask Precisometer

Will G3M462M work in your setup?

Send us your application and we’ll discuss G3M462M, the connection to your optics and the software you need.

  • Your sample, microscope or lens
  • Wavelength range, exposure or frame rate
  • Computer, software and triggering requirements

You don’t need a complete specification to start. Share what you know, and we can discuss the remaining choices.

About: G3M462M

We use your details to reply to this enquiry. You won’t be subscribed to marketing. Privacy policy.

Selection parameterG3M462M (current)G3M462CSame IMX462 sensorAFDM101 (Discontinued)Same IMX462 sensorGPM462CSame IMX462 sensor
SensorSony IMX462 monochrome CMOSSony IMX462 color CMOSSony IMX462LQR-CSony IMX462 color CMOS
Image typeMonochromeColorColorColor
Resolution2.1 MP (1920 × 1080)2.1 MP (1920 × 1080)2MP (1920×1080)2.1 MP (1920 × 1080)
Pixel size2.9 µm2.9 µm2.9 µm × 2.9 µm2.9 µm
Published QE>89%>89%—>89%
Read noise2.1–0.49 e⁻2.1–0.49 e⁻—2.4–0.76 e⁻
Frame / line rate152 fps152 fpsHDMI: 60 fps@1920×108017.8 fps
InterfaceUSB 3.0USB 3.0HDMI1.4, USB2.0USB 2.0 + ST4
Cooling / shutterPassive coolingPassive coolingRolling ShutterPassive cooling
Compare all IMX462 cameras
