Monochrome · Deep-sky cooled

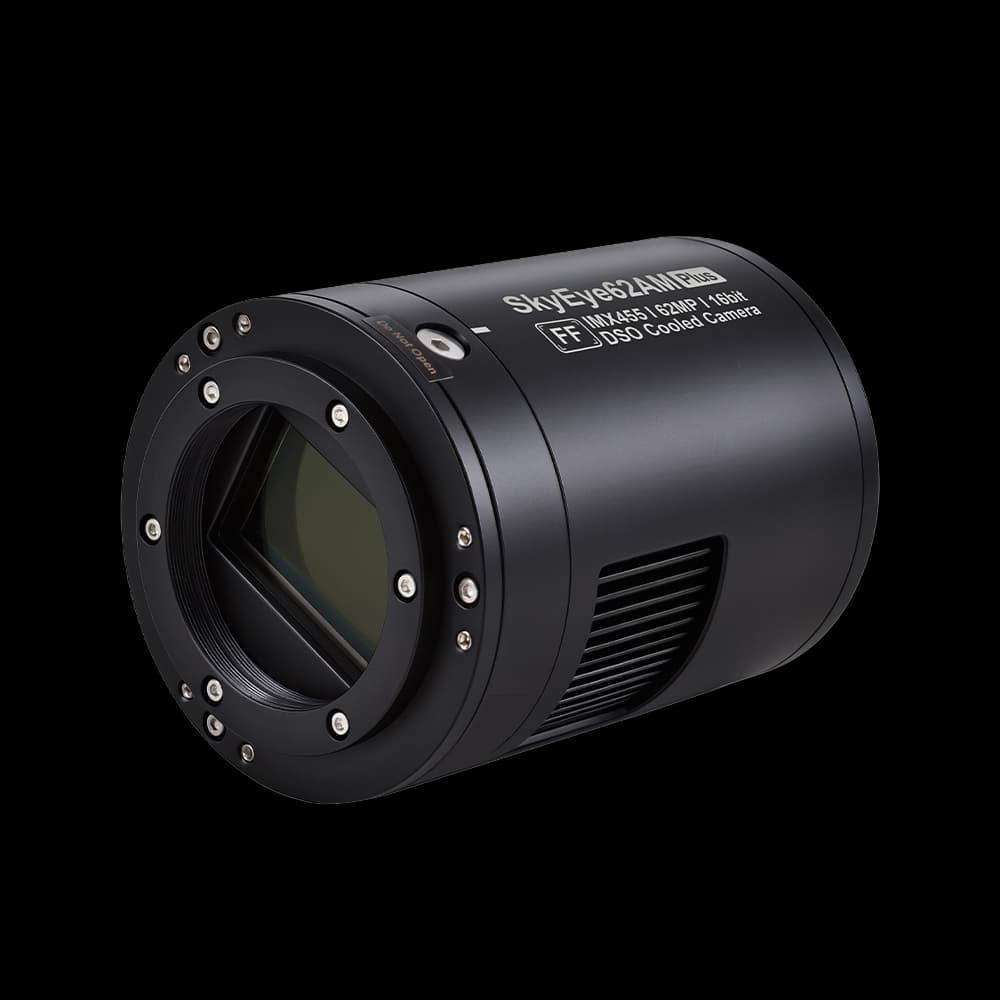

SkyEye62AM Plus
- Sensor
- Sony IMX455M Monochrome CMOS
- Sensor Type
- Monochrome CMOS
- Resolution
- 61 MP (9568x6380)
- Pixel Size
- 3.76 µm
- Frame Rate
- 6.5 fps
- Cooling
- Dual-stage TEC, -35/-40°C
Complete Specifications
Sensor & Imaging
| Sensor | Sony IMX455M Monochrome CMOS |
|---|---|
| Sensor Type | Monochrome CMOS |
| Sensor Size | 35.9x23.9mm (43.27mm) |
| Resolution | 61 MP (9568x6380) |
| Pixel Size | 3.76 µm |
| Shutter Type | Not published |
| Peak QE | >91% |
| Spectral Range | 380-1100nm |
| Sensor Diagonal | 43.27mm |
| Color Filter Array | Mono |
Performance
| Frame Rate | 6.5 fps |
|---|---|
| ADC | 16-bit |
| Dynamic Range | 88.3dB |
| Read Noise | 2.8-0.97e- (LCG); 1.95-0.9e- (HCG) |
| Full Well | 51ke- (111ke-@LCG) |
| Maximum ROI Frame Rate | 55.8fps |
| Maximum SNR | 47dB |
| Frame Buffer | 512MB |
Interface & Connectivity
| Interface | USB 3.0 / USB 2.0 |
|---|
Cooling & Mechanical
| Mount | M54×0.75 |
|---|---|
| Cooling | Dual-stage TEC, -35/-40°C |
| Power Supply | 12V/5A (3A minimum) |
| Dimensions | Φ89×117mm |
| Weight | 0.785kg |
| Back Focal Distance | 17.5/12.5mm |
| Protective Window | AR |
Other Published Specifications
| Model | SkyEye62AM Plus |
|---|---|
| Status | Current |
| Application | Deep-sky cooled |
| Accessory USB Hub | 4 × USB 2.0; 1 × USB 3.0 |
Technical Files & Images
Related Products
| Selection parameter | SkyEye62AM Plus (current) | SkyEye62AC PlusSame IMX455 sensor | IUC60000KMASame IMX455 sensor | IUC60000KMA-10GSame IMX455 sensor |
|---|---|---|---|---|
| Sensor | Sony IMX455M Monochrome CMOS | Sony IMX455C Color CMOS | Sony IMX455ALK | Sony IMX455ALK |
| Image type | Monochrome | Color | Monochrome | Monochrome |
| Resolution | 61 MP (9568x6380) | 61 MP (9568x6380) | 60.0MP (9568×6380) | 60.0MP (9568×6380) |
| Pixel size | 3.76 µm | 3.76 µm | 3.76 µm × 3.76 µm | 3.76 µm × 3.76 µm |
| Published QE | >91% | >80% | — | — |
| Read noise | 2.8-0.97e- (LCG); 1.95-0.9e- (HCG) | 2.58-0.89e- (LCG); 1.72-0.89e- (HCG) | — | — |
| Frame / line rate | 6.5 fps | 6.2 fps | 6.1 fps @ 9568×6380 (16-bit); 24.6 fps @ 4784×3190; 55.8 fps @ 3184×2124; 191.0 fps @ 1040×706 | 20 fps @ 9568×6380 (16-bit); 40 fps @ 4784×3190; 57.52 fps @ 3184×2124; 199.37 fps @ 1040×706 |
| Interface | USB 3.0 / USB 2.0 | USB 3.0 / USB 2.0 | USB3.0 | 10GigE |
| Cooling / shutter | Dual-stage TEC, -35/-40°C | Dual-stage TEC, -35/-40°C | Rolling Shutter | Rolling Shutter |
