Color · Deep-sky cooled

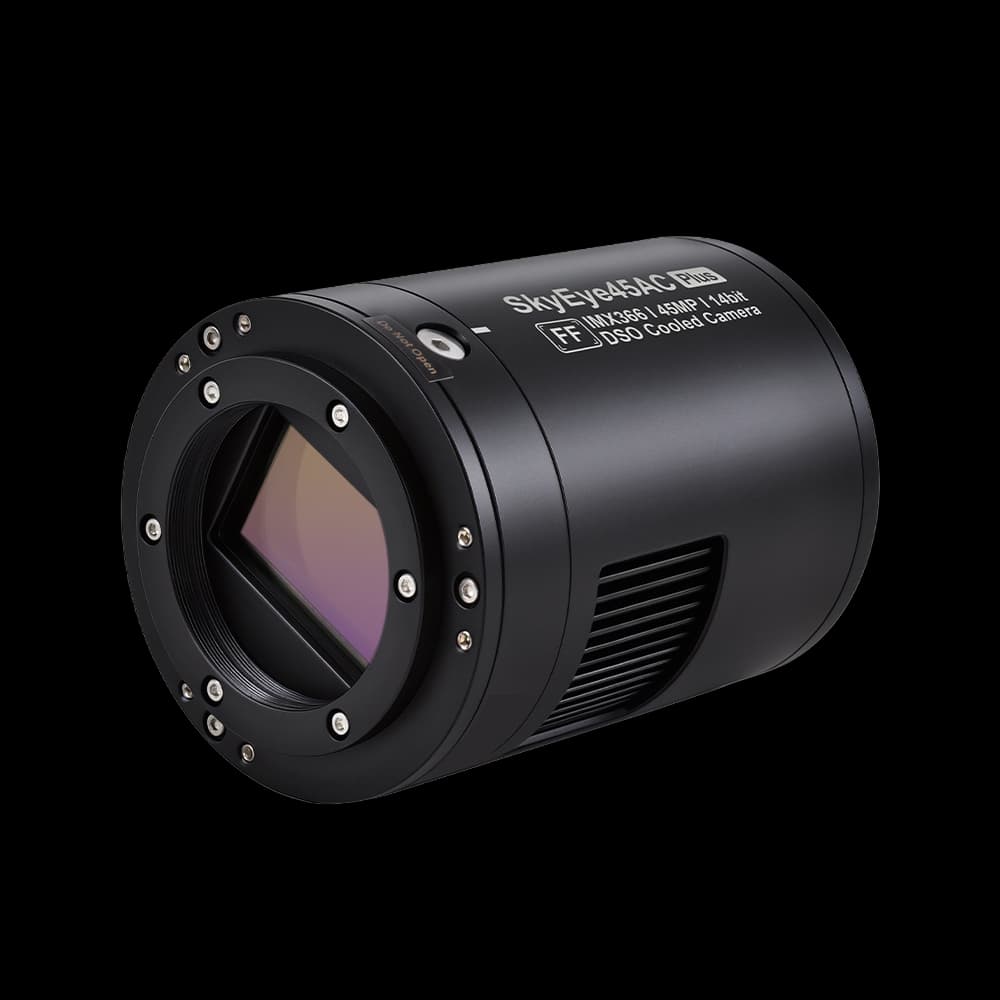

SkyEye45AC Plus
- Sensor
- Sony IMX366C Color CMOS
- Sensor Type
- Color CMOS
- Resolution
- 44.72 MP (8192x5460)
- Pixel Size
- 4.40 µm
- Frame Rate
- 8.2 fps
- Cooling
- Dual-stage TEC, -35/-40°C
Complete Specifications
Sensor & Imaging
| Sensor | Sony IMX366C Color CMOS |
|---|---|
| Sensor Type | Color CMOS |
| Sensor Size | 35.9x23.9mm (43.27mm) |
| Resolution | 44.72 MP (8192x5460) |
| Pixel Size | 4.40 µm |
| Shutter Type | Not published |
| Peak QE | >80% |
| Spectral Range | 380-690nm |
| Sensor Diagonal | 43.27mm |
Performance
| Frame Rate | 8.2 fps |
|---|---|
| ADC | 14-bit |
| Dynamic Range | 81.66dB |
| Read Noise | 6.03-3.57e- (LCG); 1.35-0.88e- (HCG) |
| Full Well | 73ke- (14.9ke-@HCG) |
| Maximum ROI Frame Rate | 74.0fps |
| Maximum SNR | 48.6dB |
| Frame Buffer | 512MB |
Interface & Connectivity
| Interface | USB 3.0 / USB 2.0 |
|---|
Cooling & Mechanical
| Mount | M54×0.75 |
|---|---|
| Cooling | Dual-stage TEC, -35/-40°C |
| Power Supply | 12V/5A (3A minimum) |
| Dimensions | Φ89×117mm |
| Weight | 0.785kg |
| Back Focal Distance | 17.5/12.5mm |
| Protective Window | IR/AR |
Other Published Specifications
| Model | SkyEye45AC Plus |
|---|---|
| Status | Current |
| Application | Deep-sky cooled |
| Accessory USB Hub | 4 × USB 2.0; 1 × USB 3.0 |
