Monochrome · Deep-sky cooled

ATR294M IMX492 11.6 MP monochrome USB 3.0 astronomy camera

  • Sensor: Sony IMX492 monochrome CMOS
  • Sensor Type: Back-illuminated 4/3-inch monochrome CMOS
  • Resolution: 11.6 MP (4128 × 2808)
  • Pixel Size: 4.63 µm
  • Frame Rate: 33 fps
  • Cooling: Two-stage TEC, ΔT ≥42 °C

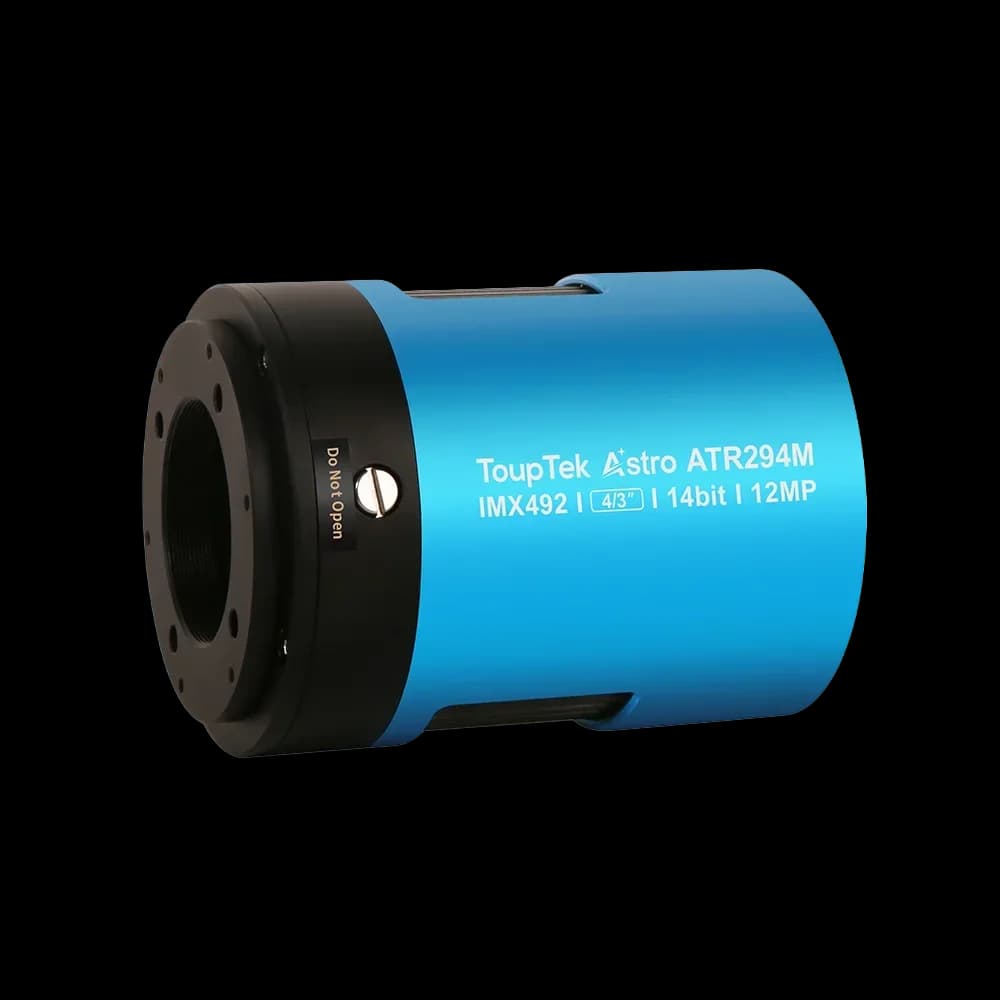

ATR294M

Complete Specifications

Sensor & Imaging

Sensor & Imaging
SensorSony IMX492 monochrome CMOS
Sensor TypeBack-illuminated 4/3-inch monochrome CMOS
Sensor Size4/3-inch, 19.11 × 13.0 mm
Resolution11.6 MP (4128 × 2808)
Pixel Size4.63 µm
Shutter TypeRolling shutter
Peak QE>80%
Spectral Range380–1100 nm
Sensor Diagonal23.1mm
Color Filter ArrayRGGB

Performance

Performance
Frame Rate33 fps
ADC14-bit
Dynamic Range78.8 dB
Read Noise7.53–1.42 e⁻
Full Well66 ke⁻
LCG Read Noise7.53-6.42 e-
Maximum SNR48.2dB
Frame Buffer512MB
Gain ModesHCG (High Conversion Gain) / LCG (Low Conversion Gain)
DDR3 Buffer512MB
Max ExposureUp to 1 hour

Interface & Connectivity

Interface & Connectivity
InterfaceUSB 3.0

Cooling & Mechanical

Cooling & Mechanical
MountM42 / M54 astronomy adapters
CoolingTwo-stage TEC, ΔT ≥42 °C
Sensor Chamber WindowAdjustable heating window
Back Focal Distance17.5mm/12.5mm
Protective WindowIR/AR
Power SupplyDC 12V / 3A

Other Published Specifications

Other Published Specifications
ModelATR294M
StatusCurrent
ApplicationDeep-sky cooled
Legacy Model NameATR3CMOS10300KMA

Construction details

  • Cooling assembly: Two-stage TEC, ΔT ≥42 °C.

Technical Files & Images

Technical images (3)

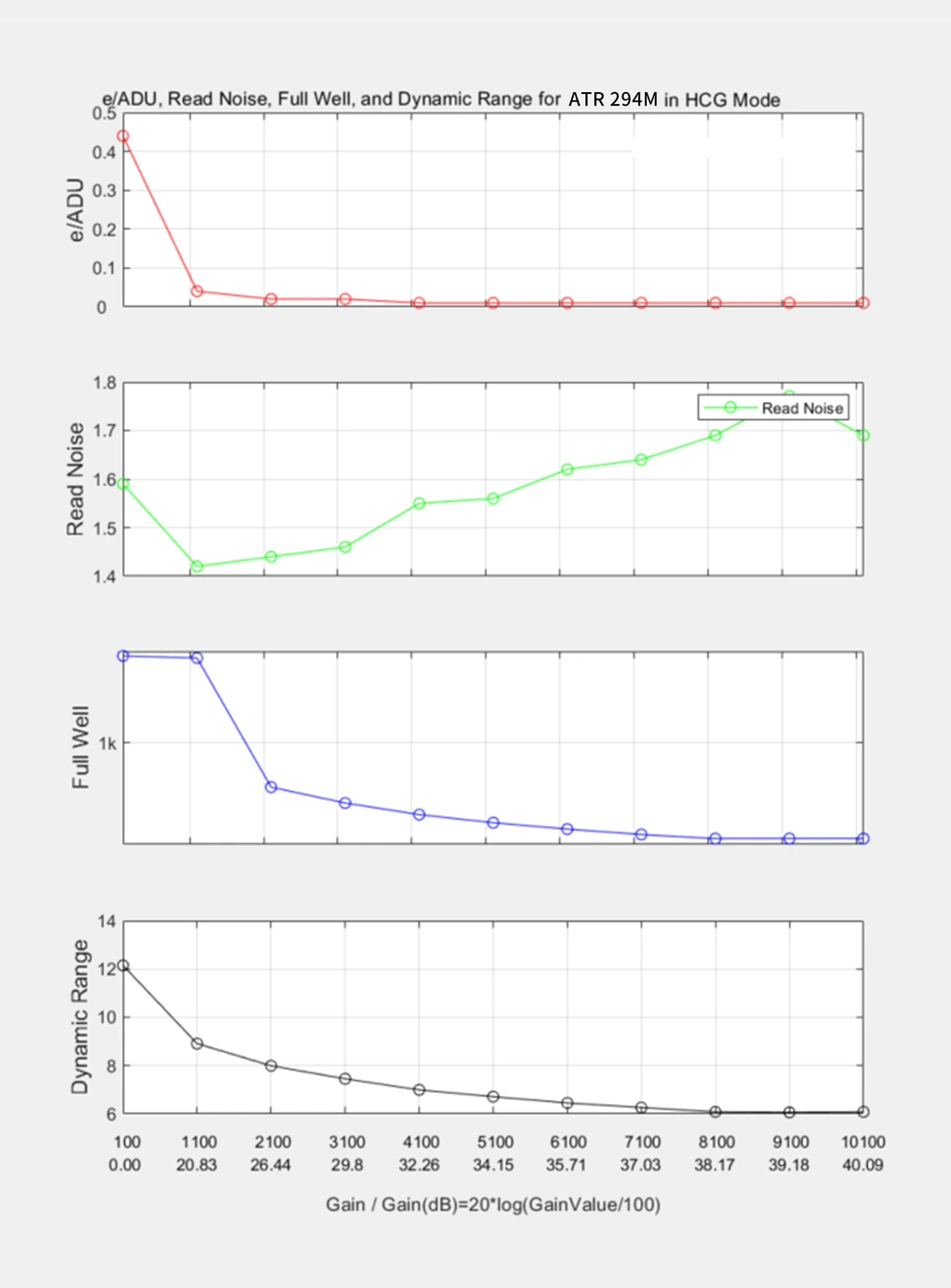

ATR294M performance analysis HCG mode
ATR294M performance analysis HCG mode

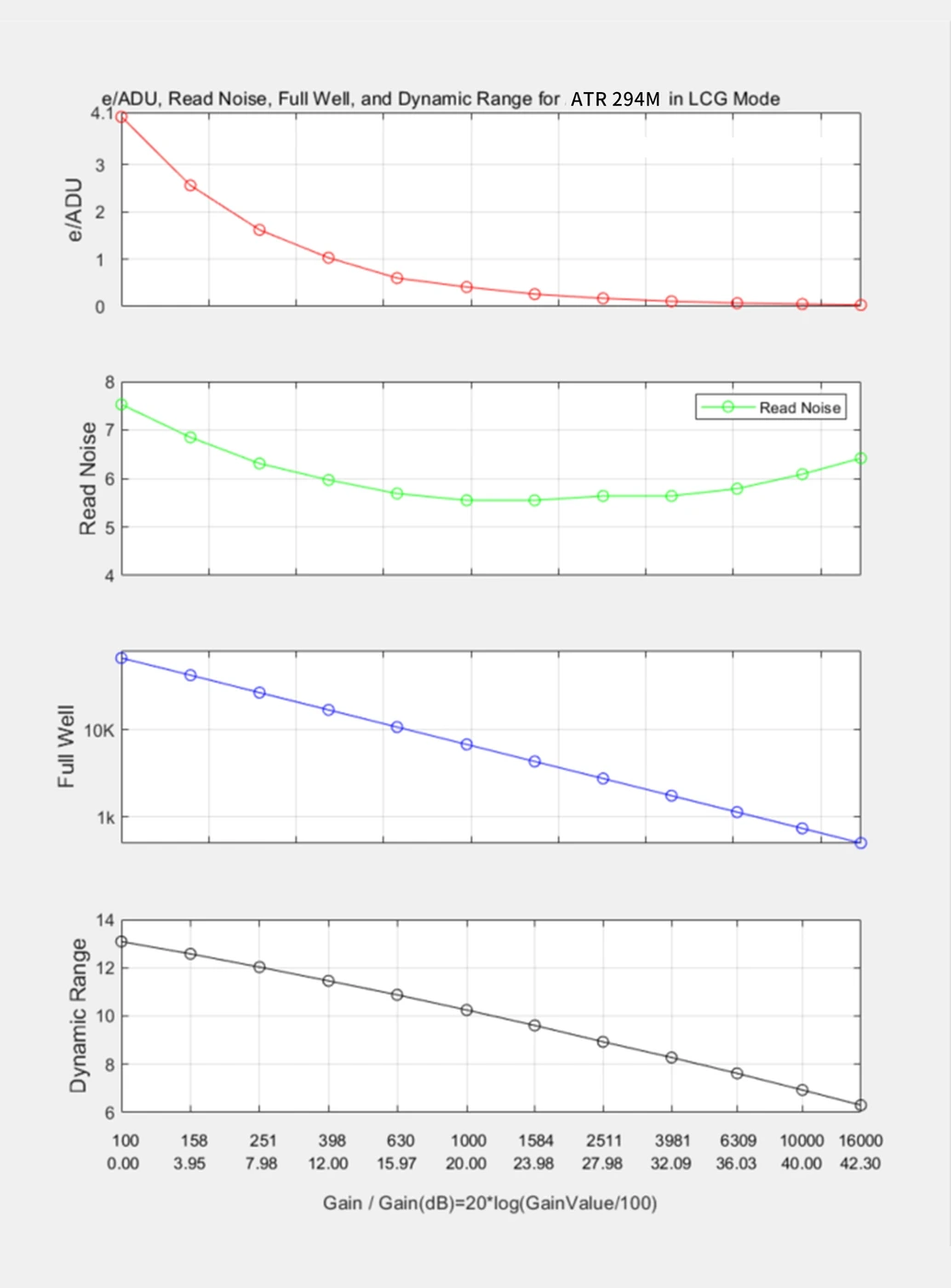

ATR294M performance analysis LCG mode
ATR294M performance analysis LCG mode

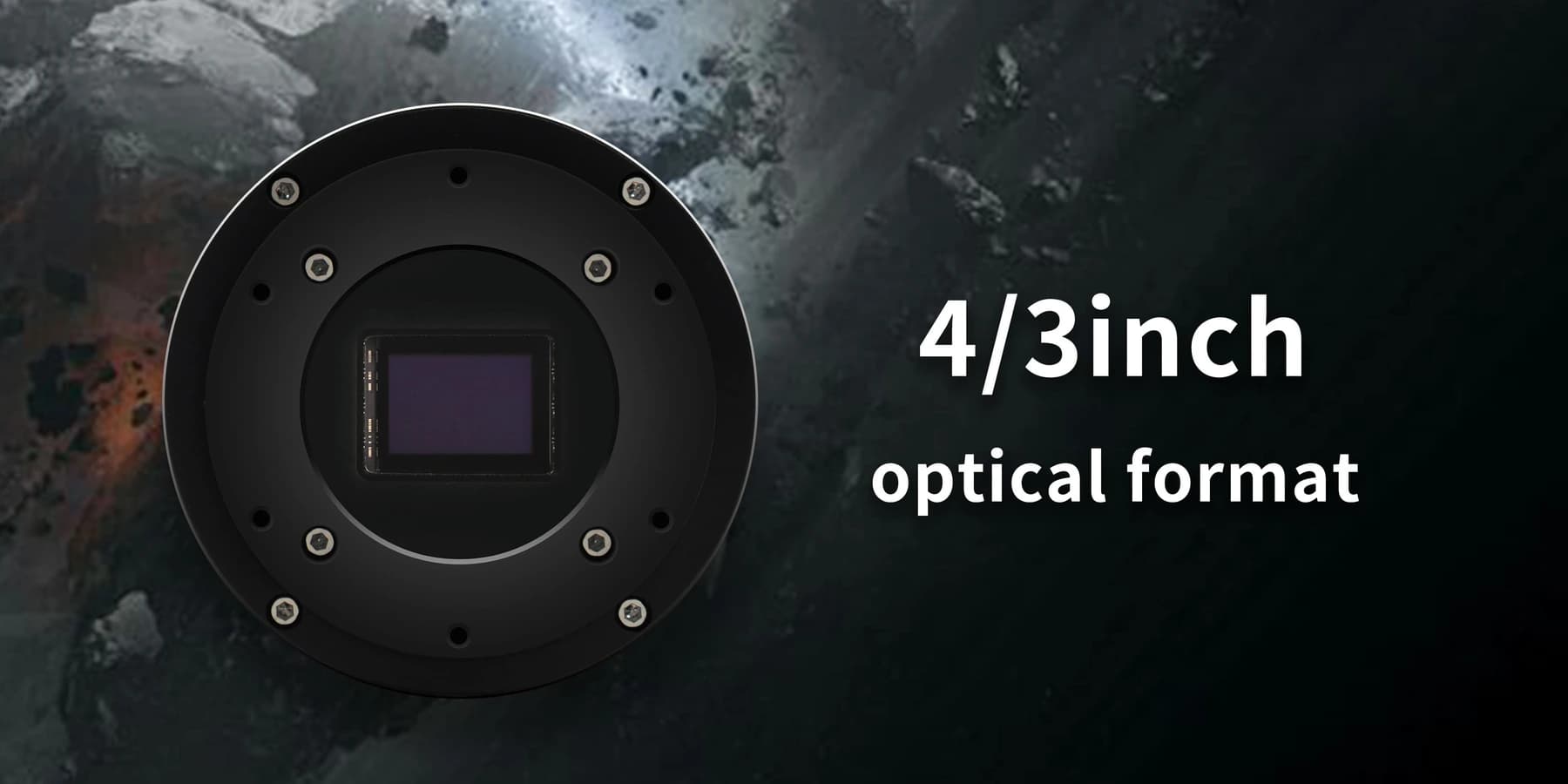

ATR294M sensor optical format
ATR294M sensor optical format

Ask Precisometer

Will ATR294M work in your setup?

Send us your application and we’ll discuss ATR294M, the connection to your optics and the software you need.

  • Your sample, microscope or lens
  • Wavelength range, exposure or frame rate
  • Computer, software and triggering requirements

You don’t need a complete specification to start. Share what you know, and we can discuss the remaining choices.

About: ATR294M

We use your details to reply to this enquiry. You won’t be subscribed to marketing. Privacy policy.

Selection parameterATR294M (current)CTR3CMOS45000KMASame IMX492 sensorE3CMOS45000KMASame IMX492 sensorE3ISPM45000KPBSame IMX492 sensor
SensorSony IMX492 monochrome CMOSSony IMX492LLJ-CIMX492 (M,RS)IMX492 (C,RS)
Image typeMonochromeMonochromeMonochromeColor
Resolution11.6 MP (4128 × 2808)45MP (8176×5616)45M (8176×5616)45M (8176×5616)
Pixel size4.63 µm2.315 µm × 2.315 µm2.315 µm × 2.315 µm2.315 µm × 2.315 µm
Published QE>80%———
Read noise7.53–1.42 e⁻———
Frame / line rate33 fps8.1 fps @ 8176×5616; 30.0 fps @ 4080×2808; 8.1 fps @ 7408×5556; 33.0 fps @ 3696×2778; 10.4 fps @ 8176×4320; 34.7 fps @ 4096×2160; 62.5 fps @ 2048×1080; 86.5 fps @ 1360×7208.1 fps @ 8176×5616; 30.0 fps @ 4080×2808; 8.1 fps @ 7408×5556; 33.0 fps @ 3696×2778; 10.4 fps @ 8176×4320; 34.7 fps @ 4096×2160; 62.5 fps @ 2048×1080; 86.5 fps @ 1360×7208.1 fps @ 8176×5616(C); 30.0 fps @ 4080×2808(M); 8.1 fps @ 7408×5556(C); 33.0 fps @ 3696×2778(M); 10.4 fps @ 8176×4320(C); 34.7 fps @ 4096×2160(M); 62.5 fps @ 2048×1080(M); 86.5 fps @ 1344×720(M)
InterfaceUSB 3.0USB3.0USB3.0USB3.0
Cooling / shutterTwo-stage TEC, ΔT ≥42 °CRolling ShutterRolling ShutterRolling Shutter
Compare all IMX492 cameras
