G3M715C IMX715 8.3 MP color USB 3.0 astronomy camera

  • Sensor: Sony IMX715 color CMOS
  • Sensor Type: STARVIS 2 back-illuminated color CMOS
  • Resolution: 8.3 MP (3840 × 2160)
  • Pixel Size: 1.45 µm
  • Frame Rate: 47 fps
  • Cooling: Passive cooling
G3M715C

Complete Specifications

Sensor & Imaging

Sensor & Imaging
SensorSony IMX715 color CMOS
Sensor TypeSTARVIS 2 back-illuminated color CMOS
Sensor Size1/2.8-inch, 5.57 × 3.13 mm
Resolution8.3 MP (3840 × 2160)
Pixel Size1.45 µm
Shutter TypeRolling shutter
Peak QE>91%
Spectral Range380–690 nm
Sensor Diagonal6.39mm
Color Filter ArrayRGGB

Performance

Performance
Frame Rate47 fps
ADC12-bit
Dynamic Range72.8 dB
Read Noise1.35–0.57 e⁻
Full Well6 ke⁻
Maximum SNR37.7dB
Frame Buffer512MB
Maximum Frame Rate (USB 3.0)12-bit: 24 FPS @ 3840×2160 8-bit: 47 FPS @ 3840×2160
Exposure Time Range0.1ms - 1000s
Gain Range1× - 100×
DDR3 Buffer512MB (4Gb)

Interface & Connectivity

Interface & Connectivity
InterfaceUSB 3.0
Supported OSWindows XP/Vista/7/8/10/11 Mac OS X, Linux
SDK SupportNative C/C++, C#/VB.NET, Python Java, DirectShow, Twain, etc.

Cooling & Mechanical

Cooling & Mechanical
Mount1.25-inch telescope nosepiece / C-mount
CoolingPassive cooling
Protective WindowIR/AR
Back Focus Distance17.5mm with C adapter 12.5mm with CS adapter
Camera DimensionsDiameter 37mm × Height 72.4mm
Weight70 grams

Other Published Specifications

Other Published Specifications
ModelG3M715C
StatusCurrent
ApplicationPlanetary and guide
Camera AdapterStandard 1.25" outer diameter for telescope Standard C adapter for industrial lens

Technical Files & Images

Technical images (3)

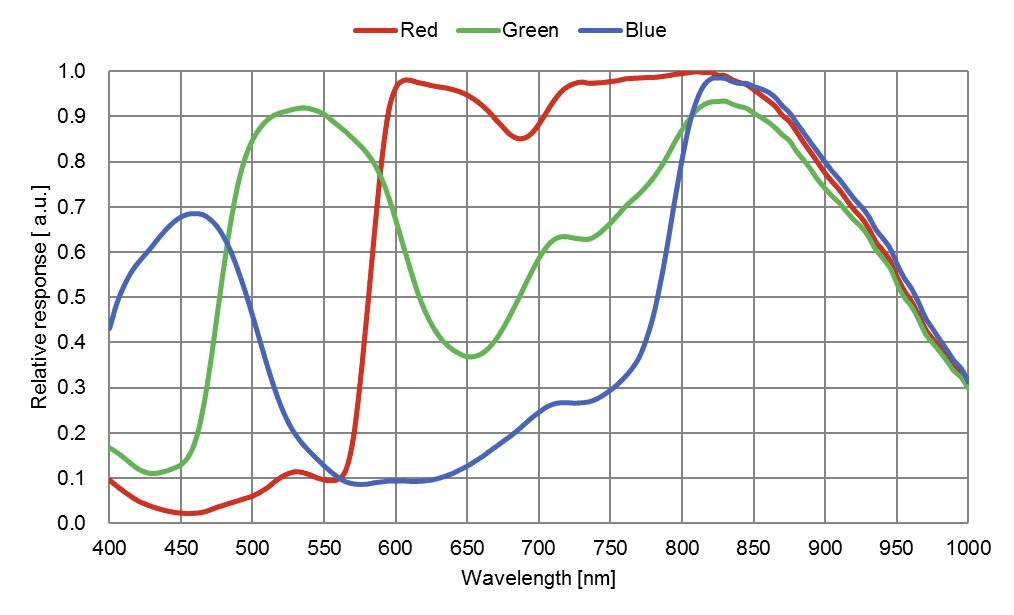

IMX715 Spectral Sensitivity Characteristic
IMX715 Spectral Sensitivity Characteristic

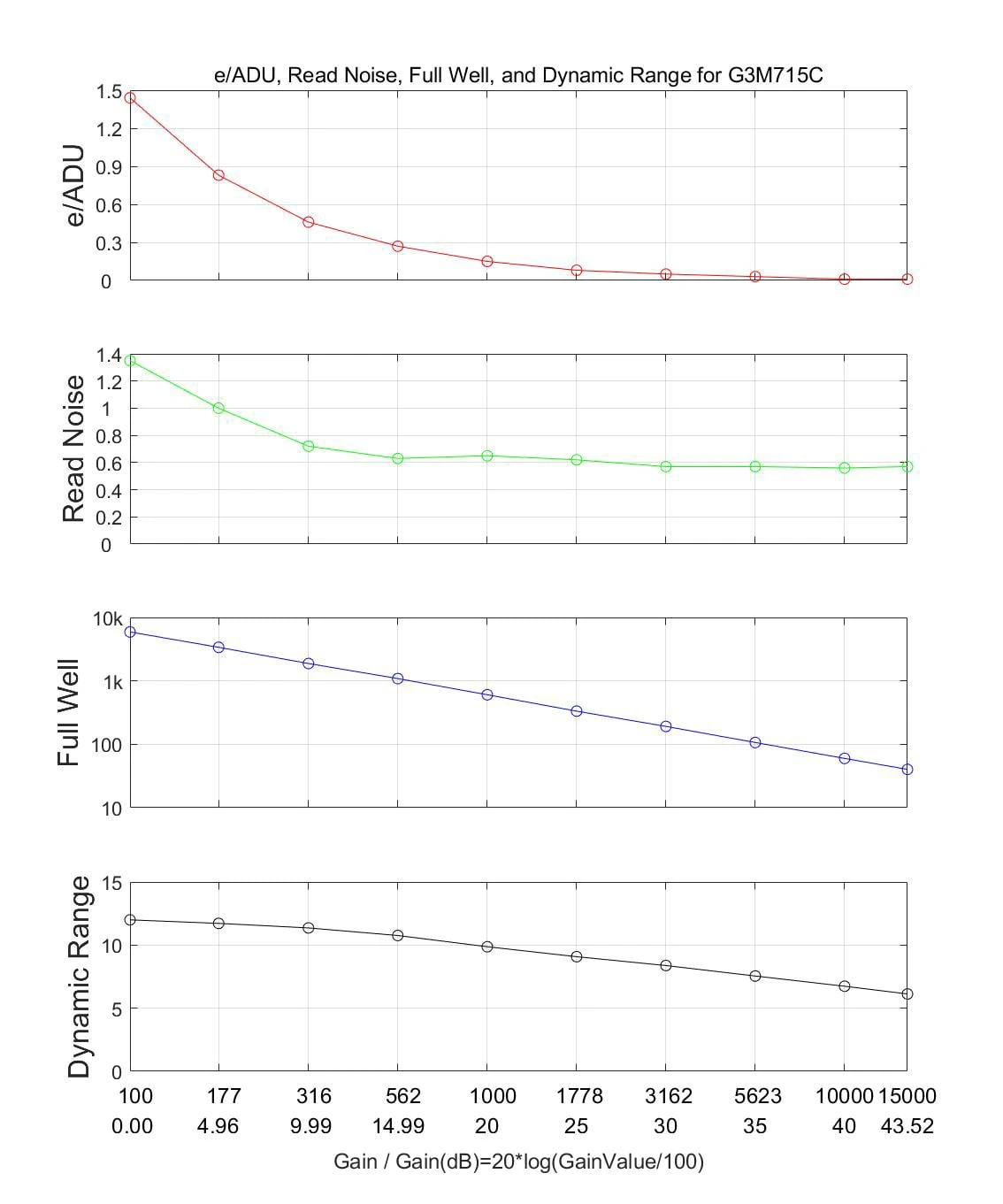

G3M715C Performance Analysis showing e/ADU, Read Noise, Full Well and Dynamic Range
G3M715C Performance Analysis showing e/ADU, Read Noise, Full Well and Dynamic Range
Camera Interface
Camera Interface

Ask Precisometer

Will G3M715C work in your setup?

Send us your application and we’ll discuss G3M715C, the connection to your optics and the software you need.

  • Your sample, microscope or lens
  • Wavelength range, exposure or frame rate
  • Computer, software and triggering requirements

You don’t need a complete specification to start. Share what you know, and we can discuss the remaining choices.

About: G3M715C

We use your details to reply to this enquiry. You won’t be subscribed to marketing. Privacy policy.

Selection parameterG3M715C (current)AFDM434Same IMX715 sensorXCAMTOP4K8MPE_MINISame IMX715 sensorG3M178CSame G3M planetary / guide series
SensorSony IMX715 color CMOSSony IMX715 (C)Sony IMX715(C)Sony IMX178 color CMOS
Image typeColorColorColorColor
Resolution8.3 MP (3840 × 2160)8 MP (3840×2160)8MP (3840×2160)6.2 MP (3040 × 2048)
Pixel size1.45 µm1.45 µm × 1.45 µm1.45 µm × 1.45 µm2.4 µm
Published QE>91%——>81%
Read noise1.35–0.57 e⁻——2.2–1.4 e⁻
Frame / line rate47 fps30 fps @ 3840×2160HDMI: 30 Hz@3840×2160; USB: 30 fps@3840×2160; WiFi: 30 fps@3840×216058.6 fps
InterfaceUSB 3.0HDMI1.4; USB2.0; NETWORKHDMI 1.4, USB Video, WiFiUSB 3.0
Cooling / shutterPassive cooling—Rolling shutterPassive cooling
Compare all IMX715 cameras
