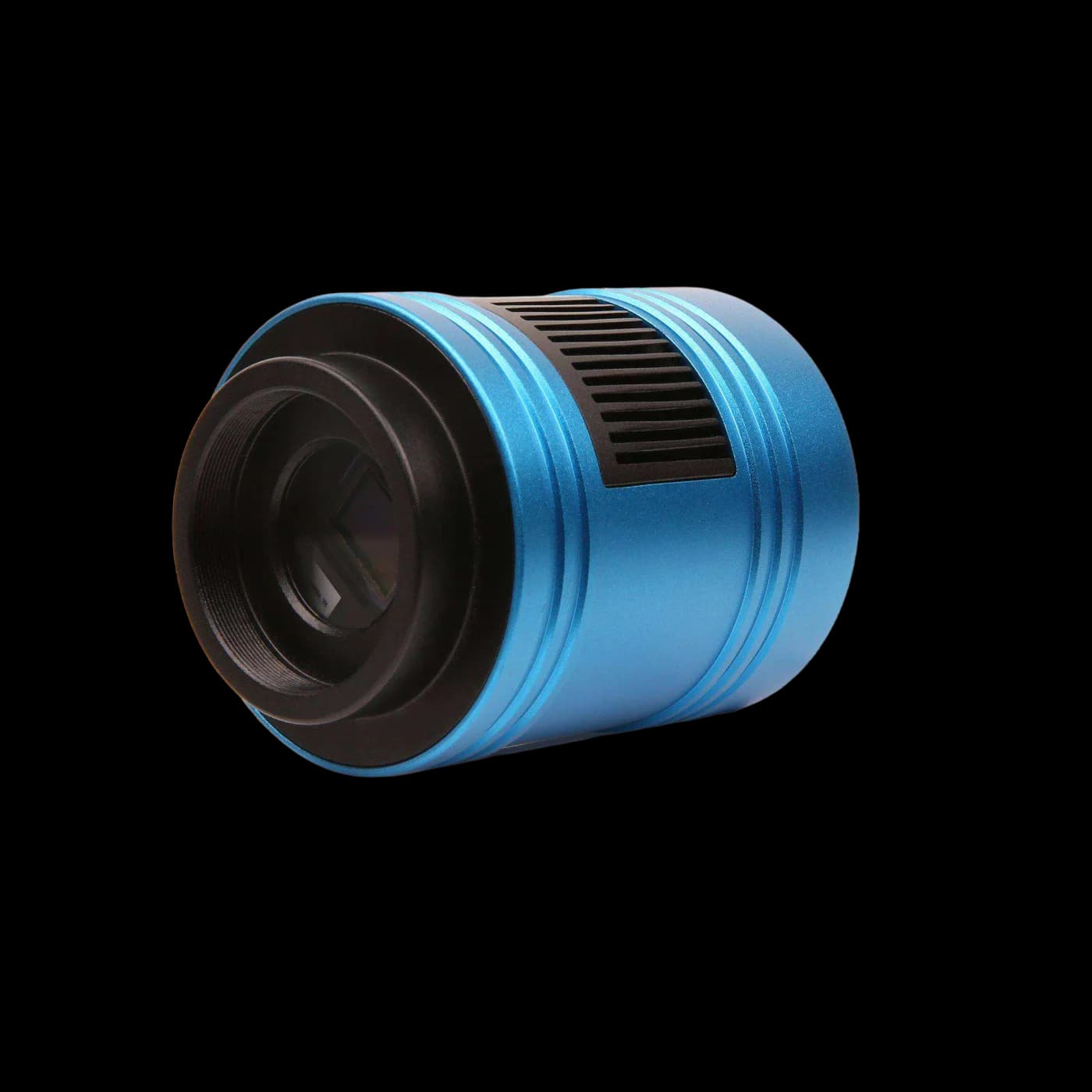

G3CMOS10300KPA IMX294 11.6 MP color USB 3.0 astronomy camera

  • Sensor: Sony IMX294 color CMOS
  • Sensor Type: Back-illuminated 4/3-inch color CMOS
  • Resolution: 11.6 MP (4128 × 2808)
  • Pixel Size: 4.63 µm
  • Frame Rate: 33 fps
  • Cooling: Air-cooled
G3CMOS10300KPA

Complete Specifications

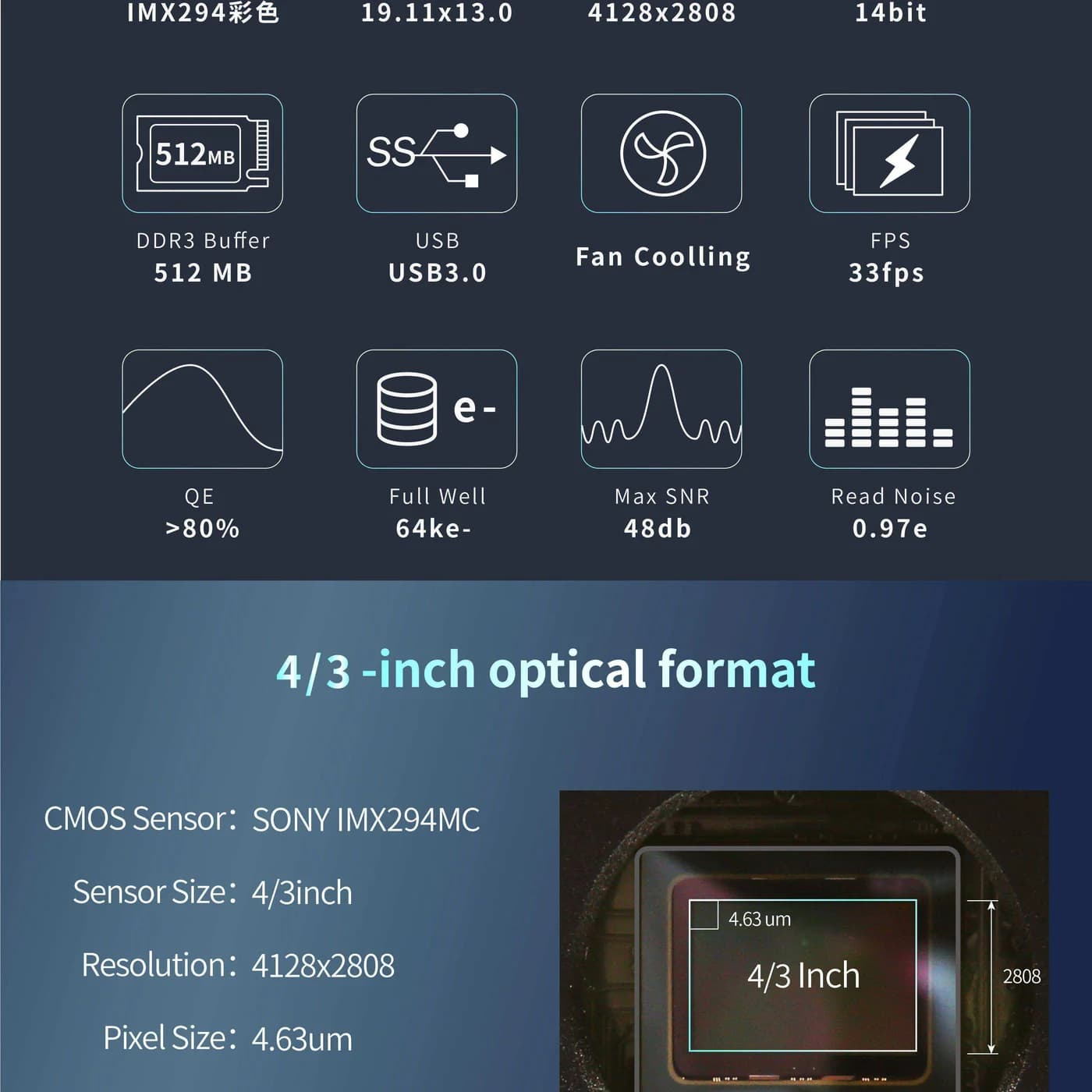

Sensor & Imaging

Sensor & Imaging
SensorSony IMX294 color CMOS
Sensor TypeBack-illuminated 4/3-inch color CMOS
Sensor Size4/3-inch, 19.11 × 13.0 mm
Resolution11.6 MP (4128 × 2808)
Pixel Size4.63 µm
Shutter TypeRolling shutter
Peak QE>80%
Spectral Range380–690 nm
Sensor Diagonal23.1mm
Color Filter ArrayRGGB

Performance

Performance
Frame Rate33 fps
ADC14-bit
Dynamic Range84.4 dB
Read Noise4.1–3.38 e⁻
Full Well64 ke⁻
Maximum SNR48dB

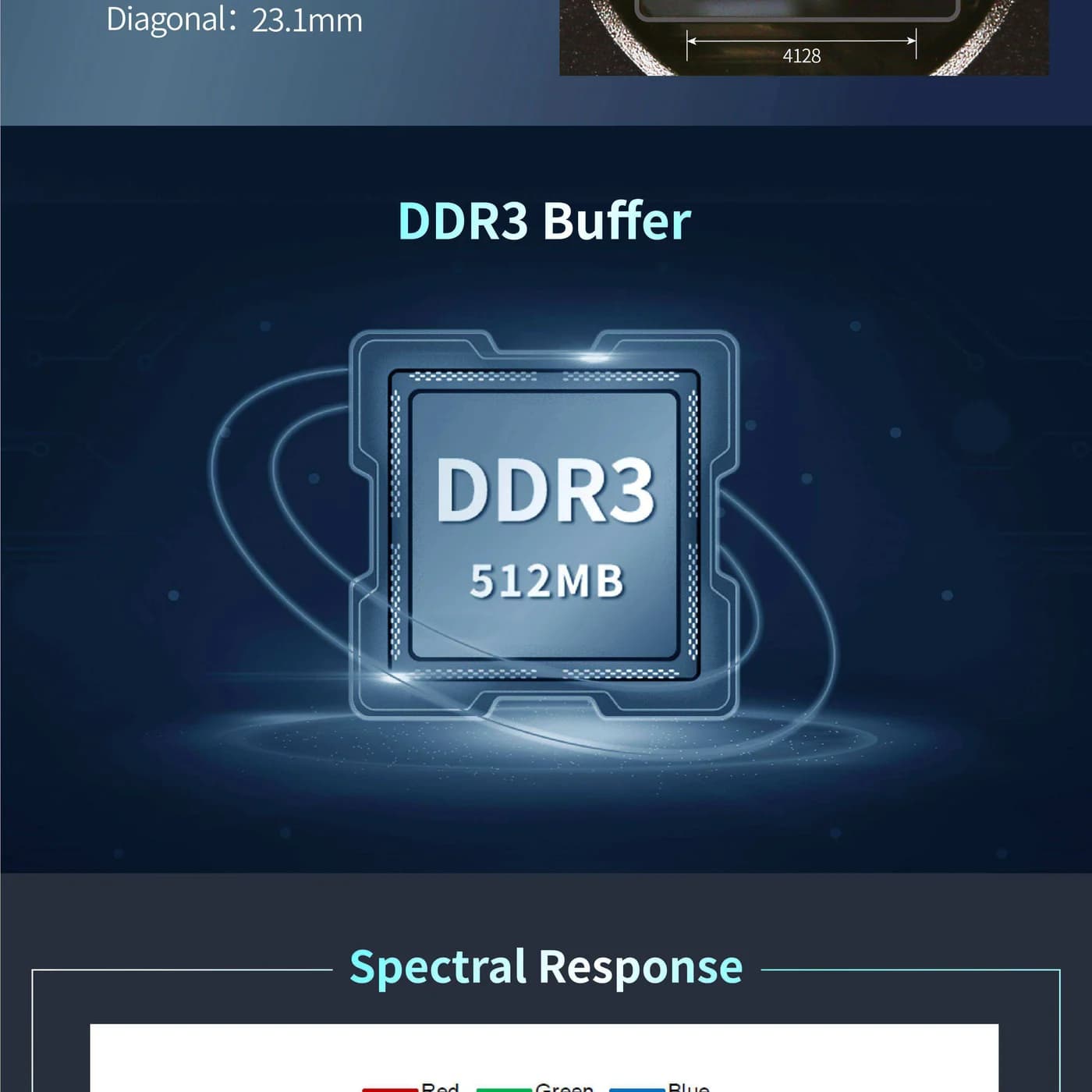

Frame Buffer512MB

Interface & Connectivity

Interface & Connectivity
InterfaceUSB 3.0

Cooling & Mechanical

Cooling & Mechanical
MountAstronomy adapter / telescope interface
CoolingAir-cooled
Back Focal Distance17.5mm
Protective WindowIR/AR

Other Published Specifications

Other Published Specifications
ModelG3CMOS10300KPA
StatusCurrent
ApplicationPlanetary

Technical Files & Images

Technical images (3)

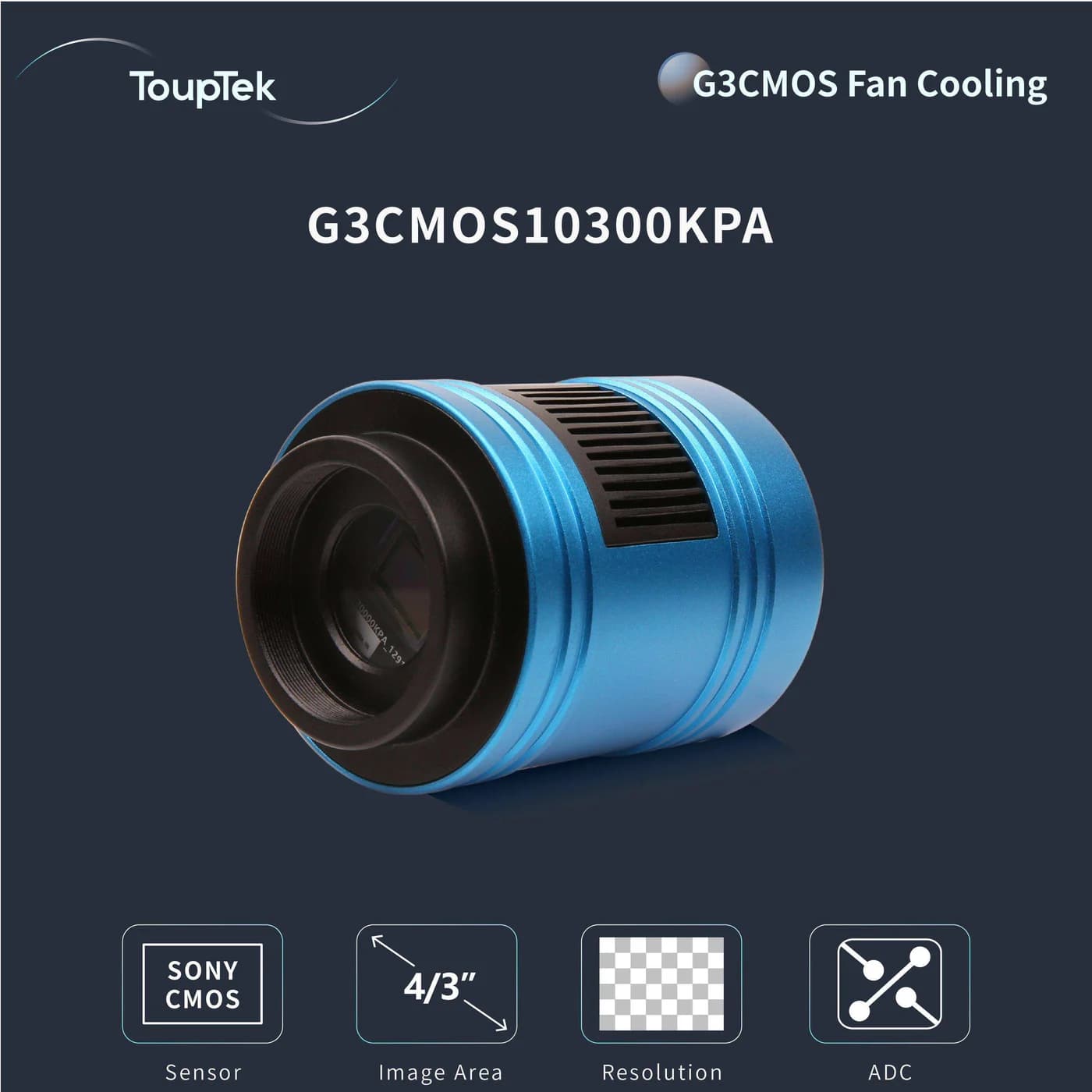

G3CMOS10300KPA Planetary Camera
G3CMOS10300KPA Planetary Camera
G3CMOS10300KPA Planetary Camera
G3CMOS10300KPA Planetary Camera
G3CMOS10300KPA Planetary Camera
G3CMOS10300KPA Planetary Camera

Ask Precisometer

Will G3CMOS10300KPA work in your setup?

Send us your application and we’ll discuss G3CMOS10300KPA, the connection to your optics and the software you need.

  • Your sample, microscope or lens
  • Wavelength range, exposure or frame rate
  • Computer, software and triggering requirements

You don’t need a complete specification to start. Share what you know, and we can discuss the remaining choices.

About: G3CMOS10300KPA

We use your details to reply to this enquiry. You won’t be subscribed to marketing. Privacy policy.

Selection parameterG3CMOS10300KPA (current)ATR294CSame IMX294 sensorBIGEYE10000KPASame IMX294 sensorE3ISPM08000KPASame IMX294 sensor
SensorSony IMX294 color CMOSSony IMX294 color CMOSIMX294 (C)IMX294 (C)
Image typeColorColorColorColor
Resolution11.6 MP (4128 × 2808)11.6 MP (4128 × 2808)10.3 MP (4096×2160)8M (2808×2808)
Pixel size4.63 µm4.63 µm4.63 µm × 4.63 µm4.63 µm × 4.63 µm
Published QE>80%>80%——
Read noise4.1–3.38 e⁻4.1–0.87 e⁻——
Frame / line rate33 fps33 fps30 fps @ 3704×2778; 34.5 fps @ 4096×2160; 39.5 fps @ 2760×2072; 62 fps @ 2048×1080; 86 fps @ 1360×72030 fps @ 2808×2808(14-bit); 139 fps @ 1392×1392; 139 fps @ 696×696
InterfaceUSB 3.0USB 3.0USB3.0USB3.0
Cooling / shutterAir-cooledTwo-stage TEC, ΔT ≥42 °CRolling ShutterRolling Shutter
Compare all IMX294 cameras
