Deep-sky astrophotography
Two-stage TEC, ΔT up to 45 °C helps control thermal noise during long exposures of galaxies, nebulae and star clusters.
Deep-sky cooled

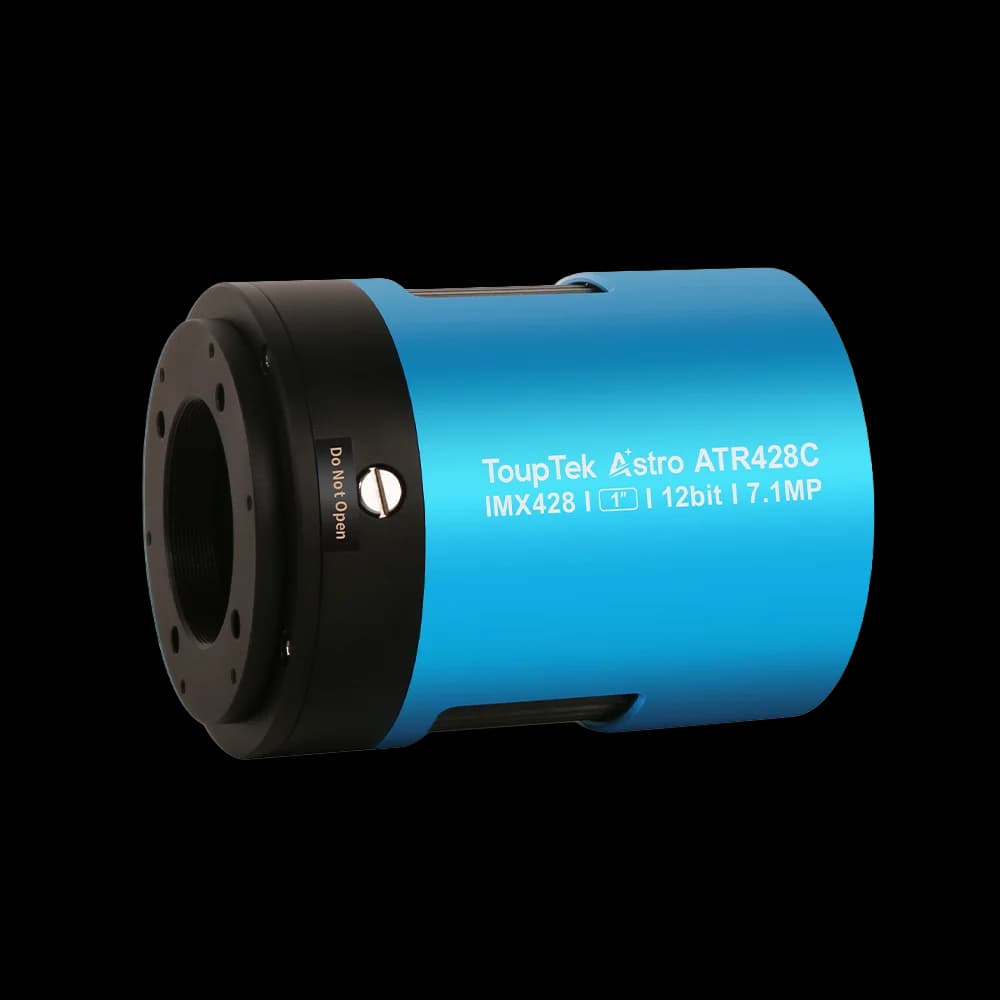

ATR428C
ToupTek ATR428C is a cooled deep-sky camera using the IMX428 sensor, with 7.04 MP (3200 × 2200), 4.5 µm pixels and 25.7 fps. Designed for deep-sky astrophotography, one-shot colour deep-sky imaging, high-resolution galaxy and lunar imaging. Available from Precisometer for professional astronomy systems.
- Sensor
- Sony IMX428 color CMOS
- Sensor Type
- Global-shutter color CMOS
- Resolution
- 7.04 MP (3200 × 2200)
- Pixel Size
- 4.5 µm
- Frame Rate
- 25.7 fps
- Interface
- USB 3.0
Application context
Why this design is used
Choose the ATR428C when your telescope and target benefit from 1-inch, 14.4 × 9.9 mm sensor coverage, 4.5 µm sampling, two-stage TEC, ΔT up to 45 °C and 380–690 nm response.
One-shot colour deep-sky imaging
The colour IMX428 sensor captures broadband targets without a separate LRGB filter sequence.
High-resolution galaxy and lunar imaging
4.5 µm pixels balance image scale and detail for appropriately matched telescope focal lengths.
Photometry and time-series imaging
12-bit acquisition, 76.4 dB dynamic range and regulated cooling support repeatable quantitative observations.
Specifications
ATR428C
30 specification rows
The ATR428C is an astronomy camera in the ATR DSO cooled series, built around a Sony IMX428 color CMOS sensor, 7.04 MP (3200 × 2200) resolution, 4.5 µm pixels, frame rates up to 25.7 fps, a USB 3.0 interface. It suits deep-sky cooled where reliable imaging performance and interface compatibility matter.
Sensor & Imaging
| Model | ATR428C |
|---|---|
| Status | Current |
| Application | Deep-sky cooled |
| Sensor | Sony IMX428 color CMOS |
| Sensor Type | Global-shutter color CMOS |

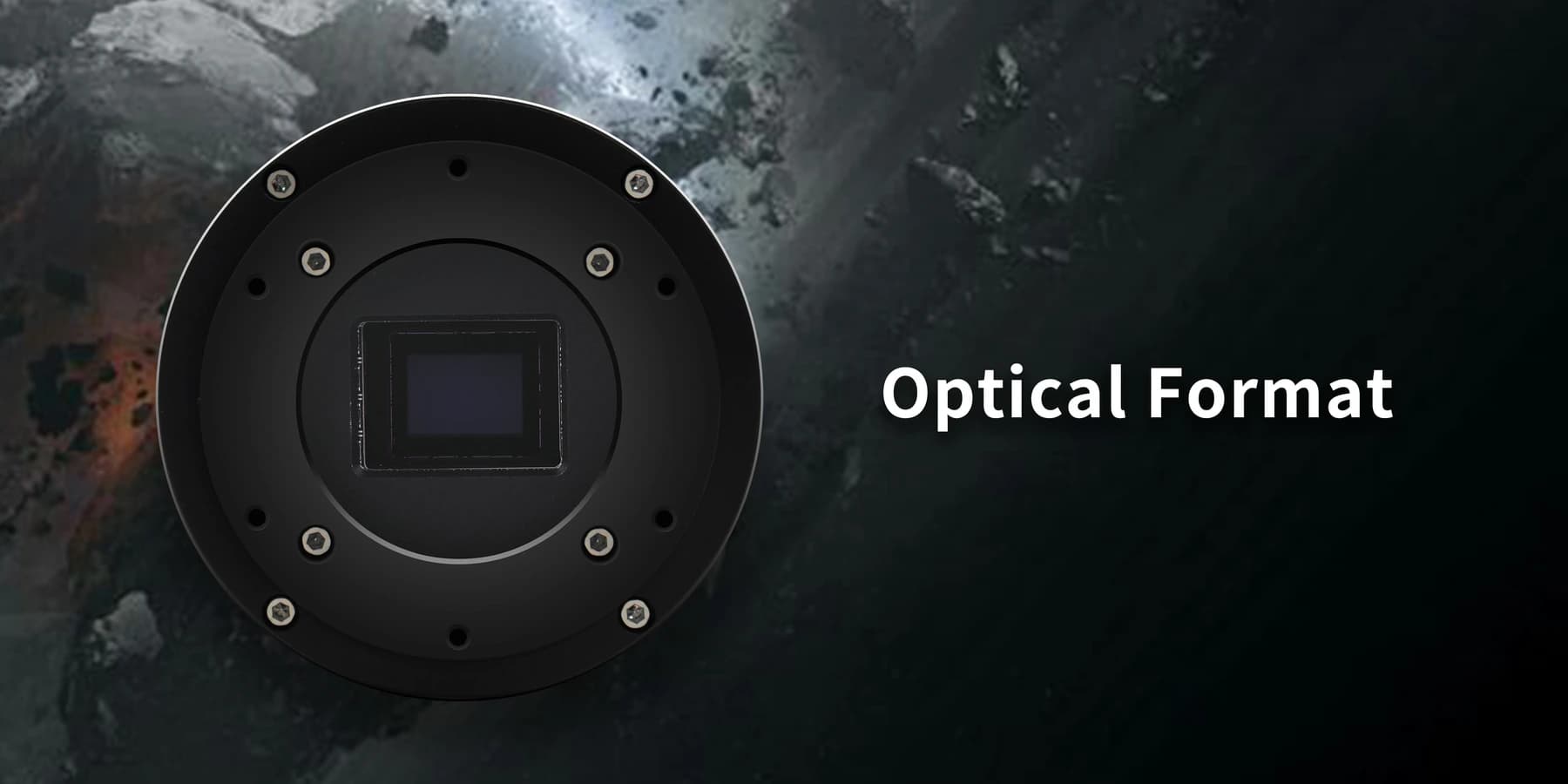

| Sensor Size | 1-inch, 14.4 × 9.9 mm |
| Resolution | 7.04 MP (3200 × 2200) |
| Pixel Size | 4.5 µm |
| Shutter Type | Global shutter |
Performance
| Frame Rate | 25.7 fps |
|---|---|
| ADC | 12-bit |
| Peak QE | >79% |
| Dynamic Range | 76.4 dB |
| Read Noise | 5.41–1.4 e⁻ |
| Full Well | 25 ke⁻ |
| Spectral Range | 380–690 nm |
Interface & Thermal
| Interface | USB 3.0 |
|---|---|
| Mount | M42 / M54 astronomy adapters |
| Cooling | Two-stage TEC, ΔT up to 45 °C |
Additional Published Specifications
| Legacy Model Name | ATR3CMOS07100KPA |
|---|---|
| Sensor Diagonal | 17.5mm |
| LCG Read Noise | 1.4-5.41 e- |
| Maximum SNR | 43dB |
| Frame Buffer | 512MB |
| Sensor Chamber Window | Adjustable heating window |
| Back Focal Distance | 17.5mm |
| Protective Window | IR-cut / AR window |
| Color Filter Array | RGGB |
| DDR3 Buffer | 512MB |
| Back Focus | 17.5mm |
Technical media
Performance graphs and technical drawings
Official sensor-response, performance, and mechanical imagery for the ATR428C.
System integration
Integration and compatibility
Use these checks to connect ATR428C to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Lens and microscope interface
- Mount: M42 / M54 astronomy adapters
- Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
- Sensor and sampling
- Sensor: Sony IMX428 color CMOS · Sensor Type: Global-shutter color CMOS
- Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
- Interface and data rate
- Frame Rate: 25.7 fps · Interface: USB 3.0
- Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
- Cooling and noise floor
- Dynamic Range: 76.4 dB · Read Noise: 5.41–1.4 e⁻
- Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Technical FAQ
Integration questions for ATR428C
What lens mount is required for the ATR428C?
Mount: M42 / M54 astronomy adapters. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
What sensor and pixel pitch does the ATR428C use?
Sensor: Sony IMX428 color CMOS · Sensor Type: Global-shutter color CMOS. Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
How does the ATR428C connect to the acquisition computer?
Frame Rate: 25.7 fps · Interface: USB 3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
What is the noise performance of the ATR428C?
Dynamic Range: 76.4 dB · Read Noise: 5.41–1.4 e⁻. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Nearby series comparison
Compare ATR428C with the closest available models in the ATR DSO cooled family.
| Selection parameter | ATR428C (current) | ATR294M | ATR428M |
|---|---|---|---|
| Sensor | Sony IMX428 color CMOS | Sony IMX492 monochrome CMOS | Sony IMX428 monochrome CMOS |
| Resolution | 7.04 MP (3200 × 2200) | 11.6 MP (4128 × 2808) | 7.04 MP (3200 × 2200) |
| Sensor size | 1-inch, 14.4 × 9.9 mm | 4/3-inch, 19.11 × 13.0 mm | 1-inch, 14.4 × 9.9 mm |
| Pixel size / frame rate | 4.5 µm | 4.63 µm | 4.5 µm |
