SWIR Cameras

Short-wave infrared cameras with published spectral ranges, sensor specifications and interface options.

71 modelsCamera Finder Compare by sensor

Choose a camera type

71 models

Visible + SWIR: 400–1700 nm

0.33 MP IMX991 cameras9 modelsSony 991 · 0.33 MP · Monochrome

Compare the published specifications below.Compare Sony 991 models →

0.33 MP IMX991 cameras — Sony-991 camera specifications
Model	Image type	Wavelength range	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
SWIR330KMAFull specifications →	Monochrome	400–1700 nm	Sony IMX991-AABA-C (InGaAs)	0.33 MP (640×512)	5.0 µm × 5.0 µm	USB3	Global shutter
SWIR330KMA-CL350Full specifications →	Monochrome	400–1700 nm	Sony IMX991-AABA-C (InGaAs)	0.33 MP (640×512)	5.0 µm × 5.0 µm	CameraLink	Global shutter
SWIR330KMA-CXPFull specifications →	Monochrome	400–1700 nm	Sony IMX991-AABA-C (InGaAs)	0.33 MP (640×512)	5.0 µm × 5.0 µm	CoaXPress 2.0 (CXP-10 x 1)	Global shutter
SWIR330KMA-GFull specifications →	Monochrome	400–1700 nm	Sony IMX991-AABA-C (InGaAs)	0.33 MP (640×512)	5.0 µm × 5.0 µm	GigE	Global shutter
SWIR330KMBFull specifications →	Monochrome	400–1700 nm	Sony IMX991-AABJ-C (InGaAs)	0.33 MP (640×512)	5.0 µm × 5.0 µm	USB3	Global shutter
SWIR330KMB-GFull specifications →	Monochrome	400–1700 nm	Sony IMX991-AABJ-C (InGaAs)	0.33 MP (640×512)	5.0 µm × 5.0 µm	GigE	Global shutter
SWIR330KMB-GMVFull specifications →	Monochrome	400–1700 nm	Sony IMX991-AABJ-C (InGaAs)	0.33 MP (640×512)	5.0 µm × 5.0 µm	GigE	Global shutter
SWIR330KMB-UMVFull specifications →	Monochrome	400–1700 nm	Sony IMX991-AABJ-C (InGaAs)	0.33 MP (640×512)	5.0 µm × 5.0 µm	USB3	Global shutter
SWIR330KMB-WUHFull specifications →	Monochrome	400–1700 nm	Sony IMX991-AABJ-C (InGaAs)	0.33 MP (640×512)	5.0 µm × 5.0 µm	HDMI 1.4 / WiFi / USB Video (Micro USB)	Natural cooling

1.3 MP IMX990 cameras8 modelsSony 990 · 1.3 MP · Monochrome

Compare the published specifications below.Compare Sony 990 models →

1.3 MP IMX990 cameras — Sony-990 camera specifications
Model	Image type	Wavelength range	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
SWIR1300KMAFull specifications →	Monochrome	400–1700 nm	Sony IMX990-AABA-C (InGaAs)	1.3 MP (1280×1024)	5.0 µm × 5.0 µm	USB3	Global shutter
SWIR1300KMA-CL180Full specifications →	Monochrome	400–1700 nm	Sony IMX990-AABA-C (InGaAs)	1.3 MP (1280×1024)	5.0 µm × 5.0 µm	CameraLink	Global shutter
SWIR1300KMA-CXPFull specifications →	Monochrome	400–1700 nm	Sony IMX990-AABA-C (InGaAs)	1.3 MP (1280×1024)	5.0 µm × 5.0 µm	CoaXPress 2.0 (CXP-10 x 1)	Global shutter
SWIR1300KMA-GFull specifications →	Monochrome	400–1700 nm	Sony IMX990-AABA-C (InGaAs)	1.3 MP (1280×1024)	5.0 µm × 5.0 µm	GigE	Global shutter
SWIR1300KMBFull specifications →	Monochrome	400–1700 nm	Sony IMX990-AABJ-C (InGaAs)	1.3 MP (1280×1024)	5.0 µm × 5.0 µm	USB3	Global shutter
SWIR1300KMB-GFull specifications →	Monochrome	400–1700 nm	Sony IMX990-AABJ-C (InGaAs)	1.3 MP (1280×1024)	5.0 µm × 5.0 µm	GigE	Global shutter
SWIR1300KMB-GMVFull specifications →	Monochrome	400–1700 nm	Sony IMX990-AABJ-C (InGaAs)	1.3 MP (1280×1024)	5.0 µm × 5.0 µm	GigE	Global shutter
SWIR1300KMB-UMVFull specifications →	Monochrome	400–1700 nm	Sony IMX990-AABJ-C (InGaAs)	1.3 MP (1280×1024)	5.0 µm × 5.0 µm	USB3	Global shutter

3 MP IMX993 cameras7 modelsSony 993 · 3 MP · Monochrome

Compare the published specifications below.Compare Sony 993 models →

3 MP IMX993 cameras — Sony-993 camera specifications
Model	Image type	Wavelength range	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
SWIR3000KMAFull specifications →	Monochrome	400–1700 nm	Sony IMX993-AABA-C (InGaAs)	3.0 MP (2048×1536)	3.45 µm × 3.45 µm	USB3	Global shutter
SWIR3000KMA-10GFull specifications →	Monochrome	400–1700 nm	Sony IMX993-AABA-C (InGaAs)	3.0 MP (2048×1536)	3.45 µm × 3.45 µm	10GigE	Global shutter
SWIR3000KMA-CL150Full specifications →	Monochrome	400–1700 nm	Sony IMX993-AABA-C (InGaAs)	3.0 MP (2048×1536)	3.45 µm × 3.45 µm	CameraLink	Global shutter
SWIR3000KMA-CXPFull specifications →	Monochrome	400–1700 nm	Sony IMX993-AABA-C (InGaAs)	3.0 MP (2048×1536)	3.45 µm × 3.45 µm	CoaXPress 2.0 (CXP-10 x 1)	Global shutter
SWIR3000KMBFull specifications →	Monochrome	400–1700 nm	Sony IMX993-AABJ-C (InGaAs)	3.0 MP (2048×1536)	3.45 µm × 3.45 µm	USB3	Global shutter
SWIR3000KMB-GMVFull specifications →	Monochrome	400–1700 nm	Sony IMX993-AABJ-C (InGaAs)	3.0 MP (2048×1536)	3.45 µm × 3.45 µm	GigE	Global shutter
SWIR3000KMB-UMVFull specifications →	Monochrome	400–1700 nm	Sony IMX993-AABJ-C (InGaAs)	3.0 MP (2048×1536)	3.45 µm × 3.45 µm	USB3	Global shutter

5 MP IMX992 cameras9 modelsSony 992 · 5 MP · Monochrome

Compare the published specifications below.Compare Sony 992 models →

5 MP IMX992 cameras — Sony-992 camera specifications
Model	Image type	Wavelength range	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
SWIR5000KMAFull specifications →	Monochrome	400–1700 nm	Sony IMX992-AABA-C (InGaAs)	5.0 MP (2560×2048)	3.45 µm × 3.45 µm	USB3	Global shutter
SWIR5000KMA-10GFull specifications →	Monochrome	400–1700 nm	Sony IMX992-AABA-C (InGaAs)	5.0 MP (2560×2048)	3.45 µm × 3.45 µm	10GigE	Global shutter
SWIR5000KMA-CL100Full specifications →	Monochrome	400–1700 nm	Sony IMX992-AABA-C (InGaAs)	5.0 MP (2560×2048)	3.45 µm × 3.45 µm	CameraLink	Global shutter
SWIR5000KMA-CXPFull specifications →	Monochrome	400–1700 nm	Sony IMX992-AABA-C (InGaAs)	5.0 MP (2560×2048)	3.45 µm × 3.45 µm	CoaXPress 2.0 (CXP-10 x 1)	Global shutter
SWIR5000KMBFull specifications →	Monochrome	400–1700 nm	Sony IMX992-AABJ-C (InGaAs)	5.0 MP (2560×2048)	3.45 µm × 3.45 µm	USB3	Global shutter
SWIR5000KMB-10GFull specifications →	Monochrome	400–1700 nm	Sony IMX992-AABJ-C (InGaAs)	5.0 MP (2560×2048)	3.45 µm × 3.45 µm	10GigE	Global shutter
SWIR5000KMB-CXPFull specifications →	Monochrome	400–1700 nm	Sony IMX992-AABJ-C (InGaAs)	5.0 MP (2560×2048)	3.45 µm × 3.45 µm	CoaXPress 2.0 (CXP-10 x 1)	Global shutter
SWIR5000KMB-GMVFull specifications →	Monochrome	400–1700 nm	Sony IMX992-AABJ-C (InGaAs)	5.0 MP (2560×2048)	3.45 µm × 3.45 µm	GigE	Global shutter
SWIR5000KMB-UMVFull specifications →	Monochrome	400–1700 nm	Sony IMX992-AABJ-C (InGaAs)	5.0 MP (2560×2048)	3.45 µm × 3.45 µm	USB3	Global shutter

SWIR: 900–1700 nm

640 × 512 InGaAs cameras19 models900 1700 VGA · 0.33 MP · Monochrome

Compare the published specifications below.Compare 900 1700 VGA models →

640 × 512 InGaAs cameras — 900-1700-VGA camera specifications
Model	Image type	Wavelength range	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
SWIR331KMA-CL1000Full specifications →	Monochrome	900–1700 nm	China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	CameraLink Full	Global Shutter
SWIR331KMA-CL500Full specifications →	Monochrome	900–1700 nm	China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	CameraLink Full	Global Shutter
SWIR331KMA-CL700Full specifications →	Monochrome	900–1700 nm	China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	CameraLink Full	Global Shutter
SWIR331KMB-10GFull specifications →	Monochrome	900–1700 nm	China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	10GigE	Global Shutter
SWIR331KMB-CL1000Full specifications →	Monochrome	900–1700 nm	China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	CameraLink Full	Global Shutter
SWIR331KMB-CL500Full specifications →	Monochrome	900–1700 nm	China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	CameraLink Full	Global Shutter
SWIR331KMB-CL700Full specifications →	Monochrome	900–1700 nm	China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	CameraLink Full	Global Shutter
SWIR331KMB-G125Full specifications →	Monochrome	900–1700 nm	China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	GigE	Global Shutter
SWIR331KMB-G125-C0Full specifications →	Monochrome		China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	GigE	Global Shutter
SWIR331KMB-G350Full specifications →	Monochrome	900–1700 nm	China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	GigE	Global Shutter
SWIR331KMB-G700Full specifications →	Monochrome	900–1700 nm	China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	GigE	Global Shutter
SWIR331KMB-GMVFull specifications →	Monochrome	900–1700 nm	China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	GigE	Global Shutter
SWIR331KMB-GMV100Full specifications →	Monochrome	900–1700 nm	China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	GigE	Global Shutter
SWIR331KMB-GMV335Full specifications →	Monochrome	900–1700 nm	China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	GigE	Global Shutter
SWIR331KMB-U700Full specifications →	Monochrome	900–1700 nm	China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	USB3	Global Shutter
SWIR331KMB-U700-C0Full specifications →	Monochrome		China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	USB3	Global Shutter
SWIR331KMB-UMVFull specifications →	Monochrome	900–1700 nm	China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	USB3	Global Shutter
SWIR339KMB-CL700Full specifications →	Monochrome	900–1700 nm	China-made 640×512 (InGaAs CMOS), built-in TEC	0.33 MP (640×512)	15 µm × 15 µm	CameraLink Full	Global Shutter
SWIR339KMB-CL700-HFull specifications →	Monochrome	900–1700 nm	China-made 640×512 (InGaAs CMOS)	0.33 MP (640×512)	15 µm × 15 µm	CameraLink Full	Global Shutter

1280 × 1024 InGaAs cameras8 models900 1700 13mp · 1.3 MP · Monochrome

Compare the published specifications below.Compare 900 1700 13mp models →

1280 × 1024 InGaAs cameras — 900-1700-13mp camera specifications
Model	Image type	Wavelength range	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
SWIR1302KMA-CL200Full specifications →	Monochrome	900–1700 nm	China-made 1280×1024 (InGaAs CMOS)	1.3 MP (1280×1024)	15 µm × 15 µm	CameraLink Full	Global Shutter
SWIR1302KMB-10GFull specifications →	Monochrome	900–1700 nm	China-made 1280×1024 (InGaAs CMOS)	1.3 MP (1280×1024)	15 µm × 15 µm	10GigE	Global Shutter
SWIR1302KMB-CL200Full specifications →	Monochrome	900–1700 nm	China-made 1280×1024 (InGaAs CMOS)	1.3 MP (1280×1024)	15 µm × 15 µm	CameraLink Full	Global Shutter
SWIR1302KMB-CXPFull specifications →	Monochrome	900–1700 nm	China-made 1280×1024 (InGaAs CMOS)	1.3 MP (1280×1024)	15 µm × 15 µm	CoaXPress 2.0 (CXP-10 x 1)	Global Shutter
SWIR1302KMB-GFull specifications →	Monochrome	900–1700 nm	China-made 1280×1024 (InGaAs CMOS)	1.3 MP (1280×1024)	15 µm × 15 µm	GigE	40 °C below ambient temperature
SWIR1302KMB-U200Full specifications →	Monochrome	900–1700 nm	China-made 1280×1024 (InGaAs CMOS)	1.3 MP (1280×1024)	15 µm × 15 µm	USB3	Global Shutter
SWIR1303KMB-10GFull specifications →	Monochrome	900–1700 nm	China-made 1280×1024 InGaAs	1.3 MP (1280×1024)	15 µm × 15 µm	10GigE	Global Shutter
SWIR1303KMB-GFull specifications →	Monochrome	900–1700 nm	China-made 1280×1024 InGaAs	1.3 MP (1280×1024)	15 µm × 15 µm	GigE	40 °C below ambient temperature

UV & SWIR spectral options

400–1700 / 800–1700 nm cameras2 models300 1700 C · 0.33 MP · Monochrome

Compare the published specifications below.Compare 300 1700 C models →

400–1700 / 800–1700 nm cameras — 300-1700-C camera specifications
Model	Image type	Wavelength range	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
SWIR334KMB-U110Full specifications →	Monochrome	800–1700 nm	China-made 640×512 (CQDs)	0.33 MP (640×512)	15 µm × 15 µm	USB3	Global Shutter
SWIR335KMB-U200Full specifications →	Monochrome	400–1700 nm	China-made 640×512 (CQDs)	0.33 MP (640×512)	15 µm × 15 µm	USB3	Global Shutter

300–1400 / 400–1700 nm cameras2 models300 1700 UMV · 0.33 MP · Monochrome

Compare the published specifications below.Compare 300 1700 UMV models →

300–1400 / 400–1700 nm cameras — 300-1700-UMV camera specifications
Model	Image type	Wavelength range	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
SWIR335KMB-UMVFull specifications →	Monochrome	400–1700 nm	China-made 640×512 (CQDs)	0.33 MP (640×512)	15 µm × 15 µm	USB3	Global shutter
SWIR336KMB-UMVFull specifications →	Monochrome	300–1400 nm	China-made 640×512 (CQDs)	0.33 MP (640×512)	15 µm × 15 µm	USB3	Global shutter

Additional SWIR spectral ranges

SWIR cameras with different wavelength ranges5 models400 2500 · 0.33–1.3 MP · Monochrome

Compare the published specifications below.Compare 400 2500 models →

SWIR cameras with different wavelength ranges — 400-2500 camera specifications
Model	Image type	Wavelength range	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
SWIR1302KMB-E0417-U200Full specifications →	Monochrome	400–1700 nm	China-made 1280 × 1024 sensor	1.3 MP (1280 × 1024)	15 µm × 15 µm	USB3	40 °C below ambient temperature
SWIR333KMB-E1019-U240Full specifications →	Monochrome	1000–1900 nm	China-made 640×512 (InGaAs)	0.33 MP (640×512)	15 µm × 15 µm	USB3	Global Shutter
SWIR333KMB-E1222-U270Full specifications →	Monochrome	1200–2200 nm	China-made 640×512 (InGaAs)	0.33 MP (640×512)	15 µm × 15 µm	USB3	Global Shutter
SWIR339KMB-E0417-CL700Full specifications →	Monochrome	400–1700 nm	China-made 640×512 (InGaAs)	0.33 MP (640×512)	15 µm × 15 µm	CameraLink	Global Shutter
SWIR339KMB-E0417-U700Full specifications →	Monochrome	400–1700 nm	China-made 640×512 (InGaAs)	0.33 MP (640×512)	15 µm × 15 µm	USB3	Global Shutter

SWIR line-scan imaging

2K SWIR line-scan camera2 models900 1700 linescan · 2048 pixels (2048 × 1) · Monochrome

Compare the published specifications below.Compare 900 1700 linescan models →

2K SWIR line-scan camera — 900-1700-linescan camera specifications
Model	Image type	Wavelength range	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
SWIR2048L3A-CL80KFull specifications →	Monochrome	900–1700 nm	China-made 2048-pixel line-scan sensor	2048 pixels (2048 × 1)	12.5 µm × 12.5 µm	CameraLink Full	40 °C below ambient temperature
SWIR2048L3B-CL80KFull specifications →	Monochrome	900–1700 nm	China-made 2048-pixel line-scan sensor	2048 pixels (2048 × 1)	12.5 µm × 250 µm	CameraLink Full	40 °C below ambient temperature

Series Technical Data

400–1700 nm SWIR

400–1700 nm SWIR

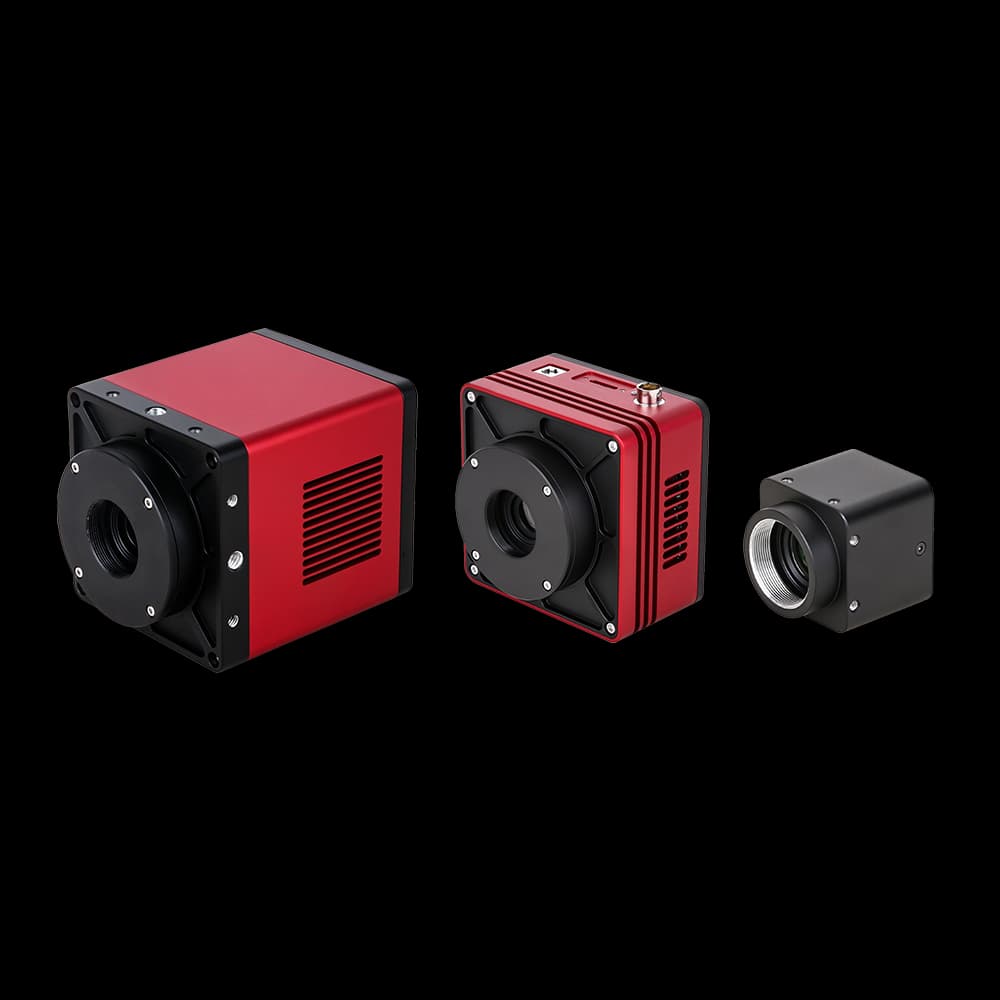

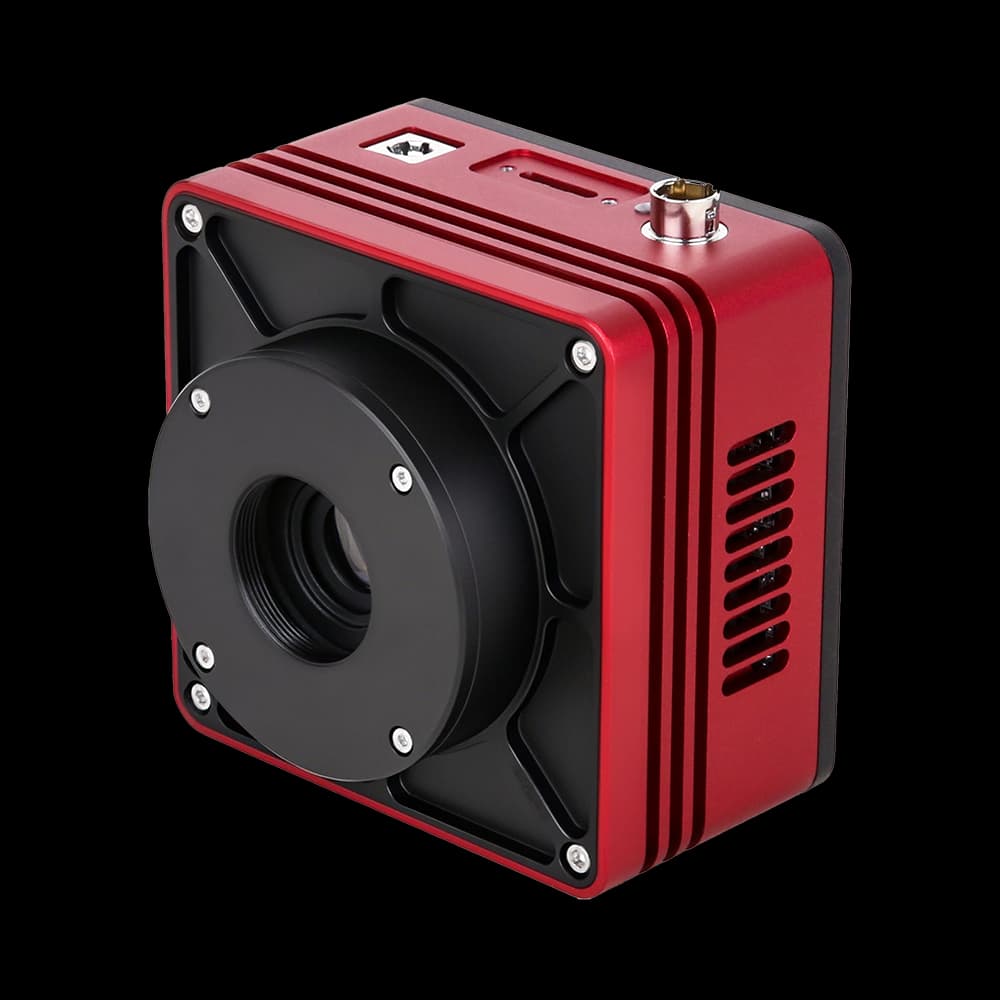

Parameter	SWIR5000	SWIR3000	SWIR1300	SWIR330
Image Sensor	Sony IMX992 (SenSWIR InGaAs, GS)	Sony IMX993 (SenSWIR InGaAs, GS)	Sony IMX990 (SenSWIR InGaAs, GS)	Sony IMX991 (SenSWIR InGaAs, GS)
Spectral Range	400 – 1700 nm	400 – 1700 nm	400 – 1700 nm	400 – 1700 nm
Resolution	5.0 MP (2560 × 2048)	3.0 MP (2048 × 1536)	1.3 MP (1280 × 1024)	0.33 MP (640 × 512)
Pixel Size (μm)	3.45 × 3.45	3.45 × 3.45	5.0 × 5.0	5.0 × 5.0
Sensor Format	1/1.4" (8.94 × 7.09 mm)	1/1.8" (7.07 × 5.30 mm)	1/2" (6.40 × 5.12 mm)	1/4" (3.20 × 2.56 mm)
A/D Conversion	12-Bit / 8-Bit	12-Bit / 8-Bit	12-Bit / 8-Bit	12-Bit / 8-Bit
Frame Rate (USB3 8-bit)	61.9 fps @ full 135.7 fps @ 1280×1024	93 fps @ full 176 fps @ 1024×768	200 fps @ full 392 fps @ 640×512	400 fps @ full 753 fps @ 320×256
Frame Rate (10G 8-bit)	165 fps @ full 322 fps @ 1280×1024	220 fps @ full 415 fps @ 1024×768	90 fps @ full 253 fps @ 640×512	—
Dynamic Range (HCG)	51.5 dB	51.5 dB	58.7 dB	58.7 dB
Full Well Capacity	41.4 ke⁻ (HCG) / 69.9 ke⁻ (LCG)	41.4 ke⁻ (HCG) / 69.9 ke⁻ (LCG)	181.6 ke⁻	173.2 ke⁻
Conversion Gain	10.3 e⁻/ADU (HCG) 17.3 e⁻/ADU (LCG)	10.3 e⁻/ADU (HCG) 17.3 e⁻/ADU (LCG)	44.3 e⁻/ADU (KMA) 42.8 e⁻/ADU (KMB)	42.3 e⁻/ADU (KMA) 43.0 e⁻/ADU (KMB)
Peak Quantum Efficiency	~80% (Sony SenSWIR)	~80% (Sony SenSWIR)	~80% (Sony SenSWIR)	~80% (Sony SenSWIR)
Dark Current	Low (SenSWIR)	Low (SenSWIR)	383 e⁻/s @ 0°C 638 e⁻/s @ 20°C	383 e⁻/s @ 0°C 638 e⁻/s @ 20°C
Exposure Range	15 μs – 60 s	15 μs – 60 s	15 μs – 60 s	15 μs – 60 s
Shutter	Global Shutter	Global Shutter	Global Shutter	Global Shutter
Binning	SW 2×2, 3×3, 4×4	SW 2×2, 3×3, 4×4	SW 2×2, 3×3, 4×4	SW 2×2, 3×3, 4×4
Cooling (KMA)	Built-in TEC: 25°C below ambient	Built-in TEC: 25°C below ambient	Built-in TEC: 25°C below ambient	Built-in TEC: 25°C below ambient
Cooling (KMB)	External TEC: 10°C below ambient	External TEC: 10°C below ambient	External TEC: 10°C below ambient	External TEC: 10°C below ambient
Available Interfaces	USB3 / 10GigE / CameraLink / CXP / UMV	USB3 / 10GigE / CameraLink / CXP / UMV	USB3 / GigE / CameraLink / CXP / UMV	USB3 / GigE / CameraLink / CXP / UMV
Digital I/O	1× opto-isolated IN, 1× opto-isolated OUT, 2× non-isolated I/O	1× opto-isolated IN, 1× opto-isolated OUT, 2× non-isolated I/O	1× opto-isolated IN, 1× opto-isolated OUT, 2× non-isolated I/O	1× opto-isolated IN, 1× opto-isolated OUT, 2× non-isolated I/O
Body Size (standard)	80 × 80 × 45.5 mm	80 × 80 × 45.5 mm	80 × 80 × 45.5 mm	80 × 80 × 45.5 mm
Body Size (UMV)	33 × 33 × 38 mm (70 g)	33 × 33 × 38 mm (70 g)	33 × 33 × 38 mm (70 g)	33 × 33 × 38 mm (70 g)
Lens Mount	C-mount	C-mount	C-mount	C-mount
Power	USB3 bus / DC 12V adapter	USB3 bus / DC 12V adapter	USB3 bus / DC 12V adapter	USB3 bus / DC 12V adapter
Software / OS	ToupView, SDK (C/C++/C#/Python) Win / Linux / macOS / Android	ToupView, SDK Win / Linux / macOS / Android	ToupView, SDK Win / Linux / macOS / Android	ToupView, SDK Win / Linux / macOS / Android

900–1700 nm SWIR

900–1700 nm SWIR

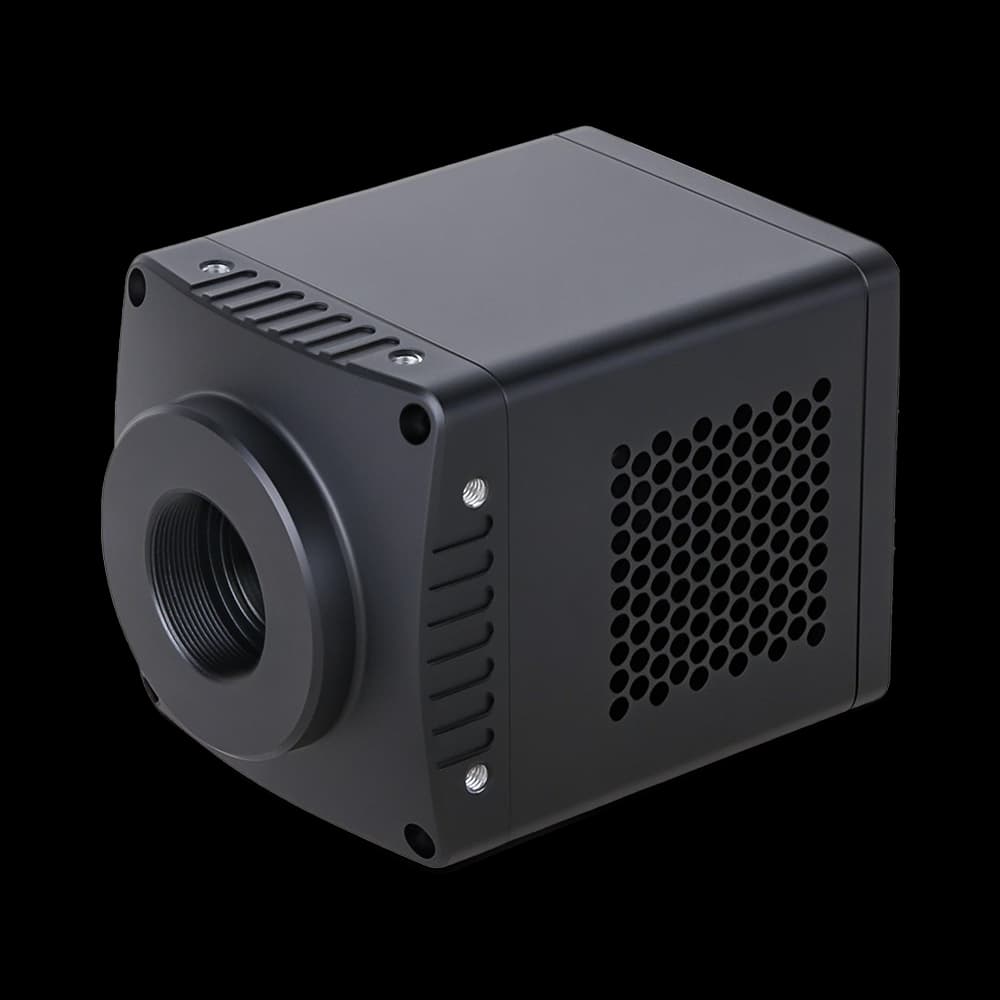

Parameter	SWIR1302	SWIR331
Image Sensor	Domestic InGaAs CMOS (1280 × 1024)	Domestic InGaAs CMOS (640 × 512)
Spectral Range	900 – 1700 nm	900 – 1700 nm
Resolution	1.3 MP (1280 × 1024)	0.33 MP (640 × 512)
Pixel Size (μm)	15 × 15	15 × 15
Sensor Format	1.5" (19.2 × 15.36 mm)	3/4" (9.60 × 7.68 mm)
A/D Conversion	14-Bit	14-Bit
Frame Rate (USB3)	200 fps @ 1280×1024	724 fps @ 640×512 (8-bit) 579 fps (14-bit)
Frame Rate (10G)	200 fps @ 1280×1024	724 fps @ 640×512
Frame Rate (CameraLink)	200 fps @ 1280×1024 (CL200)	Up to 1000 fps @ 640×512 (CL1000)
Peak QE	≥ 70% @ 1.55 μm	≥ 75% @ 1350 nm
Dynamic Range (LG)	70.6 dB (LG) / 67.9 dB (MG)	70.6 dB (LG) / 67.9 dB (MG)
SNR max (LG)	65.4 dB	65.4 dB
Full Well (LG)	1.9 Me⁻	3.5 Me⁻
Readout Noise	586.8 e⁻ (LG) / 35.1 e⁻ (MG) / 68.4 e⁻ (HG)	586.8 e⁻ (LG) / 35.1 e⁻ (MG) / 68.4 e⁻ (HG)
Dark Current	30 fA @ 0.1V & 18°C	30 fA @ 0.1V & 18°C
Cooling	Deep TEC: 40°C below ambient	Deep TEC: 40°C below ambient
Exposure Range	16 μs – 1 s (USB/CL) 25 μs – 5 s (GigE/10G)	16 μs – 1 s (CL) 25 μs – 5 s (GigE/10G)
Shutter	Global Shutter	Global Shutter
Available Interfaces	USB3 / 10GigE / CameraLink	USB3 / GigE / 10GigE / CameraLink / UMV
Digital I/O	1× opto-isolated IN, 1× opto-isolated OUT	1× opto-isolated IN, 1× opto-isolated OUT
Body Size	68 × 68 × 89.8 mm (485 g)	68 × 68 × 90.3 mm (485 g)
Lens Mount	M42 (U200) / C-mount (CL)	C-mount
Power	DC 12V, 8.4W (TEC OFF) / <16W (TEC ON)	DC 12V, 8.4W (TEC OFF) / <16W (TEC ON)
Software / OS	ToupView / CLView (Delsa) Win / Linux / macOS	ToupView / CLView (Delsa) Win / Linux / macOS

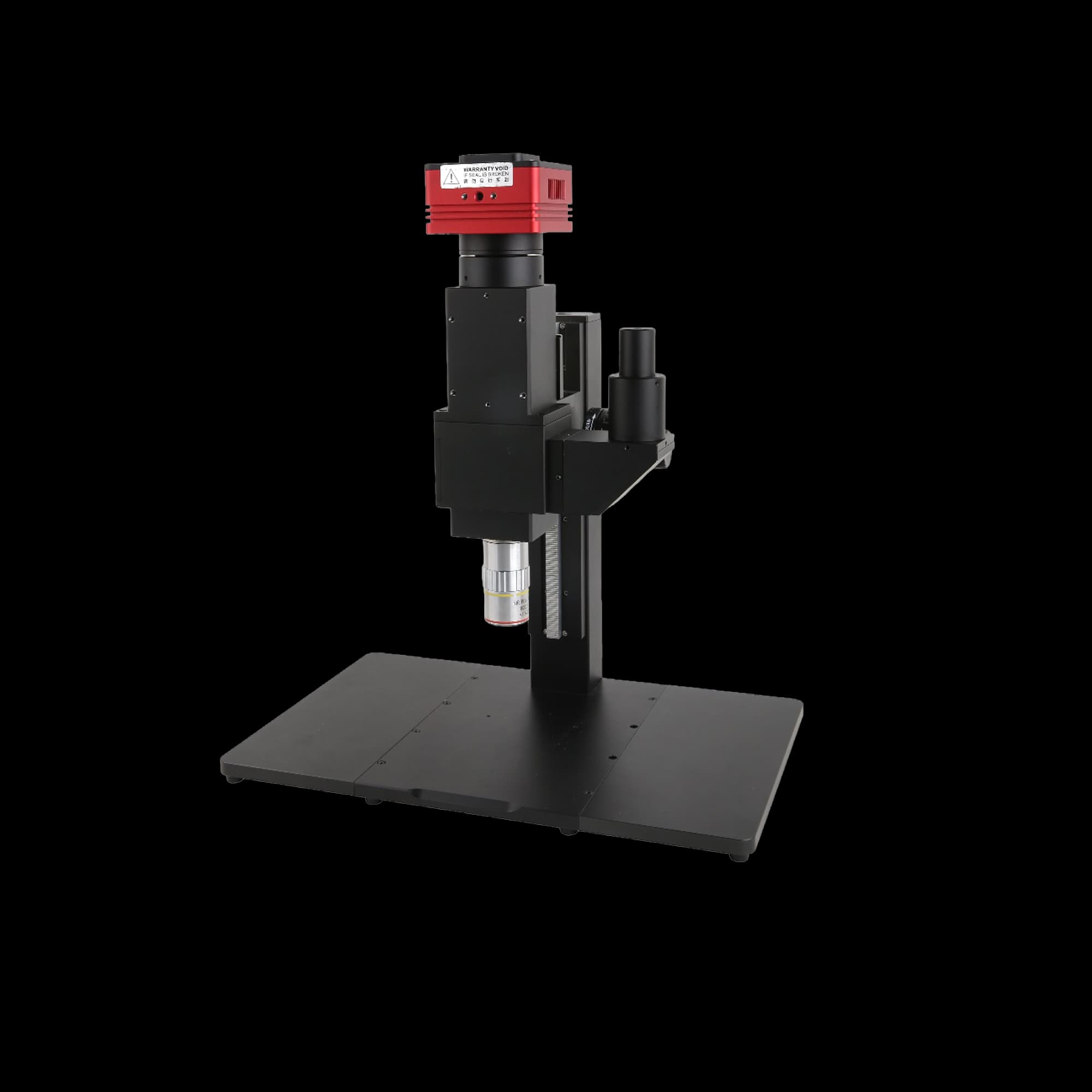

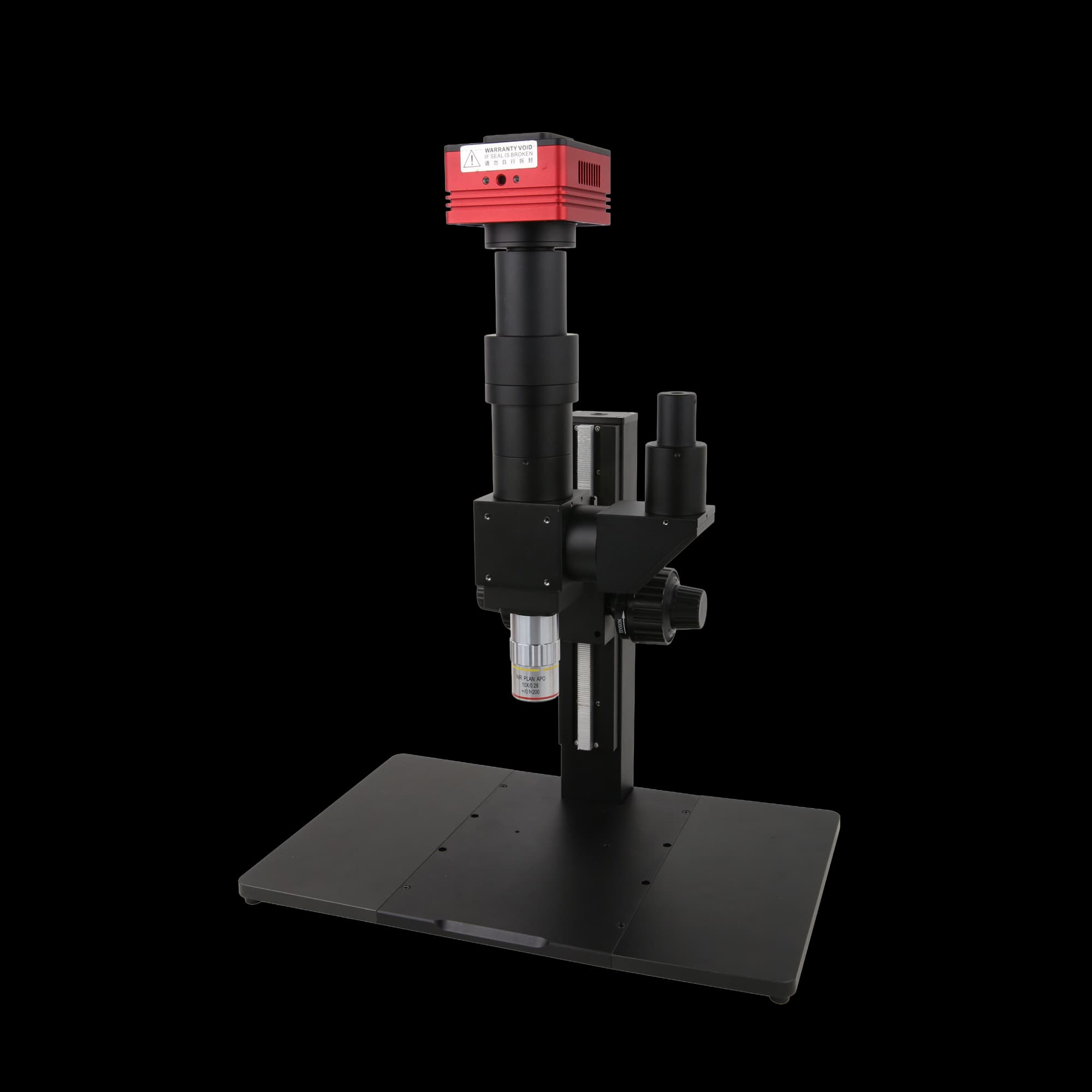

BSM SWIR microscope systems

BSM SWIR microscope systems
Parameter	BSM-T180VA / BSM-T090VA	BSM-T100
Tube Lens Focal Length	180 mm (BSM-T180VA) / 90 mm (BSM-T090VA)	100 mm
Supported Objectives	Infinity SWIR microscope objectives	High-NA infinity SWIR microscope objectives
Field Number	FN 24 mm (at 180 mm tube lens)	FN 33 mm (at 200 mm tube lens)
Wavelength Range	900 – 1700 nm	900 – 1700 nm
Illumination	LED (1550 / 1400 / 1300 / 1200 nm)	Coaxial Köhler LED (1550 / 1400 / 1300 / 1200 nm)
Camera Interface	C-mount	C-mount
Compatible Camera	SWIR series cameras (900–1700 nm)	SWIR series cameras (900–1700 nm)

M Plan Apo NIR objectives

M Plan Apo NIR objectives
Model	NA	Working distance	Resolution	Field number	Weight
M Plan Apo NIR 5×	0.14	37.5 mm	20 μm	24 mm	220 g
M Plan Apo NIR 10×	0.26	30.5 mm	1.1 μm	24 mm	250 g
M Plan Apo NIR 20×	0.40	20 mm	0.7 μm	24 mm	300 g
M Plan Apo NIR 50×	0.42	17 mm	0.7 μm	24 mm	315 g
M Plan Apo NIR 50× HR	0.65	10 mm	0.4 μm	24 mm	450 g
